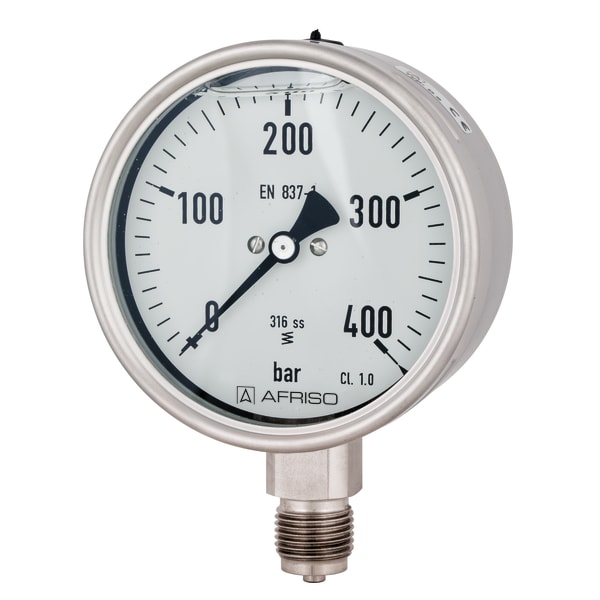

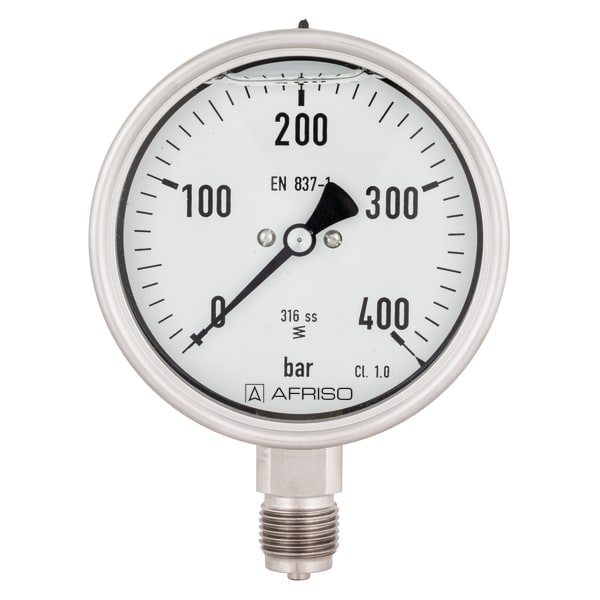

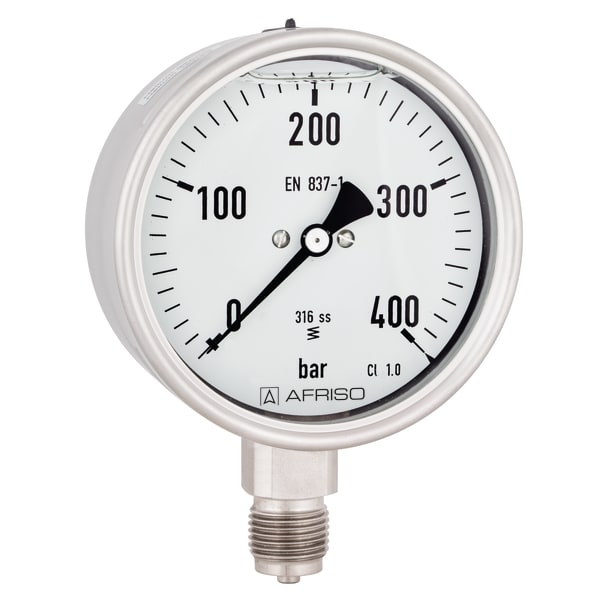

RF100ChGly D802

Rohrfeder-Chemiemanometer Typ D8 mit Glyzerinfüllung

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom
accuracy class1,0
standardEN 837-1

  • for chemical and process engineering applications
  • measuring system fully welded to housing
  • extremely robust design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • tightness-tested with helium
  • DNV- and GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. For measurements in areas with high vibration levels and high, dynamic pressure loads.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-1/0 bardirectRF100ChGly D80285201802
-1/0.6 bardirectRF100ChGly D80285202802
-1/+1.5 bardirectRF100ChGly D80285203802
-1/+3 bardirectRF100ChGly D80285204802
-1/+5 bardirectRF100ChGly D80285205802
-1/+9 bardirectRF100ChGly D80285206802
-1/+15 bardirectRF100ChGly D80285207802
0/0.6 bardirectRF100ChGly D80285209802
0/1 bardirectRF100ChGly D80285210802
0/1.6 bardirectRF100ChGly D80285211802
0/2.5 bardirectRF100ChGly D80285212802
0/4 bardirectRF100ChGly D80285213802
0/6 bardirectRF100ChGly D80285214802
0/10 bardirectRF100ChGly D80285215802
0/16 bardirectRF100ChGly D80285216802
0/25 bardirectRF100ChGly D80285217802
0/40 bardirectRF100ChGly D80285218802
0/60 bardirectRF100ChGly D80285219802
0/100 bardirectRF100ChGly D80285220802
0/160 bardirectRF100ChGly D80285221802
0/250 bardirectRF100ChGly D80285222802
0/400 bardirectRF100ChGly D80285223802
0/600 bardirectRF100ChGly D80285224802
0/1 000 bardirectRF100ChGly D80285225802
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 54 (EN 60529) with housing vent (< 25 bar)

Standard design

Connection
stainless steel 316 Ti/316 L, bottom
Measuring element
Bourdon tube, stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
tightness-tested with helium
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Sicherheitsverbundglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

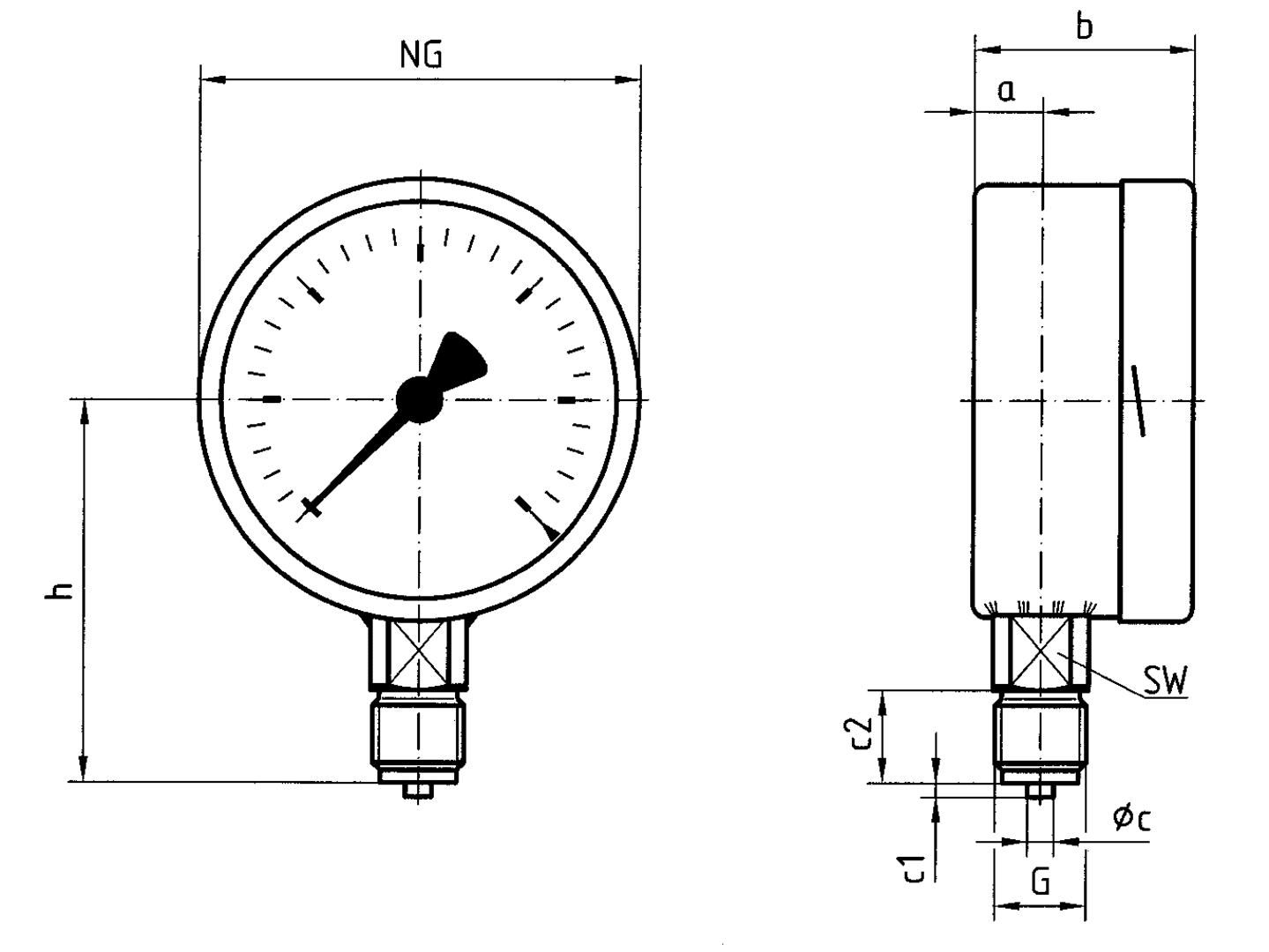

Bottom connection
