Industrial technology Mechanical pressure measuring instruments RF100Gly D711
PRO_TEC_ILL_SCHNITT_RF.TIF
PRO_TEC_SCD_MANOMETER_AXIAL_ZENTRISCH.TIF
PRO_TEC_ILL_SCHNITT_RF.TIF
PRO_TEC_SCD_MANOMETER_AXIAL_ZENTRISCH.TIF
Images 2

RF100Gly D711

Rohrfeder-Glyzerinmanometer Typ D7

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF100Gly D71185201711
-1/0.6 bardirectRF100Gly D71185202711
-1/+1.5 bardirectRF100Gly D71185203711
-1/+3 bardirectRF100Gly D71185204711
-1/+5 bardirectRF100Gly D71185205711
-1/+9 bardirectRF100Gly D71185206711
-1/+15 bardirectRF100Gly D71185207711
0/1 bardirectRF100Gly D71185210711
0/1.6 bardirectRF100Gly D71185211711
0/2.5 bardirectRF100Gly D71185212711
0/4 bardirectRF100Gly D71185213711
0/6 bardirectRF100Gly D71185214711
0/10 bardirectRF100Gly D71185215711
0/16 bardirectRF100Gly D71185216711
0/25 bardirectRF100Gly D71185217711
0/40 bardirectRF100Gly D71185218711
0/60 bardirectRF100Gly D71185219711
0/100 bardirectRF100Gly D71185220711
0/160 bardirectRF100Gly D71185221711
0/250 bardirectRF100Gly D71185222711
0/400 bardirectRF100Gly D71185223711
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, centre back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
Scaling:
black
RF100Gly:
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

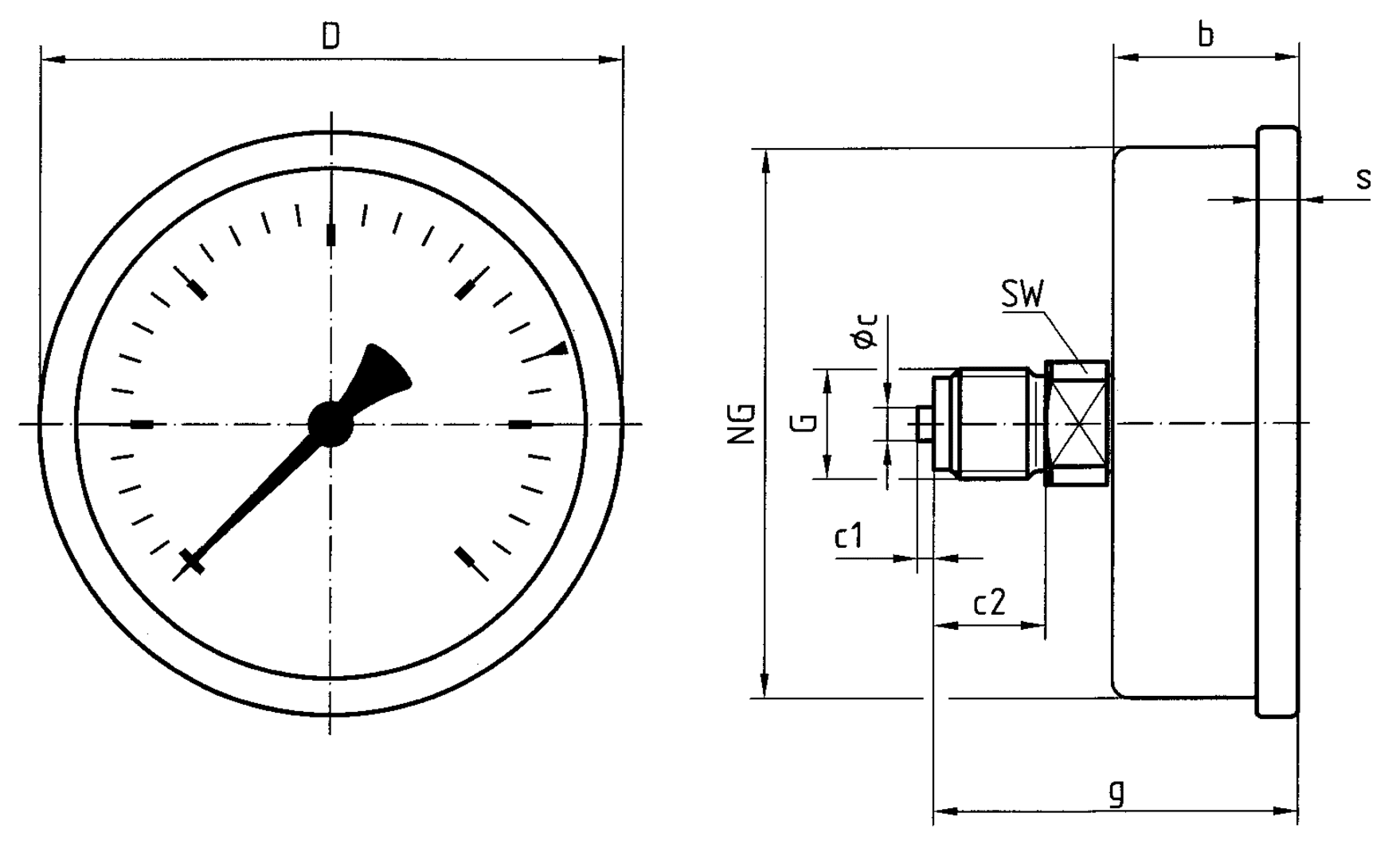

NG 80/100 – centre back connection
