RF100Gly D751

Rohrfeder-Glyzerinmanometer Typ D7

Variants Documents

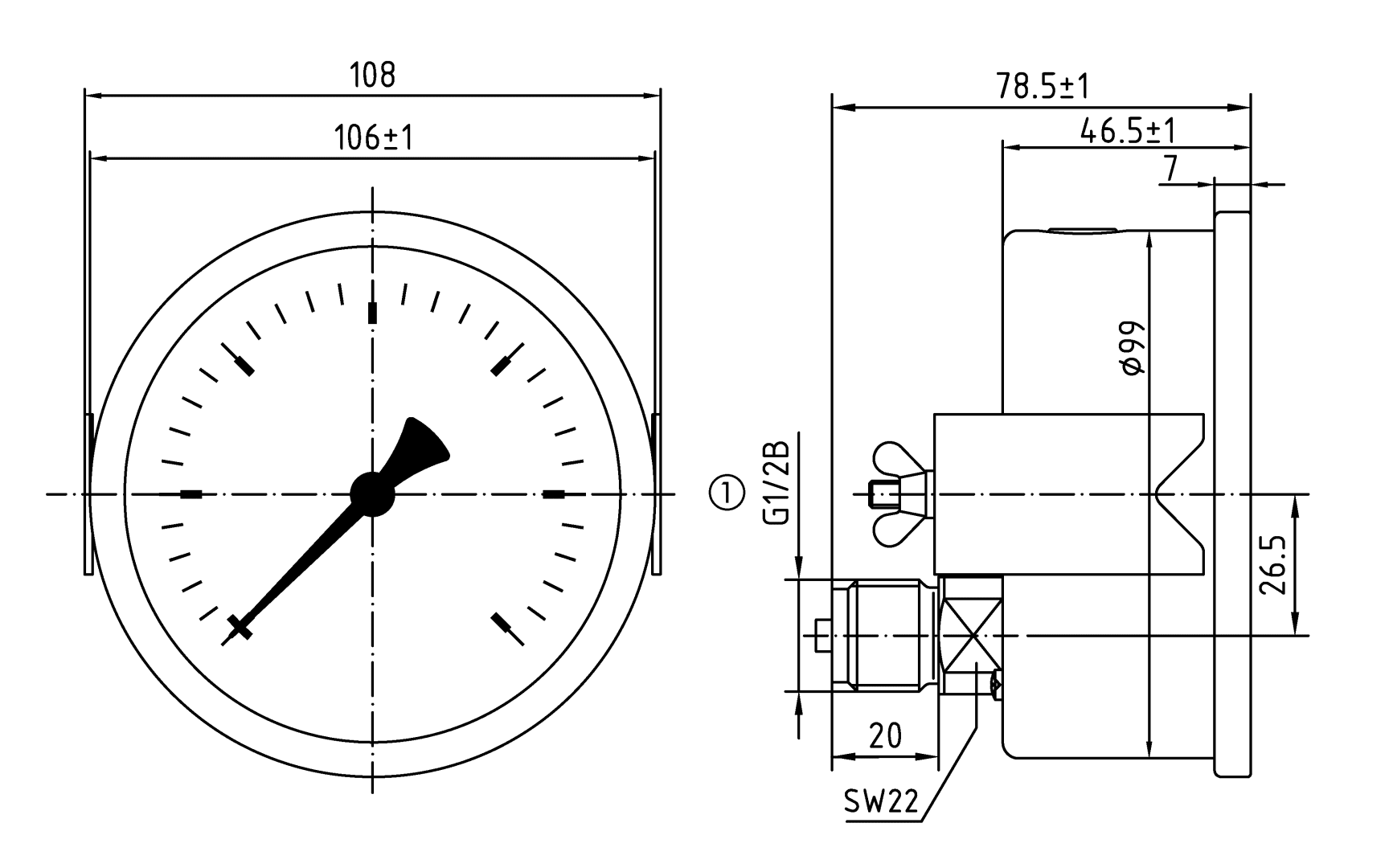

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom back
accuracy class1,0
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 barclamp fixingRF100Gly D75185301751
-1/0.6 barclamp fixingRF100Gly D75185302751
-1/+1.5 barclamp fixingRF100Gly D75185303751
-1/+3 barclamp fixingRF100Gly D75185304751
-1/+5 barclamp fixingRF100Gly D75185305751
-1/+9 barclamp fixingRF100Gly D75185306751
-1/+15 barclamp fixingRF100Gly D75185307751
0/0.6 barclamp fixingRF100Gly D75185309751
0/1 barclamp fixingRF100Gly D75185310751
0/1.6 barclamp fixingRF100Gly D75185311751
0/2.5 barclamp fixingRF100Gly D75185312751
0/4 barclamp fixingRF100Gly D75185313751
0/6 barclamp fixingRF100Gly D75185314751
0/10 barclamp fixingRF100Gly D75185315751
0/16 barclamp fixingRF100Gly D75185316751
0/25 barclamp fixingRF100Gly D75185317751
0/40 barclamp fixingRF100Gly D75185318751
0/60 barclamp fixingRF100Gly D75185319751
0/100 barclamp fixingRF100Gly D75185320751
0/160 barclamp fixingRF100Gly D75185321751
0/250 barclamp fixingRF100Gly D75185322751
0/400 barclamp fixingRF100Gly D75185323751
0/600 barclamp fixingRF100Gly D75185324751
0/1 000 barclamp fixingRF100Gly D75185325751
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
Scaling:
black
RF100Gly:
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)
