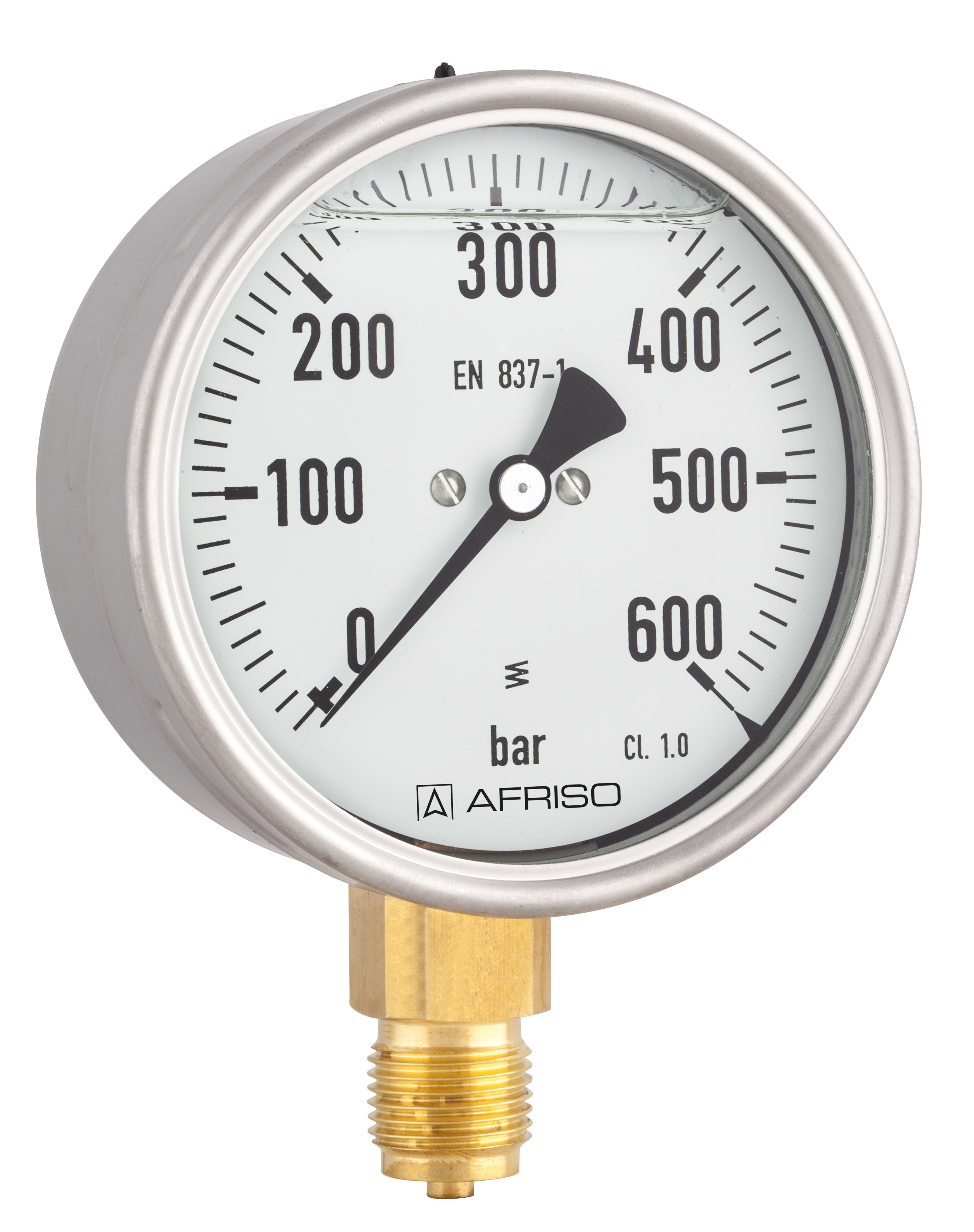

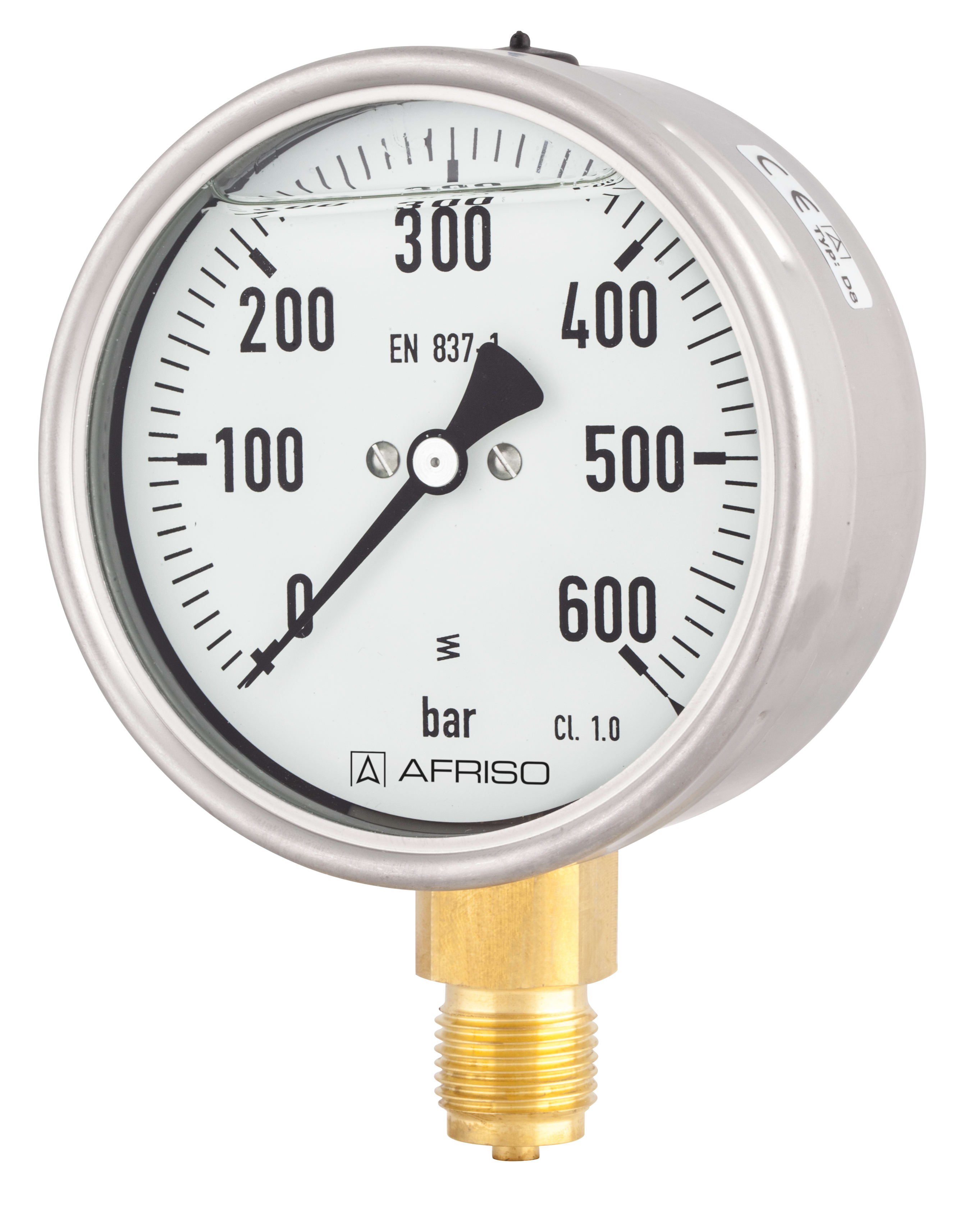

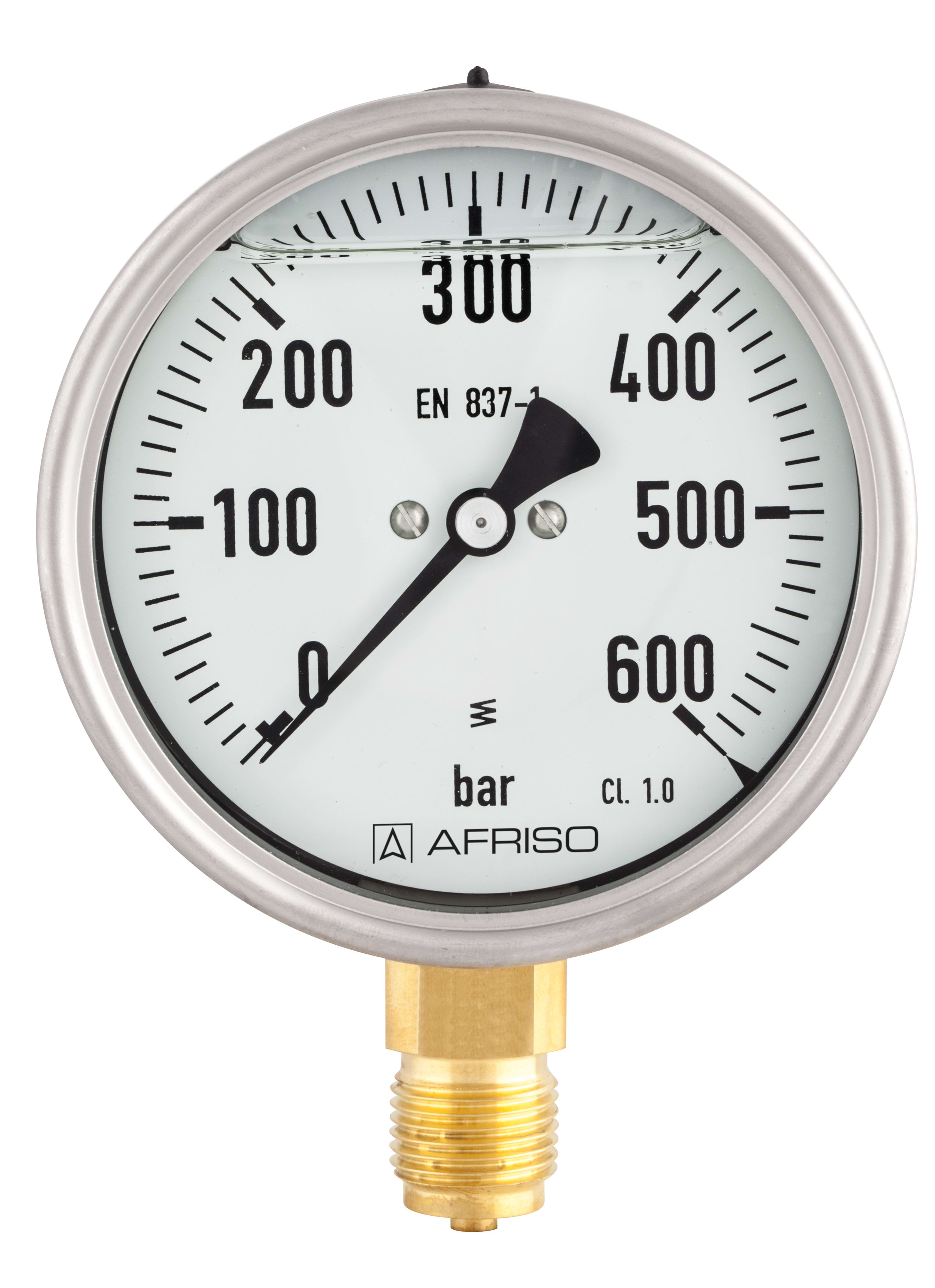

RF100Gly D801

Rohrfeder-Glyzerinmanometer Typ D8

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF100Gly D80185201801
-1/0.6 bardirectRF100Gly D80185202801
-1/+1.5 bardirectRF100Gly D80185203801
-1/+3 bardirectRF100Gly D80185204801
-1/+5 bardirectRF100Gly D80185205801
-1/+9 bardirectRF100Gly D80185206801
-1/+15 bardirectRF100Gly D80185207801
0/0.6 bardirectRF100Gly D80185209801
0/1 bardirectRF100Gly D80185210801
0/1.6 bardirectRF100Gly D80185211801
0/2.5 bardirectRF100Gly D80185212801
0/4 bardirectRF100Gly D80185213801
0/6 bardirectRF100Gly D80185214801
0/10 bardirectRF100Gly D80185215801
0/16 bardirectRF100Gly D80185216801
0/25 bardirectRF100Gly D80185217801
0/40 bardirectRF100Gly D80185218801
0/60 bardirectRF100Gly D80185219801
0/100 bardirectRF100Gly D80185220801
0/160 bardirectRF100Gly D80185221801
0/250 bardirectRF100Gly D80185222801
0/400 bardirectRF100Gly D80185223801
0/600 bardirectRF100Gly D80185224801
0/1 000 bardirectRF100Gly D80185225801
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.
