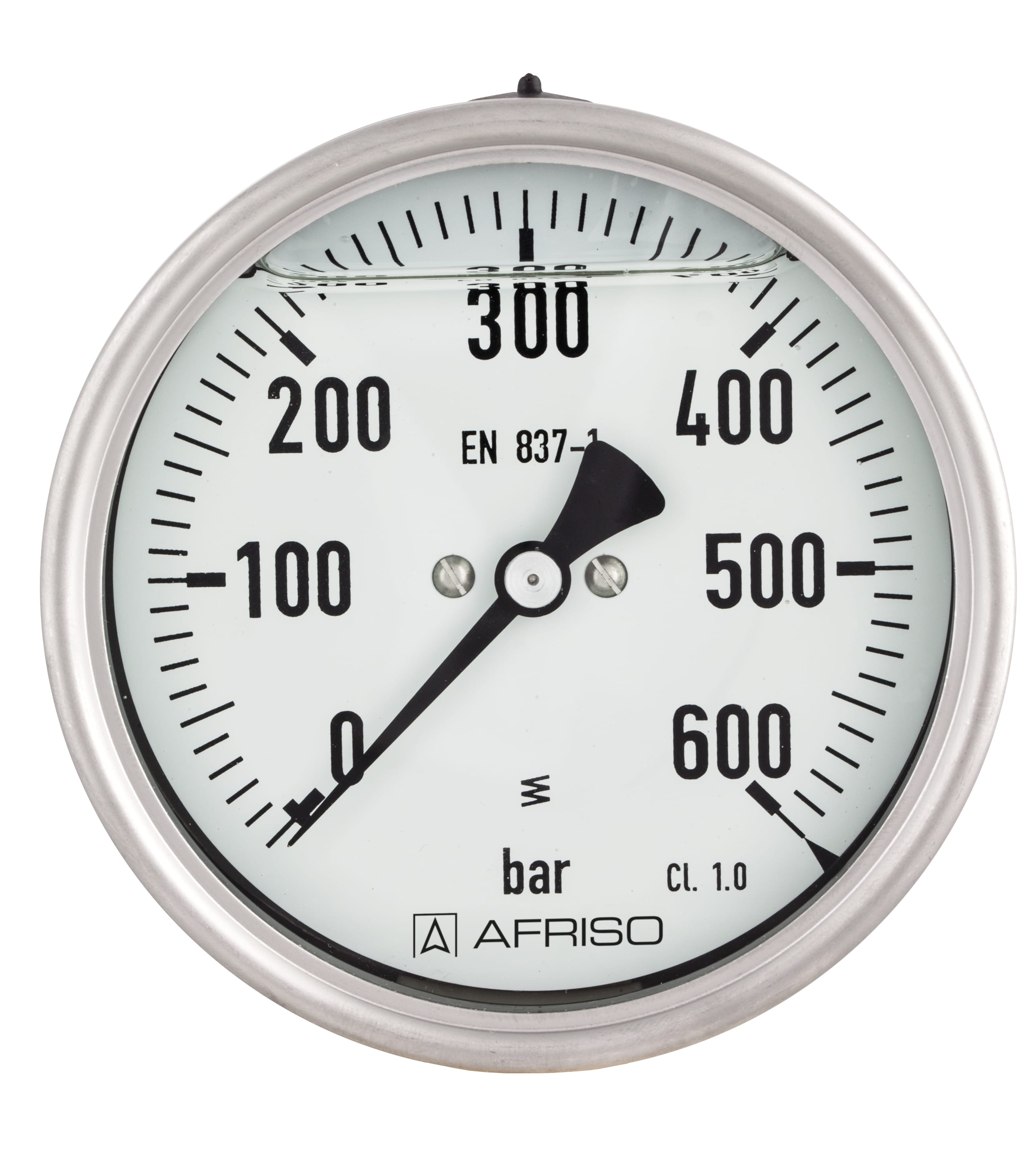

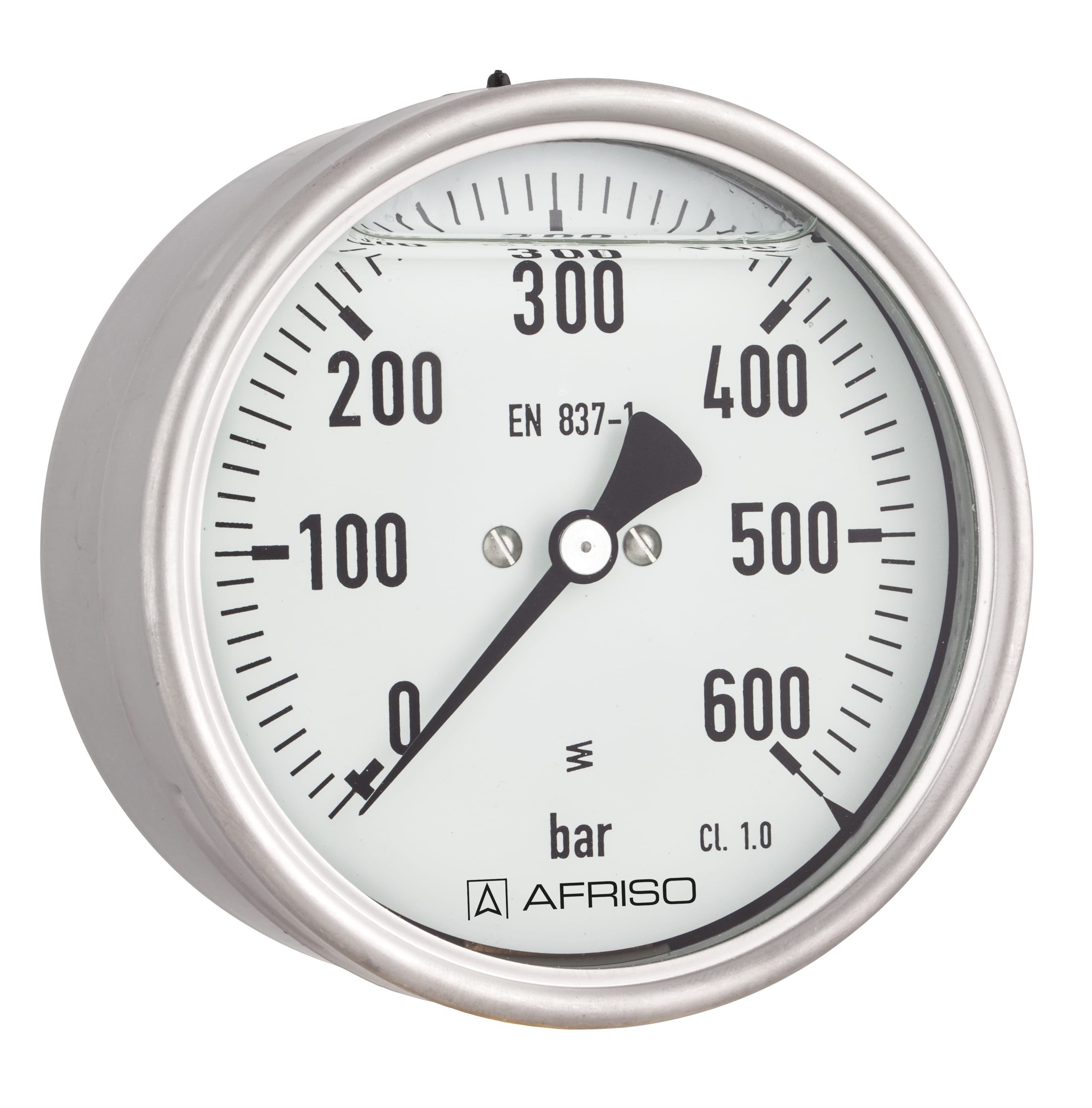

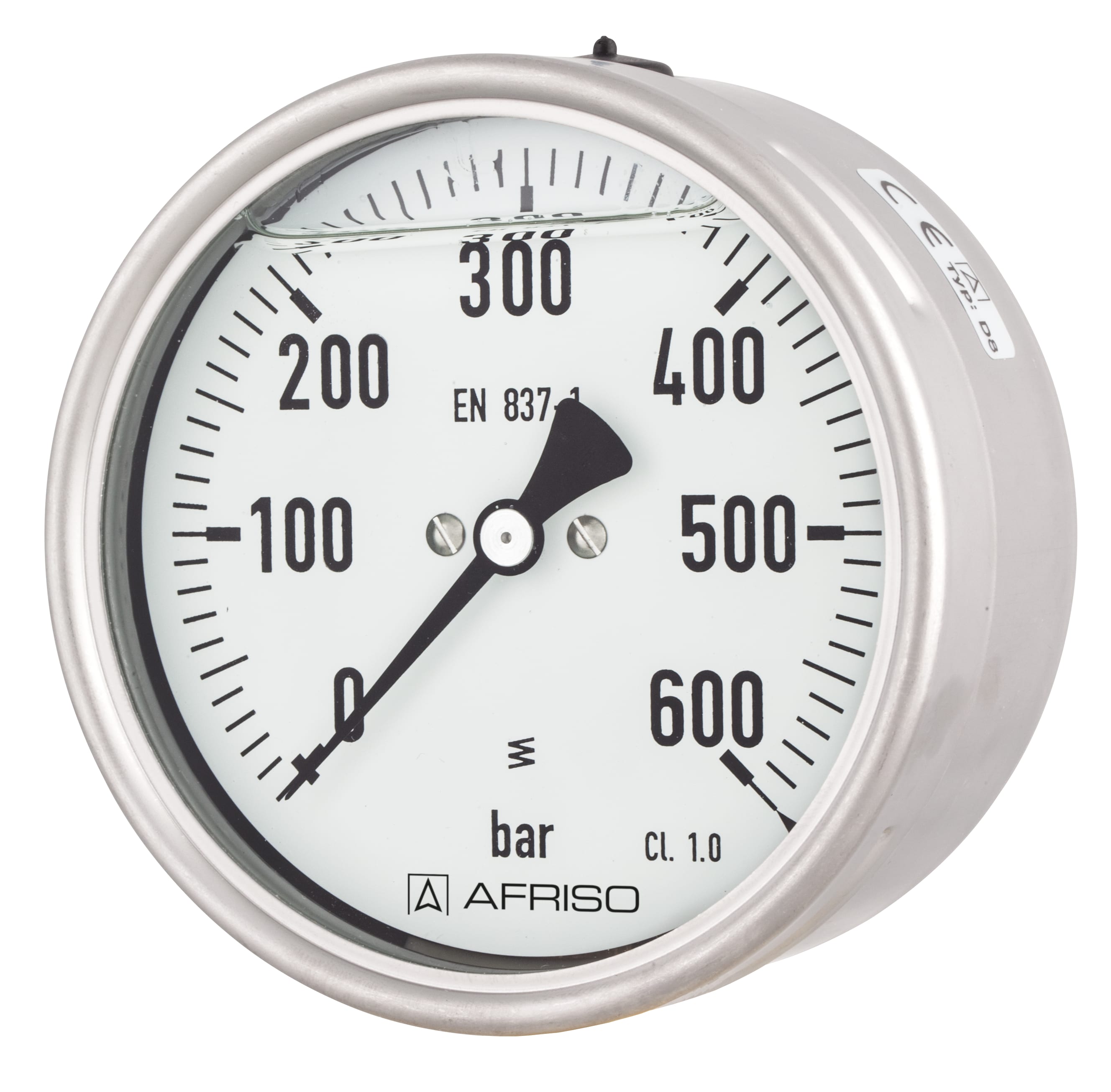

RF100Gly D811

Rohrfeder-Glyzerinmanometer Typ D8

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom back
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF100Gly D81185201811
-1/0.6 bardirectRF100Gly D81185202811
-1/+1.5 bardirectRF100Gly D81185203811
-1/+3 bardirectRF100Gly D81185204811
-1/+5 bardirectRF100Gly D81185205811
-1/+9 bardirectRF100Gly D81185206811
-1/+15 bardirectRF100Gly D81185207811
0/0.6 bardirectRF100Gly D81185209811
0/1 bardirectRF100Gly D81185210811
0/1.6 bardirectRF100Gly D81185211811
0/2.5 bardirectRF100Gly D81185212811
0/4 bardirectRF100Gly D81185213811
0/6 bardirectRF100Gly D81185214811
0/10 bardirectRF100Gly D81185215811
0/16 bardirectRF100Gly D81185216811
0/25 bardirectRF100Gly D81185217811
0/40 bardirectRF100Gly D81185218811
0/60 bardirectRF100Gly D81185219811
0/100 bardirectRF100Gly D81185220811
0/160 bardirectRF100Gly D81185221811
0/250 bardirectRF100Gly D81185222811
0/400 bardirectRF100Gly D81185223811
0/600 bardirectRF100Gly D81185224811
0/1 000 bardirectRF100Gly D81185225811
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

bottom back connection
