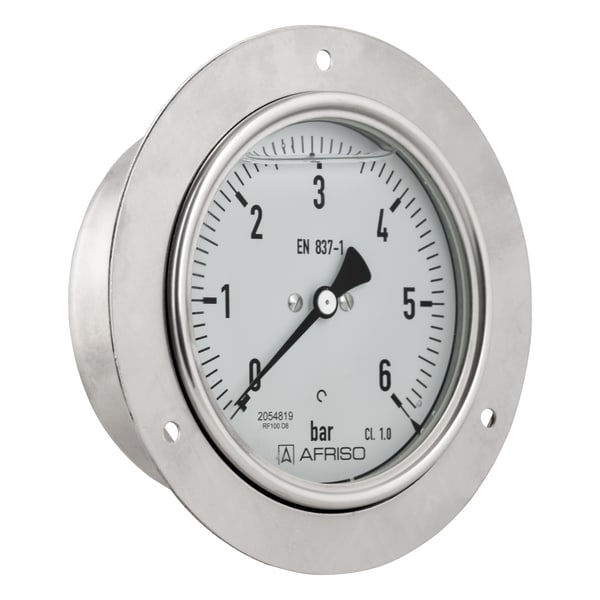

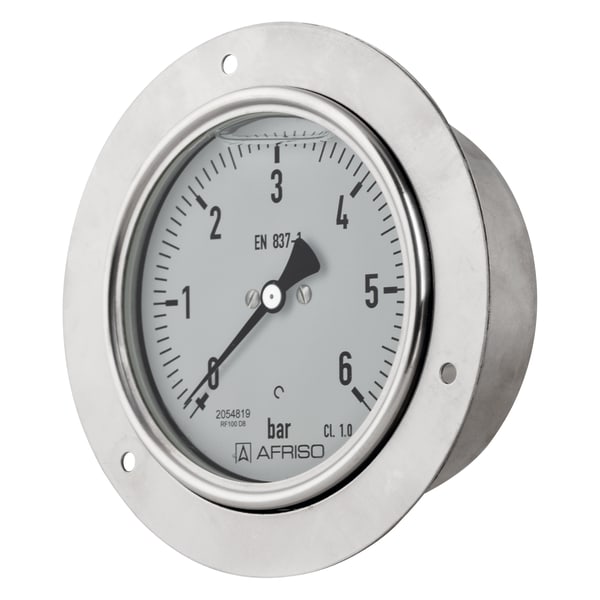

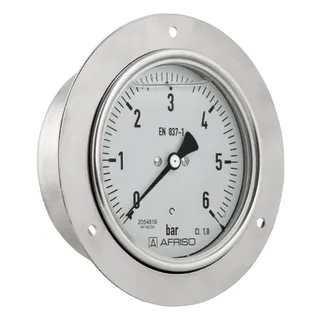

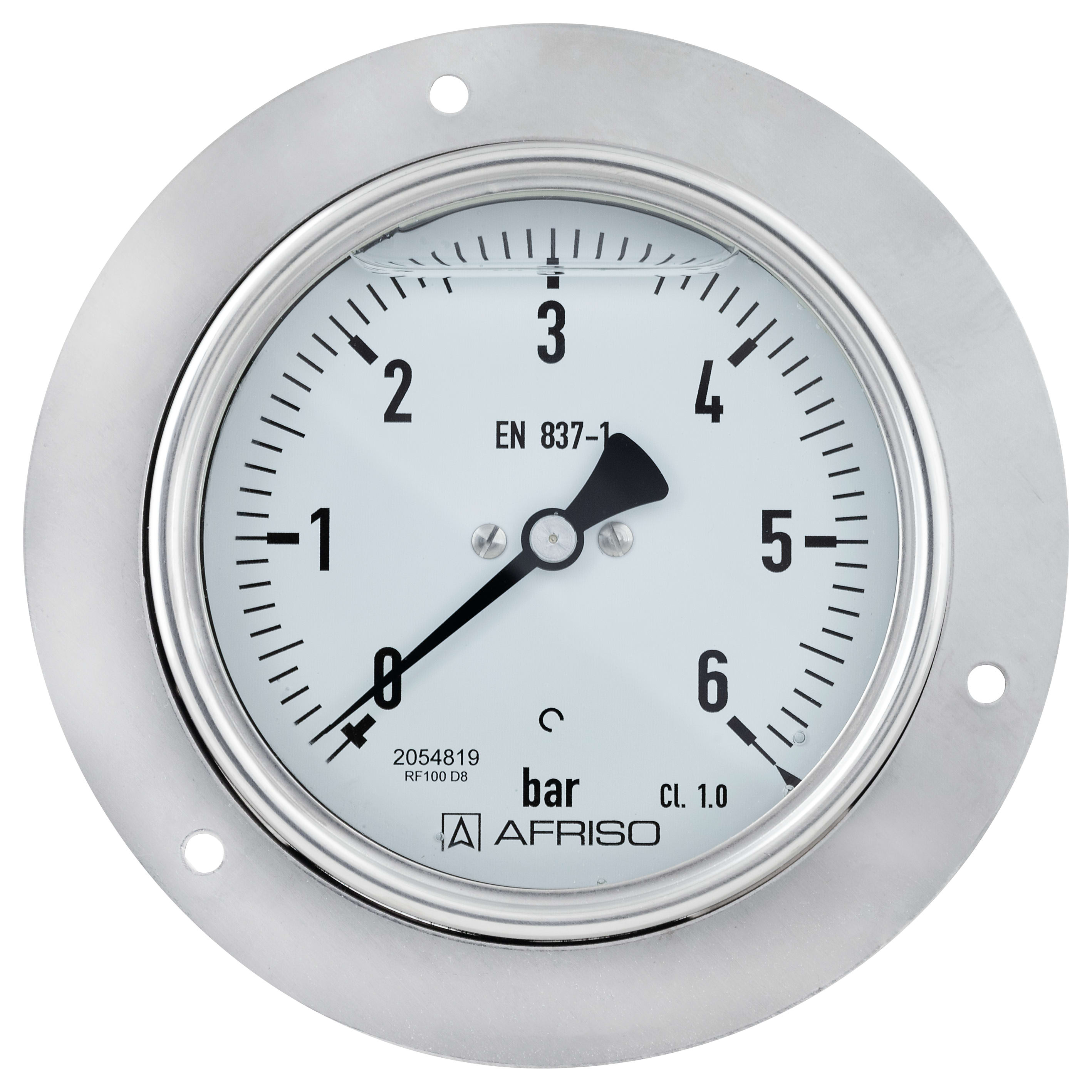

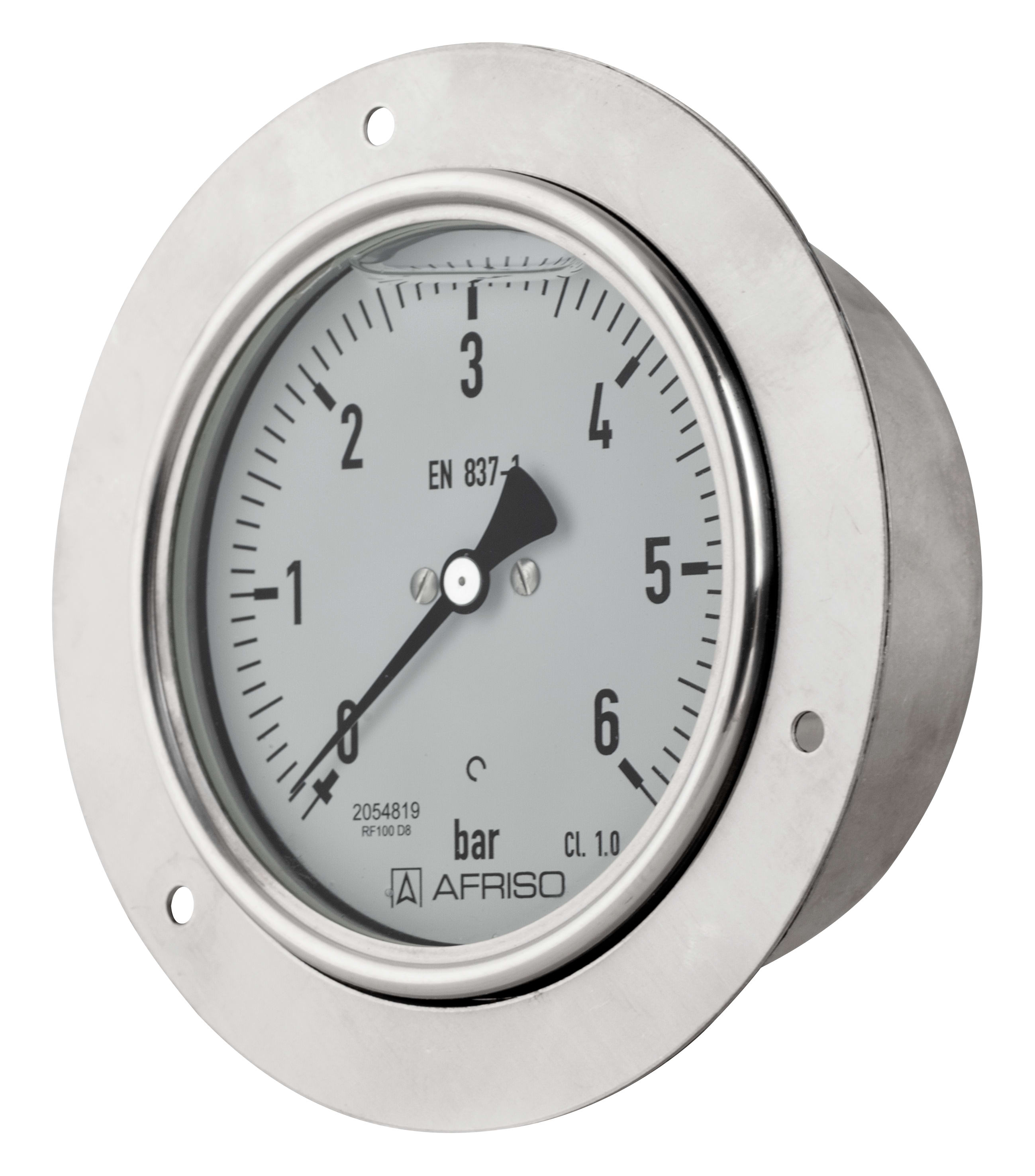

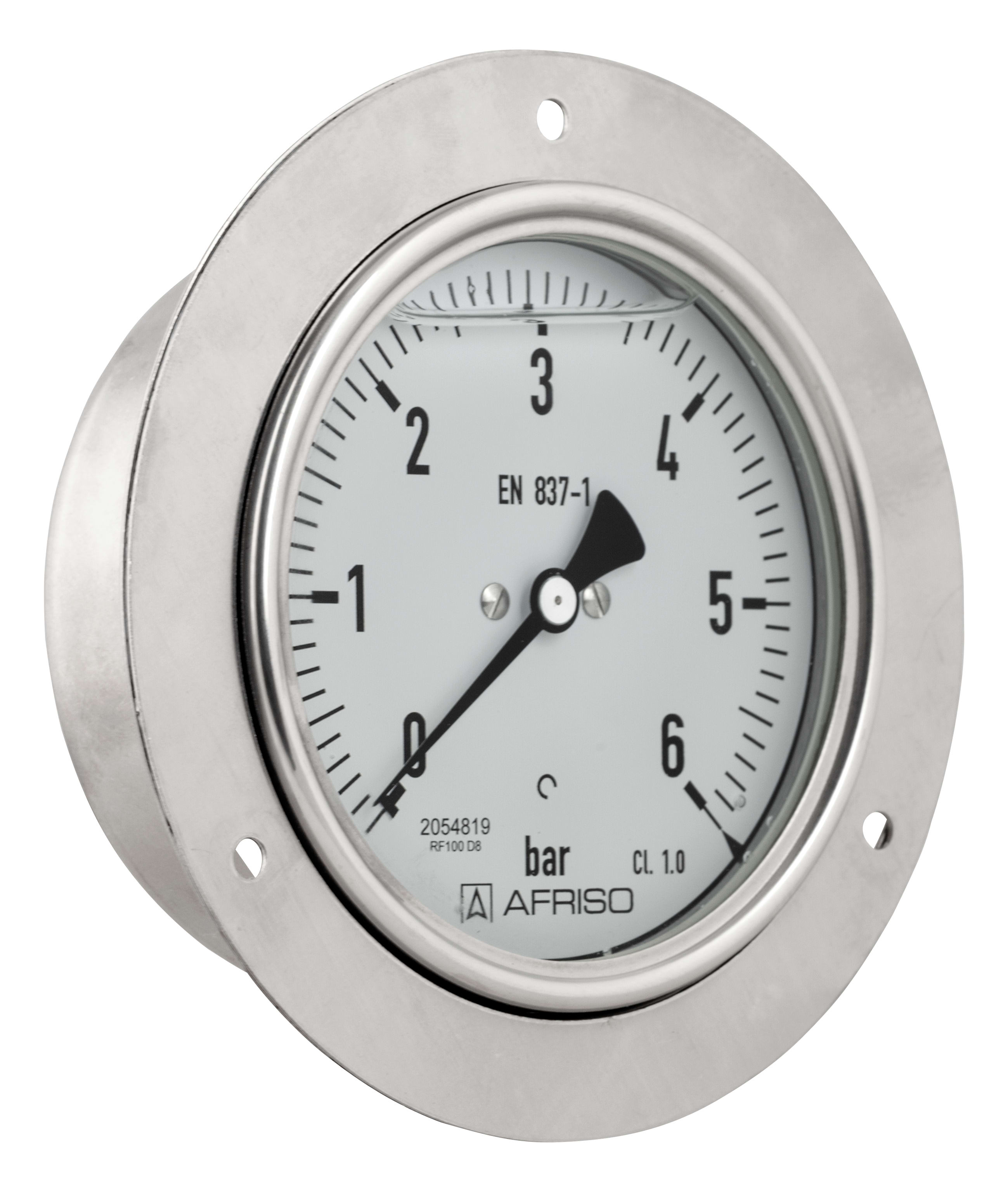

RF100Gly D831

Rohrfeder-Glyzerinmanometer Typ D8

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom back
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bar3-hole fixing, panel mounting bezelRF100Gly D83185201831
-1/0.6 bar3-hole fixing, panel mounting bezelRF100Gly D83185202831
-1/+1.5 bar3-hole fixing, panel mounting bezelRF100Gly D83185203831
-1/+3 bar3-hole fixing, panel mounting bezelRF100Gly D83185204831
-1/+5 bar3-hole fixing, panel mounting bezelRF100Gly D83185205831
-1/+9 bar3-hole fixing, panel mounting bezelRF100Gly D83185206831
-1/+15 bar3-hole fixing, panel mounting bezelRF100Gly D83185207831
0/0.6 bar3-hole fixing, panel mounting bezelRF100Gly D83185209831
0/1 bar3-hole fixing, panel mounting bezelRF100Gly D83185210831
0/1.6 bar3-hole fixing, panel mounting bezelRF100Gly D83185211831
0/2.5 bar3-hole fixing, panel mounting bezelRF100Gly D83185212831
0/4 bar3-hole fixing, panel mounting bezelRF100Gly D83185213831
0/6 bar3-hole fixing, panel mounting bezelRF100Gly D83185214831
0/10 bar3-hole fixing, panel mounting bezelRF100Gly D83185215831
0/16 bar3-hole fixing, panel mounting bezelRF100Gly D83185216831
0/25 bar3-hole fixing, panel mounting bezelRF100Gly D83185217831
0/40 bar3-hole fixing, panel mounting bezelRF100Gly D83185218831
0/60 bar3-hole fixing, panel mounting bezelRF100Gly D83185219831
0/100 bar3-hole fixing, panel mounting bezelRF100Gly D83185220831
0/160 bar3-hole fixing, panel mounting bezelRF100Gly D83185221831
0/250 bar3-hole fixing, panel mounting bezelRF100Gly D83185222831
0/400 bar3-hole fixing, panel mounting bezelRF100Gly D83185223831
0/600 bar3-hole fixing, panel mounting bezelRF100Gly D83185224831
0/1 000 bar3-hole fixing, panel mounting bezelRF100Gly D83185225831
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

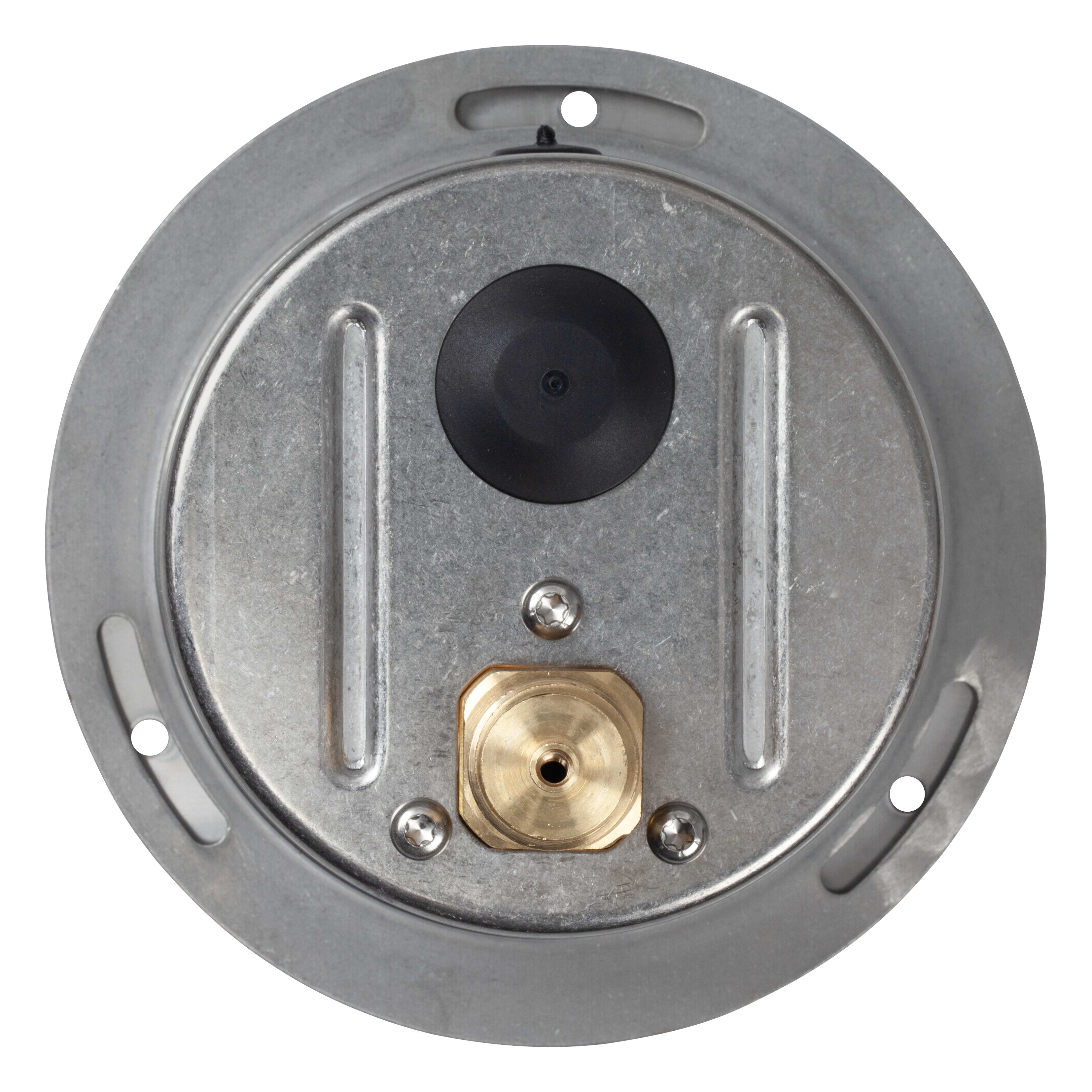

Connection
Brass, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

bottom back connection, 3-hole fixing, panel mounting bezel
