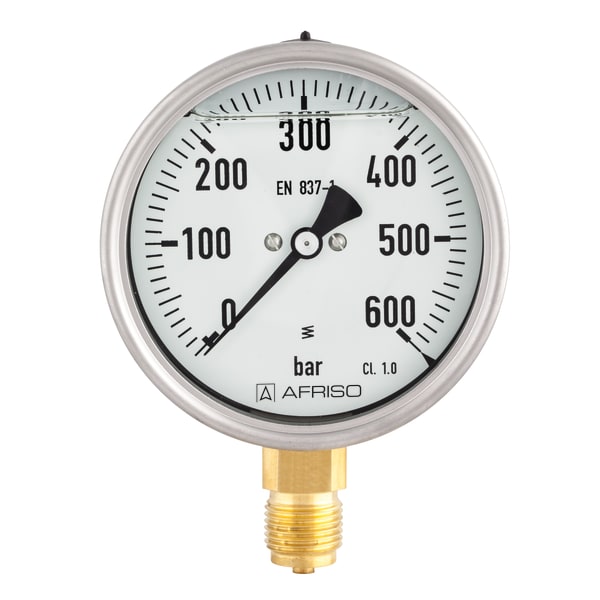

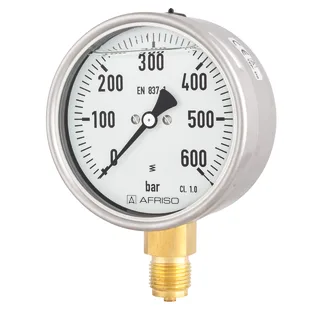

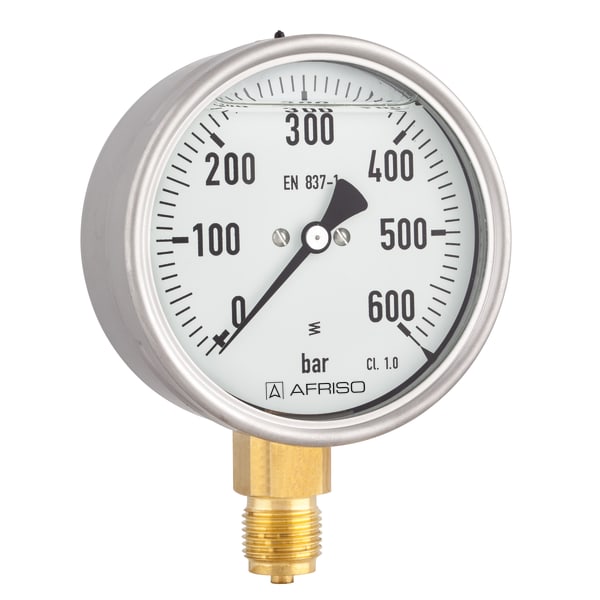

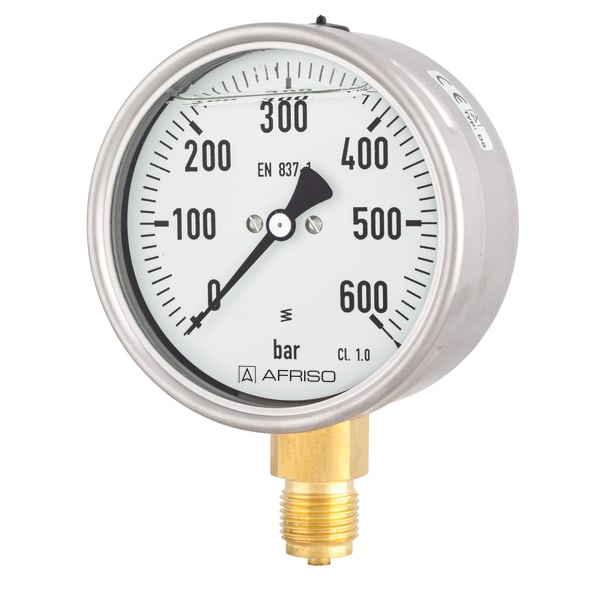

RF160Gly D801

Rohrfeder-Glyzerinmanometer Typ D8

Variants Documents

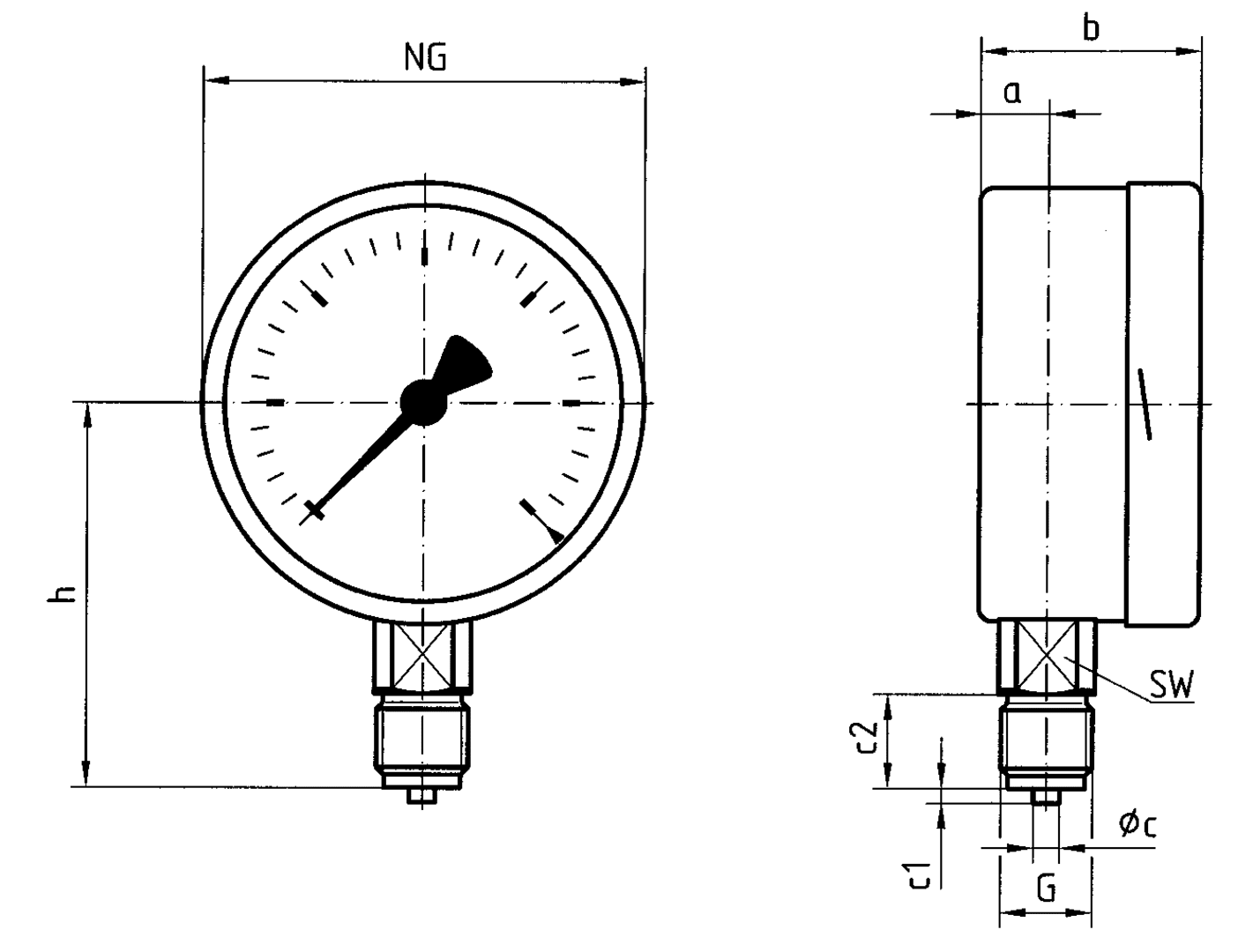

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentbottom
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF160Gly D80185251801
-1/0.6 bardirectRF160Gly D80185252801
-1/+1.5 bardirectRF160Gly D80185253801
-1/+3 bardirectRF160Gly D80185254801
-1/+5 bardirectRF160Gly D80185255801
-1/+9 bardirectRF160Gly D80185256801
-1/+15 bardirectRF160Gly D80185257801
0/0.6 bardirectRF160Gly D80185259801
0/1 bardirectRF160Gly D80185260801
0/1.6 bardirectRF160Gly D80185261801
0/2.5 bardirectRF160Gly D80185262801
0/4 bardirectRF160Gly D80185263801
0/6 bardirectRF160Gly D80185264801
0/10 bardirectRF160Gly D80185265801
0/16 bardirectRF160Gly D80185266801
0/25 bardirectRF160Gly D80185267801
0/40 bardirectRF160Gly D80185268801
0/60 bardirectRF160Gly D80185269801
0/100 bardirectRF160Gly D80185270801
0/160 bardirectRF160Gly D80185271801
0/250 bardirectRF160Gly D80185272801
0/400 bardirectRF160Gly D80185273801
0/600 bardirectRF160Gly D80185274801
0/1 000 bardirectRF160Gly D80185275801
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
160 - 160
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)
