RF160Gly D811

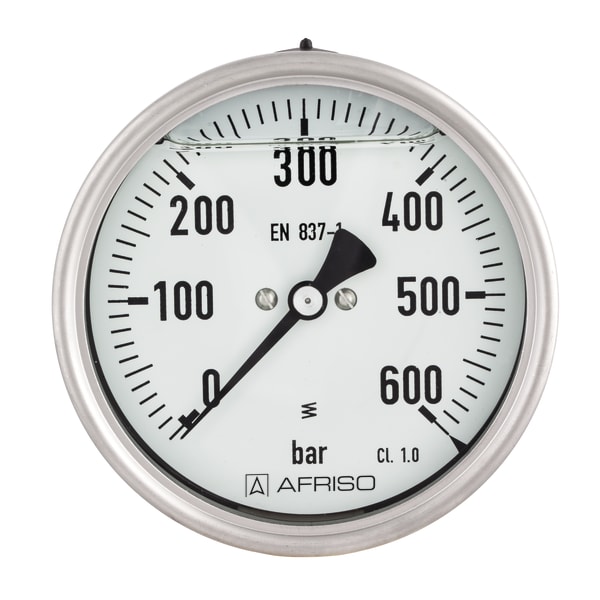

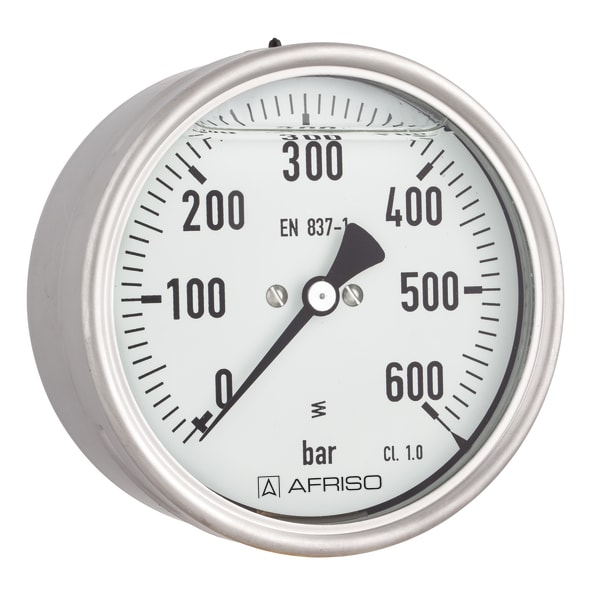

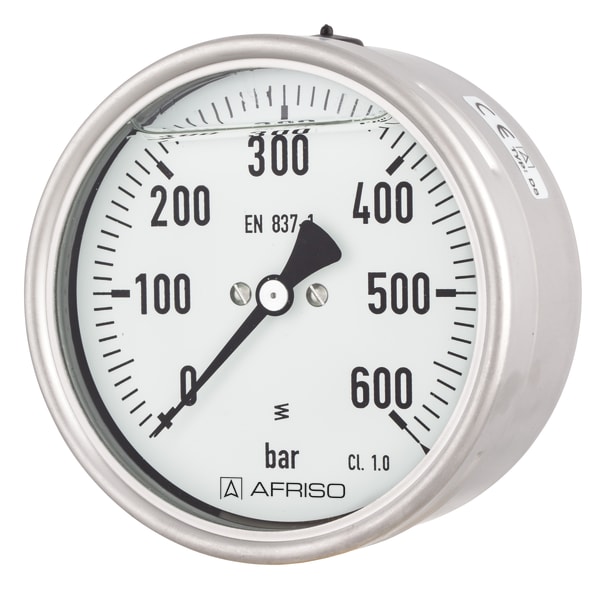

Glycerine filled Bourdon tube pressure gauge type D8

Variants Manuals

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentbottom back
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF160Gly D81185251811
-1/0.6 bardirectRF160Gly D81185252811
-1/+1.5 bardirectRF160Gly D81185253811
-1/+3 bardirectRF160Gly D81185254811
-1/+5 bardirectRF160Gly D81185255811
-1/+9 bardirectRF160Gly D81185256811
-1/+15 bardirectRF160Gly D81185257811
0/0.6 bardirectRF160Gly D81185259811
0/1 bardirectRF160Gly D81185260811
0/1.6 bardirectRF160Gly D81185261811
0/2.5 bardirectRF160Gly D81185262811
0/4 bardirectRF160Gly D81185263811
0/6 bardirectRF160Gly D81185264811
0/10 bardirectRF160Gly D81185265811
0/16 bardirectRF160Gly D81185266811
0/25 bardirectRF160Gly D81185267811
0/40 bardirectRF160Gly D81185268811
0/60 bardirectRF160Gly D81185269811
0/100 bardirectRF160Gly D81185270811
0/160 bardirectRF160Gly D81185271811
0/250 bardirectRF160Gly D81185272811
0/400 bardirectRF160Gly D81185273811
0/600 bardirectRF160Gly D81185274811
0/1 000 bardirectRF160Gly D81185275811
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
160
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)

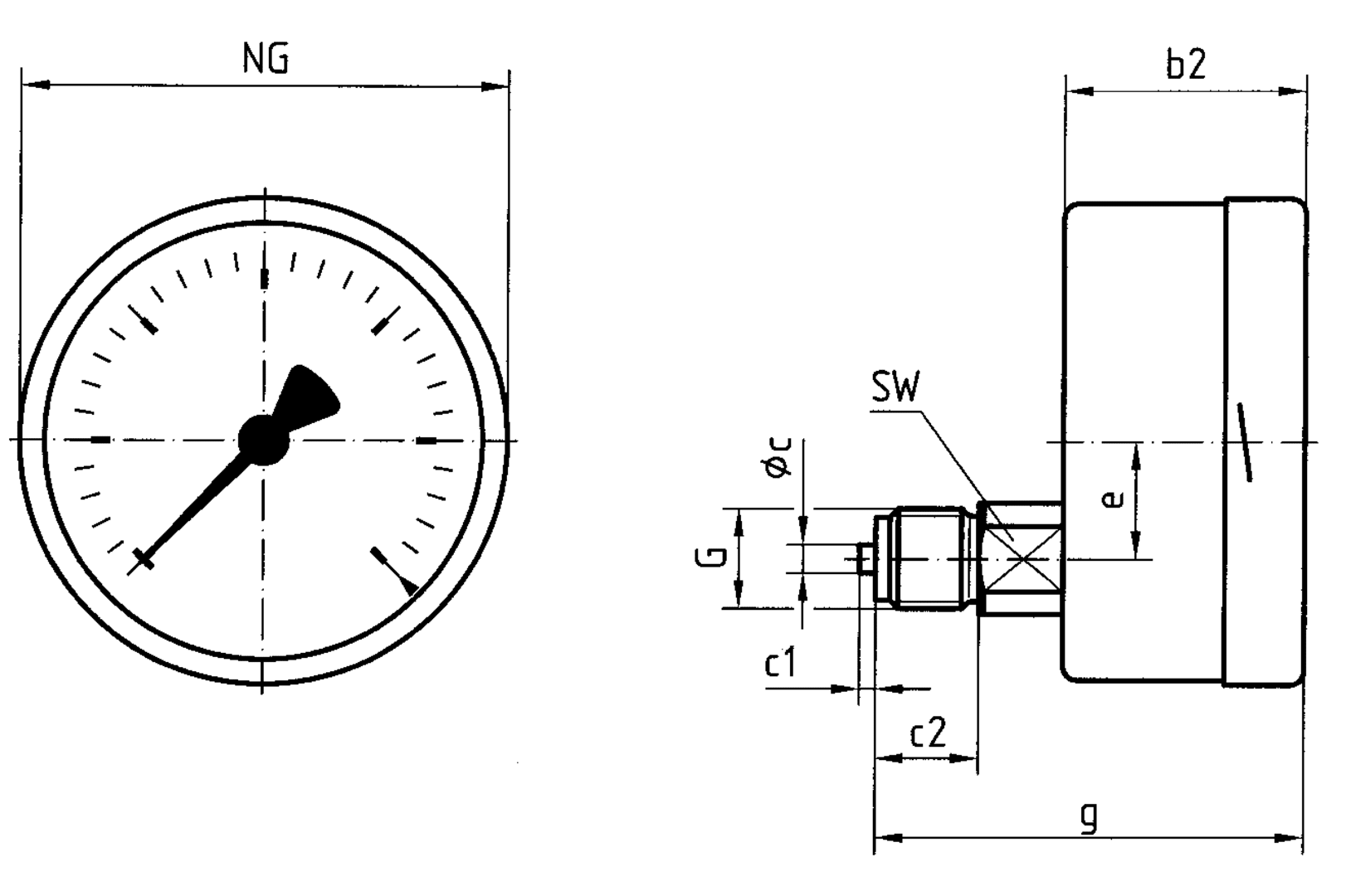

Click the corresponding image for detail views, additional information and dimension tables.
