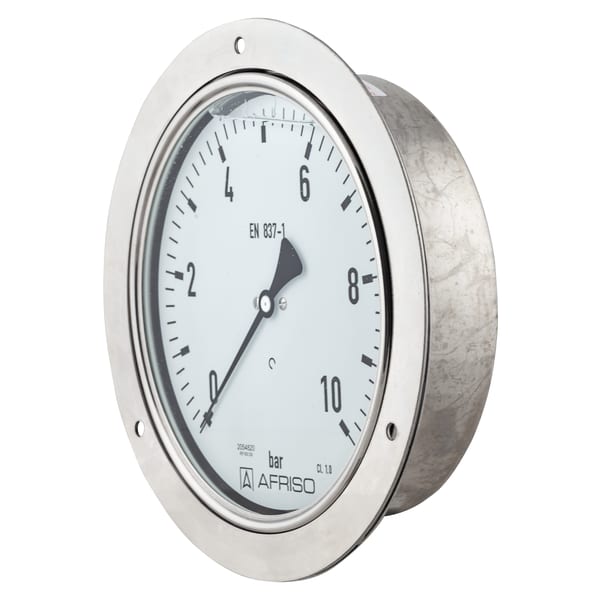

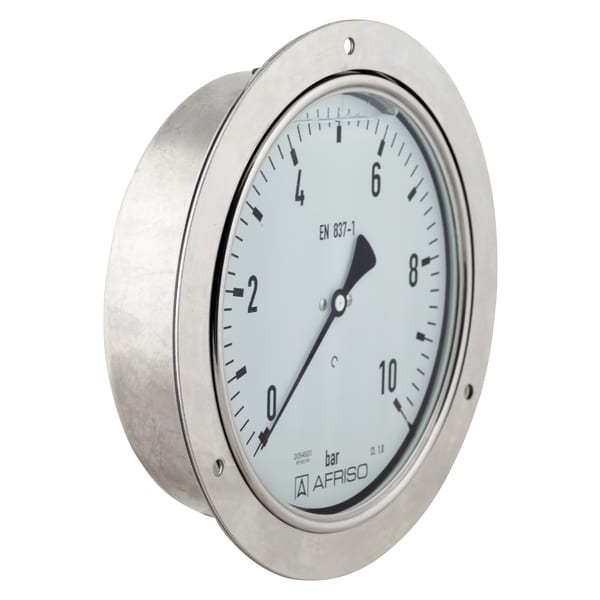

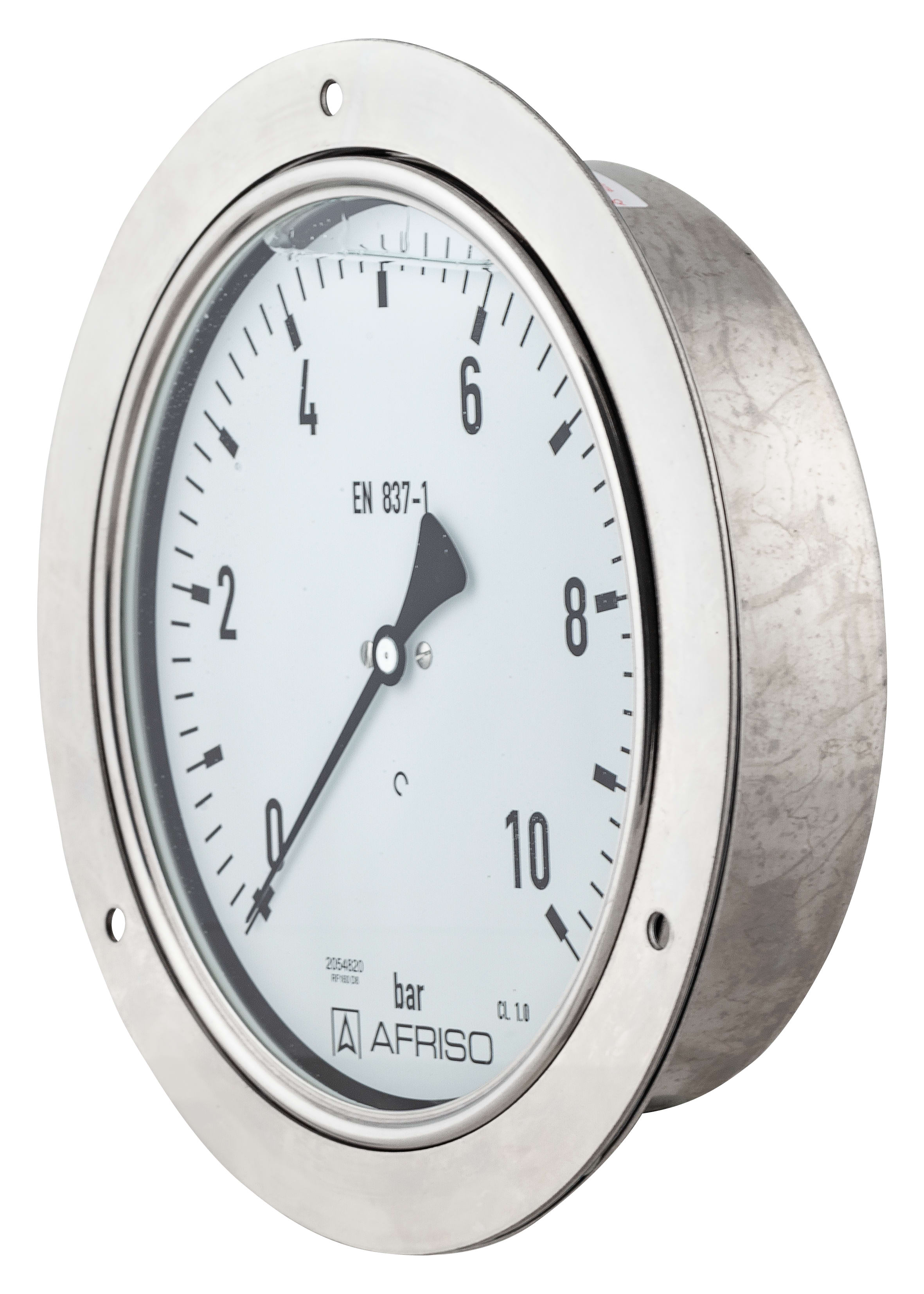

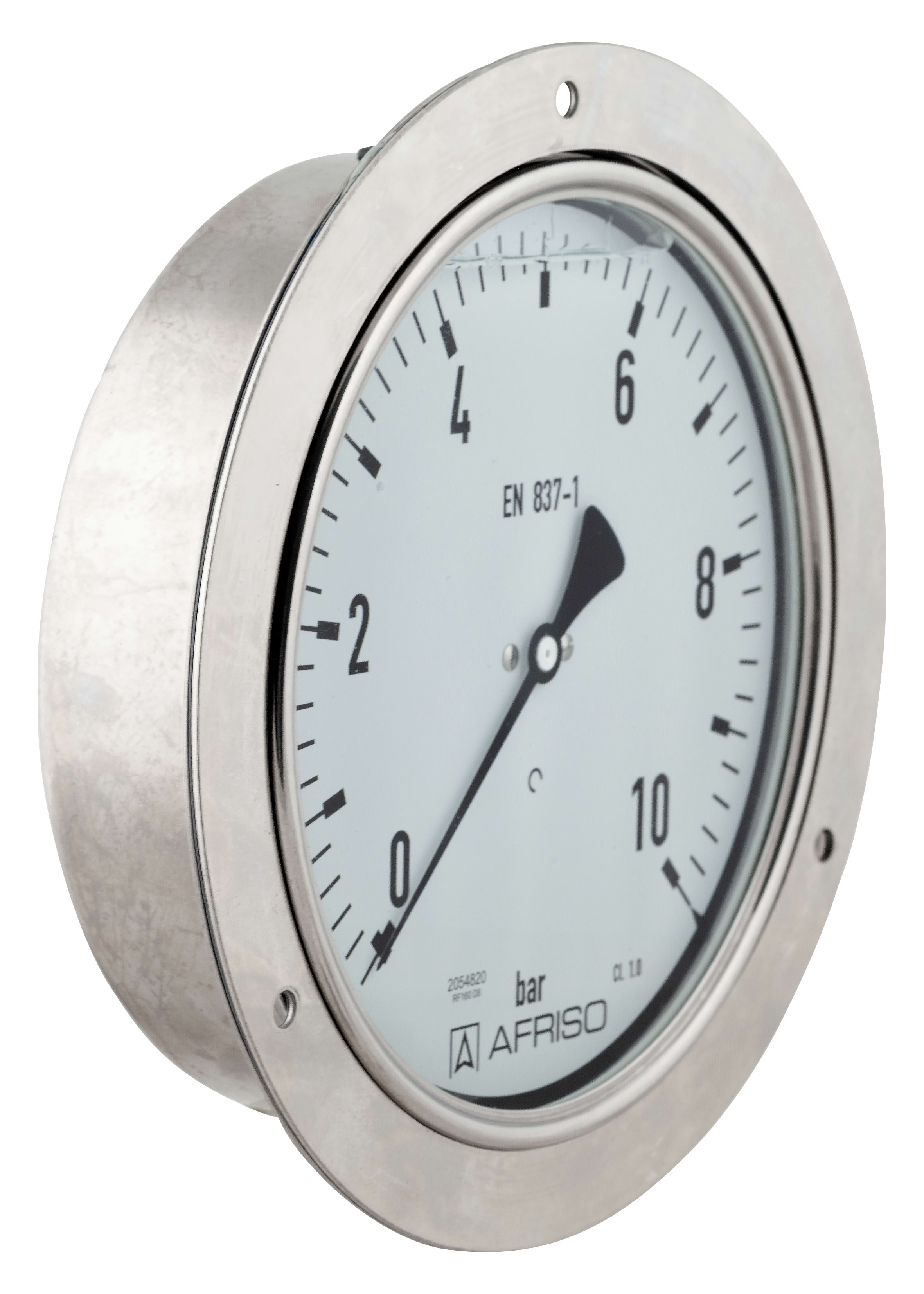

RF160Gly D831

Glycerine filled Bourdon tube pressure gauge type D8

Variants Manuals

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentbottom back
accuracy class1,0
standardEN 837-1

  • compact design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bar3-hole fixing, panel mounting bezelRF160Gly D83185251831
-1/0.6 bar3-hole fixing, panel mounting bezelRF160Gly D83185252831
-1/+1.5 bar3-hole fixing, panel mounting bezelRF160Gly D83185253831
-1/+3 bar3-hole fixing, panel mounting bezelRF160Gly D83185254831
-1/+5 bar3-hole fixing, panel mounting bezelRF160Gly D83185255831
-1/+9 bar3-hole fixing, panel mounting bezelRF160Gly D83185256831
-1/+15 bar3-hole fixing, panel mounting bezelRF160Gly D83185257831
0/0.6 bar3-hole fixing, panel mounting bezelRF160Gly D83185259831
0/1 bar3-hole fixing, panel mounting bezelRF160Gly D83185260831
0/1.6 bar3-hole fixing, panel mounting bezelRF160Gly D83185261831
0/2.5 bar3-hole fixing, panel mounting bezelRF160Gly D83185262831
0/4 bar3-hole fixing, panel mounting bezelRF160Gly D83185263831
0/6 bar3-hole fixing, panel mounting bezelRF160Gly D83185264831
0/10 bar3-hole fixing, panel mounting bezelRF160Gly D83185265831
0/16 bar3-hole fixing, panel mounting bezelRF160Gly D83185266831
0/25 bar3-hole fixing, panel mounting bezelRF160Gly D83185267831
0/40 bar3-hole fixing, panel mounting bezelRF160Gly D83185268831
0/60 bar3-hole fixing, panel mounting bezelRF160Gly D83185269831
0/100 bar3-hole fixing, panel mounting bezelRF160Gly D83185270831
0/160 bar3-hole fixing, panel mounting bezelRF160Gly D83185271831
0/250 bar3-hole fixing, panel mounting bezelRF160Gly D83185272831
0/400 bar3-hole fixing, panel mounting bezelRF160Gly D83185273831
0/600 bar3-hole fixing, panel mounting bezelRF160Gly D83185274831
0/1 000 bar3-hole fixing, panel mounting bezelRF160Gly D83185275831
  • in-stock items
  • manufactured goods

Type
D8
Nominal size
160
accuracy class (EN 837-1/6)
1,0
ranges (EN 837-1/5)
see ordering table
application area
static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Instrumentenglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

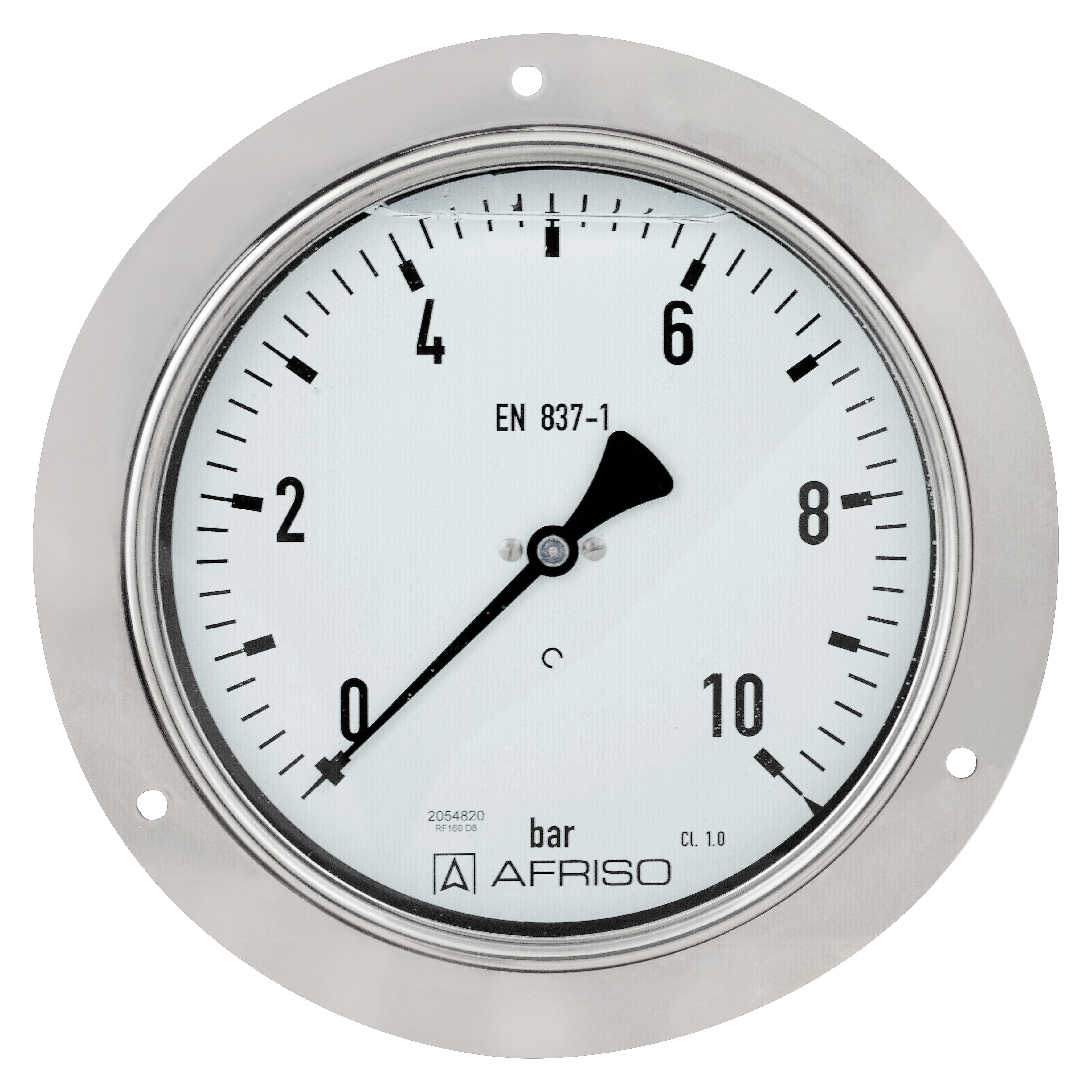

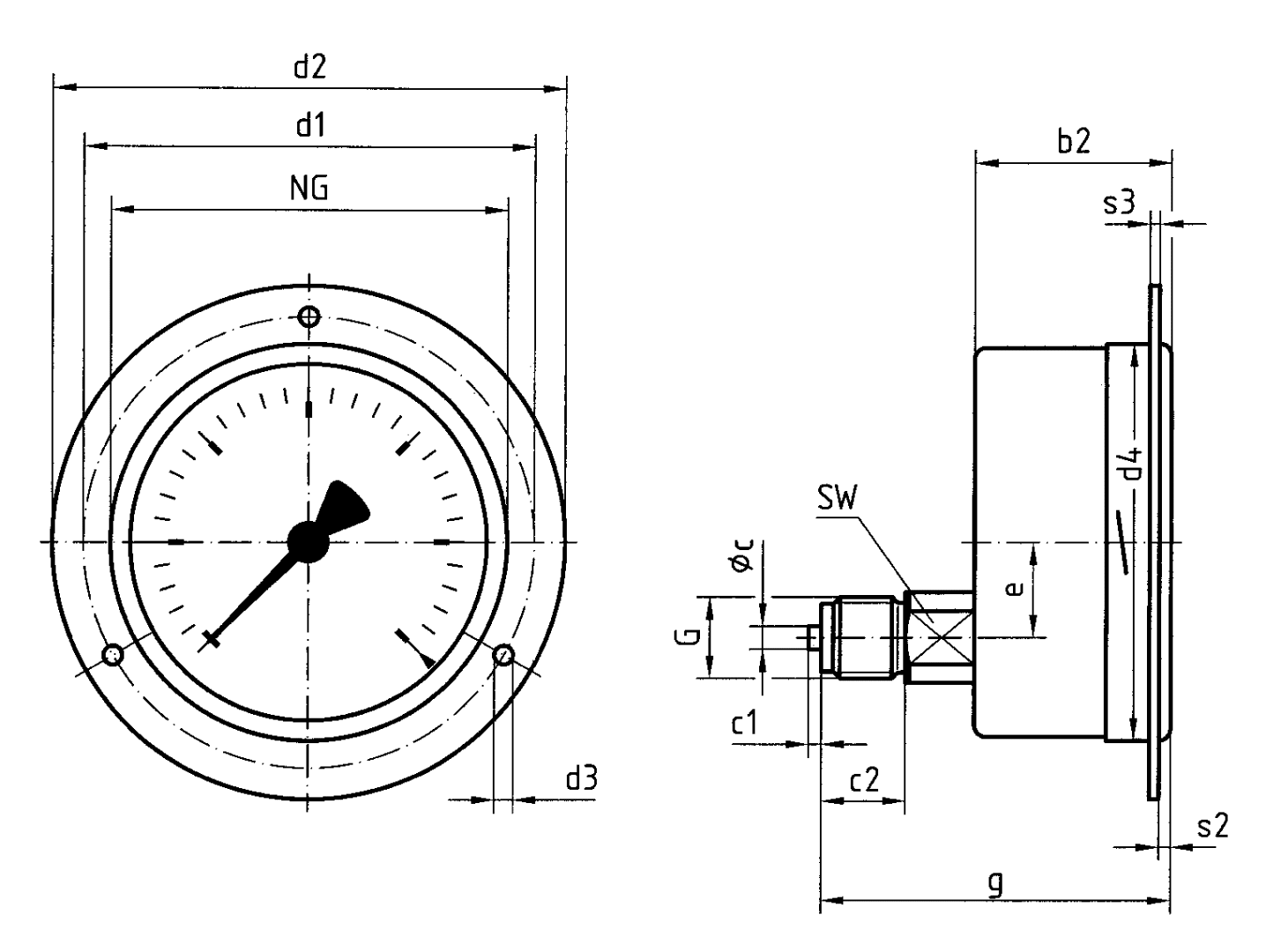

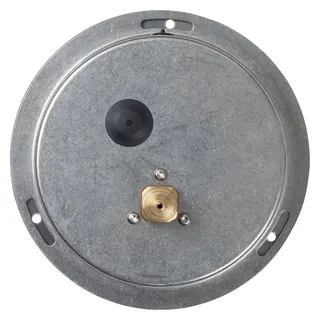

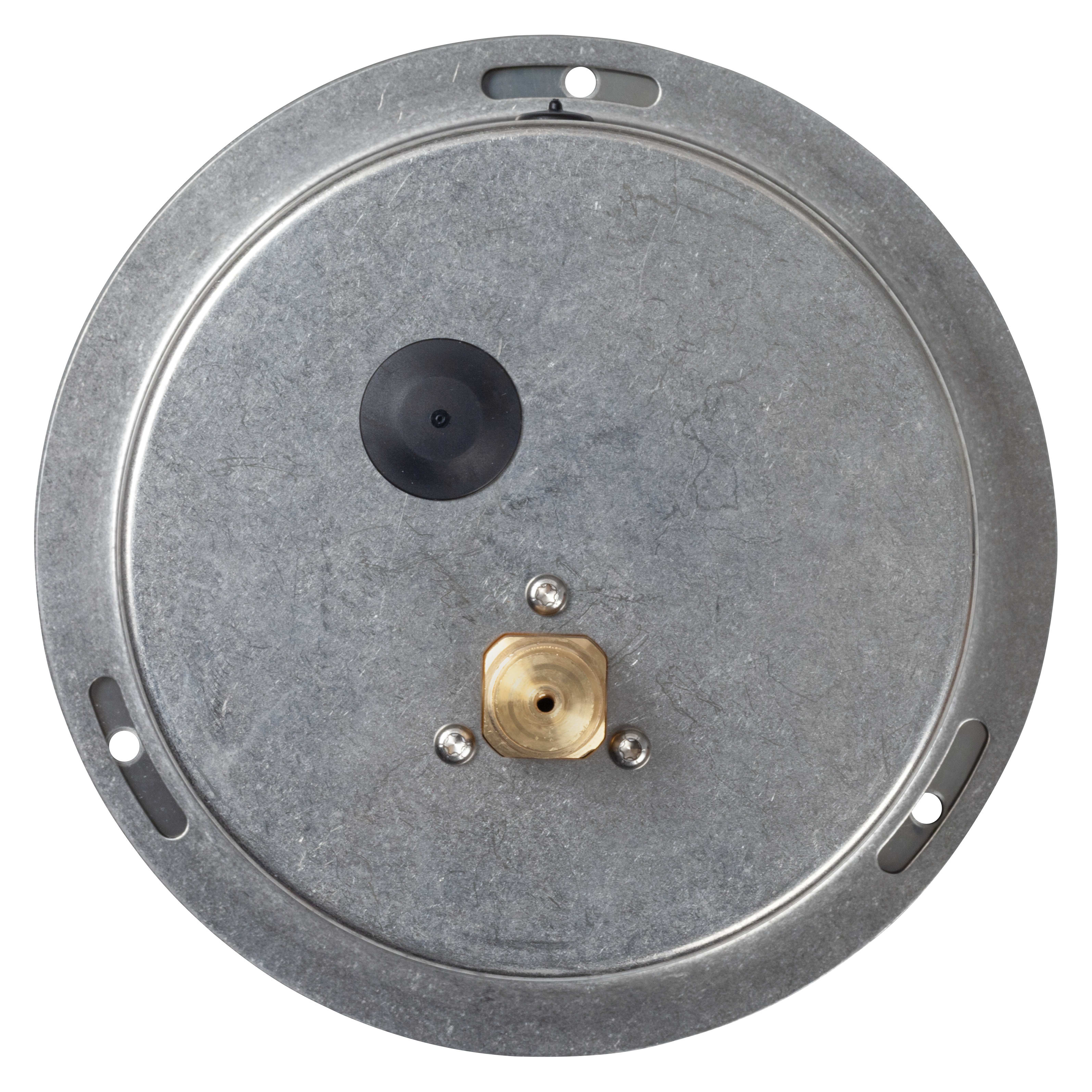

bottom back connection, 3-hole fixing, panel mounting bezel
