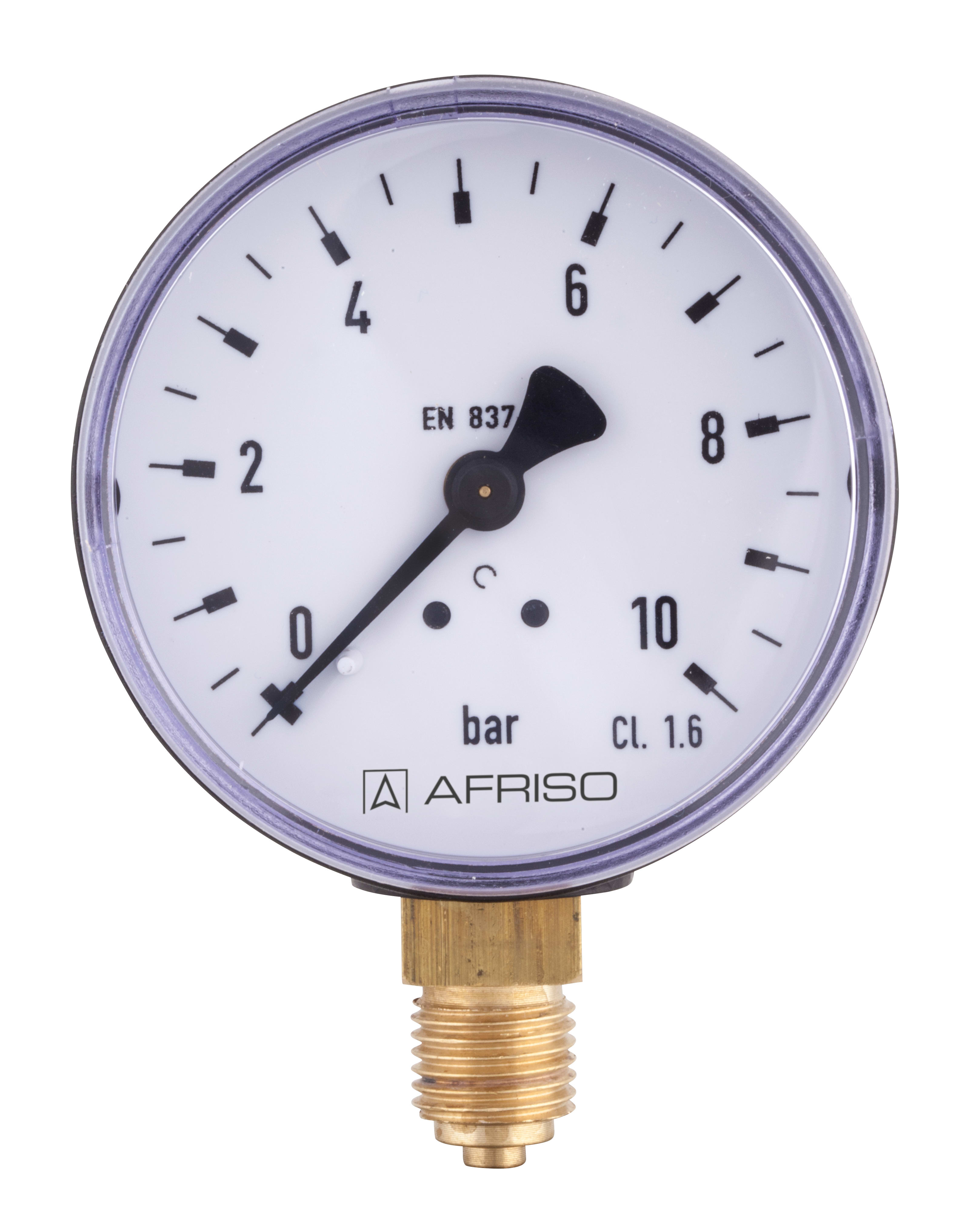

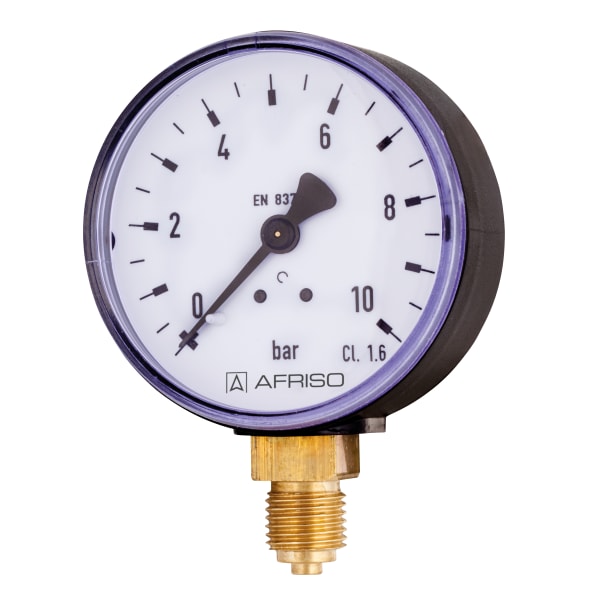

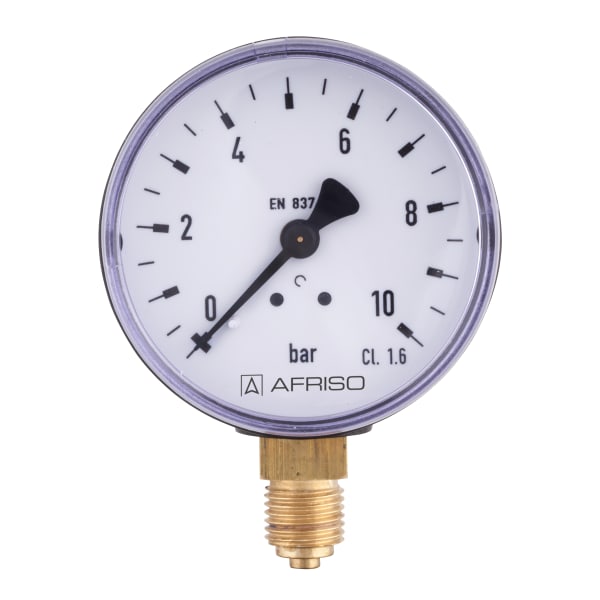

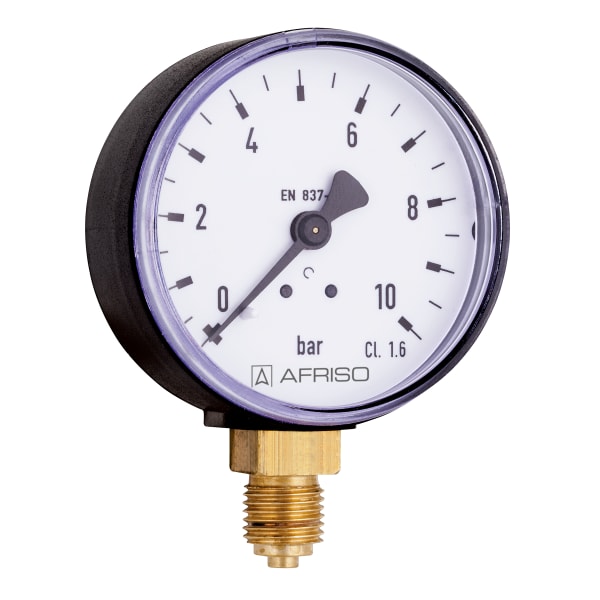

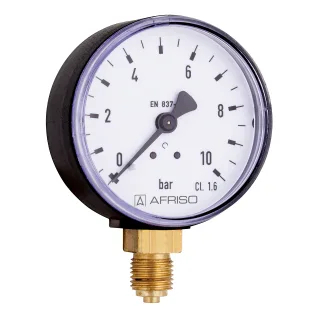

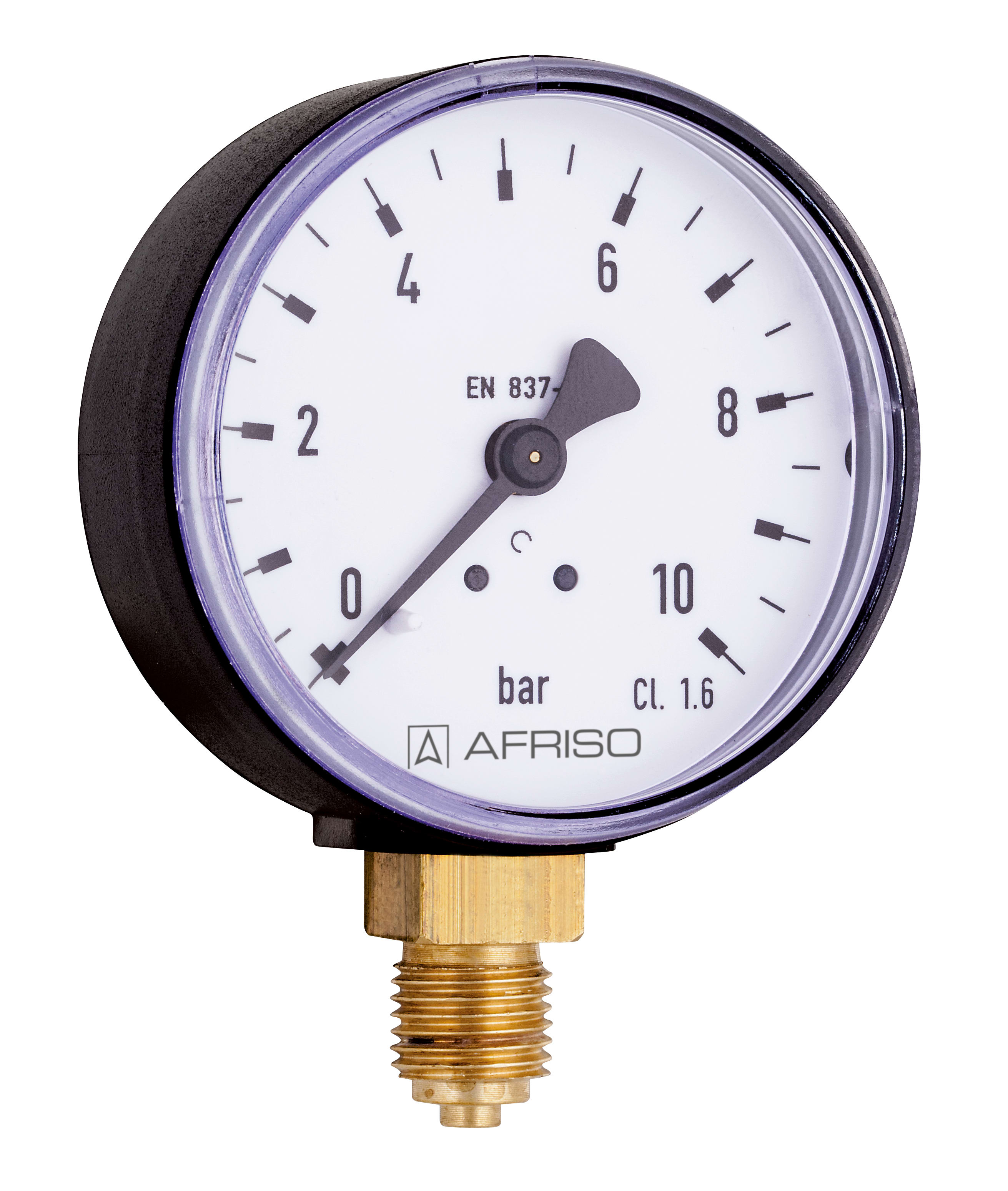

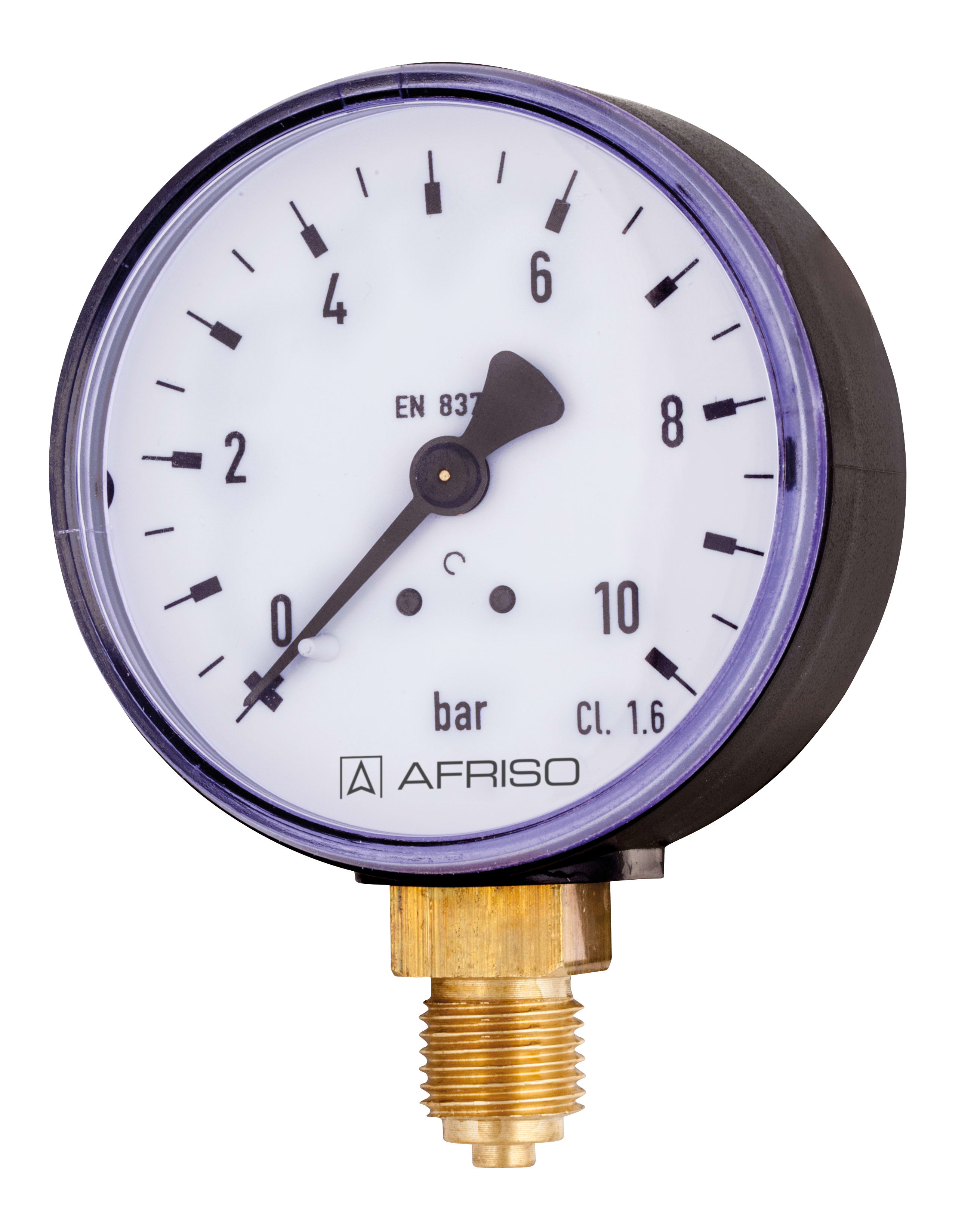

RF40 D101

Rohrfeder-Standardmanometer Typ D1

Variants Documents

housing ⌀ (nominal size)40 mm
ConnectionG⅛B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • for pneumatic and heating system applications
  • Design as per EN 837-1
  • Accuracy class 1.6
  • corrosion-resistant, highly impact-resistant plastic housing
  • many customised versions available

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!

RangeMounting typeTypePart number
-1/0 bardirectRF40 D10185001101
0/0.6 bardirectRF40 D10185009101
0/1 bardirectRF40 D10185010101
0/1.6 bardirectRF40 D10185011101
0/2.5 bardirectRF40 D10185012101
0/4 bardirectRF40 D10185013101
0/6 bardirectRF40 D10185014101
0/10 bardirectRF40 D10185015101
0/16 bardirectRF40 D10185016101
0/25 bardirectRF40 D10185017101
0/40 bardirectRF40 D10185018101
0/60 bardirectRF40 D10185019101
0/100 bardirectRF40 D10185020101
0/160 bardirectRF40 D10185021101
0/250 bardirectRF40 D10185022101
  • in-stock items
  • manufactured goods

Type
D1
Nominal size
40 - 40
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube, Copper alloy
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Kunststoff, weiß
Scaling black
Pointer
Kunststoff, schwarz
Housing
ABS, schwarz, highly impact-resistant and corrosion-resistant
window
Kunststoff, eingeclipst
NG 40:

Click the corresponding image for detail views, additional information and dimension tables.

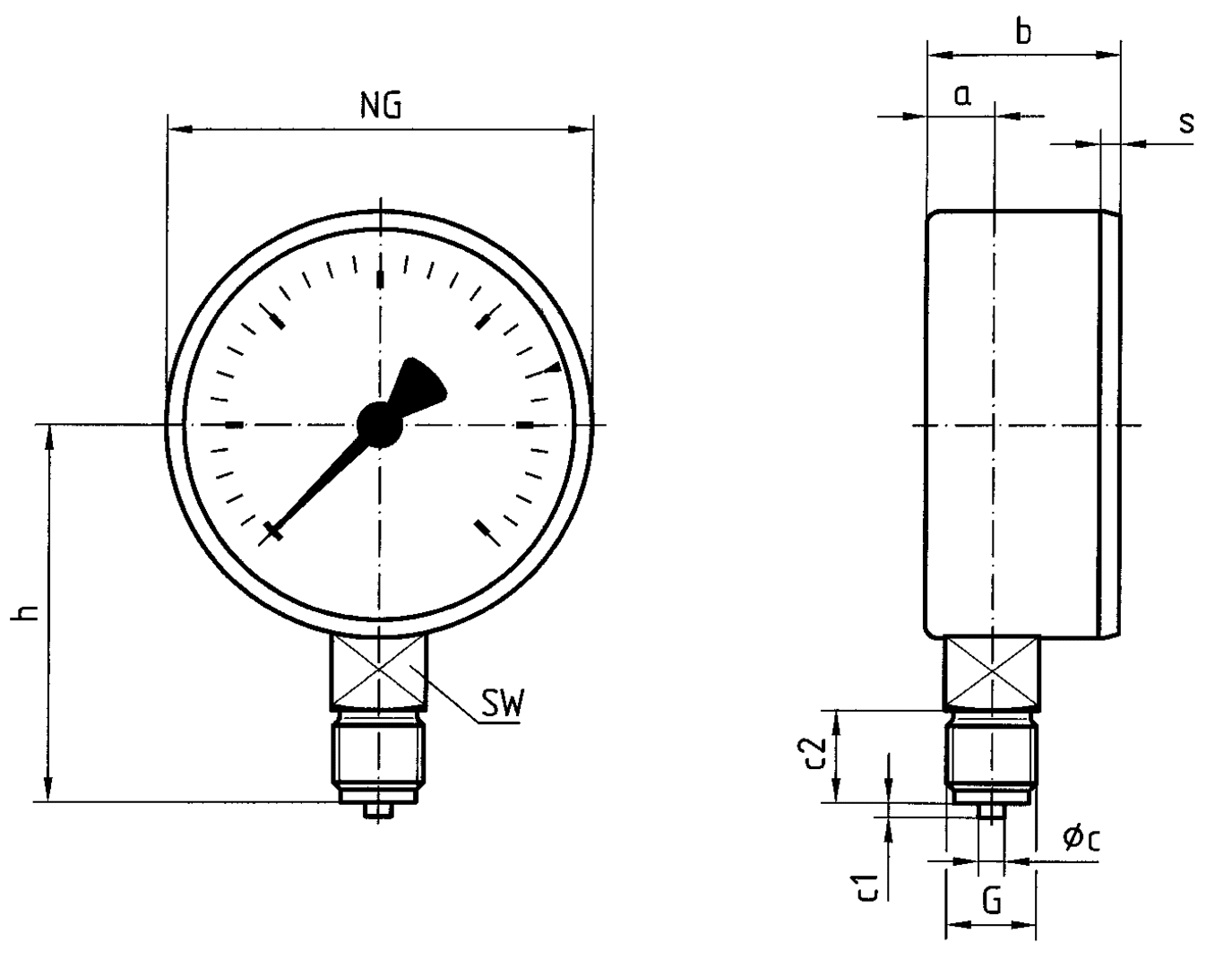

NG 40/50/63 – bottom connection
