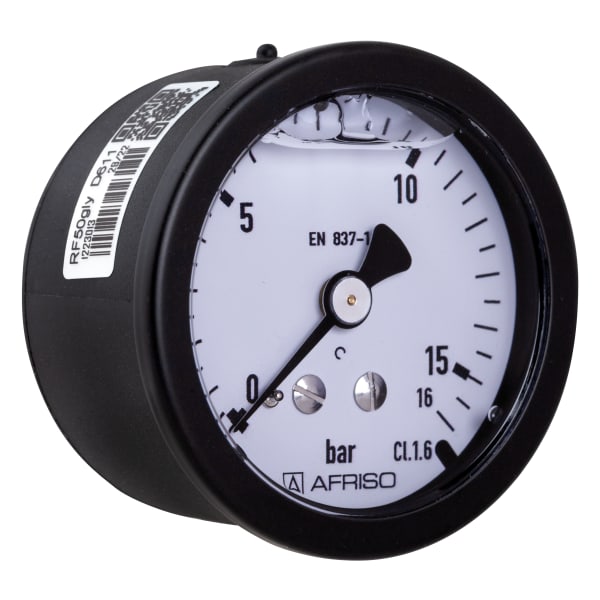

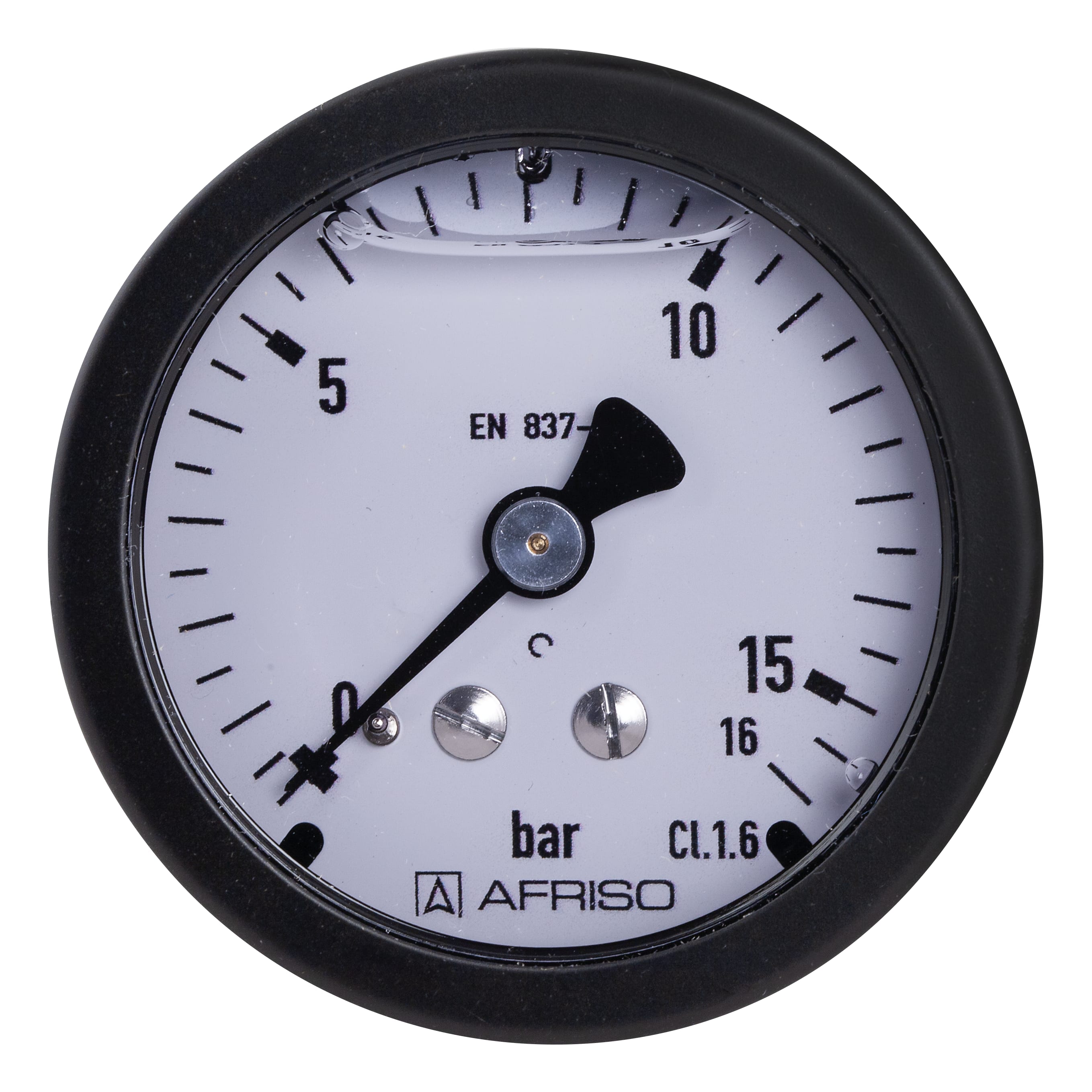

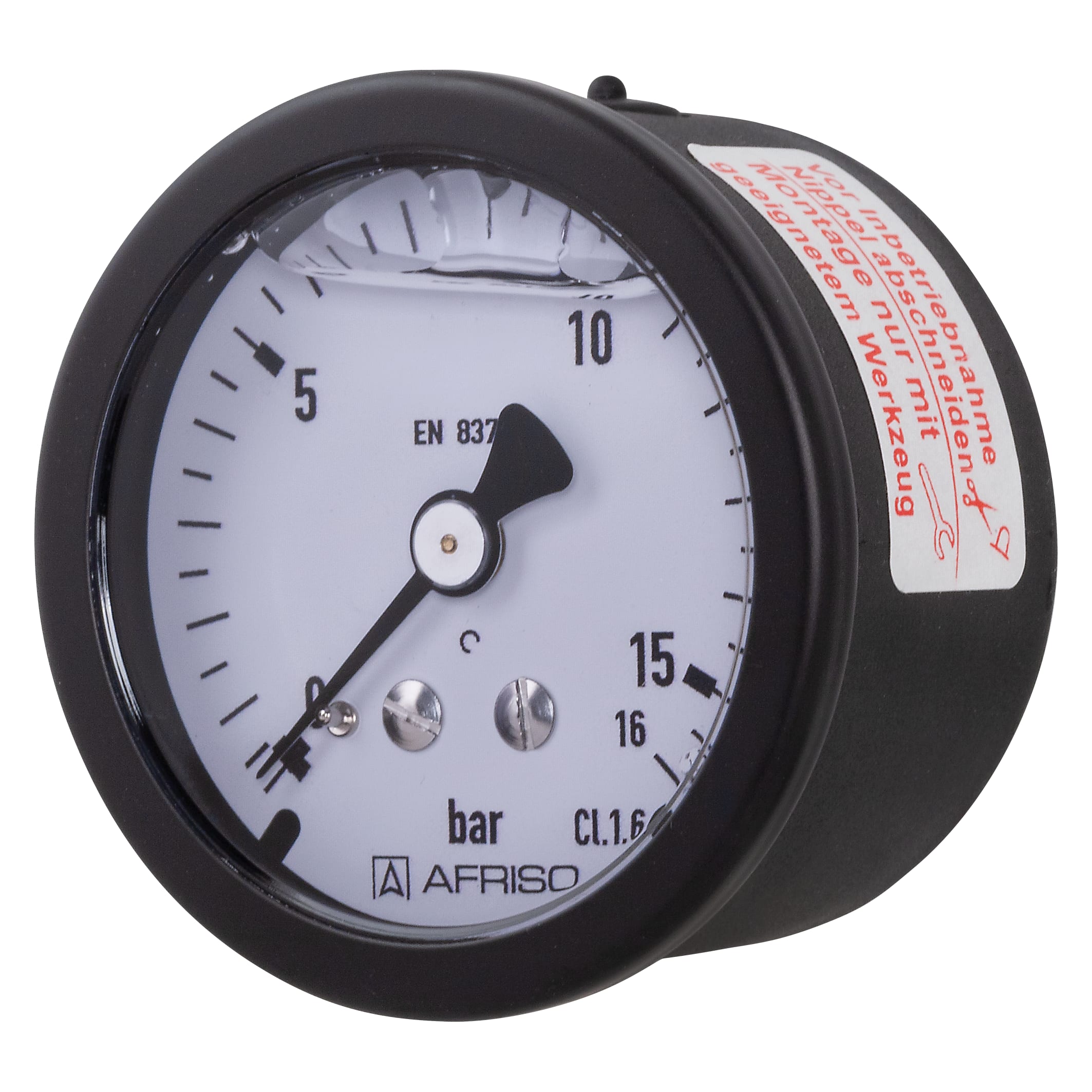

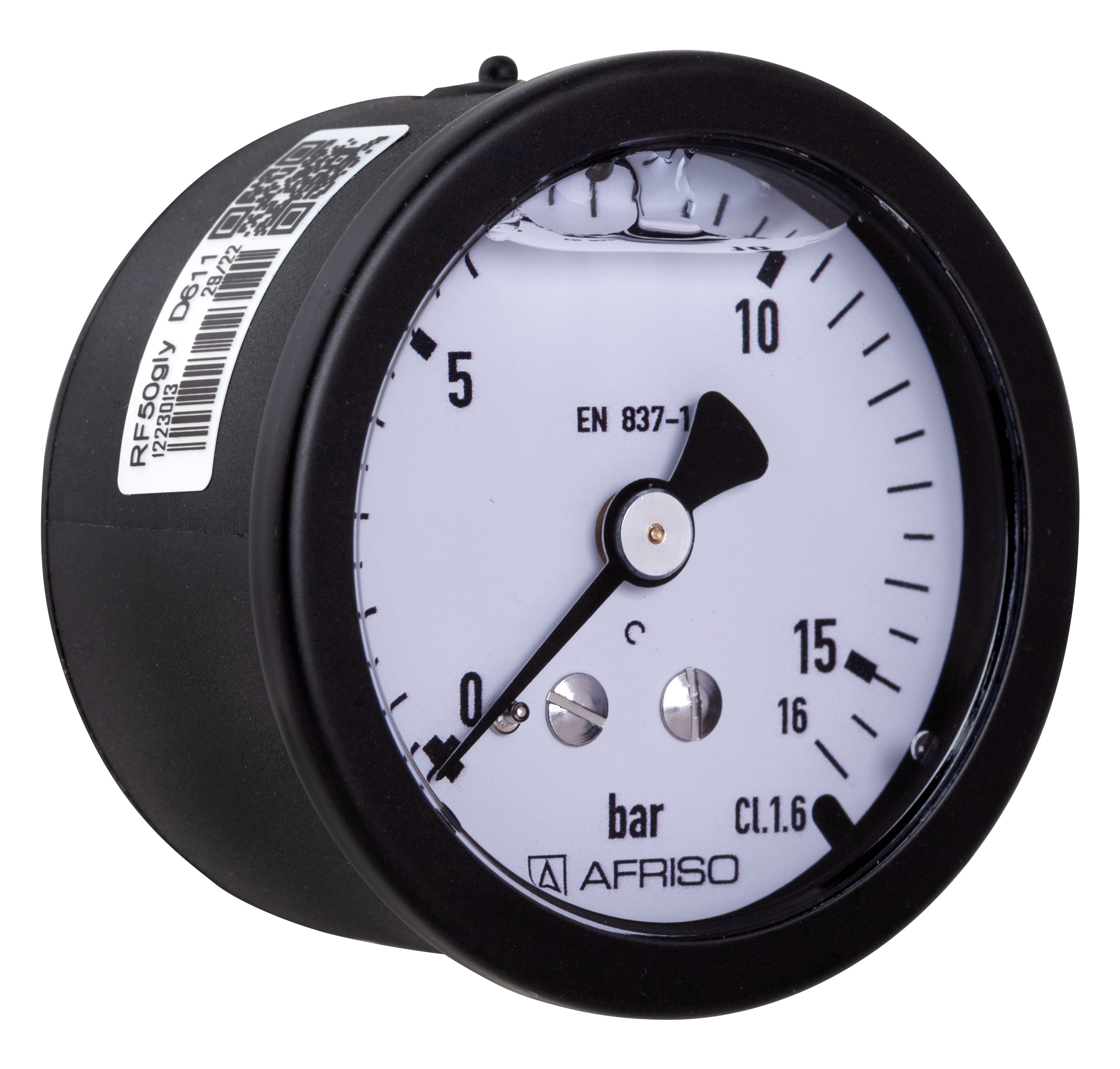

RF50Gly D611

Rohrfeder-Glyzerinmanometer Typ D6

Variants Documents

housing ⌀ (nominal size)50 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF50Gly D61185051611
-1/0.6 bardirectRF50Gly D61185052611
-1/+1.5 bardirectRF50Gly D61185053611
-1/+3 bardirectRF50Gly D61185054611
-1/+5 bardirectRF50Gly D61185055611
-1/+9 bardirectRF50Gly D61185056611
-1/+15 bardirectRF50Gly D61185057611
0/0.6 bardirectRF50Gly D61185059611
0/1 bardirectRF50Gly D61185060611
0/1.6 bardirectRF50Gly D61185061611
0/2.5 bardirectRF50Gly D61185062611
0/4 bardirectRF50Gly D61185063611
0/6 bardirectRF50Gly D61185064611
0/10 bardirectRF50Gly D61185065611
0/16 bardirectRF50Gly D61185066611
0/25 bardirectRF50Gly D61185067611
0/40 bardirectRF50Gly D61185068611
0/60 bardirectRF50Gly D61185069611
0/100 bardirectRF50Gly D61185070611
0/160 bardirectRF50Gly D61185071611
0/250 bardirectRF50Gly D61185072611
0/400 bardirectRF50Gly D61185073611
  • in-stock items
  • manufactured goods

Type
D6
Nominal size
50 - 50
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

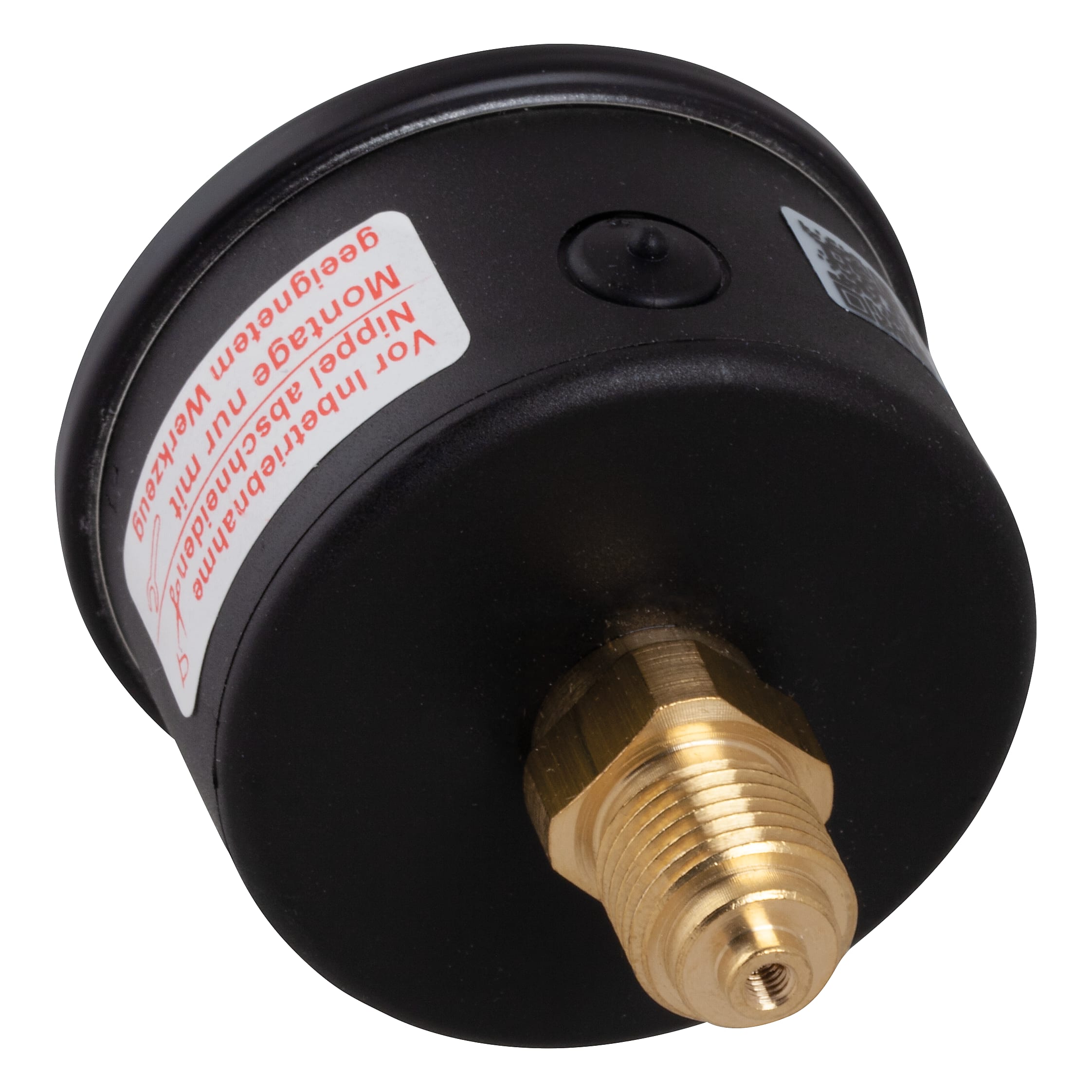

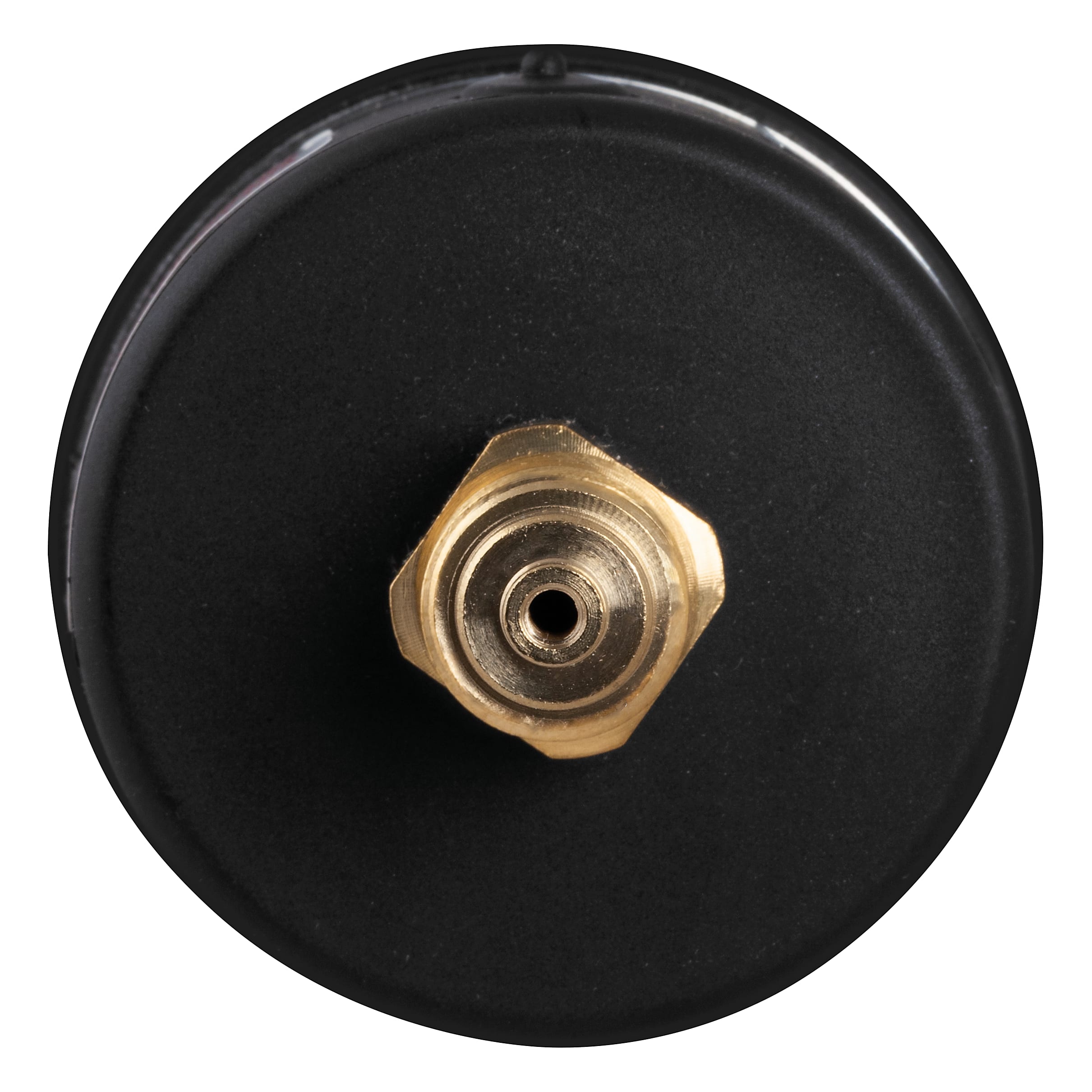

Connection
Brass, centre back
Measuring element
Bourdon tube, Copper alloy
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
NG 50: Aluminium, weiß
Scaling:
black
Pointer
NG 50: Aluminium, schwarz
Housing
NG 50: Polyamid, schwarz
with blow-out
crimped bezel
NG 50: Aluminium, schwarz
window
NG 50: Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

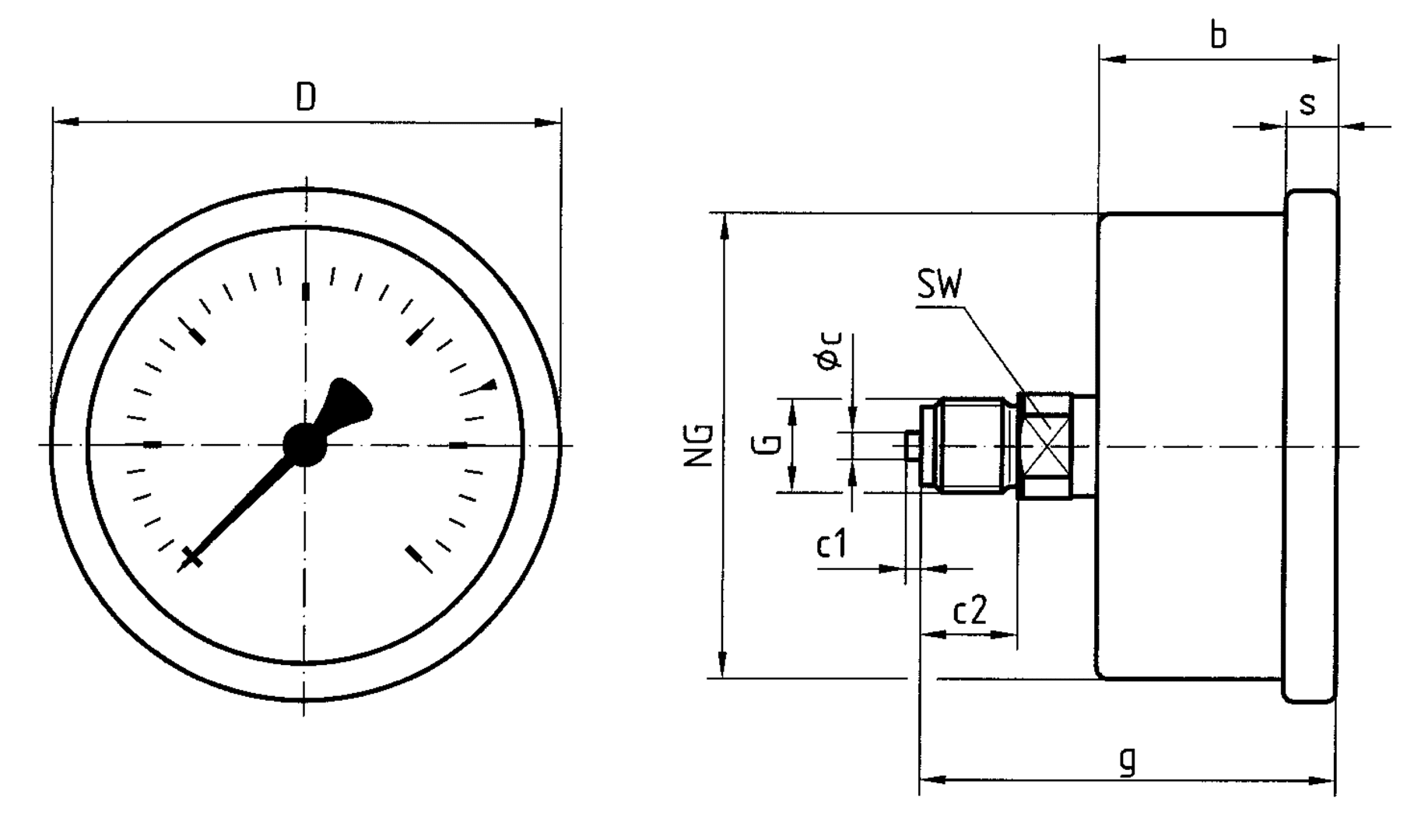

NG 50/63 – centre back connection
