RF50Gly D751

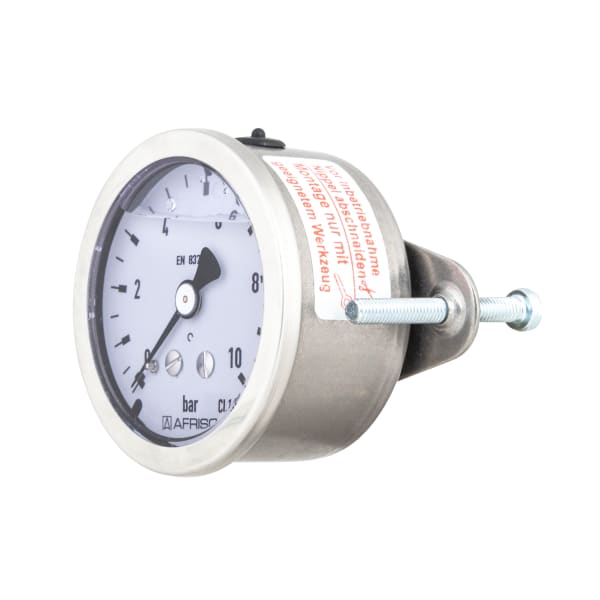

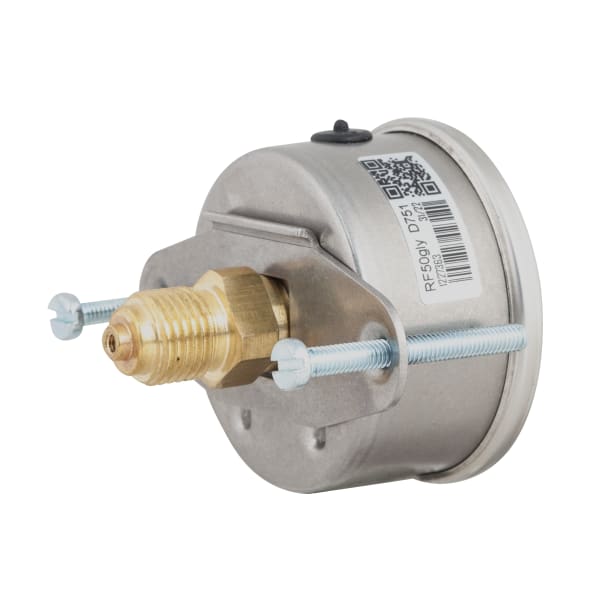

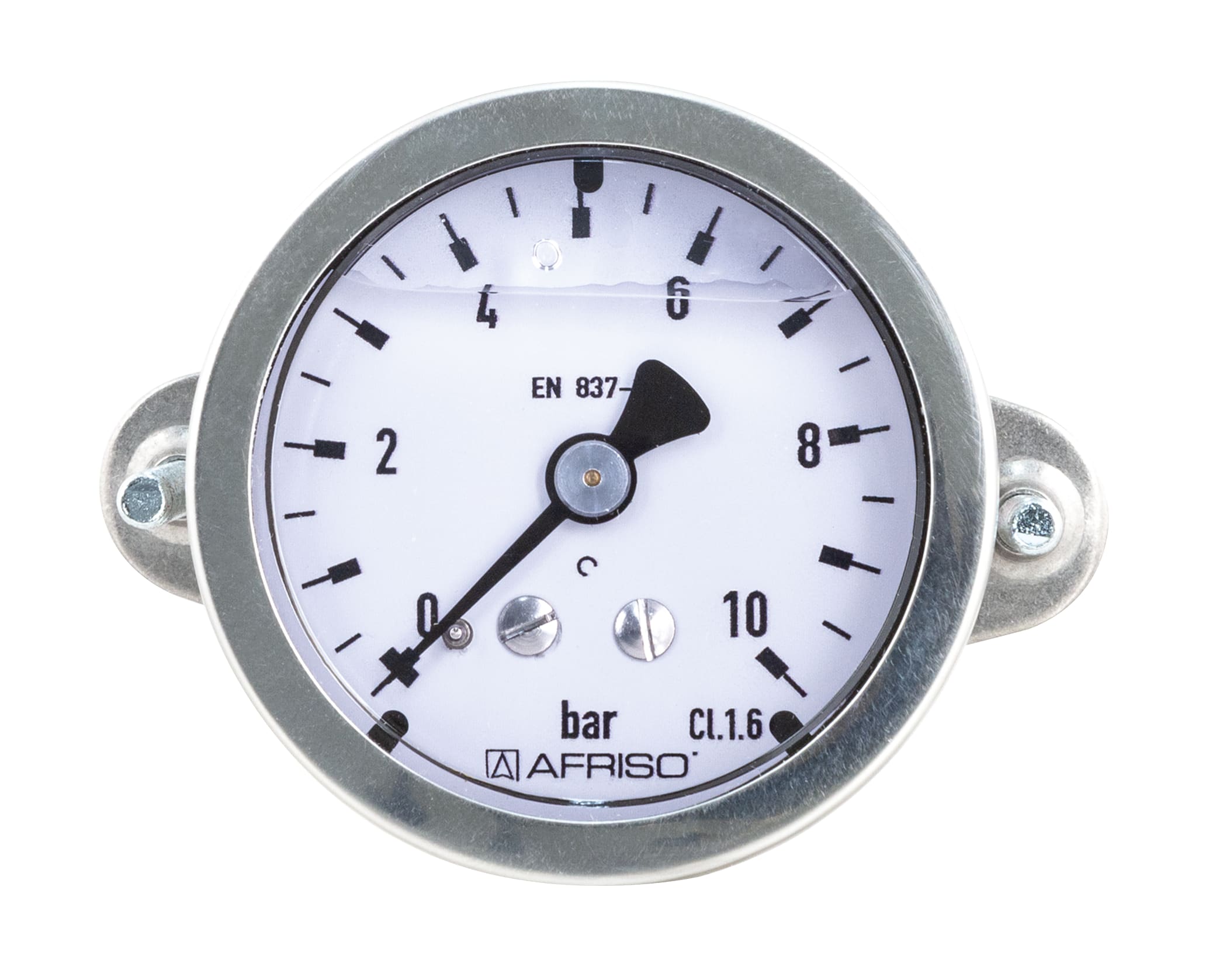

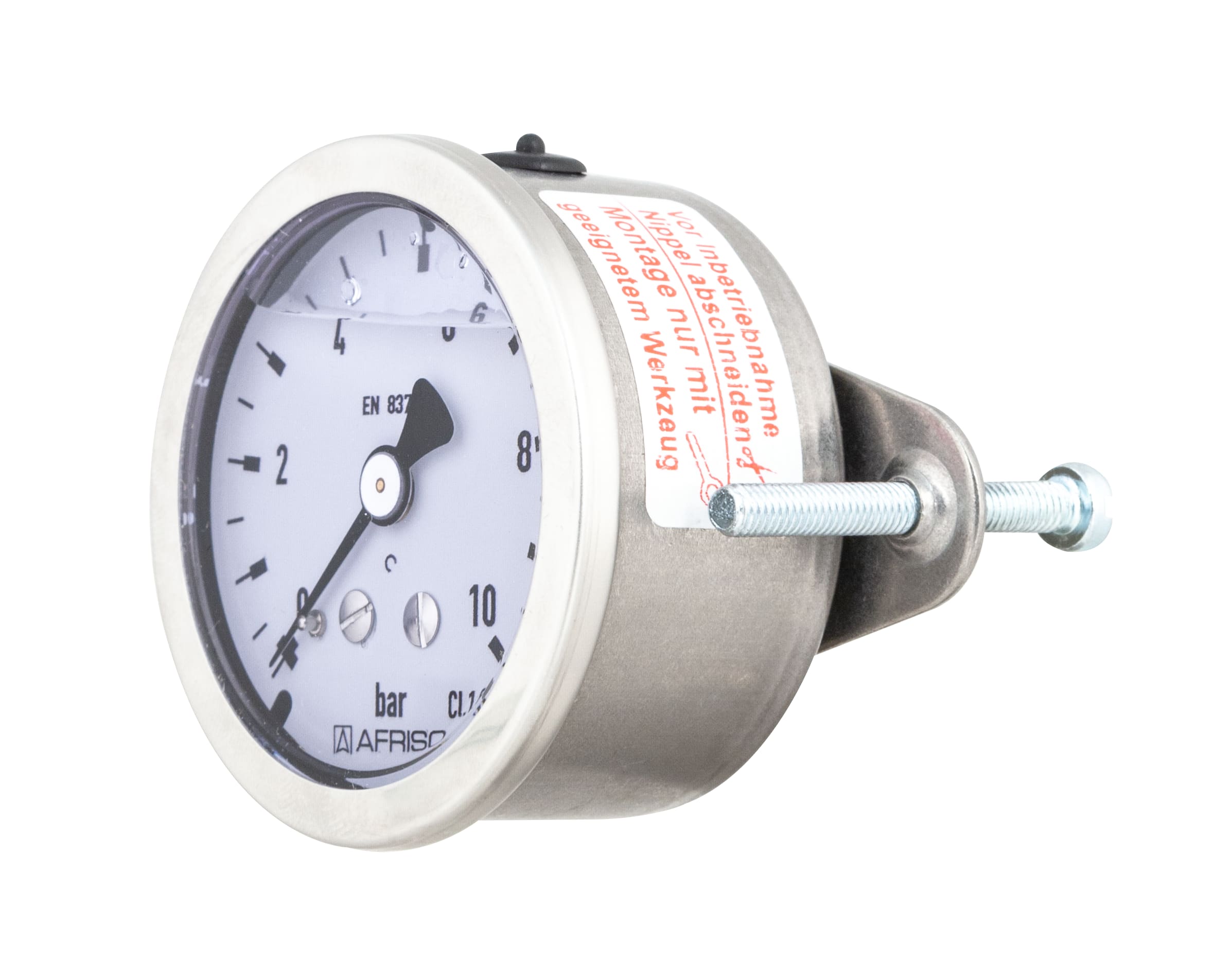

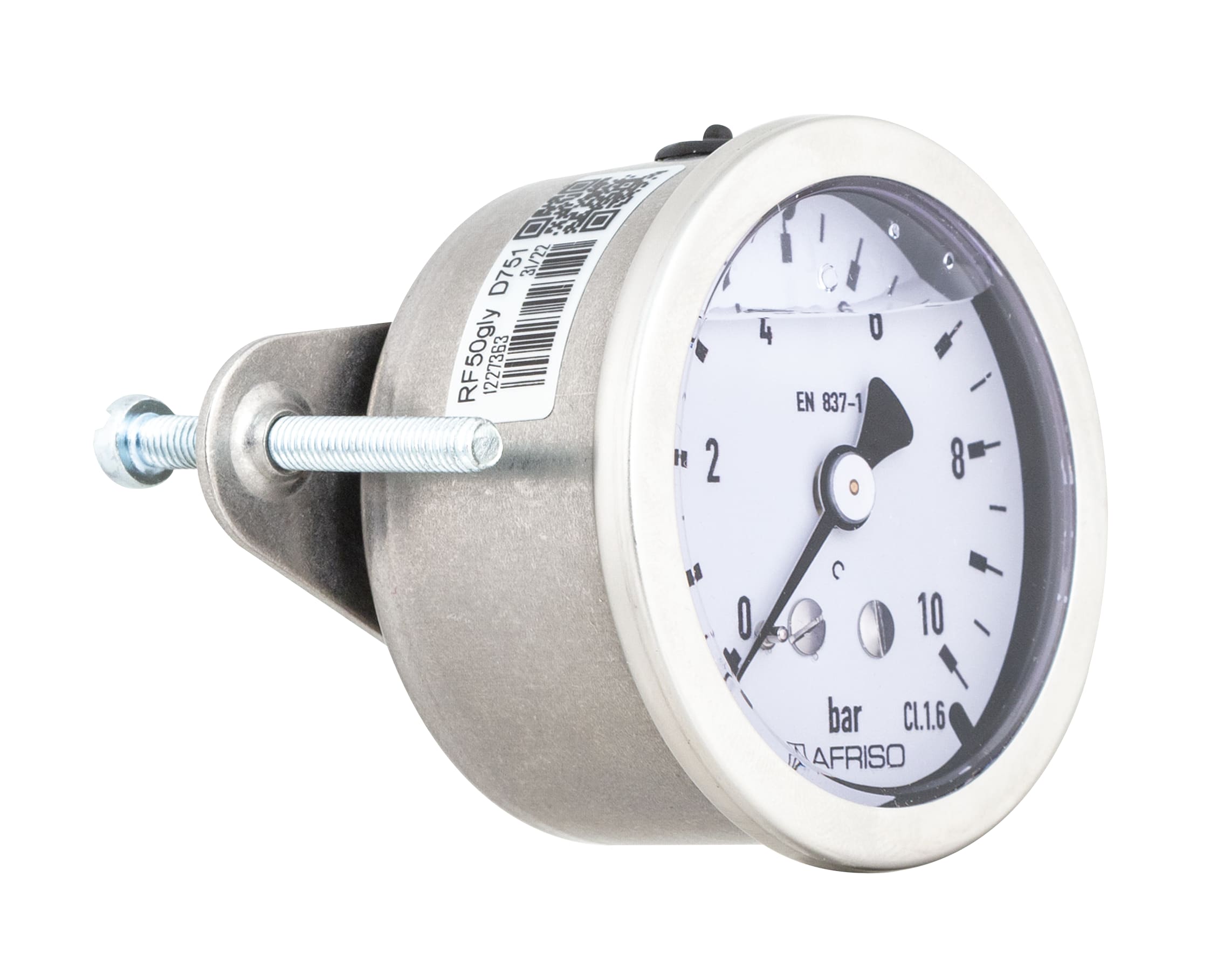

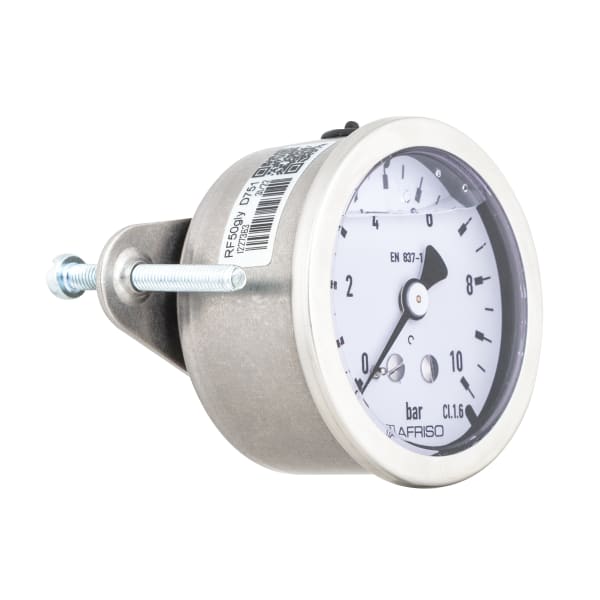

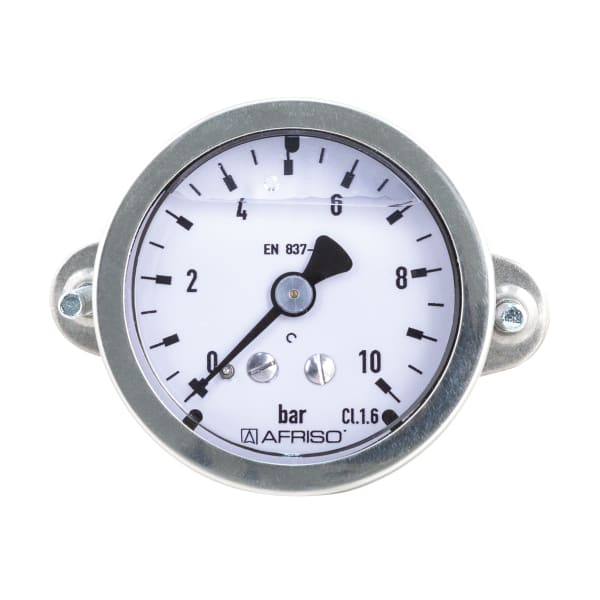

Glycerine filled Bourdon tube pressure gauge type D7

Variants Manuals

housing ⌀ (nominal size)50 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 barclamp fixingRF50Gly D75185051751
-1/0.6 barclamp fixingRF50Gly D75185052751
-1/+1.5 barclamp fixingRF50Gly D75185053751
-1/+3 barclamp fixingRF50Gly D75185054751
-1/+5 barclamp fixingRF50Gly D75185055751
-1/+9 barclamp fixingRF50Gly D75185056751
-1/+15 barclamp fixingRF50Gly D75185057751
0/0.6 barclamp fixingRF50Gly D75185059751
0/1 barclamp fixingRF50Gly D75185060751
0/1.6 barclamp fixingRF50Gly D75185061751
0/2.5 barclamp fixingRF50Gly D75185062751
0/4 barclamp fixingRF50Gly D75185063751
0/6 barclamp fixingRF50Gly D75185064751
0/10 barclamp fixingRF50Gly D75185065751
0/16 barclamp fixingRF50Gly D75185066751
0/25 barclamp fixingRF50Gly D75185067751
0/40 barclamp fixingRF50Gly D75185068751
0/60 barclamp fixingRF50Gly D75185069751
0/100 barclamp fixingRF50Gly D75185070751
0/160 barclamp fixingRF50Gly D75185071751
0/250 barclamp fixingRF50Gly D75185072751
0/400 barclamp fixingRF50Gly D75185073751
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
50
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, centre back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
Scaling:
black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

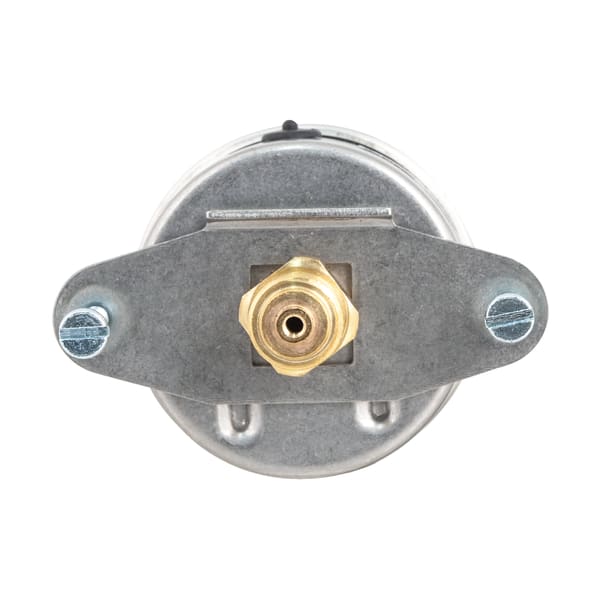

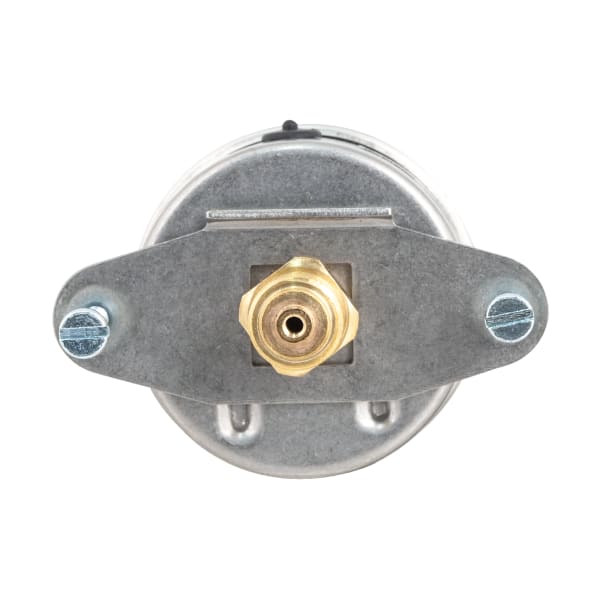

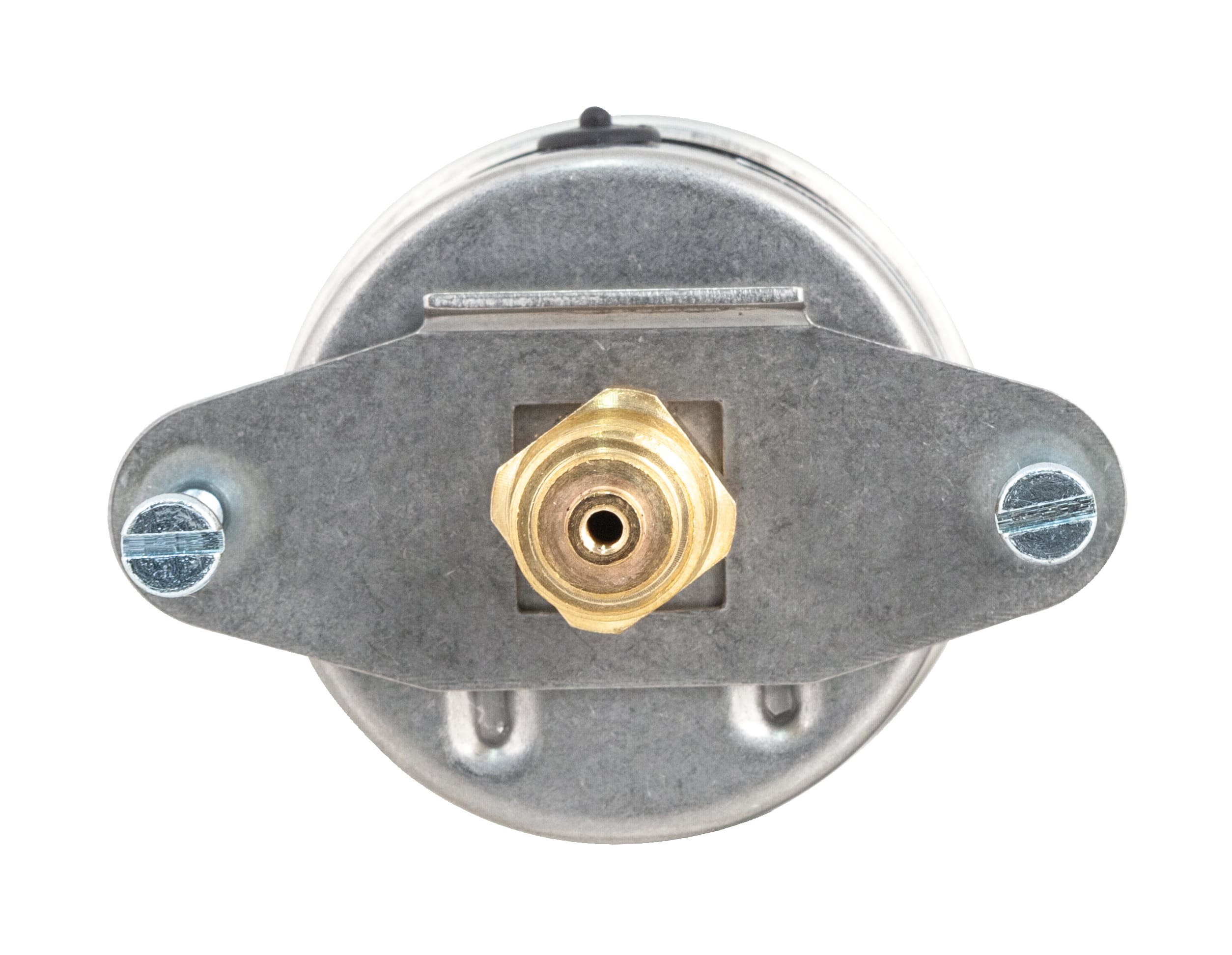

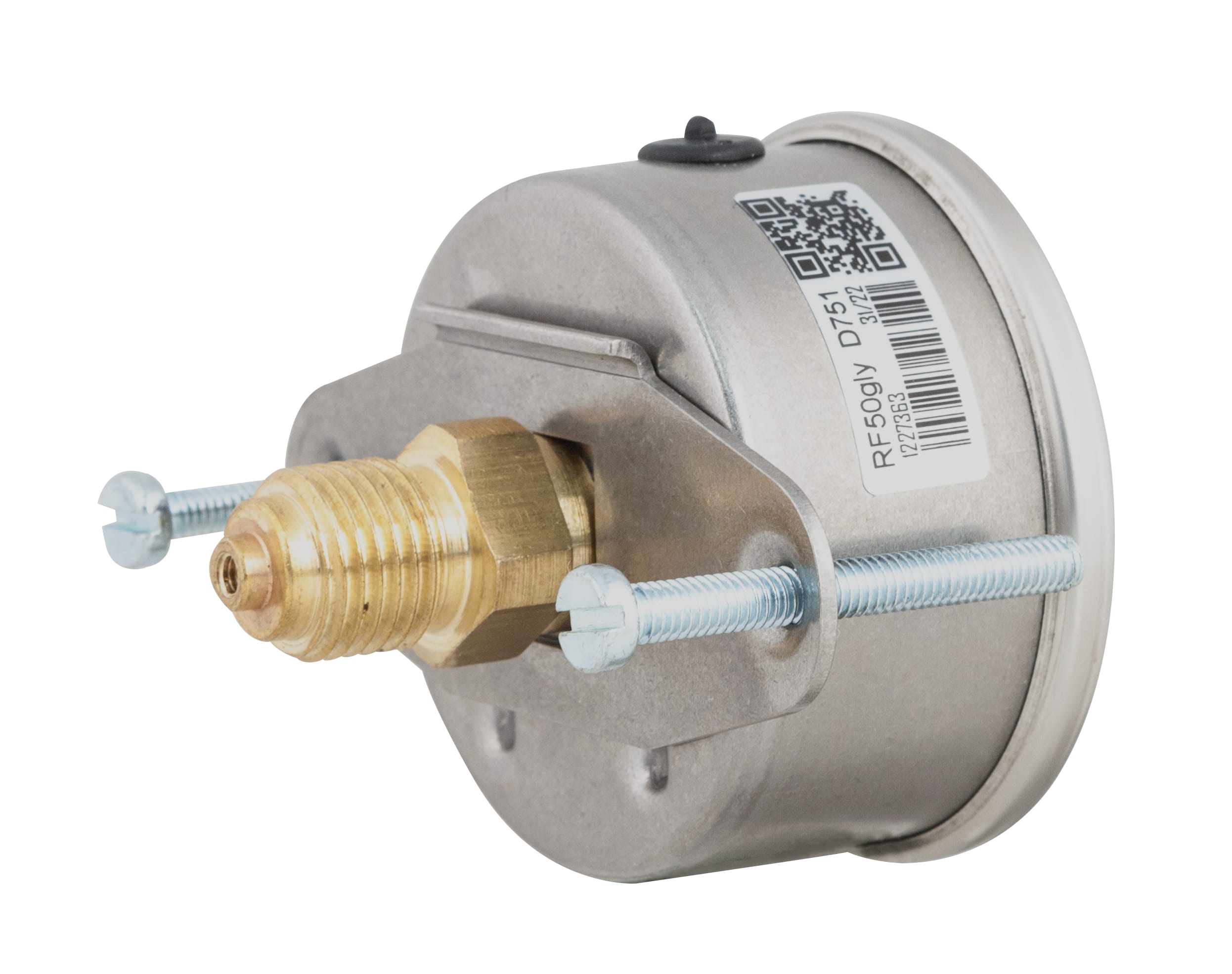

NG 50/63 – centre back connection, with clamp fixing
