Rohrfeder-Chemiemanometer Typ D9

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • for chemical and process engineering applications
  • measuring system fully welded to housing
  • extremely robust design
  • for temperatures of the medium of up to 200 °C
  • tightness-tested with helium
  • GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!

RangeMounting typeTypePart number
-1/0 barclamp fixingRF63Ch D95285101952
-1/0.6 barclamp fixingRF63Ch D95285102952
-1/+1.5 barclamp fixingRF63Ch D95285103952
-1/+3 barclamp fixingRF63Ch D95285104952
-1/+5 barclamp fixingRF63Ch D95285105952
-1/+9 barclamp fixingRF63Ch D95285106952
-1/+15 barclamp fixingRF63Ch D95285107952
0/0.6 barclamp fixingRF63Ch D95285109952
0/1 barclamp fixingRF63Ch D95285110952
0/1.6 barclamp fixingRF63Ch D95285111952
0/2.5 barclamp fixingRF63Ch D95285112952
0/4 barclamp fixingRF63Ch D95285113952
0/6 barclamp fixingRF63Ch D95285114952
0/10 barclamp fixingRF63Ch D95285115952
0/16 barclamp fixingRF63Ch D95285116952
0/25 barclamp fixingRF63Ch D95285117952
0/40 barclamp fixingRF63Ch D95285118952
0/60 barclamp fixingRF63Ch D95285119952
0/100 barclamp fixingRF63Ch D95285120952
0/160 barclamp fixingRF63Ch D95285121952
0/250 barclamp fixingRF63Ch D95285122952
0/400 barclamp fixingRF63Ch D95285123952
0/600 barclamp fixingRF63Ch D95285124952
0/1 000 barclamp fixingRF63Ch D95285125952
  • in-stock items
  • manufactured goods

Type
D9
Nominal size
63 - 63
accuracy class
EN 837-1/6
NG 63: 1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium
NG 63: max. 200 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Stainless steel 316 L, centre back
Measuring element
Bourdon tube, stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
tightness-tested with helium
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
NG 63: Edelstahl 304
crimped bezel
NG 63:
window
NG 63: Sicherheitsverbundglas

Click the corresponding image for detail views, additional information and dimension tables.

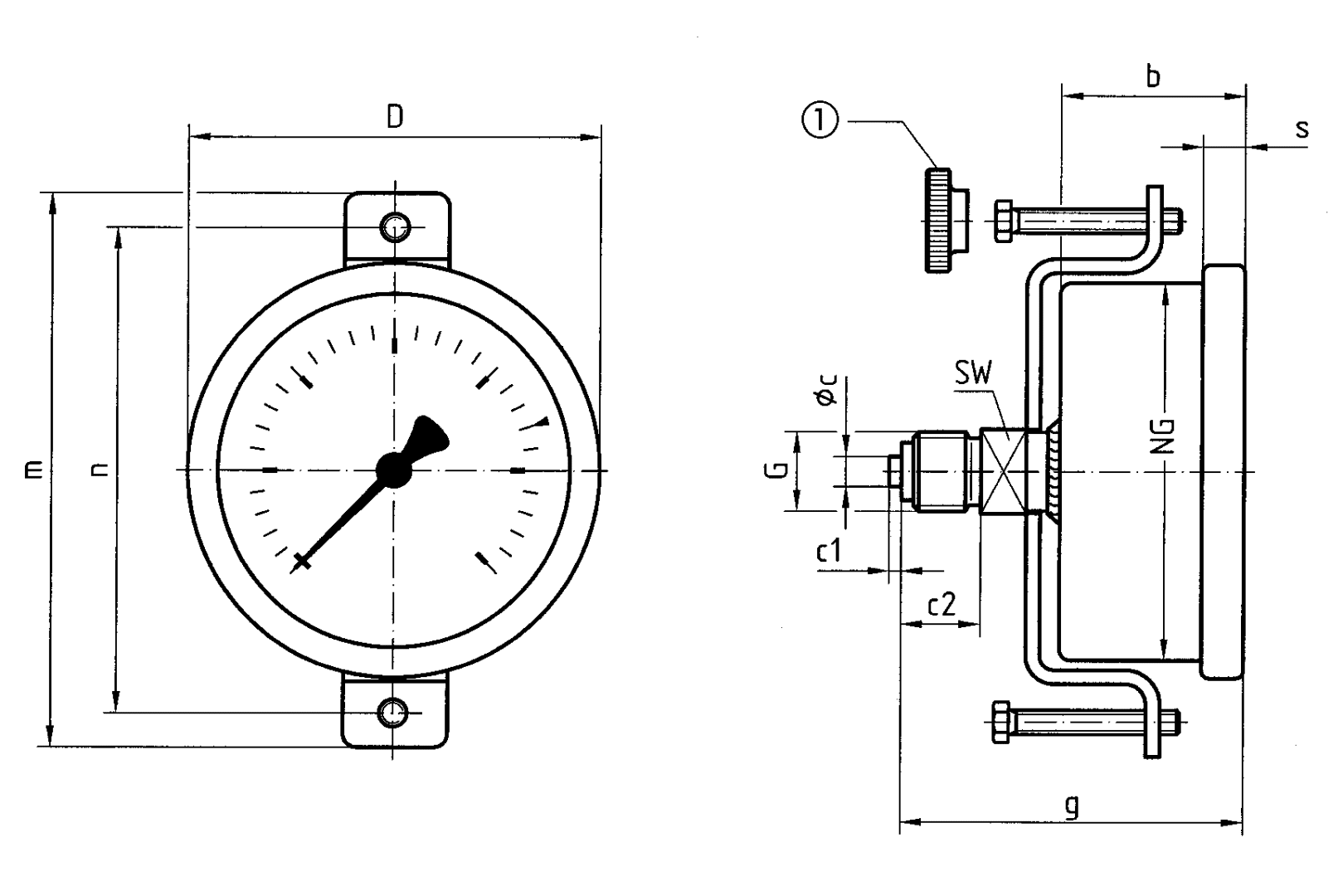

NG 63 – centre back connection, with clamp fixing
