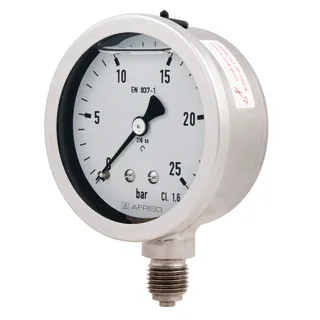

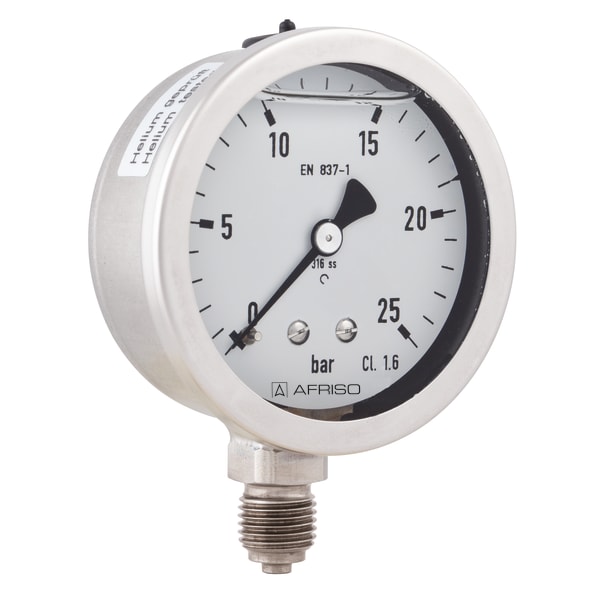

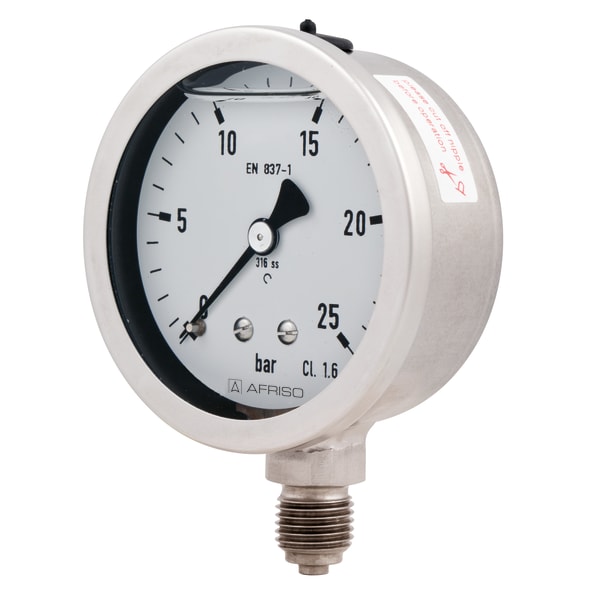

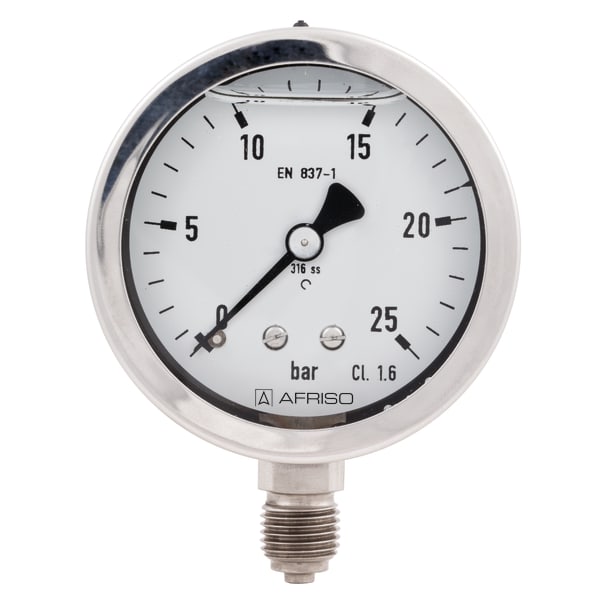

RF63ChGly D702

Rohrfeder-Chemiemanometer Typ D7 mit Glyzerinfüllung

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • for chemical and process engineering applications
  • measuring system fully welded to housing
  • extremely robust design
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • tightness-tested with helium
  • DNV- and GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. For measurements in areas with high vibration levels and high, dynamic pressure loads.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-1/0 bardirectRF63ChGly D70285101702
-1/0.6 bardirectRF63ChGly D70285102702
-1/+1.5 bardirectRF63ChGly D70285103702
-1/+3 bardirectRF63ChGly D70285104702
-1/+5 bardirectRF63ChGly D70285105702
-1/+9 bardirectRF63ChGly D70285106702
-1/+15 bardirectRF63ChGly D70285107702
0/0.6 bardirectRF63ChGly D70285109702
0/1 bardirectRF63ChGly D70285110702
0/1.6 bardirectRF63ChGly D70285111702
0/2.5 bardirectRF63ChGly D70285112702
0/4 bardirectRF63ChGly D70285113702
0/6 bardirectRF63ChGly D70285114702
0/10 bardirectRF63ChGly D70285115702
0/16 bardirectRF63ChGly D70285116702
0/25 bardirectRF63ChGly D70285117702
0/40 bardirectRF63ChGly D70285118702
0/60 bardirectRF63ChGly D70285119702
0/100 bardirectRF63ChGly D70285120702
0/160 bardirectRF63ChGly D70285121702
0/250 bardirectRF63ChGly D70285122702
0/400 bardirectRF63ChGly D70285123702
0/600 bardirectRF63ChGly D70285124702
0/1 000 bardirectRF63ChGly D70285125702
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
63 - 63
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 54 (EN 60529) with housing vent (< 25 bar)

Standard design

Connection
Stainless steel 316 L, bottom
Measuring element
Bourdon tube, stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
tightness-tested with helium
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
NG 63:
Edelstahl 304
window
NG 63: Sicherheitsverbundglas
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

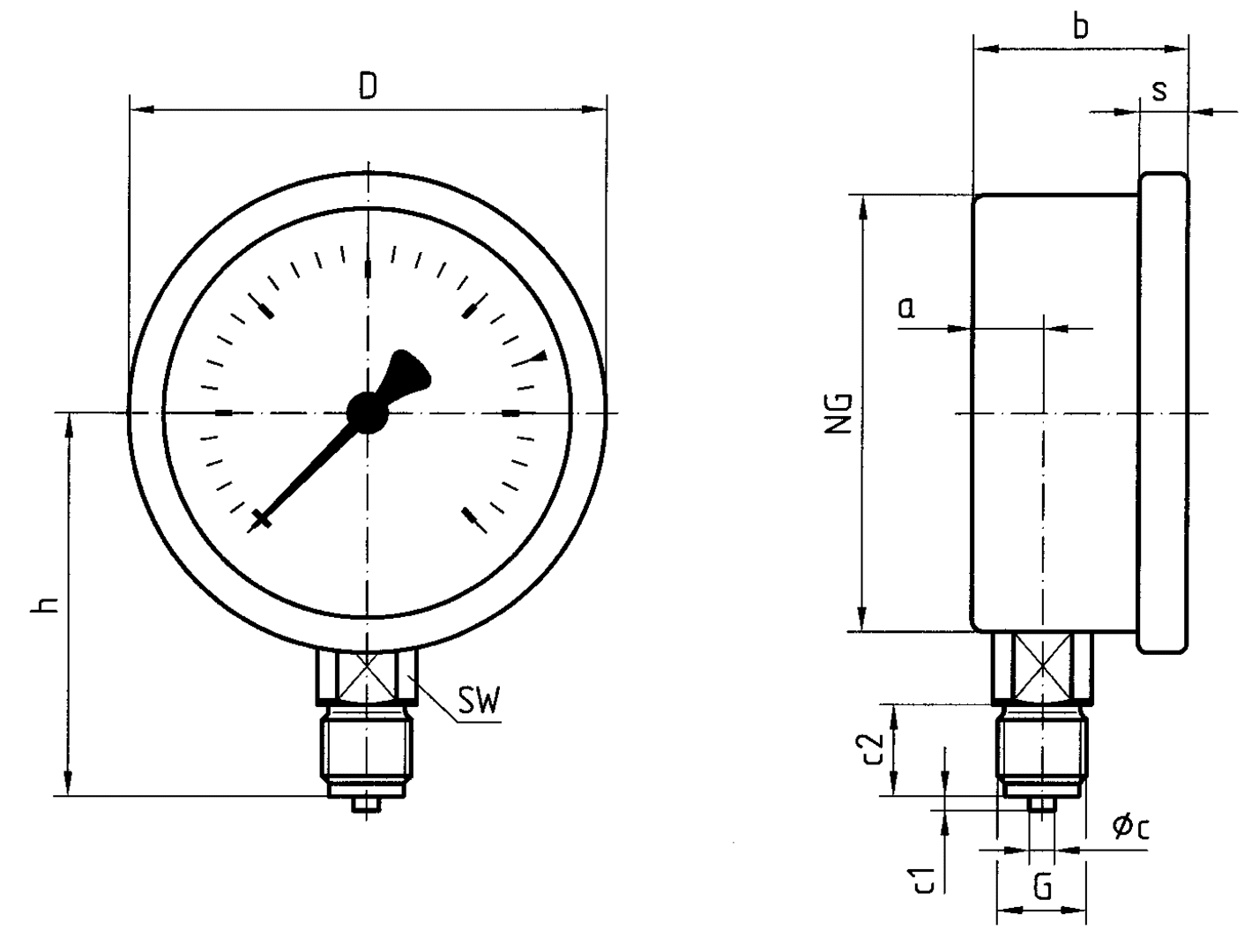

NG 50/63 – bottom connection
