RF63Gly D701

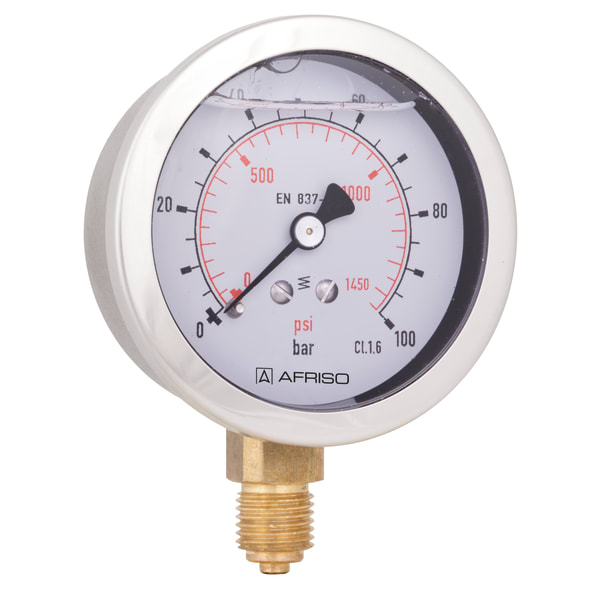

Glycerine filled Bourdon tube pressure gauge type D7

Variants Manuals

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF63Gly D70185101701
-1/0.6 bardirectRF63Gly D70185102701
-1/+1.5 bardirectRF63Gly D70185103701
-1/+3 bardirectRF63Gly D70185104701
-1/+5 bardirectRF63Gly D70185105701
-1/+9 bardirectRF63Gly D70185106701
-1/+15 bardirectRF63Gly D70185107701
0/0.6 bardirectRF63Gly D70185109701
0/1 bardirectRF63Gly D70185110701
0/1.6 bardirectRF63Gly D70185111701
0/2.5 bardirectRF63Gly D70185112701
0/4 bardirectRF63Gly D70185113701
0/6 bardirectRF63Gly D70185114701
0/10 bardirectRF63Gly D70185115701
0/16 bardirectRF63Gly D70185116701
0/25 bardirectRF63Gly D70185117701
0/40 bardirectRF63Gly D70185118701
0/60 bardirectRF63Gly D70185119701
0/100 bardirectRF63Gly D70185120701
0/160 bardirectRF63Gly D70185121701
0/250 bardirectRF63Gly D70185122701
0/315 bardirectRF63Gly D70186818701
0/400 bardirectRF63Gly D70185123701
0/600 bardirectRF63Gly D70185124701
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
63
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
RF63Gly:
dual scale, bar outer, black – psi inner, red
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.
