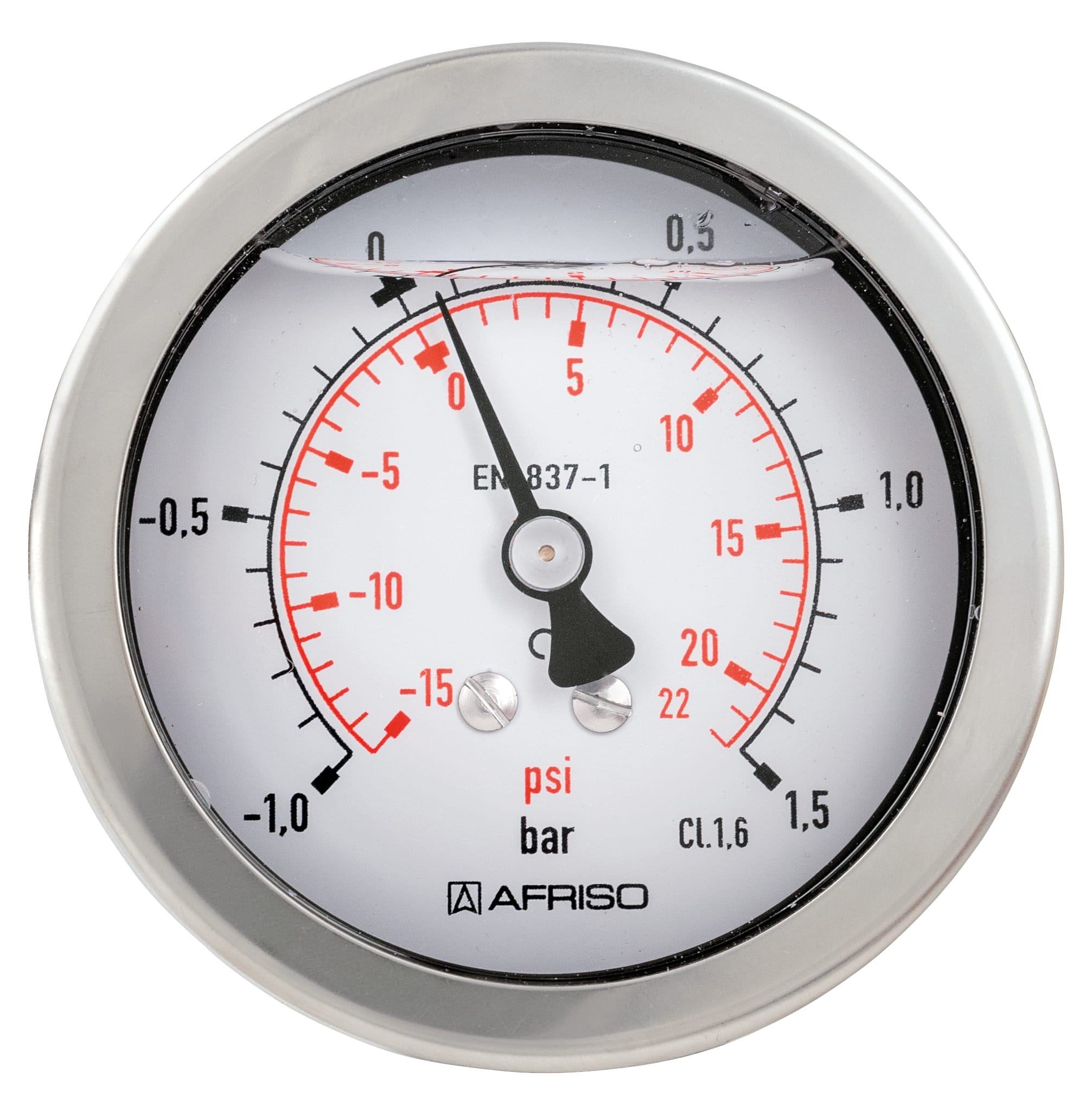

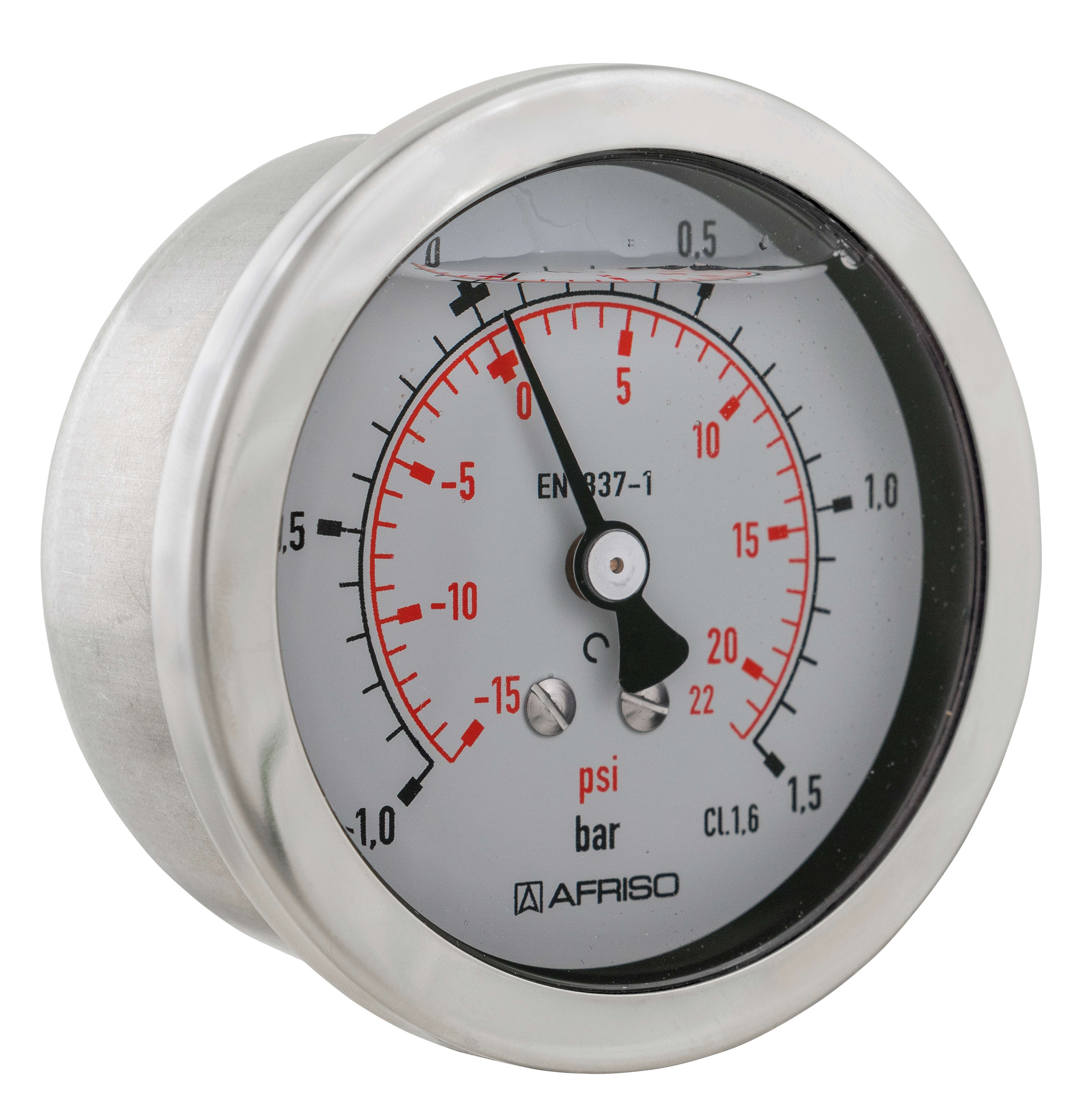

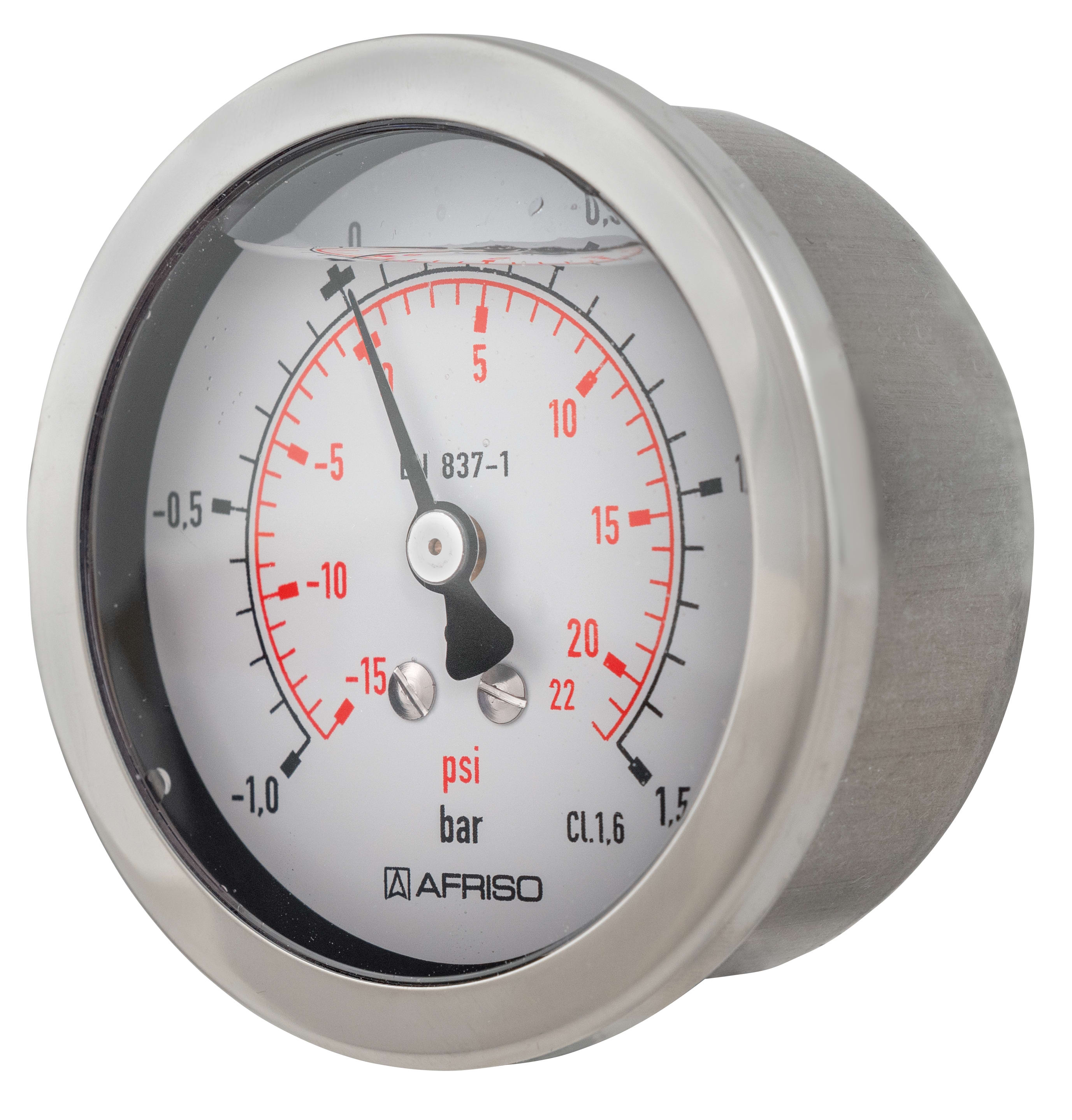

RF63Gly D711

Glycerine filled Bourdon tube pressure gauge type D7

Variants Manuals

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF63Gly D71185101711
-1/0.6 bardirectRF63Gly D71185102711
-1/+1.5 bardirectRF63Gly D71185103711
-1/+3 bardirectRF63Gly D71185104711
-1/+5 bardirectRF63Gly D71185105711
-1/+9 bardirectRF63Gly D71185106711
-1/+15 bardirectRF63Gly D71185107711
0/0.6 bardirectRF63Gly D71185109711
0/1 bardirectRF63Gly D71185110711
0/1.6 bardirectRF63Gly D71185111711
0/2.5 bardirectRF63Gly D71185112711
0/4 bardirectRF63Gly D71185113711
0/6 bardirectRF63Gly D71185114711
0/10 bardirectRF63Gly D71185115711
0/16 bardirectRF63Gly D71185116711
0/25 bardirectRF63Gly D71185117711
0/40 bardirectRF63Gly D71185118711
0/60 bardirectRF63Gly D71185119711
0/100 bardirectRF63Gly D71185120711
0/160 bardirectRF63Gly D71185121711
0/250 bardirectRF63Gly D71185122711
0/315 bardirectRF63Gly D71186818711
0/400 bardirectRF63Gly D71185123711
0/600 bardirectRF63Gly D71185124711
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
63
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

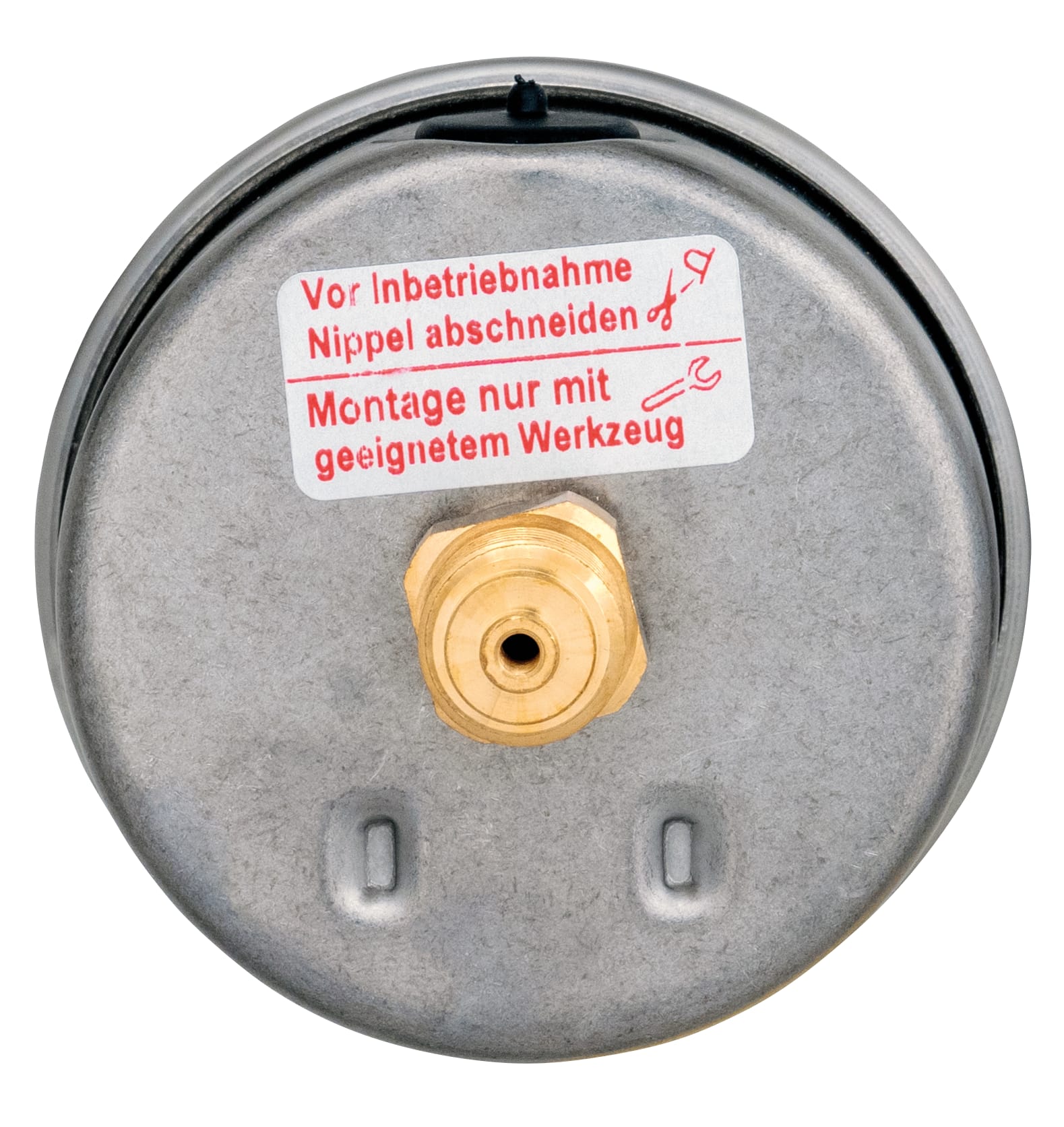

Connection
Brass, centre back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
RF63Gly:
dual scale, bar outer, black – psi inner, red
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

NG 50/63 – centre back connection
