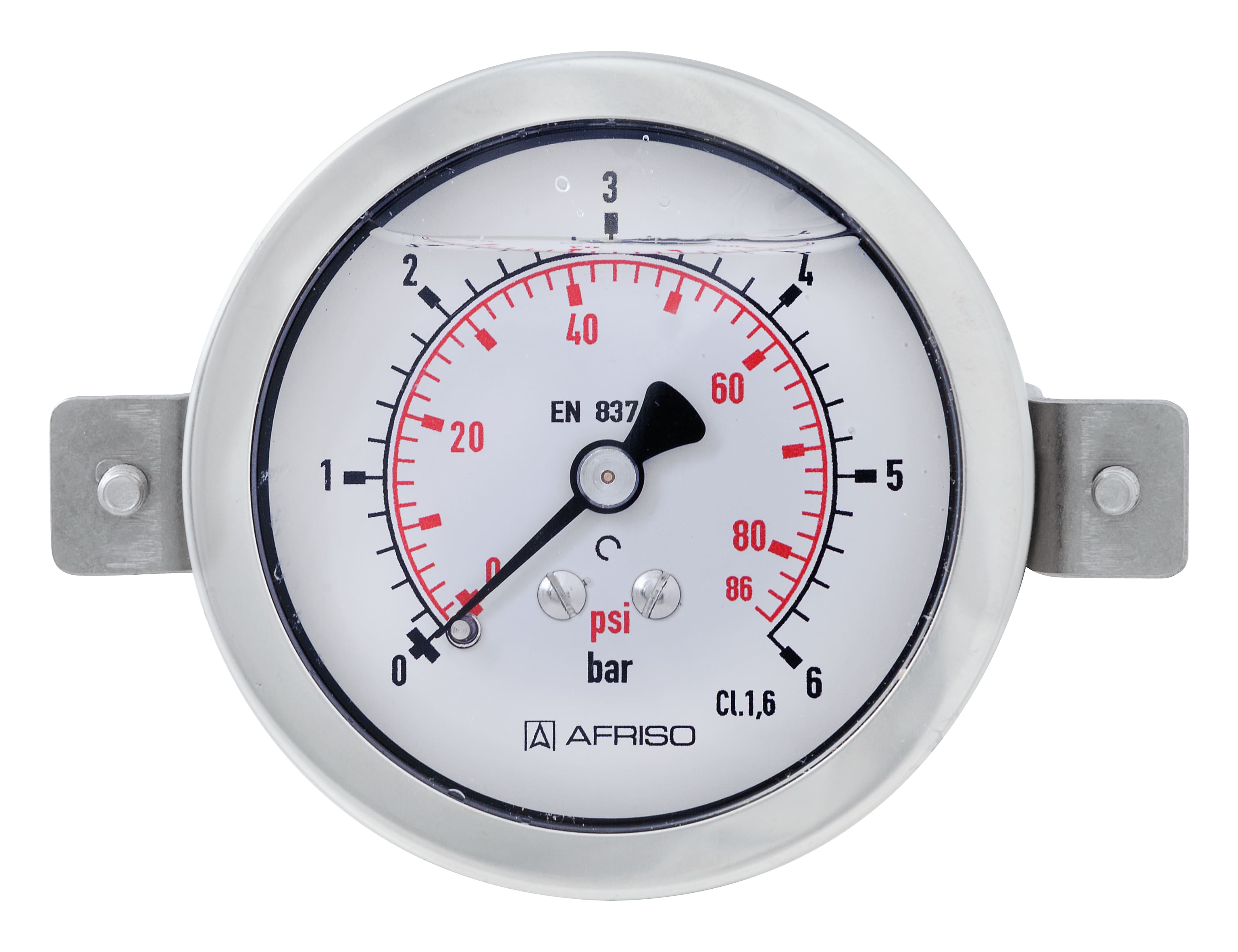

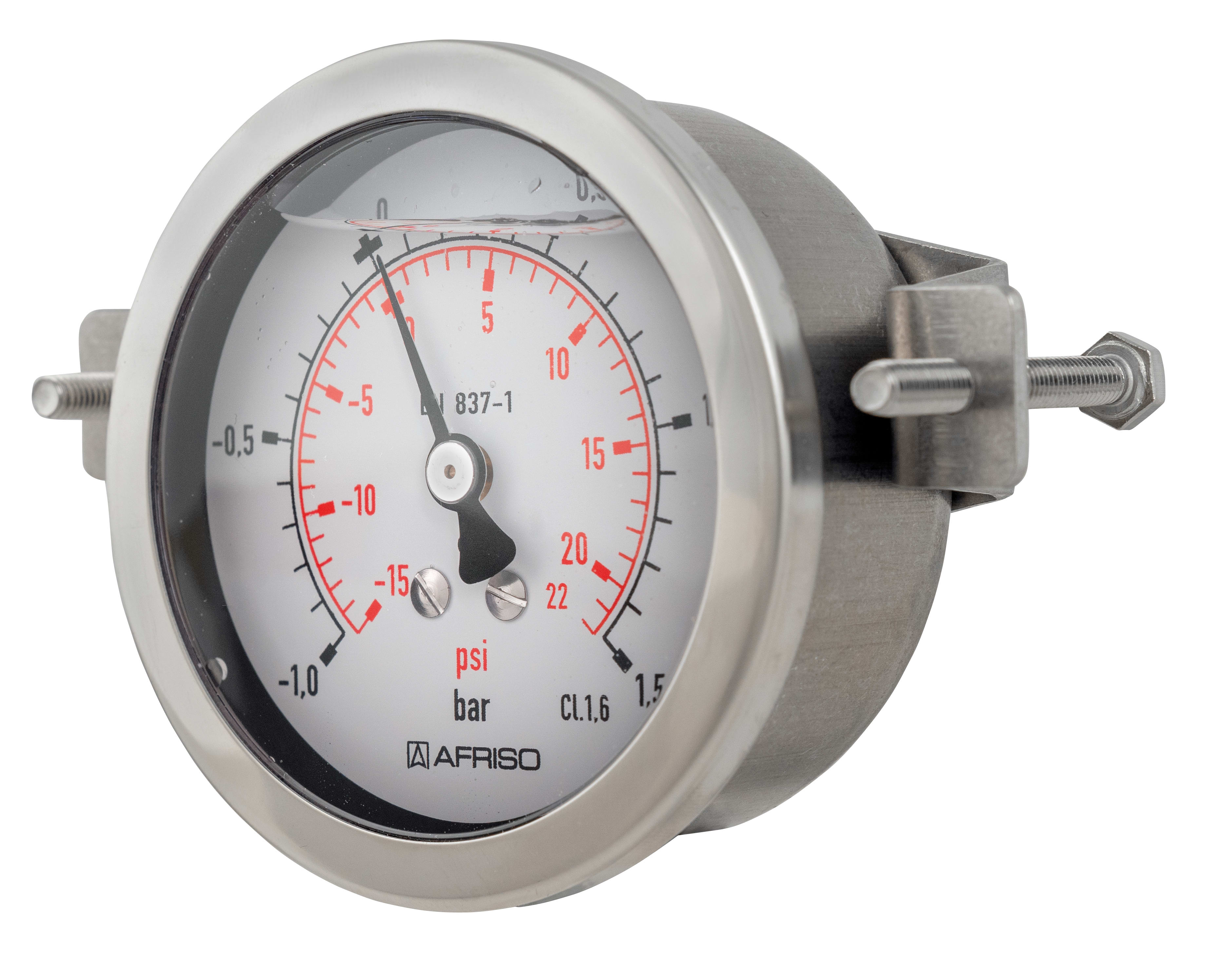

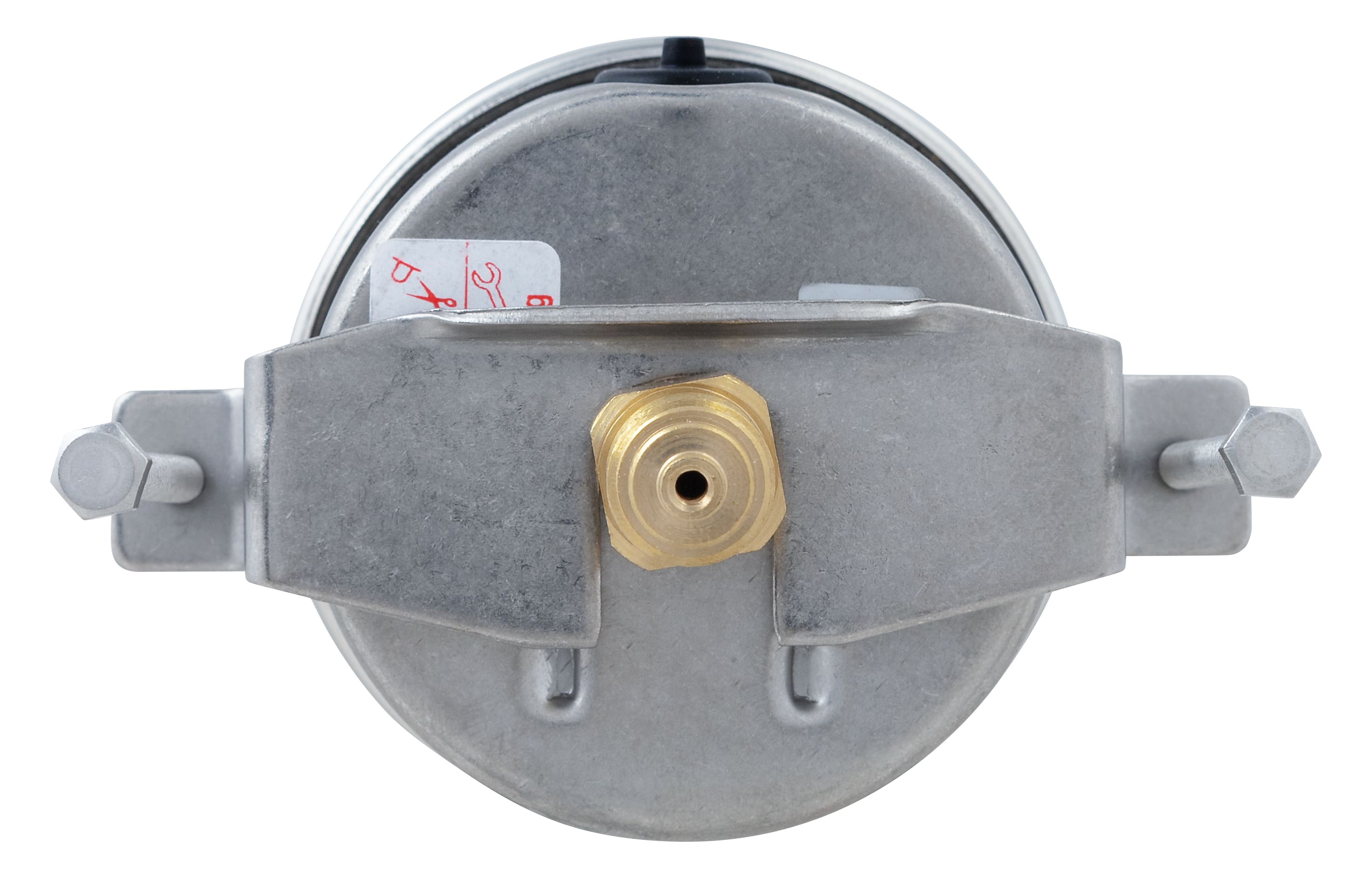

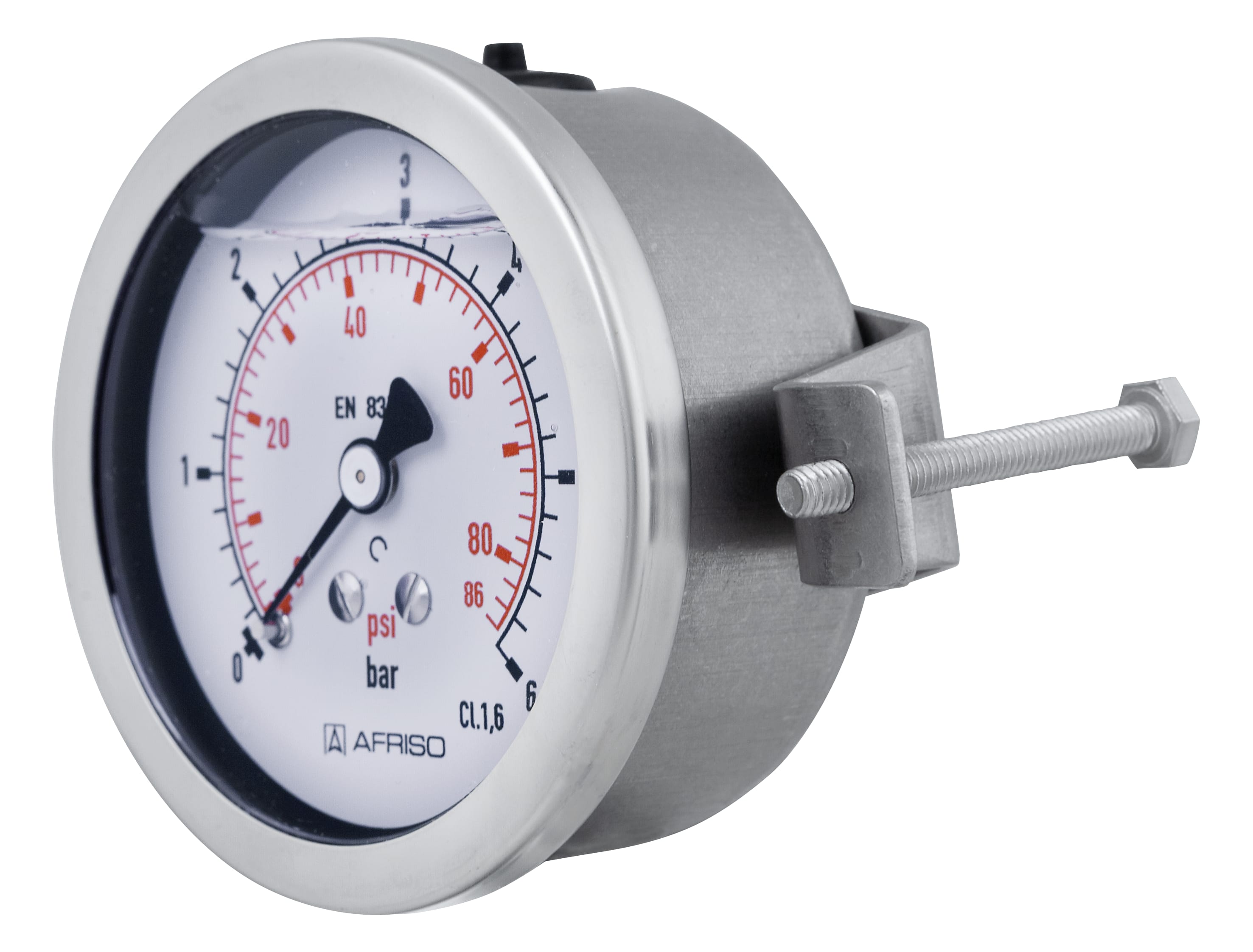

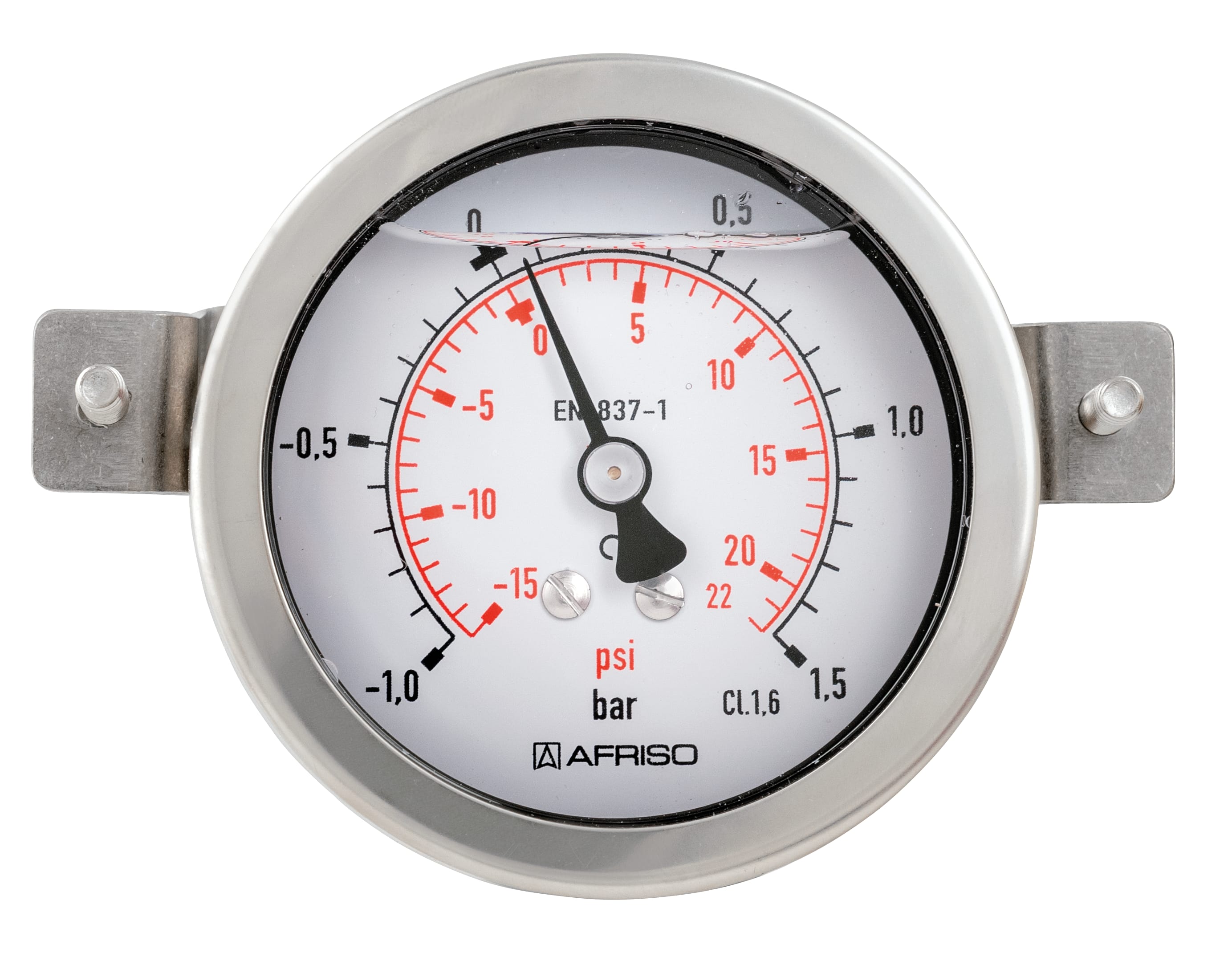

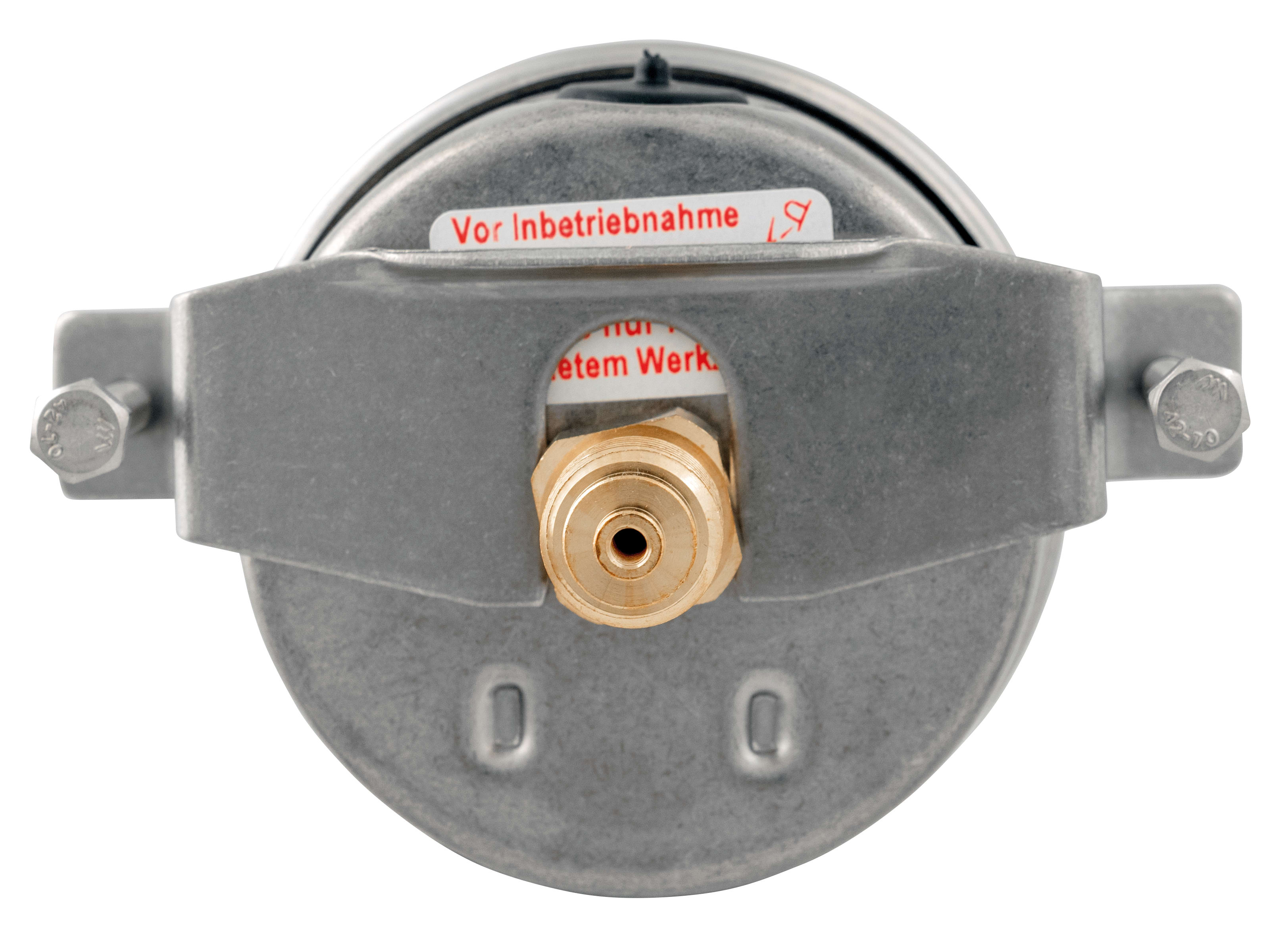

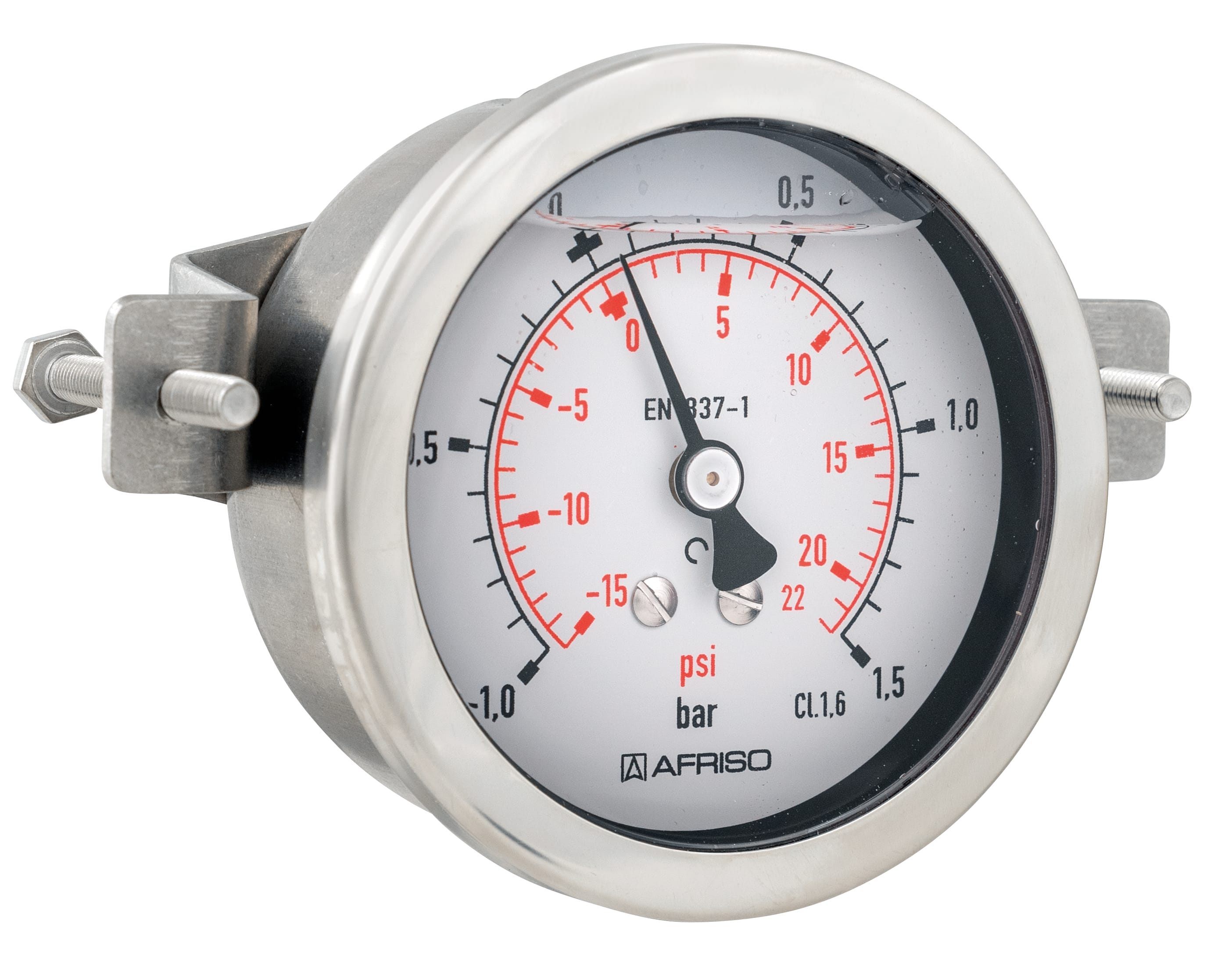

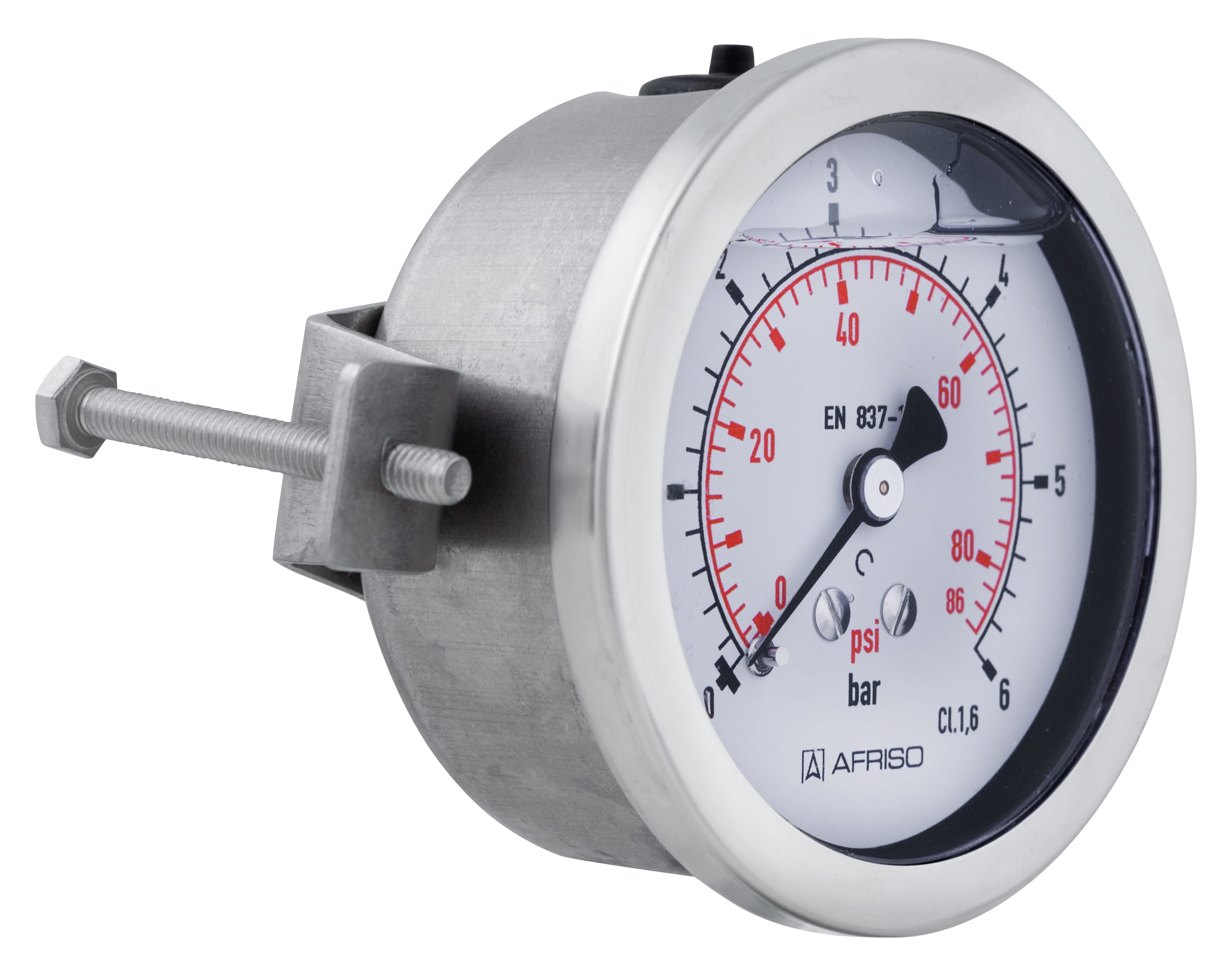

RF63Gly D751

Glycerine filled Bourdon tube pressure gauge type D7

Variants Manuals

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 barclamp fixingRF63Gly D75185101751
-1/0.6 barclamp fixingRF63Gly D75185102751
-1/+1.5 barclamp fixingRF63Gly D75185103751
-1/+3 barclamp fixingRF63Gly D75185104751
-1/+5 barclamp fixingRF63Gly D75185105751
-1/+9 barclamp fixingRF63Gly D75185106751
-1/+15 barclamp fixingRF63Gly D75185107751
0/0.6 barclamp fixingRF63Gly D75185109751
0/1 barclamp fixingRF63Gly D75185110751
0/1.6 barclamp fixingRF63Gly D75185111751
0/2.5 barclamp fixingRF63Gly D75185112751
0/4 barclamp fixingRF63Gly D75185113751
0/6 barclamp fixingRF63Gly D75185114751
0/10 barclamp fixingRF63Gly D75185115751
0/16 barclamp fixingRF63Gly D75185116751
0/25 barclamp fixingRF63Gly D75185117751
0/40 barclamp fixingRF63Gly D75185118751
0/60 barclamp fixingRF63Gly D75185119751
0/100 barclamp fixingRF63Gly D75185120751
0/160 barclamp fixingRF63Gly D75185121751
0/250 barclamp fixingRF63Gly D75185122751
0/315 barclamp fixingRF63Gly D75186818751
0/400 barclamp fixingRF63Gly D75185123751
0/600 barclamp fixingRF63Gly D75185124751
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
63
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, centre back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
RF63Gly:
dual scale, bar outer, black – psi inner, red
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

NG 50/63 – centre back connection, with clamp fixing

PRO_TEC_BEP_RF50GLY_RF63GLY_D75X_S.TIF

AFRISO_DIALS_FOR_PRESSURE_GAUGES-GRADUATION.PDF

dials for pressure gauges – graduation

technical information
PDF
DOK_TEC_KON_KONFORMITAETSERKLAERUNG.PDF

EC-Declaration of Conformity pressure gauges

Declarations of Conformity
PDF
ATEX-ZERTIFIKAT_MANOMETER_EX9A_015639_0020_EN.PDF

ATEX certificate pressure gauges

Certificates / DIBt approvals
Industrial technology
PDF
OPTIONEN_ROHRFEDER-MANOMETER_441_EN.PDF

Bourdon tube pressure gauge

Catalogue options
Domestic Technology
PDF
900_400_0882.PDF

mounting of pressure gauge

operating instructions
Industrial technology
PDF
854_017_0336-00.PDF

bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure

operating instructions
Industrial technology
PDF
RF63GLY_D751_851XX751.STP

RF63GLY_D751_851XX751.STP

STEP 3D model
Industrial technology
STP
