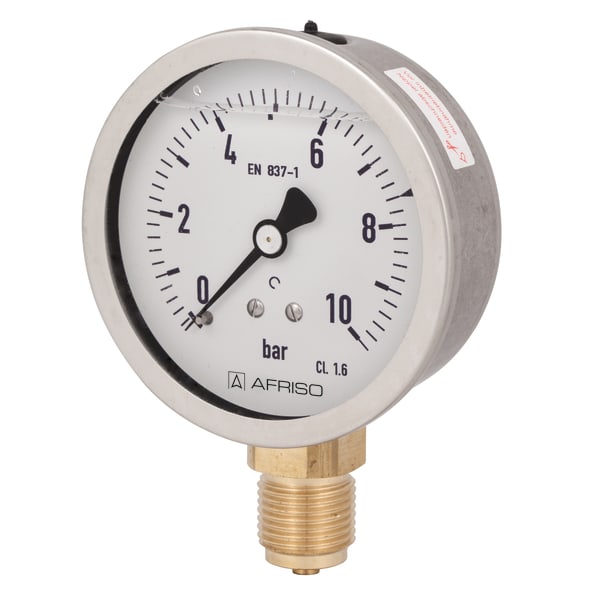

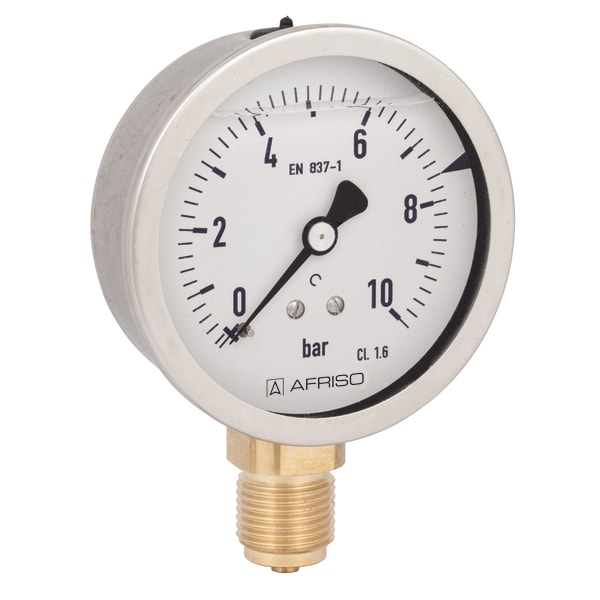

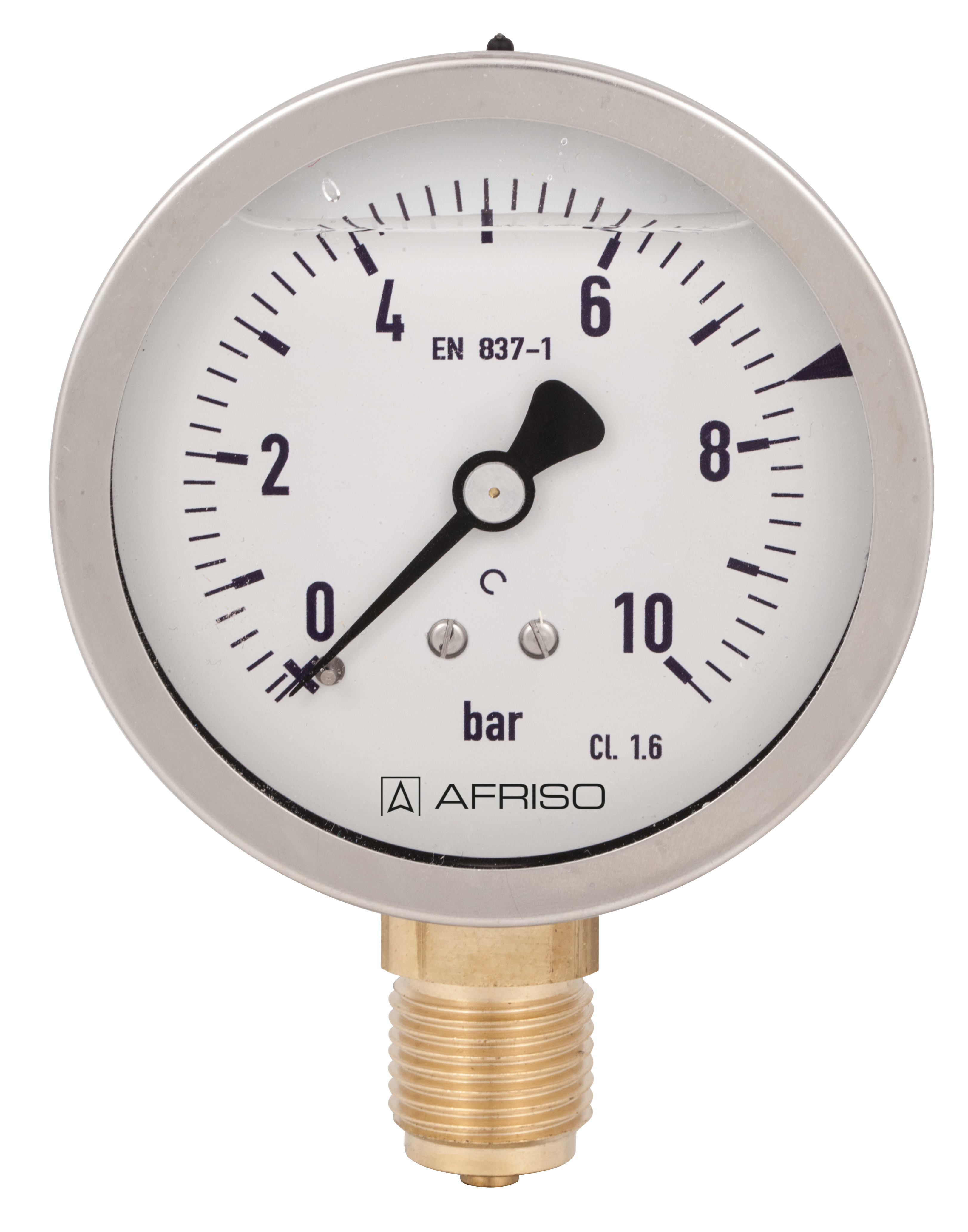

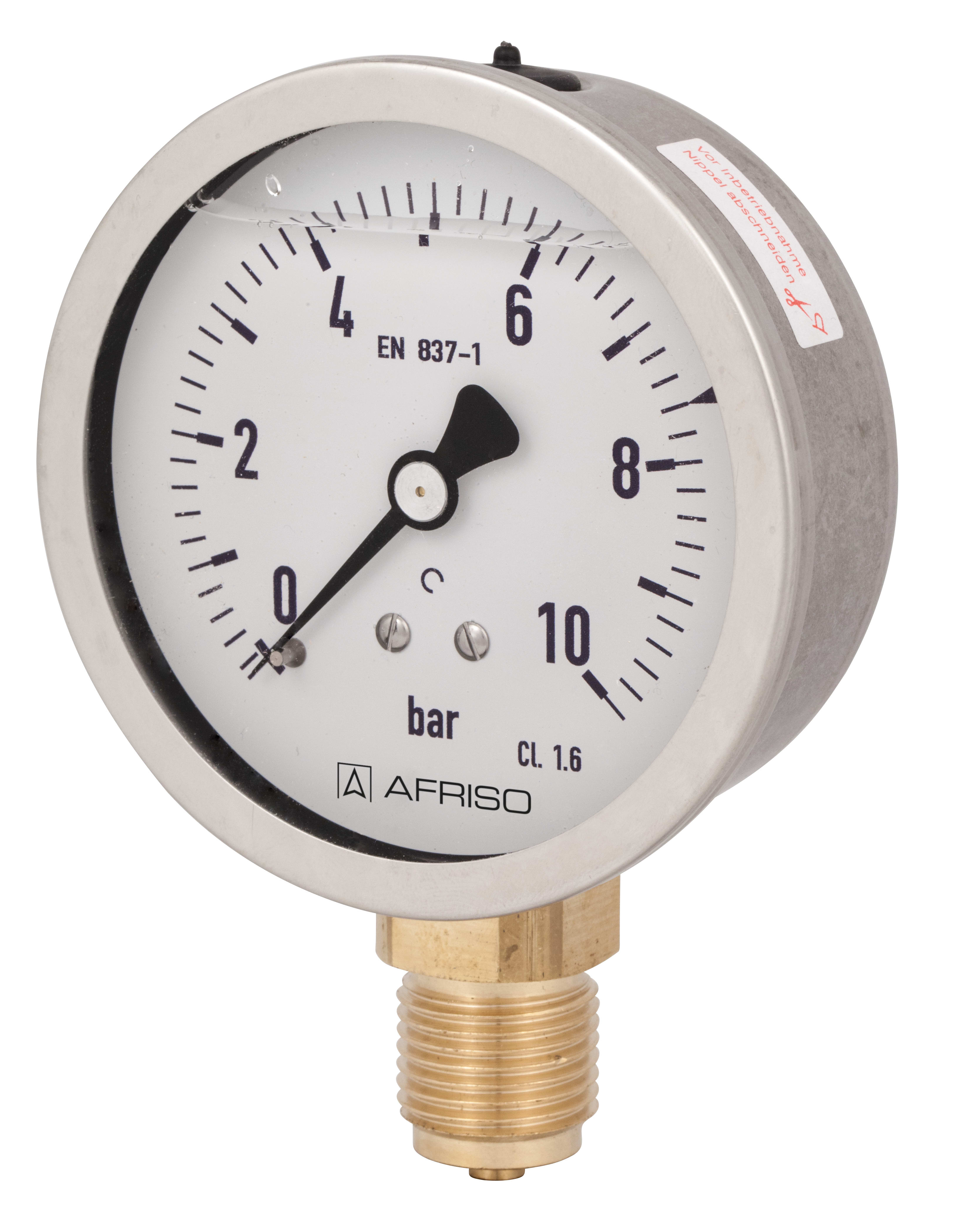

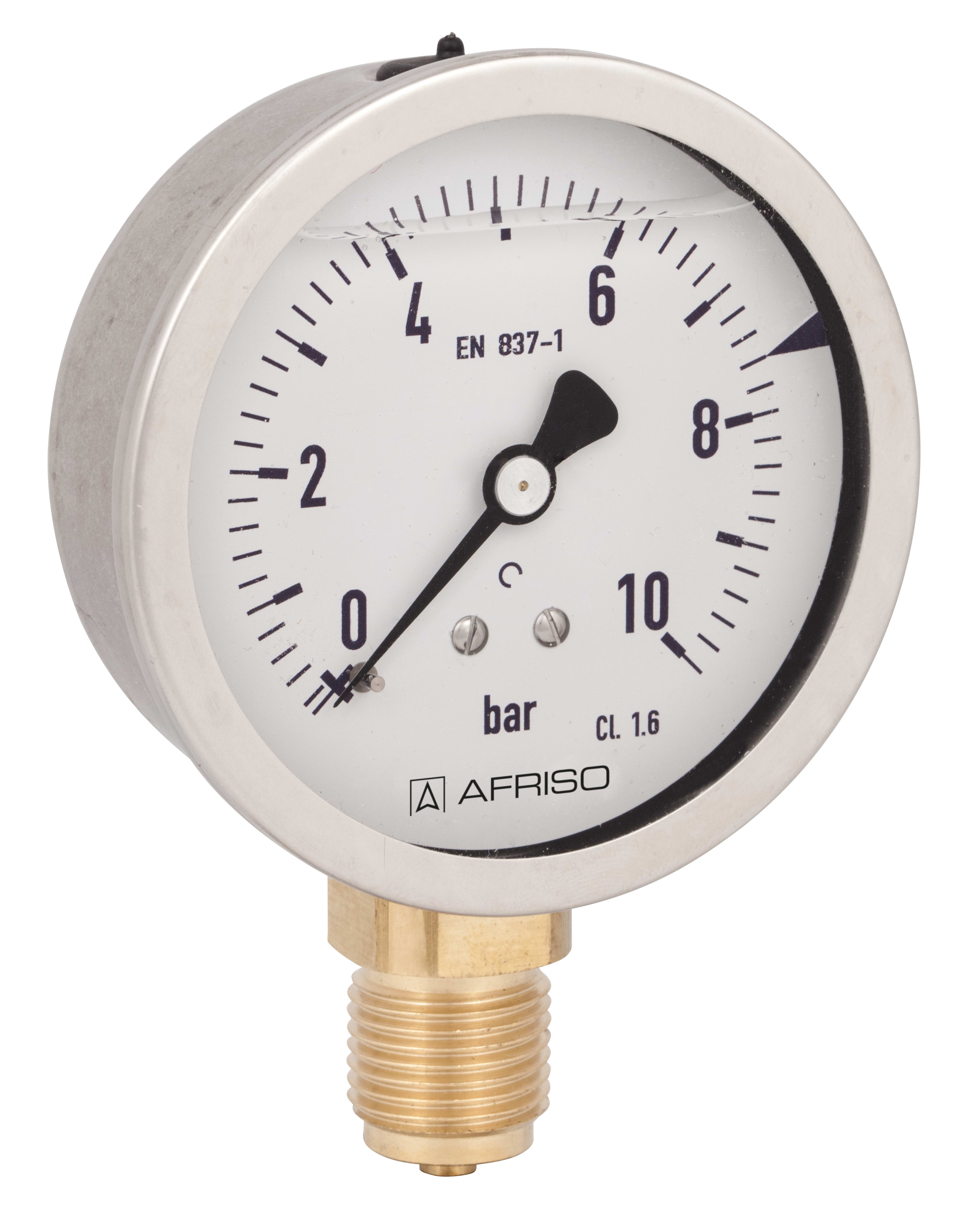

RF80Gly D701

Rohrfeder-Glyzerinmanometer Typ D7

Variants Documents

housing ⌀ (nominal size)80 mm
ConnectionG½B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • robust stainless steel housing
  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF80Gly D70185151701
-1/0.6 bardirectRF80Gly D70185152701
-1/+1.5 bardirectRF80Gly D70185153701
-1/+3 bardirectRF80Gly D70185154701
-1/+5 bardirectRF80Gly D70185155701
-1/+9 bardirectRF80Gly D70185156701
-1/+15 bardirectRF80Gly D70185157701
0/1 bardirectRF80Gly D70185160701
0/1.6 bardirectRF80Gly D70185161701
0/2.5 bardirectRF80Gly D70185162701
0/4 bardirectRF80Gly D70185163701
0/6 bardirectRF80Gly D70185164701
0/10 bardirectRF80Gly D70185165701
0/16 bardirectRF80Gly D70185166701
0/25 bardirectRF80Gly D70185167701
0/40 bardirectRF80Gly D70185168701
0/60 bardirectRF80Gly D70185169701
0/100 bardirectRF80Gly D70185170701
0/160 bardirectRF80Gly D70185171701
0/250 bardirectRF80Gly D70185172701
0/400 bardirectRF80Gly D70185173701
  • in-stock items
  • manufactured goods

Type
D7
Nominal size
80 - 80
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Aluminium, weiß
Scaling:
black
RF80Gly:
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
crimped bezel
Edelstahl 304
window
Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

NG 80/100 – bottom connection
