CAPBs® module BG 10 | M091000017

Griffstück CAPBs® module

in-stock items

Documents

universal for all CAPBs® sensor modules
direct transmission of measurement data to the AFRISO apps and BlueLine measuring instrument via Bluetooth®
specific measurement program if the apps EuroSoft live and AFRISO TOOLBOX are used
compliant documentation of the measurement results including diagrams in PDF format (app)
individual configuration via multi-purpose key
light-weight, ergonomic handle made of robust, high-quality plastic with three integrated magnet for hands-free operation
multi-purpose key with customisable function assignment for ease of use and consistent operation of the CAPBs®, regardless of site
multi-colour LED displays the status of the CAPBs® by means of different colours and flashing frequencies
signalling device with audible signals for signalling concentrations or limit values
Compatible with our proven BlueLine measuring instruments BLUELYZER ST, EUROLYZER STx, MULTILYZER STx, series S4600 ST and TMD 9 as well as your smartphone and tablet

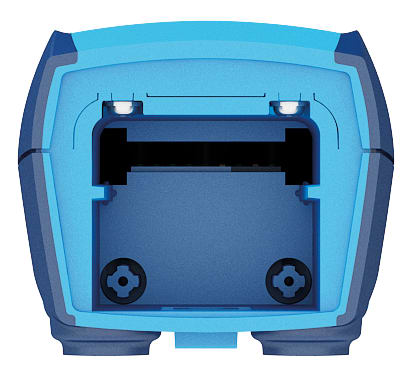

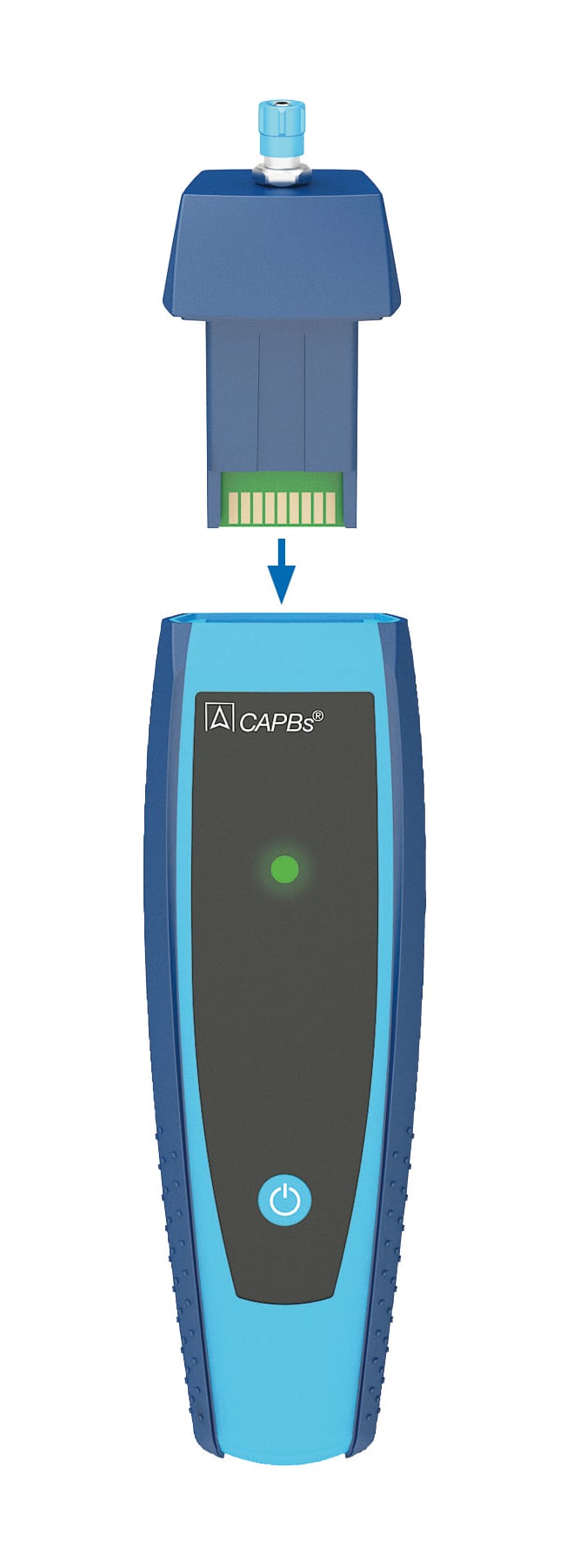

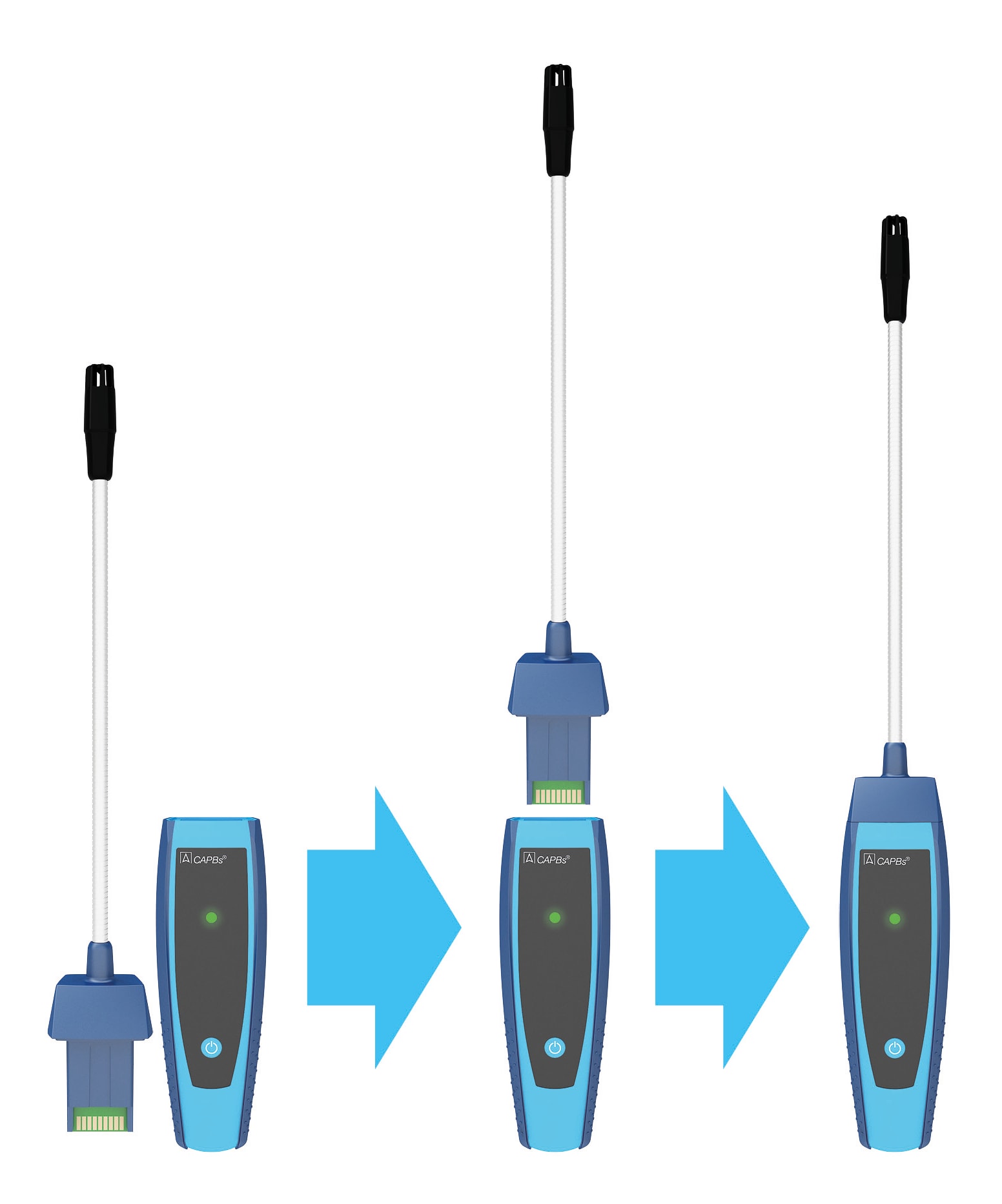

For mounting of one CAPBs® sensor module. The measured values can be visualised on a smartphone or a tablet via an AFRISO app immediately on site.

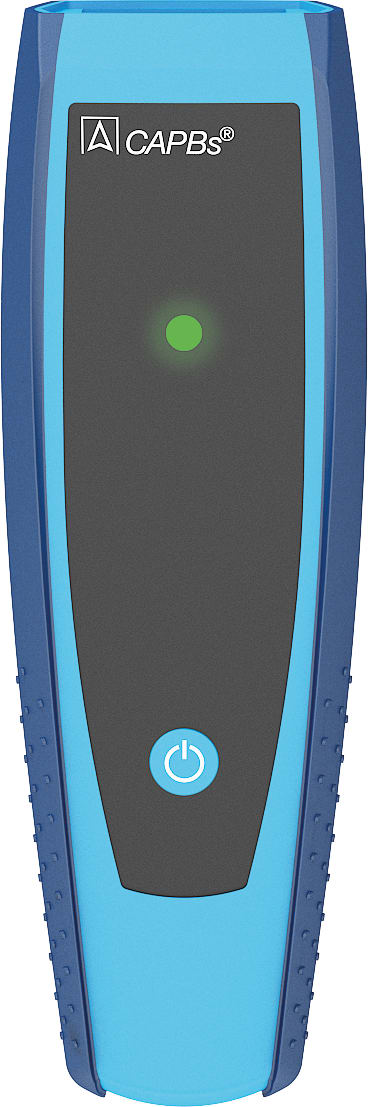

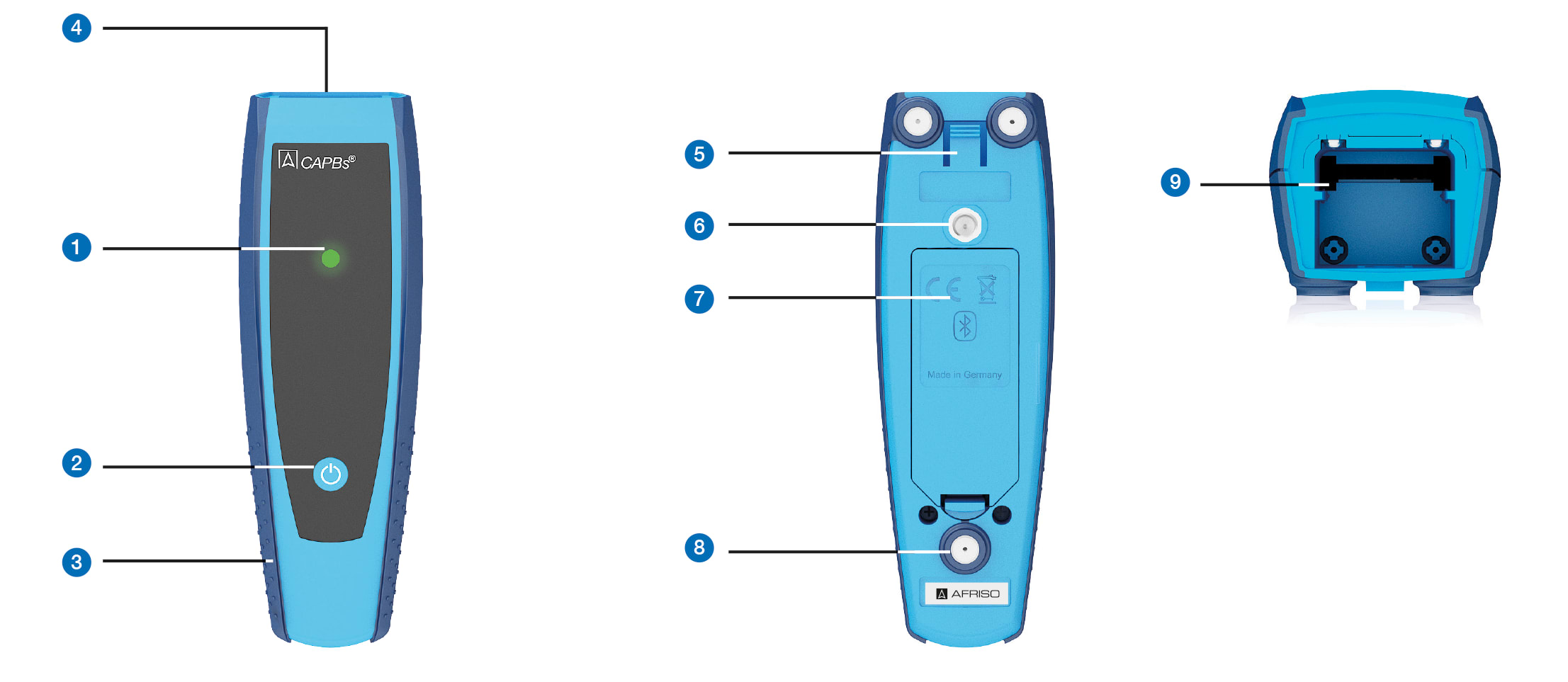

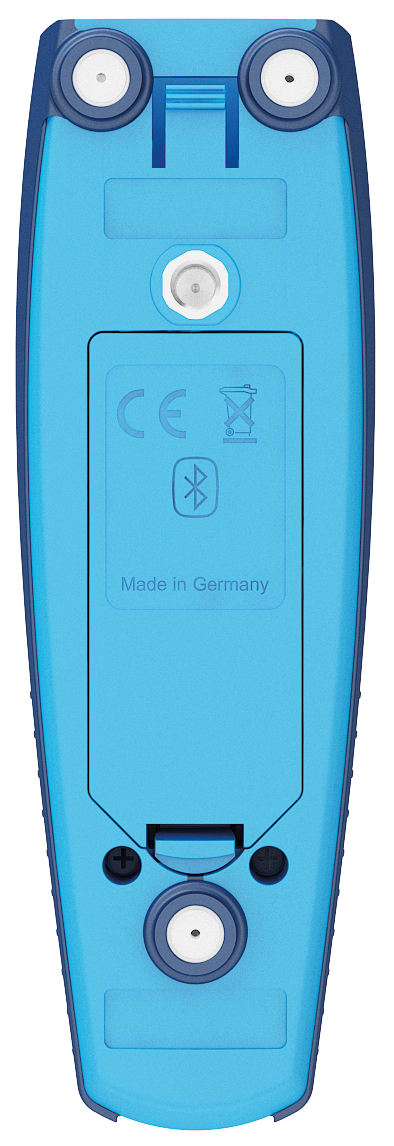

Universal base handle for all CAPBs® sensor modules. Ergonomic handle with three magnets and battery compartment at the rear of the housing. Multi-colour LED and multi-purpose key on the front. With integrated device for audible signals and Bluetooth® module.

Dimensions

W x H x D:: 45 x 140 x 39 mm

Weight: 113 g

Supply voltage

: 2 x 1.5 V AAA batteries

: 2 x AAA NiMH battery (1.2 V/900 mAh)

Hours of operation: depending on CAPBs® sens sensor module used

Interface: Bluetooth®

Degree of protection

: IP 40 (EN 60529) with plugged in CAPBs® sens sensor module

CAPBs Messgeräte Serie
