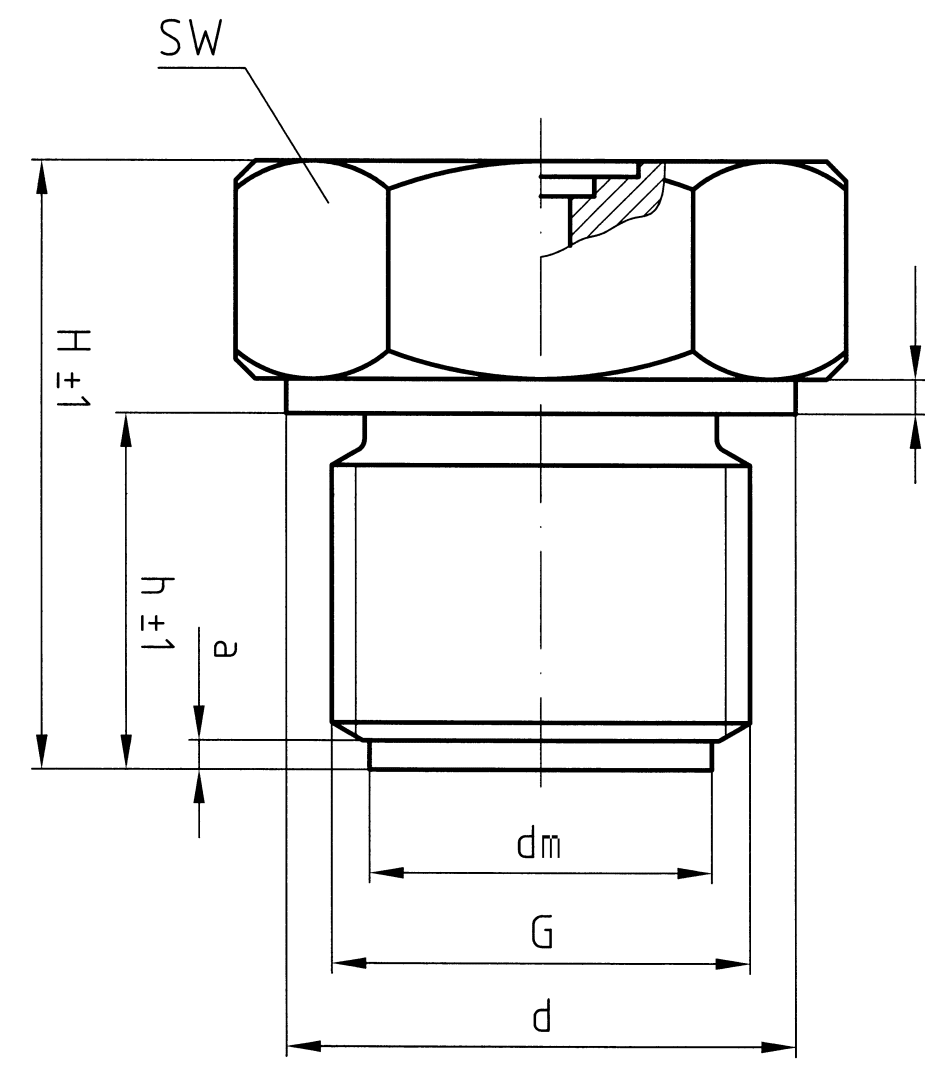

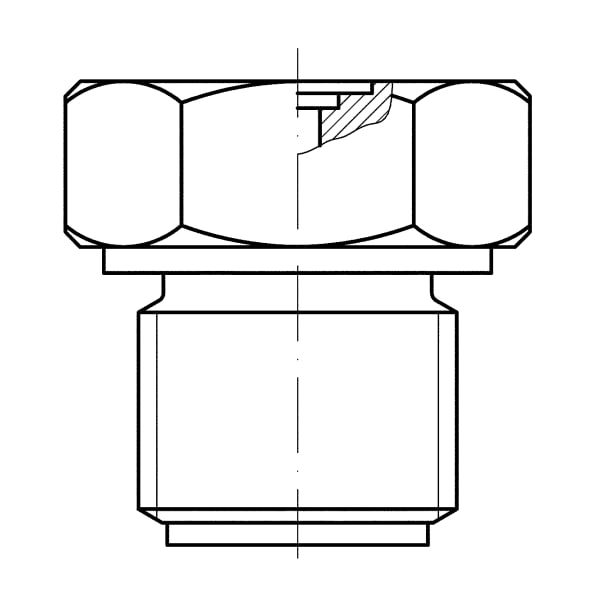

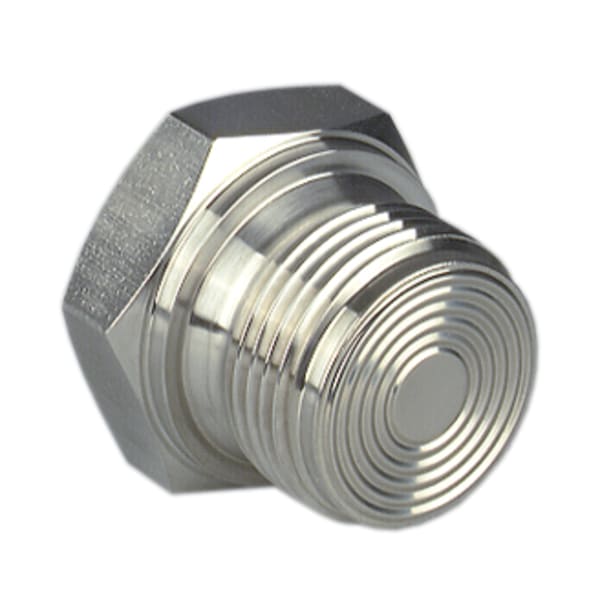

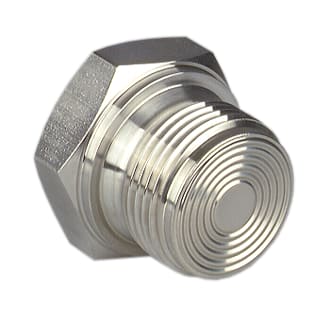

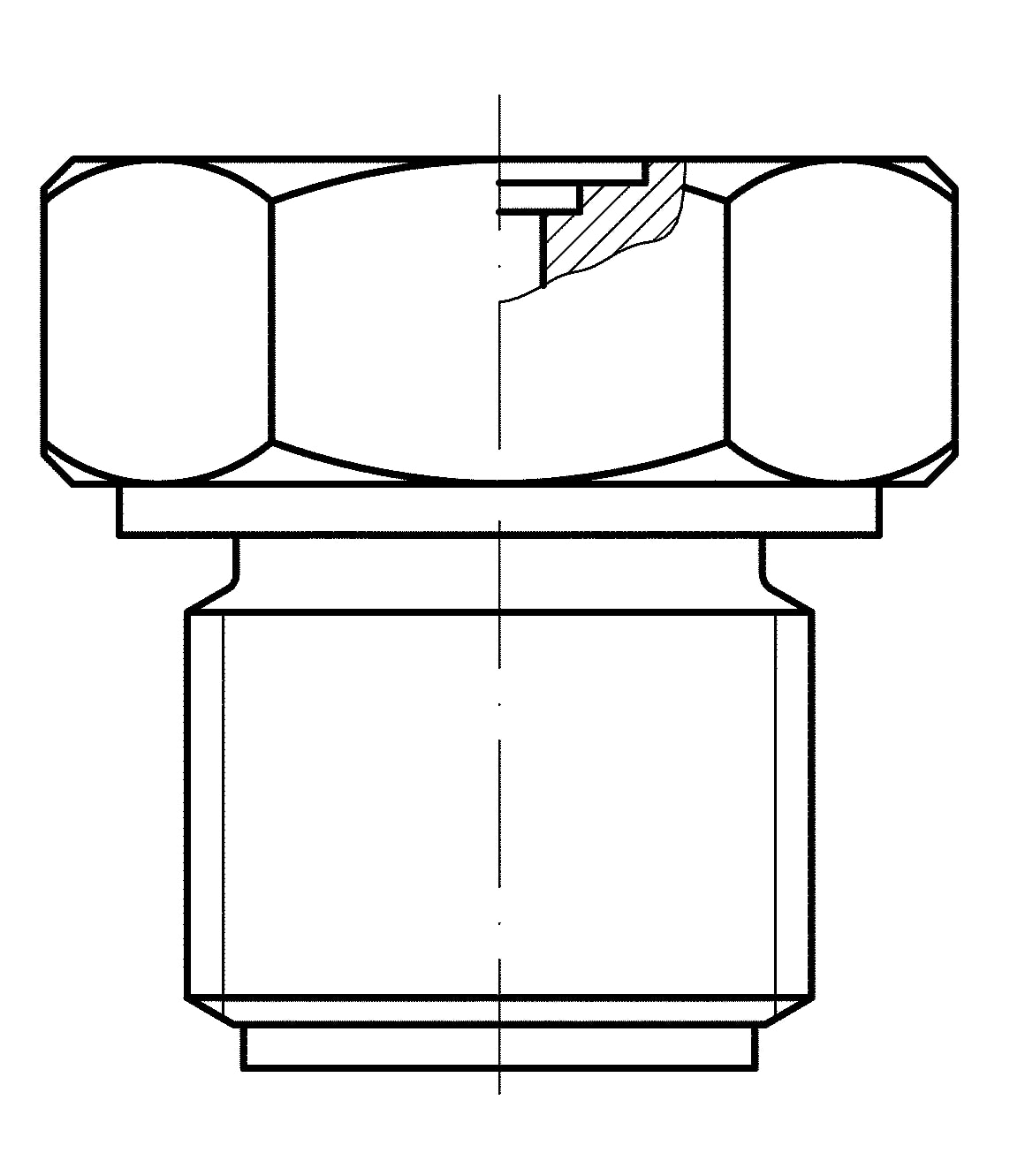

Images 2 MD 21 Membrandruckmittler Kompaktausführung Variants Documents Benefits robust, compact stainless steel designideal for waste water, suspensions and corrosive mediasuitable for high pressure ranges Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, hot and polluted media at high pressures. Specially suitable for mechanical engineering and chemical industry applications. Variants Technical data Technical drawings Downloads Variants process connection, standardProcess connectionInstrument connectionNominal diameterNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUDMU 13 VarioDIN 3852 type AG½BWelded connectionPN 6006 bar6 bar1 bar31415WDIN 3852 type AG¾BWelded connectionPN 10004 bar4 bar4 bar1 bar31416WDIN 3852 type AG1BWelded connectionPN 10004 bar4 bar4 bar1 bar4 bar31328WDIN 3852 type AG1½BWelded connectionPN 6000.6 bar1.6 bar1.6 bar0.6 bar1.6 bar31329WDIN 3852 type AG2BWelded connectionPN 6000.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31330W in-stock items manufactured goods Technical data Process connectionstainless steel 316 Ti/316 Lfixed male thread G½BDIN 3852 type Adiaphragmstainless steel 316 Ti/316 Lflush, welded to upper body, no dead spaceInstrument connectionWelded connectionpressure transmission liquidParaffin oil (FM 09), FDA-listedpressure rangesee ordering tableNominal pressurePN 600 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Type MD 21 GddmhHabSWG½B2617,21733,53327G¾B3223,519343332G1B392821363341G1½B554025483355G2B6850275633,570 Downloads Druckmittler PDF Italian English German
