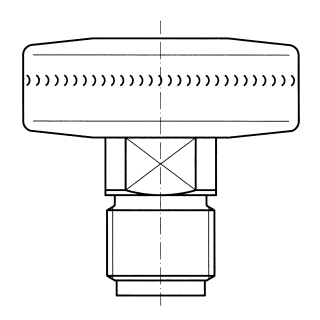

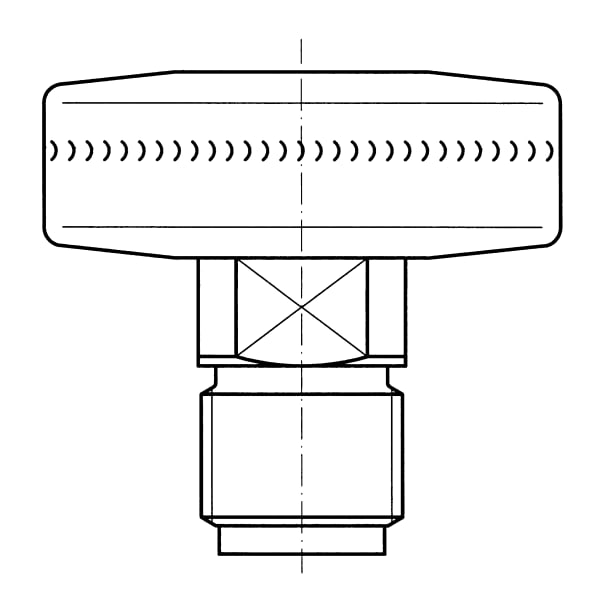

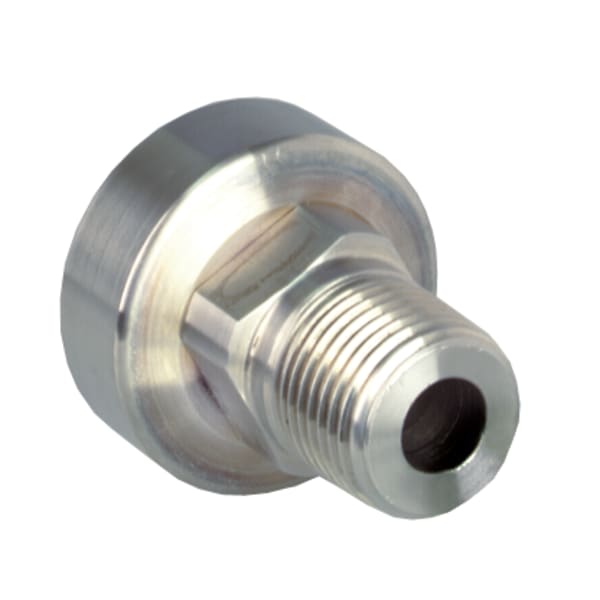

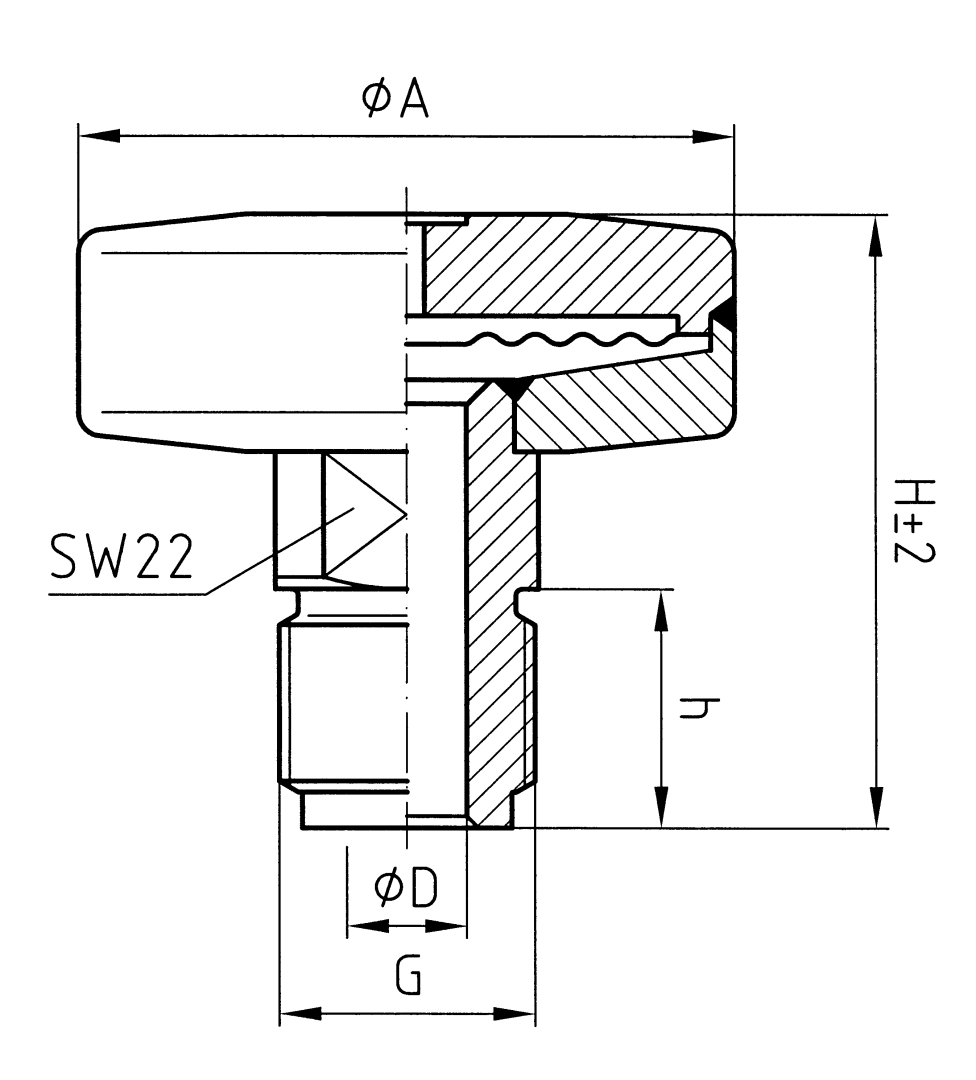

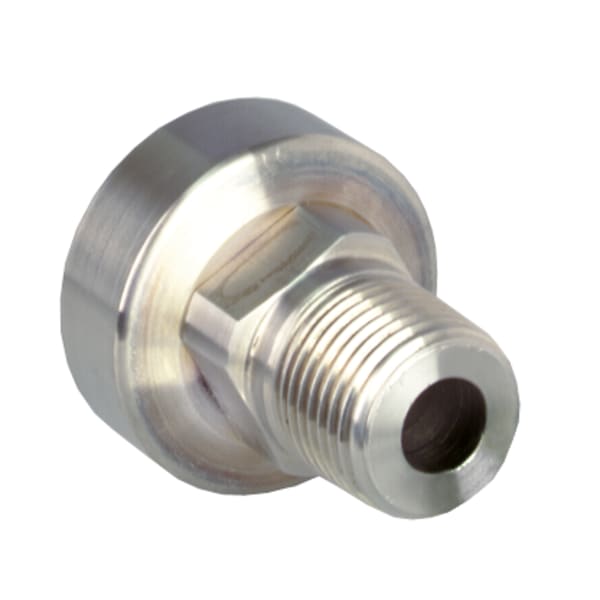

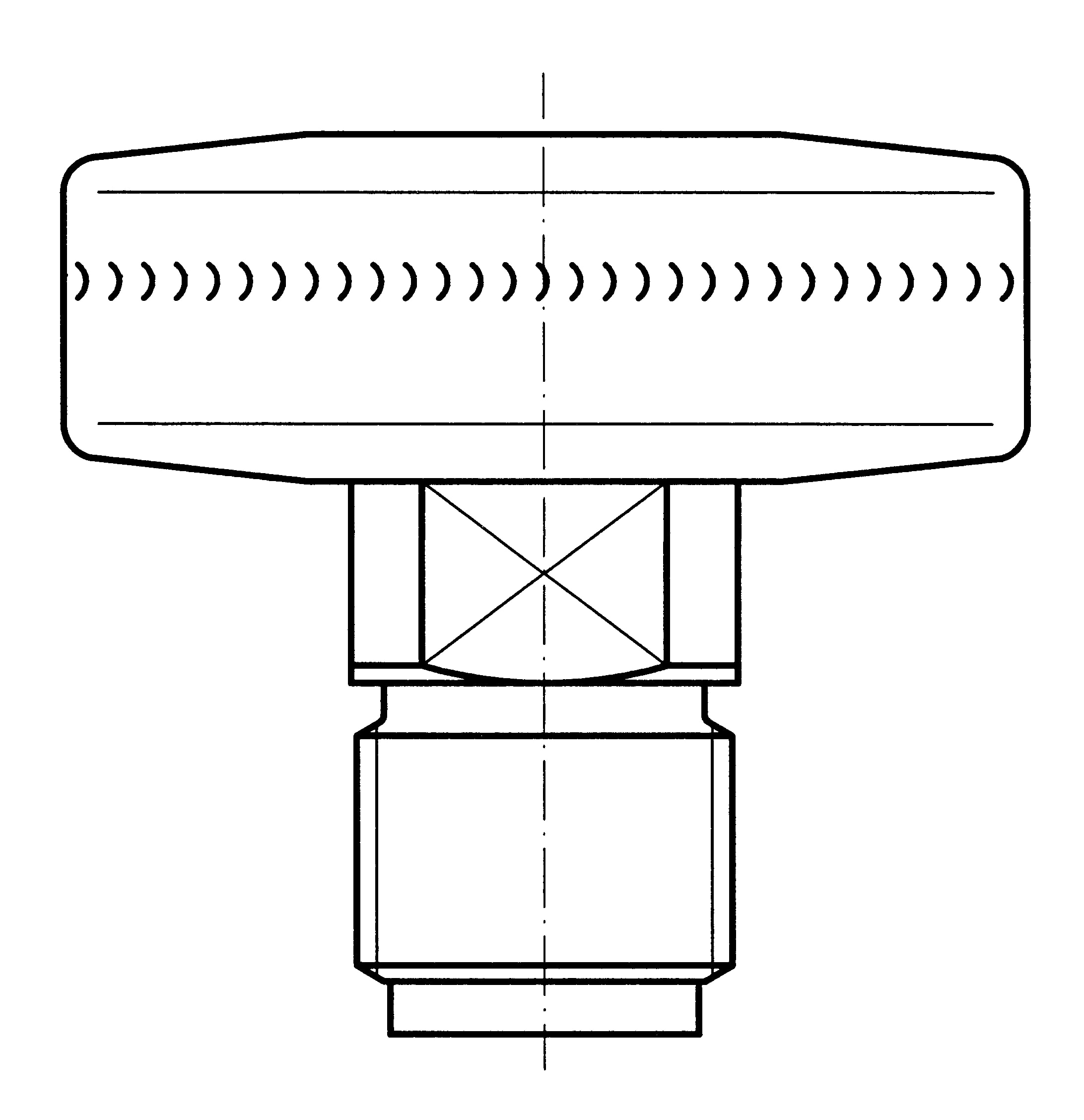

Images 2 MD 22 Membrandruckmittler Kompaktausführung Variants Documents Benefits robust, compact stainless steel designideal for heavy fuel oil, suspensions and corrosive mediasuitable for medium pressure ranges Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, hot and polluted media at medium pressures. Specially suitable for mechanical engineering and chemical industry applications. Variants Technical data Technical drawings Downloads Variants process connection, standardProcess connectionInstrument connectionNominal diameterNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUDMU 13 VarioG¼BWelded connectionPN 400.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31997WG½BWelded connectionPN 400.6 bar0.6 bar0.6 bar0.6 bar0.6 bar31998WG¼BWelded connectionPN 2504 bar4 bar4 bar4 bar4 bar32000WG½BWelded connectionPN 2504 bar4 bar4 bar4 bar4 bar32001W in-stock items manufactured goods Technical data Process connectionStainless steel 316 Lfixed male thread G¼Bdiaphragmstainless steel 316 Ti/316 LInternal, weldedInstrument connectionWelded connectionpressure transmission liquidParaffin oil (FM 09), FDA-listedpressure rangesee overview of versionsNominal pressurePN 40 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Type MD 22 PNG∅A∅DhH40G¼B5561344,540G⅜B5561647,540G½B55102051,540¼"NPT5561546,540½"NPT55102051,5250G¼B4061344,5250G⅜B4061647,5250G½B40102051,5250¼"NPT4061546,5250½"NPT40102051,5 Downloads Druckmittler PDF Italian English German
