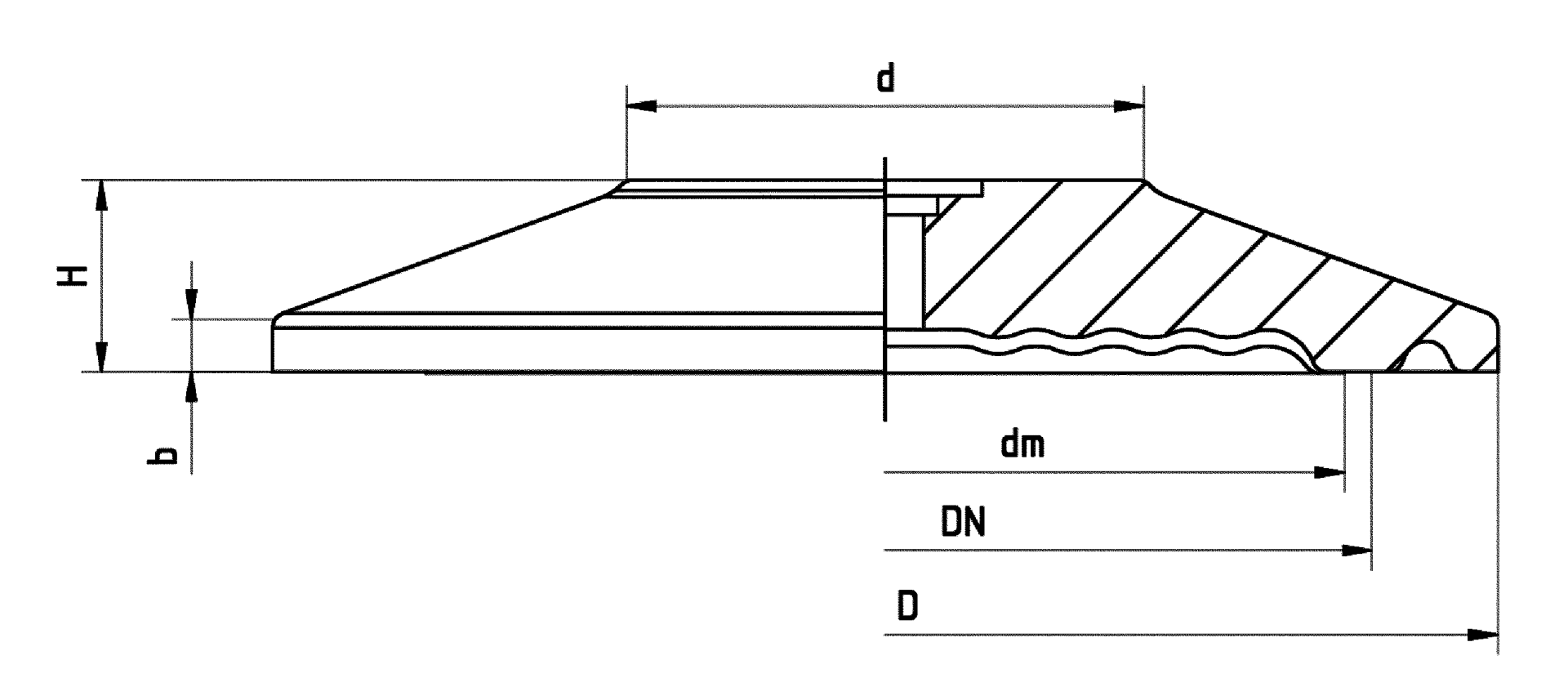

Images 1 Back MD 60 | 31326W Diaphragm seals for hygienic applications manufactured goods Documents Benefits 3-A-certified in conjunction with Bourdon tube pressure gauge RF 63/100 and chemical seal DMU 02 Varioall materials FDA-listedSIP/CIP enabledNovAseptic®-compatible (1" up to 2½") Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For viscous, perishable or hot media. Typical application areas:Food and beverages industryBeverages industryPharmaceutical industryBiotechnology Description All materials used are FDA-listed. The chemical seal and the measuring instrument are welded together, resulting in an inseparable single, shock- and vibration-resistant unit that does not require additional external protection. The chemical seals are available with various nominal diameters; due to their compact design, they are suitable for a wide range of applications. Technical data Technical drawings Downloads Technical data Process connectionStainless steel 316 LClamp ISO 2852diaphragmStainless steel 316 Lsurface roughness Ra≤ 0.8 µmInstrument connectionWelded connectionpressure transmission liquidParaffin oil (FM 09), FDA-listedpressure rangesee overview of versionsNominal pressurePN 25Test3-A-certifiednominal diameter 1"– 2½": for 63/100 (crimped bezel/bayonet bezel versions)für DMU 02 Vario Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Type MD 60 - clamp connection 1"–2½", ISO 2852 DNPNDdmdH b1"4050,523,527102,851½"4050,53627102,85 2"40644827102,852½"2577,5 4838,2102,85 Downloads MD60_31326W.STP STEP 3D Modell Industrial technology STP Download
