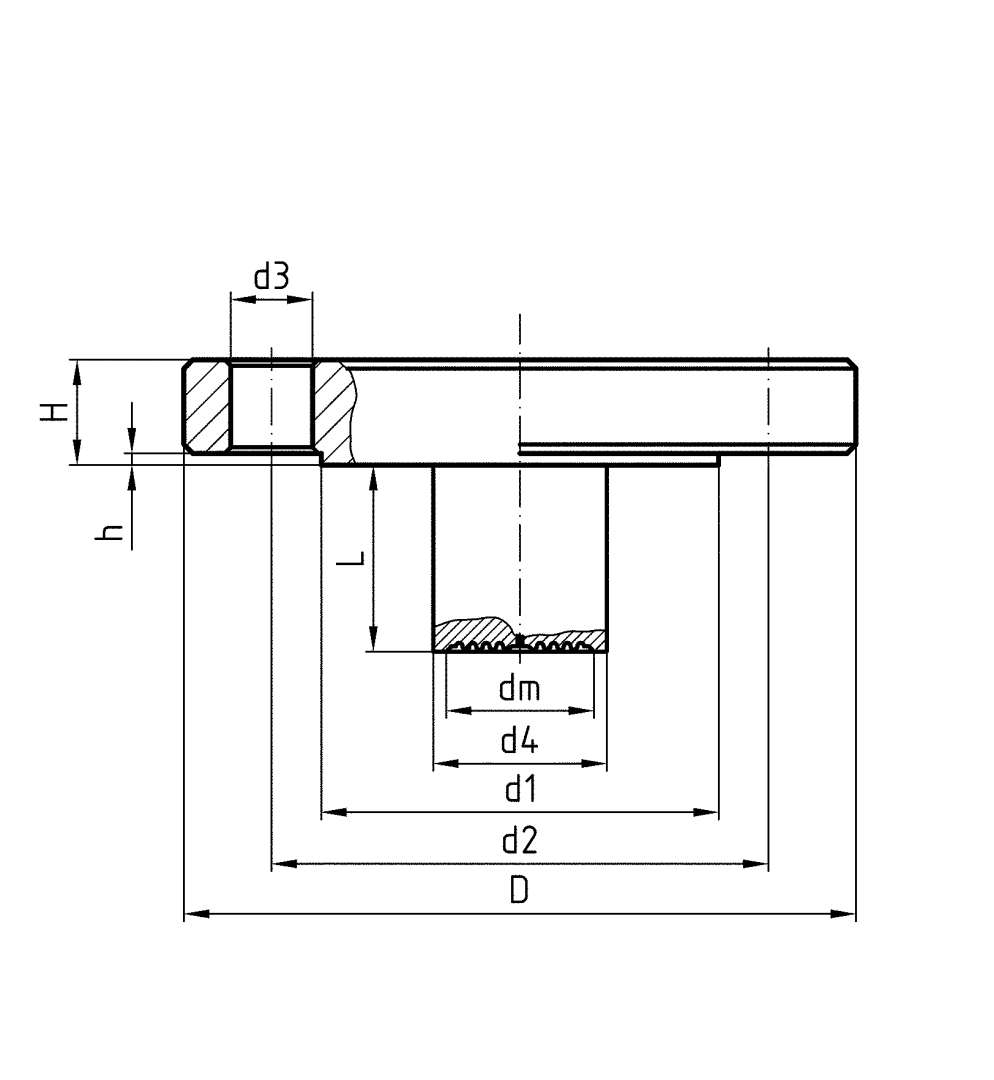

Images 3 MD 81 Membrandruckmittler Tubus-Flanschausführung Variants Documents Benefits for tanks with thick wallsfor higher block flanges and increased insulationConnection as per DIN or ASMETubus length can be adapted as required Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, highly viscous, polluted, crystallising or hot media. Ideal for insulated or thick-walled tanks. Specially designed for use in the chemical and petrochemical industries, in refineries or power plant engineering. Variants Technical data Technical drawings Downloads Variants process connection, standardProcess connectionInstrument connectionNominal diameterNominal pressureminimum range* (in bar) at nominal sizePart no.63100160DMUDMU 13 Varioflange connection as per EN 1092-1 type B 1DN 50Welded connectionPN 401 bar2.5 bar1 barOn request31917Wflange connection as per EN 1092-1 type B 1DN 80Welded connectionPN 400.6 bar0.6 bar1 bar1 barOn request31921Wflange connection as per EN 1092-1 type B 1DN 100Welded connectionPN 400.6 bar0.6 bar1 bar1 barOn request31924W in-stock items manufactured goods Technical data Process connection/tubusStainless steel 316 Lflange connection as per EN 1092-1 type B 1Tubus length: 50 mmdiaphragmStainless steel 316 LSealing surfaceStainless steel 316 LInstrument connectionWelded connectionpressure transmission liquidParaffin oil (FM 09), FDA-listedpressure rangesee overview of versionsNominal pressurePN 40 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Type MD 81 – flange connection as per EN 1092-1 type B 1 DNPNDd1d2d3d4Hh50401651021254x184820380402001381608x1876243100402351621908x2294243 Downloads Membrandruckmittler MD 80/MD 81 Industrial technology PDF English German Druckmittler PDF Italian English German
