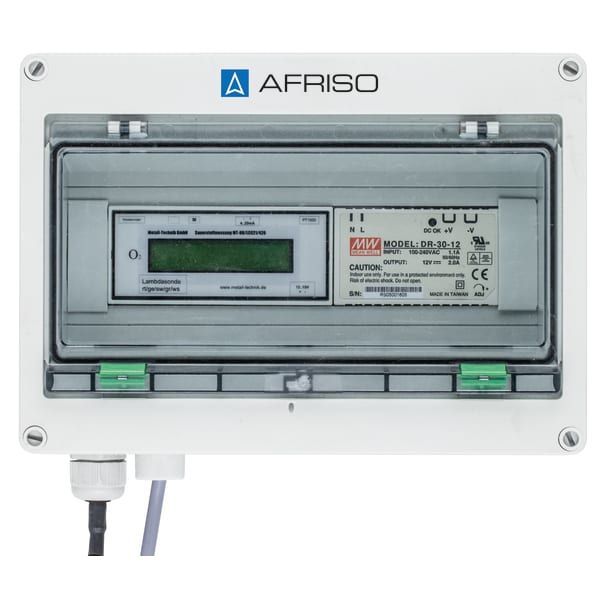

Oxystem 250 | 61840

Oxygen measuring system

manufactured goods
Documents

  • in situ measurement directly in the gas duct
  • compact design
  • no gas treatment required

For monitoring combustion and production processes as well as storage facilities and storage containers which require the oxygen concentration to be measured and/or controlled.

Compact electronic oxygen measuring probe for stationary installation. Consisting of a 100 mm long zirconium dioxide measuring probe with an adjustable screw fitting and control electronics. Inline oxygen measurement without gas treatment. A dynamic O2 probe based on ZrO2 is used to acquire the measured values. The probe is calibrated in atmospheric air. No reference gases are required. Due to the compact dimensions, the probe can be easily installed in the flue gas pipe. The probe provides fast and precise measurement results. Oxystem 250 is suitable for flue gas temperatures of up to 300 °C.

Measuring range
O2:
0/21 Vol.-%
Measuring accuracy
± 0.1 Vol.-%
Operating temperature range
Medium:
max. 300 °C
Ambient:
0/50 °C
probe operating temperature
700 °C
Screw fitting
⌀ x L:
30 x 100 mm
Connection:
G1
Material:
V2A
Display
2-line LC display,
Anzeige von O2-Wert und Lambda
Supply voltage
AC 230 V,   10 VA
Heat-up time
  5 min
Output
4–20 mA
0–10 V on request
Housing
impact-resistant plastic (ABS)
W x H x D:
250 x 185 x 125 mm
Weight:
  2 kg
Degree of protection:
IP 40 (EN 60529)
