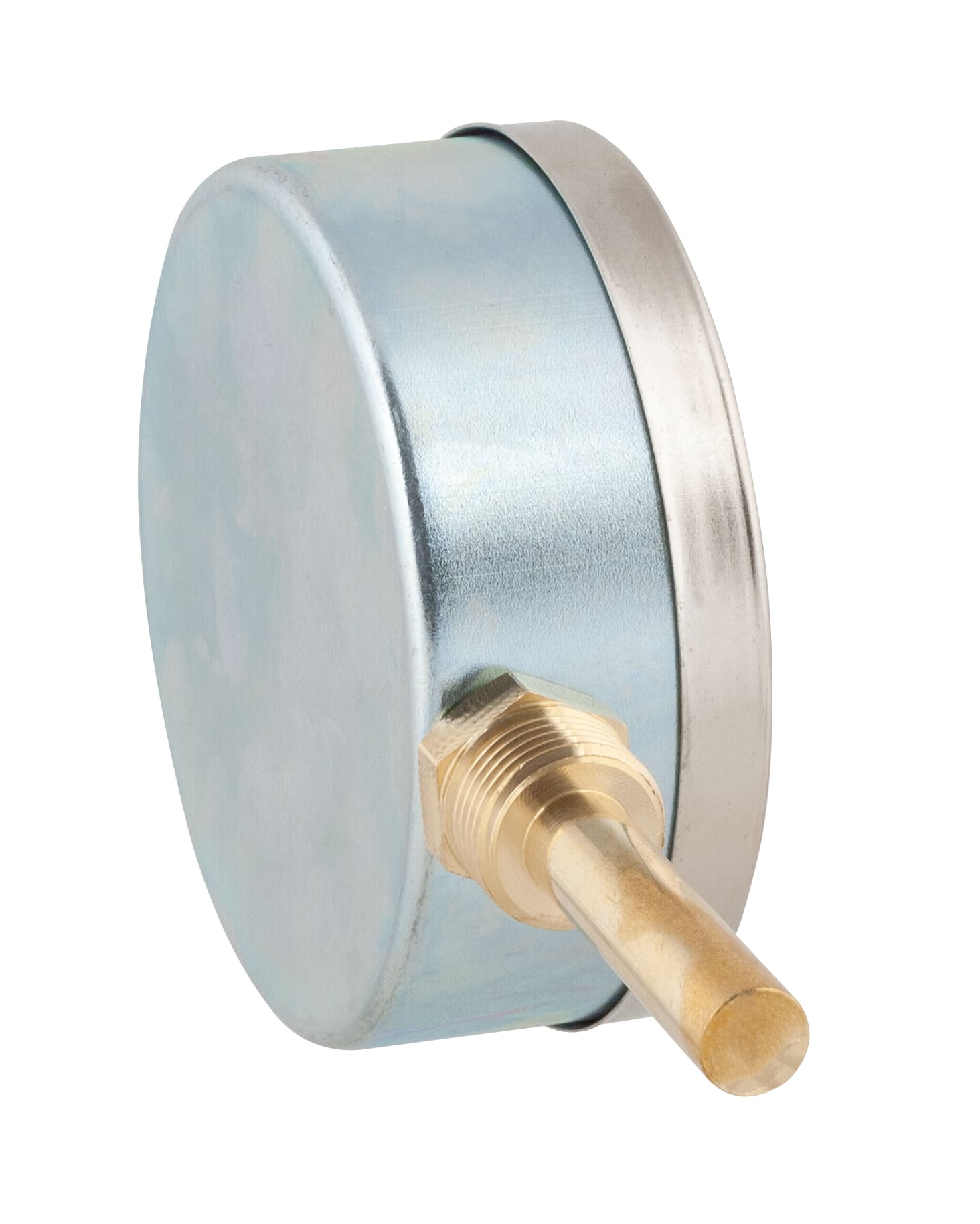

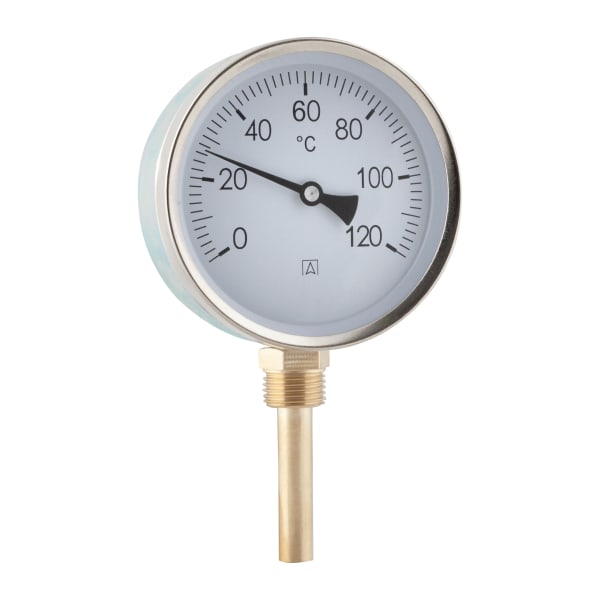

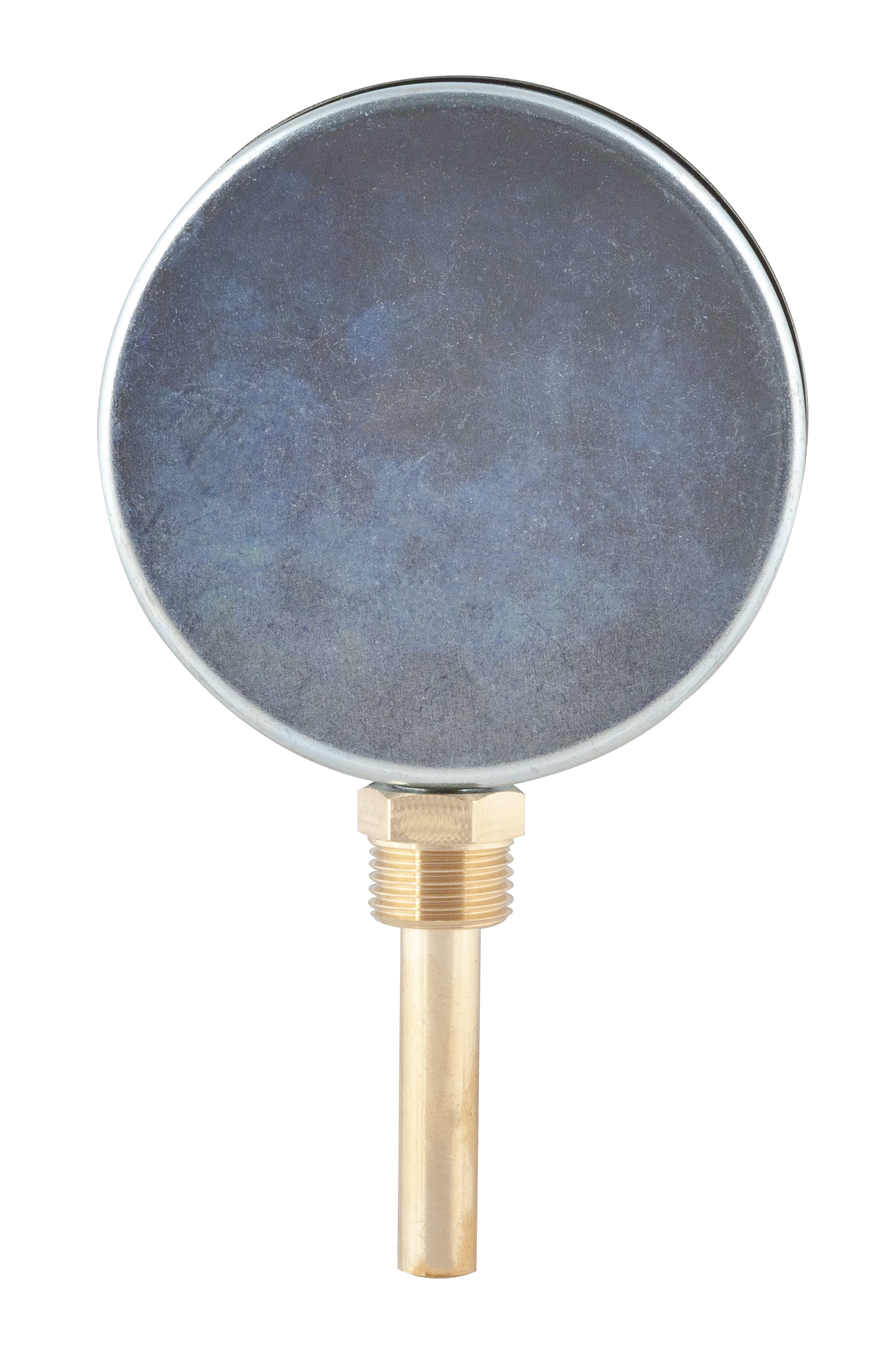

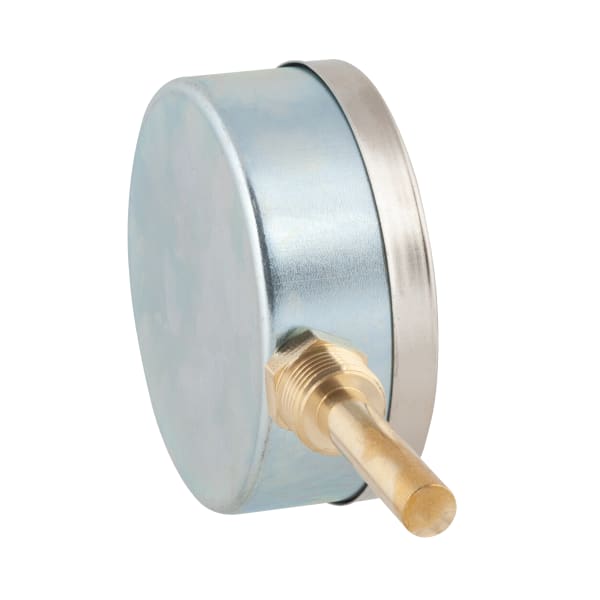

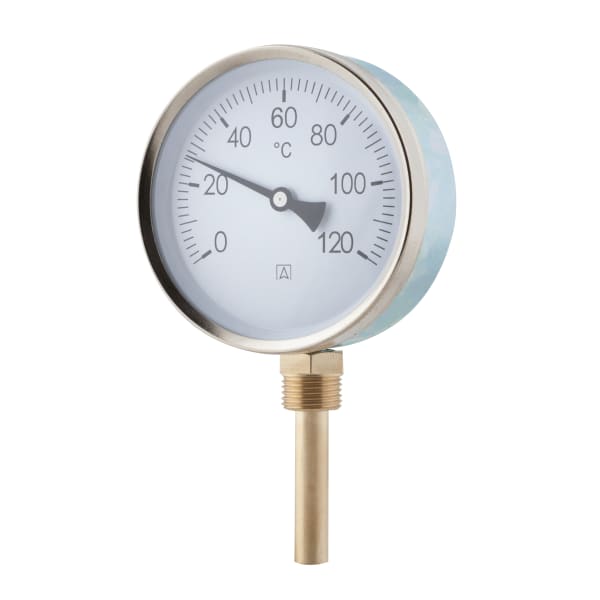

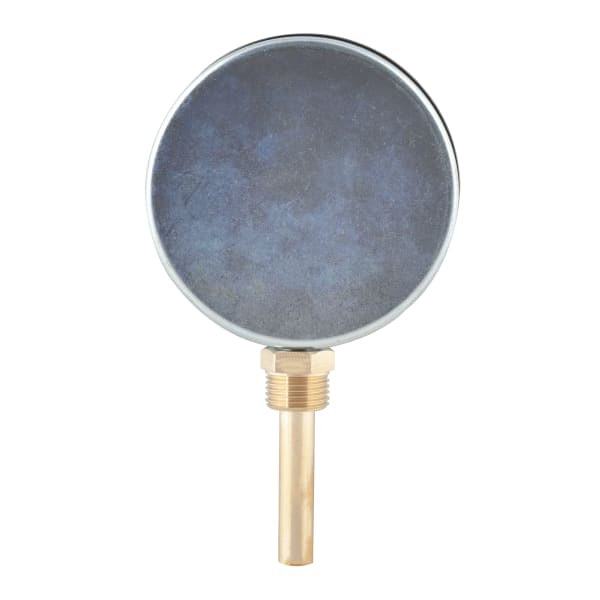

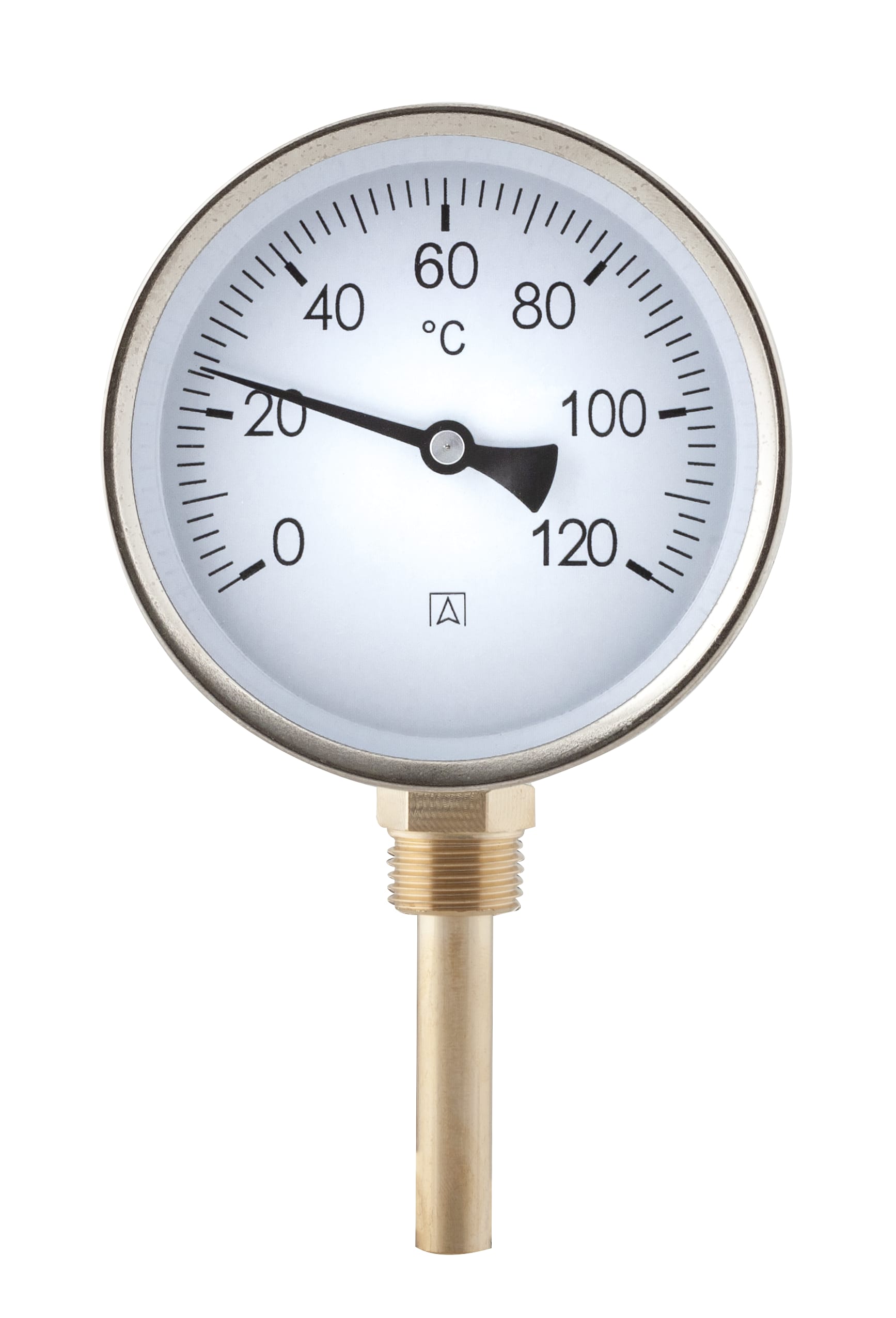

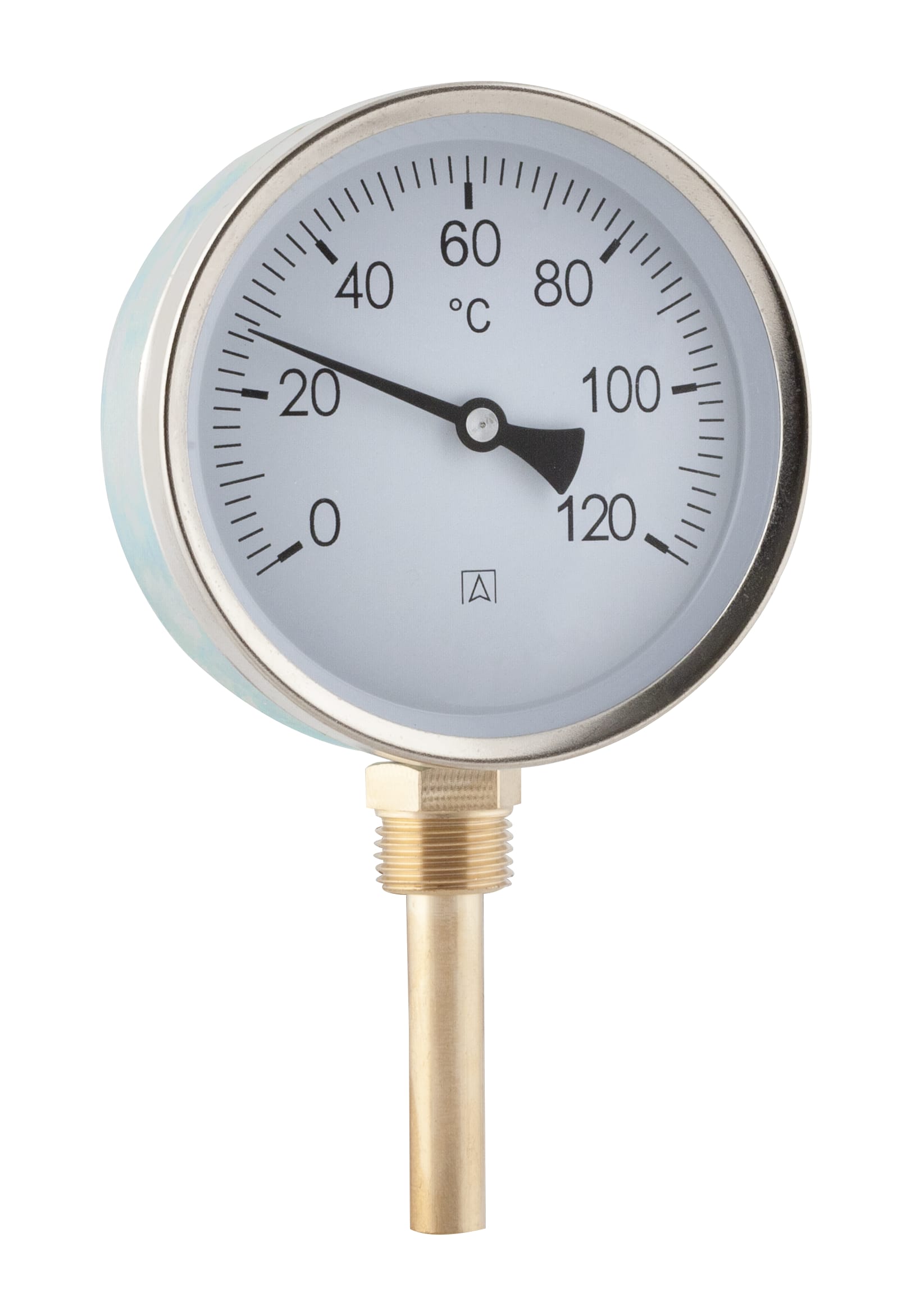

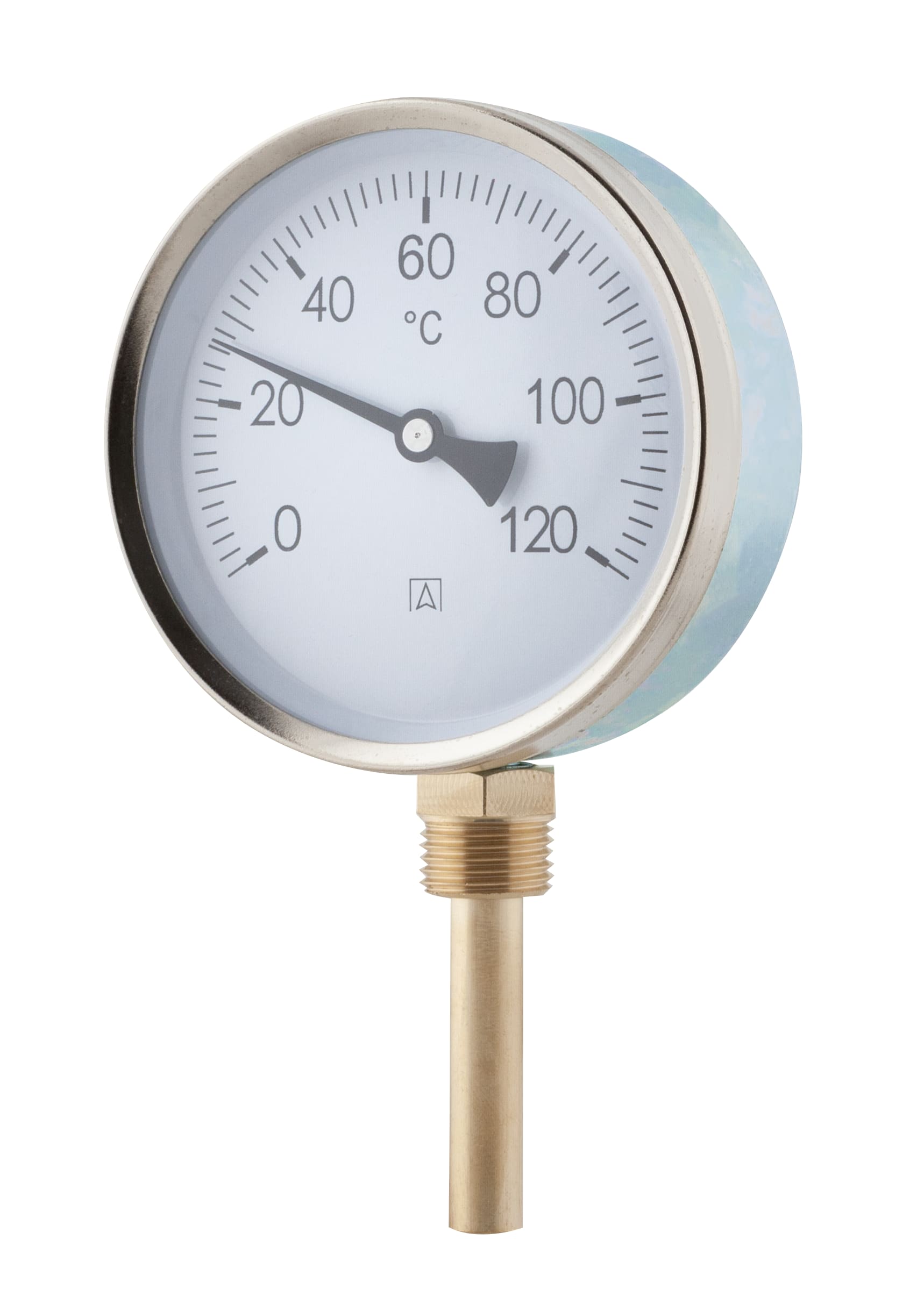

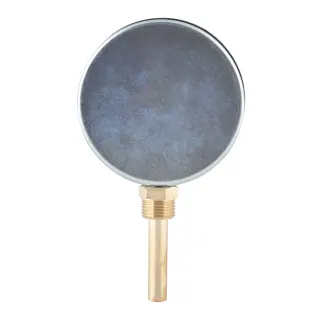

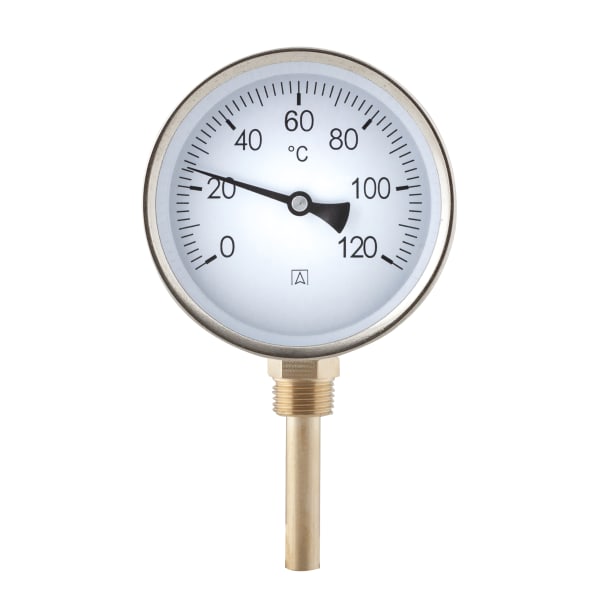

Images 6 BiTh 100 ST bimetal standard thermometer Variants Benefits ranges:-20/+60, 0/60, 0/120, 0/160 °Cbrass thermowellstem brass or aluminium Application Heating, plumbing Variants Technical data Technical drawings Variants Typehousing ⌀mounting positionRangeStem lengthTypeTypePart no.BiTh 100 ST100 mmbottom0/120 °C40 mmBiTh 100 ST64081BiTh 100 ST100 mmbottom0/120 °C63 mmBiTh 100 ST64082BiTh 100 ST100 mmbottom0/120 °C100 mmBiTh 100 ST64083BiTh 100 ST100 mmbottom0/120 °C150 mmBiTh 100 ST64084 in-stock items manufactured goods Technical data Nominal size100 - 100measuring elementBimetal helixaccuracy class2 (EN 13190)ranges °C0/120 °Capplication areaFull scale valueOperating pressure at thermowellmax. 6 bar Standard design ConnectionStem: brass or aluminium, ∅ 9 mmThermowell: G½B, brass or aluminium, ∅ 9 mmmounting positionbottomDialUp to 120 °C: Plastic, white≥ 160 °C: Aluminium, whiteScaling blackPointerKunststoff, schwarzHousingStahlblech, verzinktpush on bezelStahlblech, vernickeltwindowKunststoff Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Bottom connection Dimensions (mm) NG a b2 D d1 F G L1 SW 63 10 35 63 12 29,3 G½B 40 19/22 63 10 35 63 12 29,3 G½B 63 19/22 63 10 35 63 12 29,3 G½B 100 19/22 63 10 35 63 12 29,3 G½B 150 19/22 80 10 33 80 12 47,3 G½B 40 19/22 80 10 33 80 12 47,3 G½B 63 19/22 80 10 33 80 12 47,3 G½B 100 19/22 80 10 33 80 12 47,3 G½B 150 19/22 100 10 40,5 100 12 59,3 G½B 40 19/22 100 10 40,5 100 12 59,3 G½B 63 19/22 100 10 40,5 100 12 59,3 G½B 100 19/22 100 10 40,5 100 12 59,3 G½B 150 19/22
