THMK 52

Thermo-Manometer mit Kapillarleitung

Variants Documents

ideal for boilers and hot water storage tanks
corrosion-resistant, highly impact-resistant plastic housing
many customised versions available

Heating, cooling and plumbing, e.g. boilers, buffer tanks.

	Type	housing ⌀	Housing	push on bezel	Pointer	Dial	Scale	Range		capillary length	Type	Part no.
								temperature	pressure
	THMK 52	52 mm			white	black	white	0/120 °C	0/4 bar	500 mm	THMK 52	67635105
	THMK 52	52 mm			white	black	white	0/120 °C	0/4 bar	1000 mm	THMK 52	67635115
	THMK 52	52 mm			white	black	white	0/120 °C	0/4 bar	1500 mm	THMK 52	67635125
	THMK 52	52 mm			white	black	white	0/120 °C	0/4 bar	2000 mm	THMK 52	67635135

in-stock items
manufactured goods

Nominal size

: 52 - 52

Range

pressure:: 0/4 bar

temperature:: 0/120 °C

Accuracy/test point

pressure:: 4,0

temperature:: 50 °C = 3 °C

Measuring principle

pressure:: Bourdon tube, Copper alloy

temperature:: Liquid filling

application area

pressure

static load:: ¾ x full scale value

dynamic load:: ⅔ x full scale value

short-term:: Full scale value

temperature:: Full scale value

Operating temperature range

Medium:: Full scale value

Ambient:: max. 70 °C

Operating pressure: without pressure

Degree of protection: IP 32 (EN 60529)

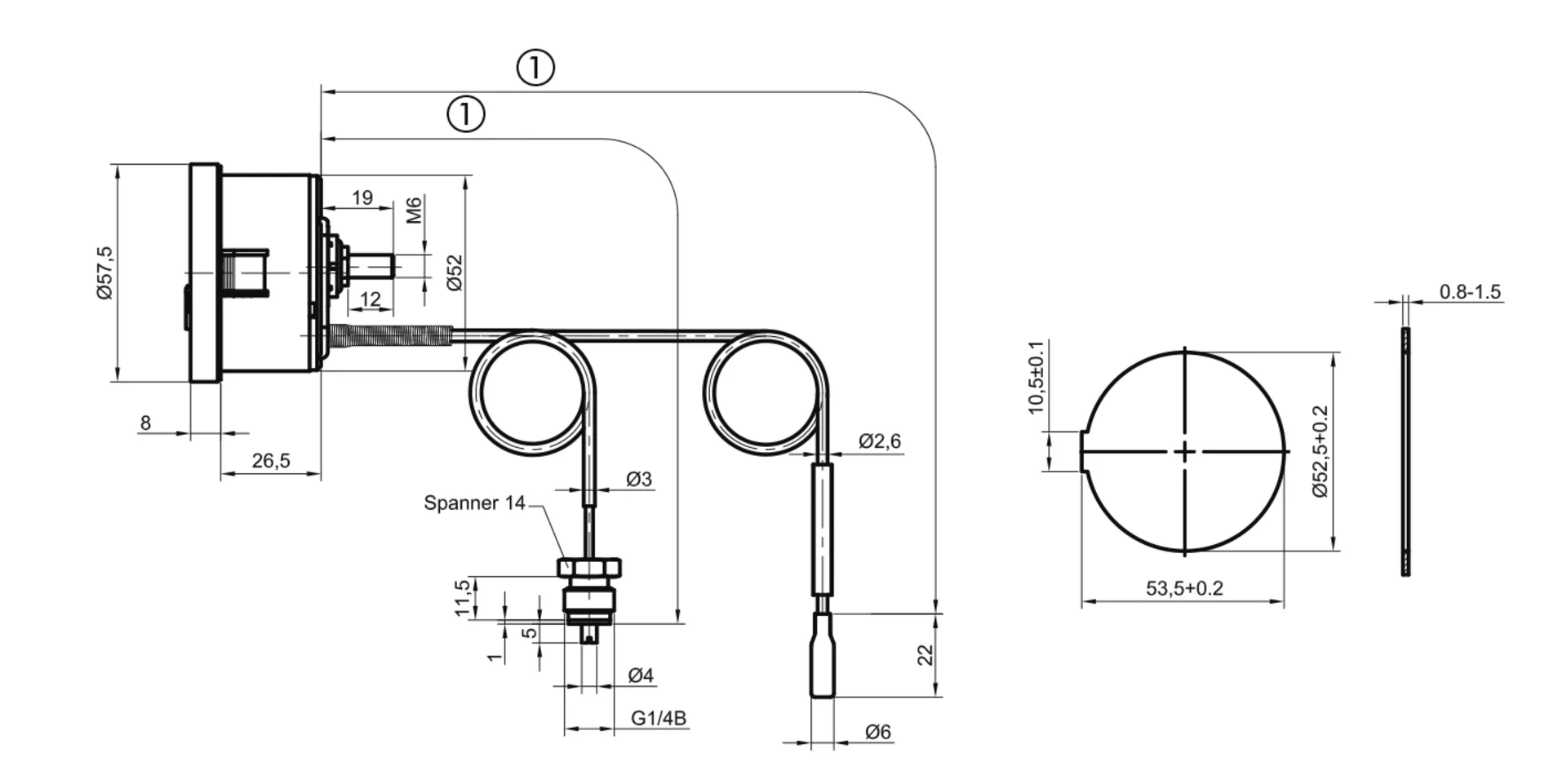

Standard design

Connection

pressure:: G¼B, Brass

temperature:: ∅ 6 x 30 mm, Copper

Capillary tube:: Copper with PVC coating (R3, grey)

Dial

: Plastic, black

: Scaling white

Pointer

: Plastic, white

Housing

: Plastic (ABS), grey

window

: Kunststoff with reference pointer

Bezel

: push on bezel

: Kunststoff (ABS), schwarz

capillary length: 500 mm
