WTh 24 | 32210

Resistance thermometers

manufactured goods

suitable for use in mechanical engineering, plant engineering, appliance engineering, process engineering and chemical industry

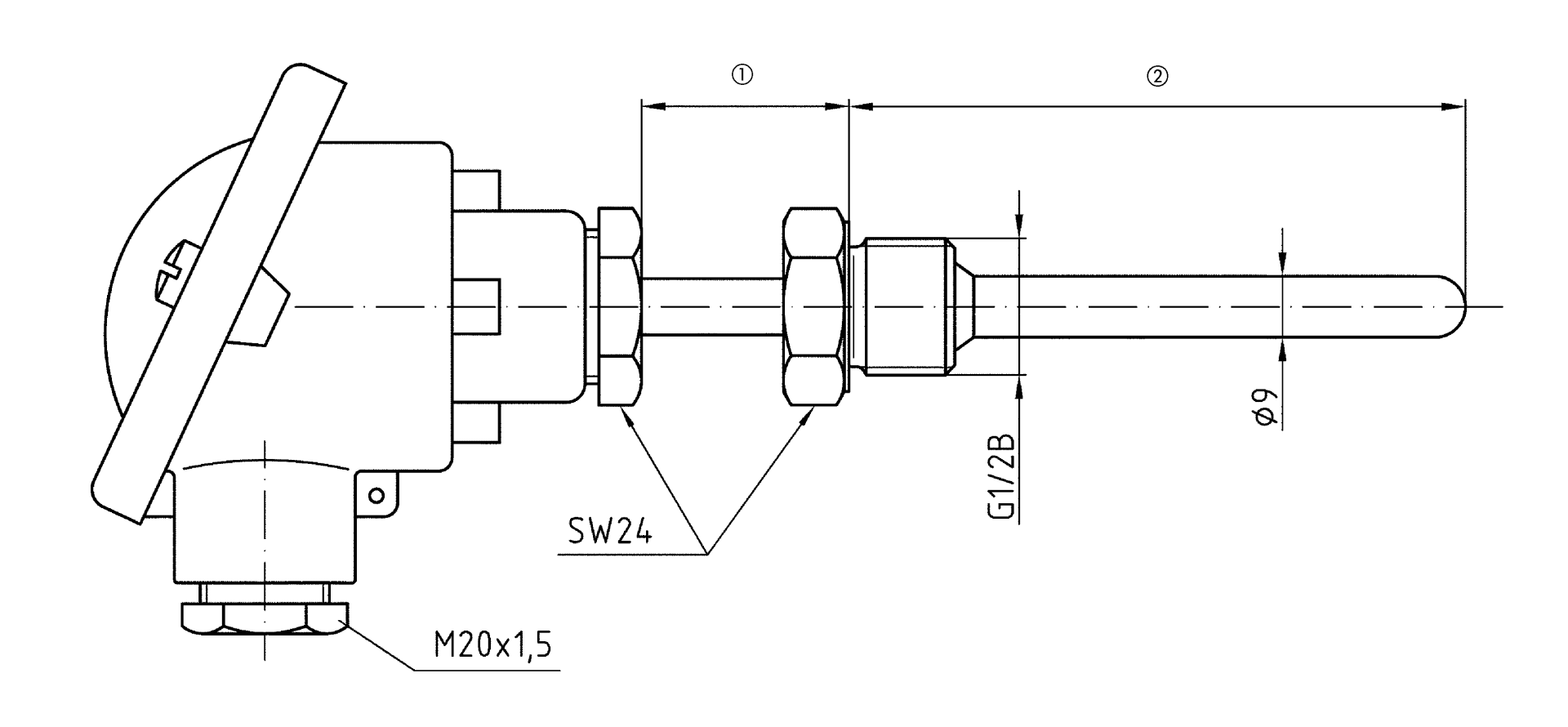

screw-in resistance thermometer with Pt100 sensor
Wetted parts 316 Ti

Screw-in resistance thermometer for medium pressure and flow loads, specially for mechanical engineering and plant engineering

Sensor

: 1 x Pt100

: 3-wire

: Class B, IEC 751

Measuring insert

: replaceable

Thermowell

: As per DIN 43772

: ∅ 9 x 1 mm

: Stainless steel 316 Ti

Neck

: ∅ 9 x 1 mm

Length:: 25 mm

: Stainless steel 316 Ti

Process connection

: G½B

: Stainless steel 316 Ti

Installation length: 100 mm

Connection head

: Type B As per DIN 43729

: aluminium die cast

Electrical connection

: Cable gland

Degree of protection: IP 54 (EN 60529)

Measuring range

: -35/+180 °C
