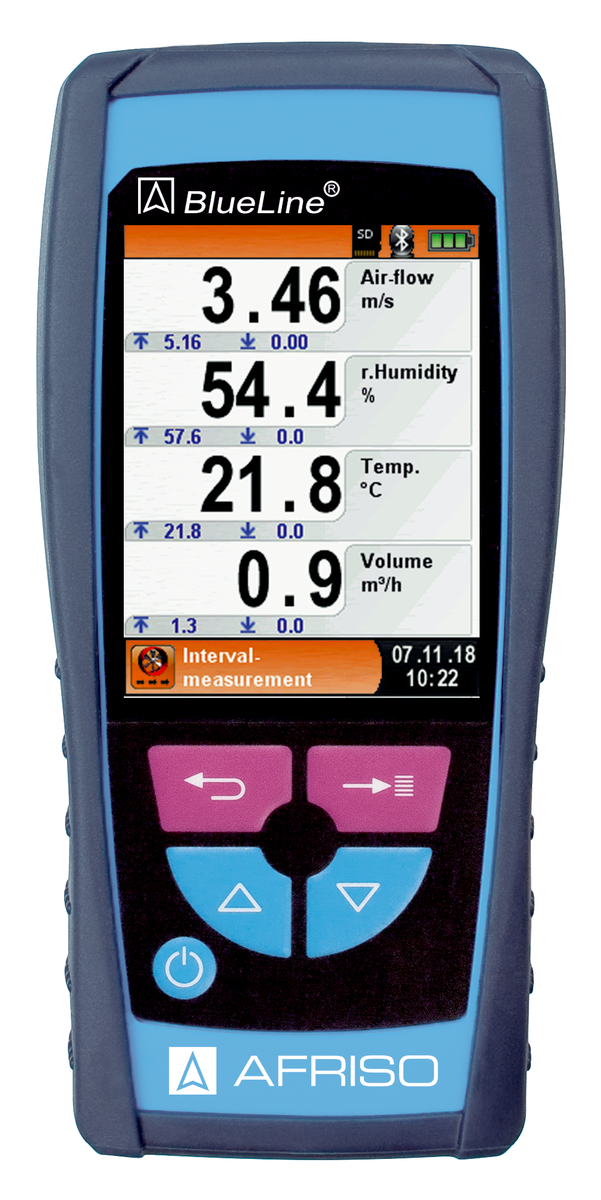

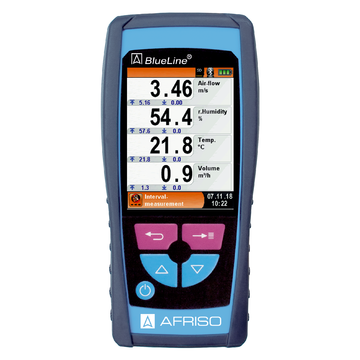

Air Speed Measuring Instrument BlueAir STx

AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx 75510 75520 75530 75540 object_image_79435imagemain_en AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx 75510 75520 75530 75540 object_image_79435imagemain_en
Luftgeschwindigkeitsmessgerät BlueAir-STx
AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx 75510 75520 75530 75540 object_image_79435imagemain_en
AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx ANW 75510 75520 75530 75540 AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx ANW 75510 75520 75530 75540
Luftgeschwindigkeitsmessgerät BlueAir-STx
AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx ANW 75510 75520 75530 75540 <div class="gallery-information"> <b>Legend:</b> <ol> <li>Mini USB connection for power supply/charger</li> <li>Signal unit (speaker)</li> <li>MicroSD card slot</li> <li>Connection vane probes</li> <li>Connection temperature and humidity sensor</li> </ol> </div>
AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx 75510 75520 75530 75540 object_image_79435imagemain_en
AFRISO Luftgeschwindigkeitsmessgerät BlueAir-STx ANW 75510 75520 75530 75540
Data sheet Air Speed Measuring Instrument BlueAir STx
AFRISO Data sheet Air Speed Measuring Instrument BlueAir STx

Versions

Part no. Remember
Air Speed Measuring Instrument BlueAir STx M080002016
Air Speed Measuring Instrument BlueAir STx set 2 including vane probe Junior Mini P00022
Air Speed Measuring Instrument BlueAir STx set 1 including vane probe Junior Micro P00023
Air Speed Measuring Instrument BlueAir STx Set 3 including vane probe Junior Macro P00024

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Air Speed Measuring Instrument BlueAir STx Data sheet PDF
AFRISO Data sheet Air Speed Measuring Instrument BlueAir STx
Firmware update (CAPBs-enabled) BLUEAIR STx - installation instructions Portable measuring instruments PDF AFRISO Firmware update (CAPBs-enabled) BLUEAIR STx - installation instructions
Firmware update (CAPBs-enabled) BlueAir ST - V 4_0072 Portable measuring instruments BIN AFRISO Firmware update (CAPBs-enabled) BlueAir ST - V 4_0072
NA Dust measuring instrument STM 225 for chimney sweeps NA PDF
AFRISO NA Dust measuring instrument STM 225 for chimney sweeps
BlueAir STx set 2 BlueAir STx set 1 BlueAir STx Set 3
Air velocity
nominal 0.4/20 m/s 0.6/20 m/s 0.3/20 m/s
maximum 0.5/40 m/s 0.7/40 m/s 0.3/40 m/s
Resolution 0.01 m/s 0.01 m/s 0.01 m/s
Accuracy ± 0.2 m/s (< 6 m/s) ± 0.4 m/s (< 8 m/s) ± 0.2 m/s (< 6 m/s)
± 3 % v. Mw. (> 6 m/s) ± 5 % v. Mw. (> 8 m/s) ± 3 % v. Mw. (> 6 m/s)
Operating temperature range
Medium -20/+140 °C -20/+140 °C -20/+140 °C
Sensor size 22 x 28 mm 11 x 15 mm 85 x 80 mm
Probe length 175 mm 165 mm 235 mm
probe cable 1.5 m 1.5 m 1.5 m
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Weight
Approx. 220 g
Dimensions
W x H x D:
66 x 143 x 37 mm
Degree of protection
IP 40 (EN 60529)
Display
TFT colour display 2.8 "
W x H:
45 x 60 mm
Resolution:
240 x 320 pixels
Supply voltage
Lithium-ion battery (3.6 V/1,800 mAh)
Power supply unit (USB)
Battery or mains
Hours of operation
Normal mode:
Bis 20 Stunden
Auto mode:
Bis 30 Stunden
Eco mode:
Bis 40 Stunden
Data memory
MicroSD card
Data logger
1-999 seconds, interval freely selectable
Interfaces
Infrared
Bluetooth<sup>®</sup>
QR code generator
MicroSD card slot
Measuring range
Humidity:
10/90 % rH
Resolution
Humidity:
0.1 % rH
Accuracy
Humidity:
± 2.3 % rH
