CAPBs® set 4 Pa with heating system check sens

AFRISO CAPBs Set 4-Pa und Heizungs-Check sens VOR 3240 22850 object_image_61829imagemain_en AFRISO CAPBs Set 4-Pa und Heizungs-Check sens VOR 3240 22850 object_image_61829imagemain_en
CAPBs Set 4-Pa und Heizungs-Check sens
AFRISO CAPBs Set 4-Pa und Heizungs-Check sens VOR 3240 22850 object_image_61829imagemain_en
AFRISO CAPBs Set 4-Pa und Heizungs-Check sens VOR 3240 22850 object_image_61829imagemain_en
Data sheet CAPBs® set 4 Pa with heating system check sens
AFRISO Data sheet CAPBs® set 4 Pa with heating system check sens

Benefits

  • Complete set for performing 4 Pa test and heating system check
  • Robust, modular system case S, suitable for box and shelf system Sortimo-Boxx
  • Wireless, immediate transmission of the measurement data to your AFRISO measuring instrument, smartphone or tablet with Bluetooth® technology
  • Position-independent, temperature-compensated sensor technology for maximum precision in all measuring scenarios
  • Free app for EuroSoft live for operation of all CAPBs® via smartphone and tablet. With pre-installed measurement menus for special applications and graphical representation of the measurement results

Application

  • Check of underpressure limit value (4 Pa / 8 Pa ) in a sealed air system (building/apartment)
  • Acceptance of individual heat systems with simultaneous operation with exhaust air systems
  • Measurement of the flow rate and determination of the temperature in the residual core flow of the flue gas line

Versions

Part no. Remember
CAPBs® set 4 Pa with heating system check sens P00120

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet CAPBs® set 4 Pa with heating system check sens Data sheet PDF
AFRISO Data sheet CAPBs® set 4 Pa with heating system check sens

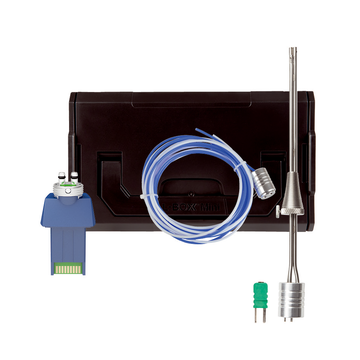

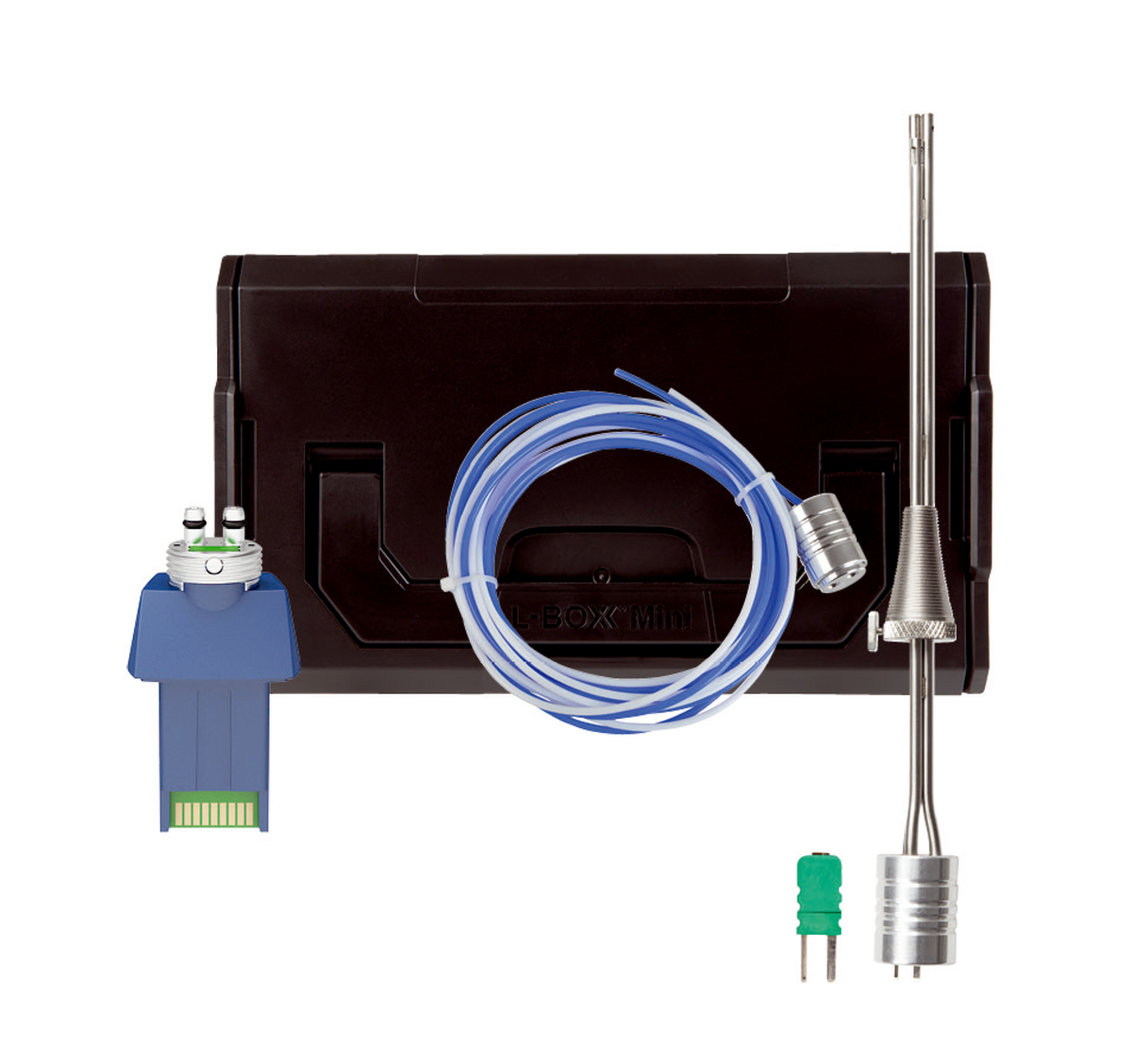

Ready-to-be-used combination set in system case S with sensor module pressure/temperature CAPBs® sens FP 10 (20 mbar), Pitot tube and surface temperature probe. For the heating system check, the measured data is used to calculate the ventilation loss and the volume flow is calculated if the duct cross section is known. Measurement of the surface temperature serves as the basis for calculating the surface loss of the energy generator. The hose kit is used to check and document the underpressure limit value of 4 Pa/8 Pa.
Dimensions (W x H x D)
Sensor module:
42 x 74 x 35 mm
Case:
260 x 63 x 155 mm
Weight
0.4 kg
Measuring range
Pressure:
-20/+20 mbar
Temperature:
-50/+600 °C
Pitot:
0.2/20 m/s
Accuracy
Pressure:
± 0.003 mbar (< 0.6 bar)
± 0.5 % v. Mw. ± 1 Digit (> 0.6 mbar)
Temperature:
± 1.5 K
Pitot:
± 0.1 m/s (< 2 m/s)
± 5 % v. Mw. (> 2 m/s)
Resolution
Pressure:
0.001 mbar
Temperature:
0.1 °C
Pitot:
0.1 m/s
Indication of measured values
hPa, mbar, Pa, mmWs, mmHg, inHg
Scope of delivery
  • Sensor module pressure/temperature CAPBs<sup>®</sup> sens FP 10 (20 mbar)
  • Hose kit SLS 4 Pa test
  • Pitot tube EP-SR 10
  • Surface temperature probe TFB-OF 120
  • System case S
