CAPBs® set evaluation of serviceability DPK 60-7 sens

AFRISO CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung VOR 3070 object_image_98360imagemain_en AFRISO CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung VOR 3070 object_image_98360imagemain_en
CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung
AFRISO CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung VOR 3070 object_image_98360imagemain_en
AFRISO CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung VOR 3070 object_image_98360imagemain_en
AFRISO CAPBs Basisgriff BG 10 VOR 2390 AFRISO CAPBs Basisgriff BG 10 VOR 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 VOR 2390
AFRISO CAPBs Basisgriff BG 10 DRA 2390 AFRISO CAPBs Basisgriff BG 10 DRA 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 DRA 2390
AFRISO CAPBs Basisgriff BG 10 RUE 2390 AFRISO CAPBs Basisgriff BG 10 RUE 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 RUE 2390
AFRISO CAPBs Basisgriff BG 10 ANW 2390 AFRISO CAPBs Basisgriff BG 10 ANW 2390
CAPBs Basisgriff BG 10
AFRISO CAPBs Basisgriff BG 10 ANW 2390
AFRISO CAPBs Set DPK 60-7 sens Gebrauchsfähigkeitsermittlung VOR 3070 object_image_98360imagemain_en
AFRISO CAPBs Basisgriff BG 10 VOR 2390
AFRISO CAPBs Basisgriff BG 10 DRA 2390
AFRISO CAPBs Basisgriff BG 10 RUE 2390
AFRISO CAPBs Basisgriff BG 10 ANW 2390
Data sheet CAPBs® set evaluation of serviceability DPK 60-7 sens
AFRISO Data sheet CAPBs® set evaluation of serviceability DPK 60-7 sens

Benefits

  • Modular extension kit for DPK 60-6 ST and DPK 60-6 sens
  • DVGW-certified sensor module PS 33 (-1/+2 bar)
  • Can be used in conjunction with AFRISO BlueLine measuring instruments, smartphones or tablets as evaluation units
  • Robust, modular system case S, suitable for toolbox system Sortimo-Boxx
  • Barometric pressure determination for highly accurate measured values

Application

  • Evaluation of serviceability (determination of amount of leakage) on gas pipes as per TRGI

Versions

Part no. Remember
CAPBs® set evaluation of serviceability DPK 60-7 sens P00121
Base handle CAPBs® module BG 10 M091000017

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet CAPBs® set evaluation of serviceability DPK 60-7 sens Data sheet PDF
AFRISO Data sheet CAPBs® set evaluation of serviceability DPK 60-7 sens

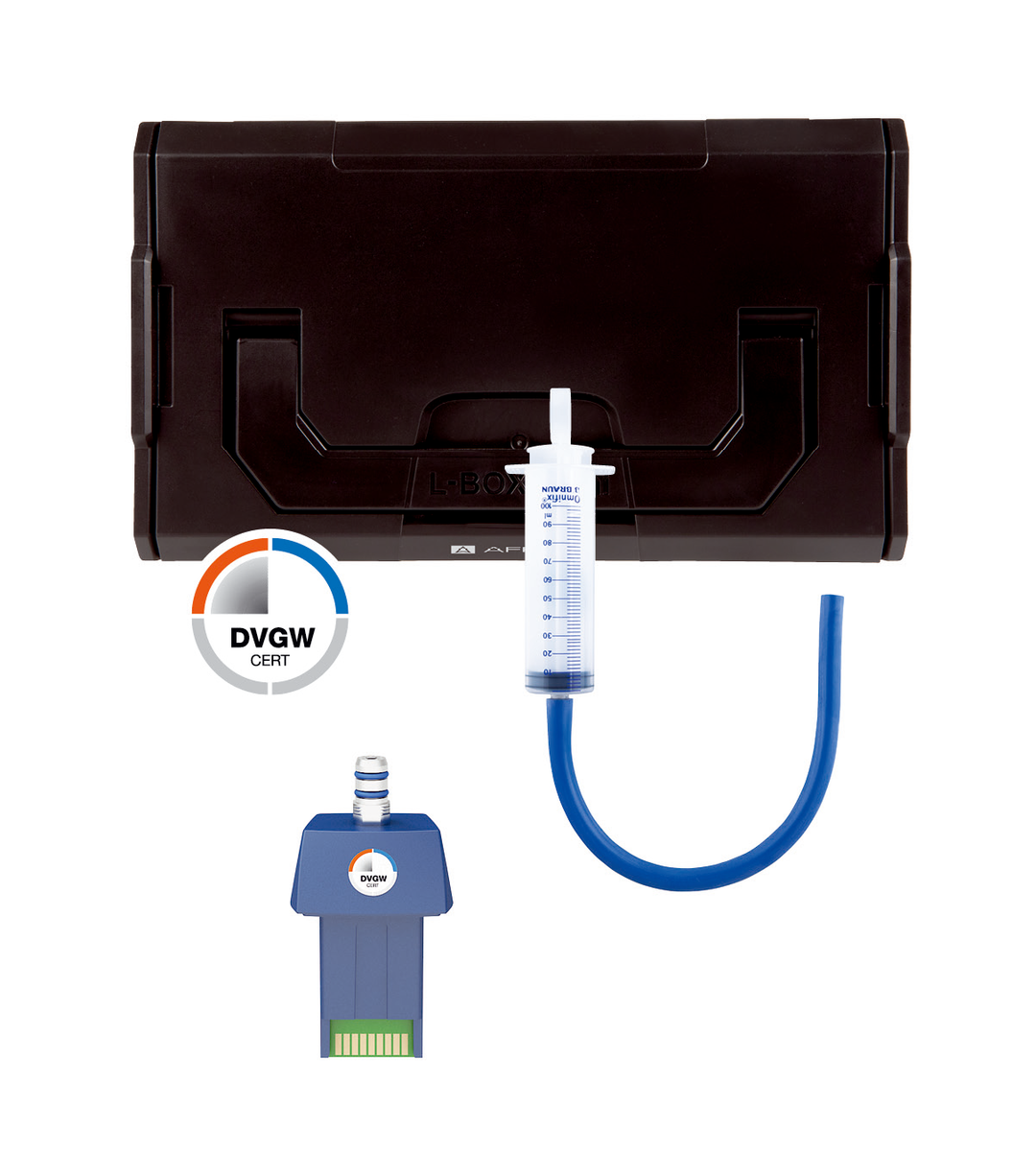

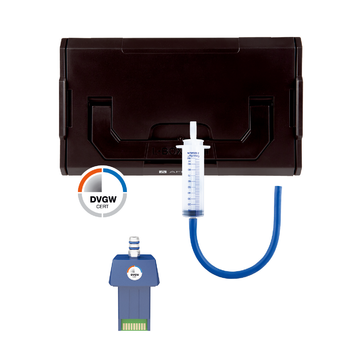

Extension set in system case S with DVGW-certified sensor module pressure CAPBs® sens PS 33 (2 bar), connection hose, manual bulb pump and syringe for determining the volume, in system case S. With barometric pressure determination for compensation of fluctuating barometric pressure during measurements and with temperature compensation. Certified for measuring tasks as per DVGW TRGI.
Dimensions (W x H x D)
Sensor module:
42 x 74 x 35 mm
Case:
260 x 63 x 155 mm
Interfaces
Bluetooth<sup>®</sup>
Hours of operation
Bis 45 Stunden
Measuring range
-1/+2 bar
Accuracy
± 0.3 mbar (< 60 mbar)
± 0.5 % v. Mw. ± 1 Digit (> 60 mbar)
Resolution
0.1 mbar (< 999.99 mbar)
1 mbar (> 1,000 mbar)
Hose connection
∅ 8 mm
Scope of delivery
  • Sensor module pressure CAPBs<sup>®</sup> sens PS 33, 2 bar, connection ⌀ 8 mm
  • System case S
  • Syringe for test volume
  • CAPBs<sup>®</sup> base handle BG 10
  • 2 x 1.5 V AAA alkaline battery
