DÜ

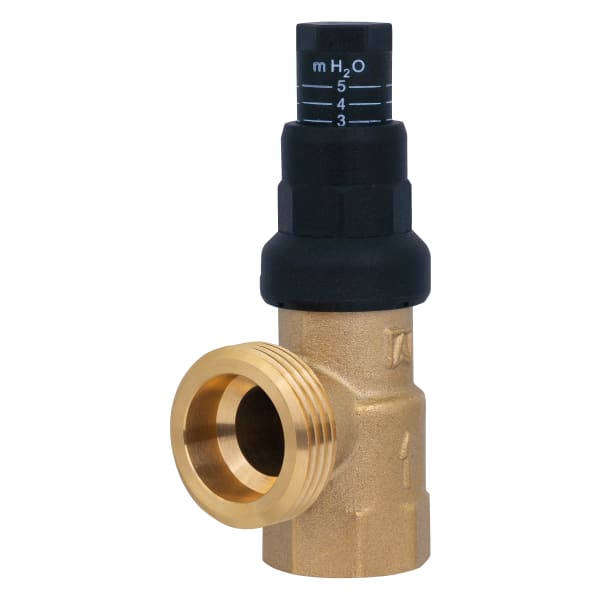

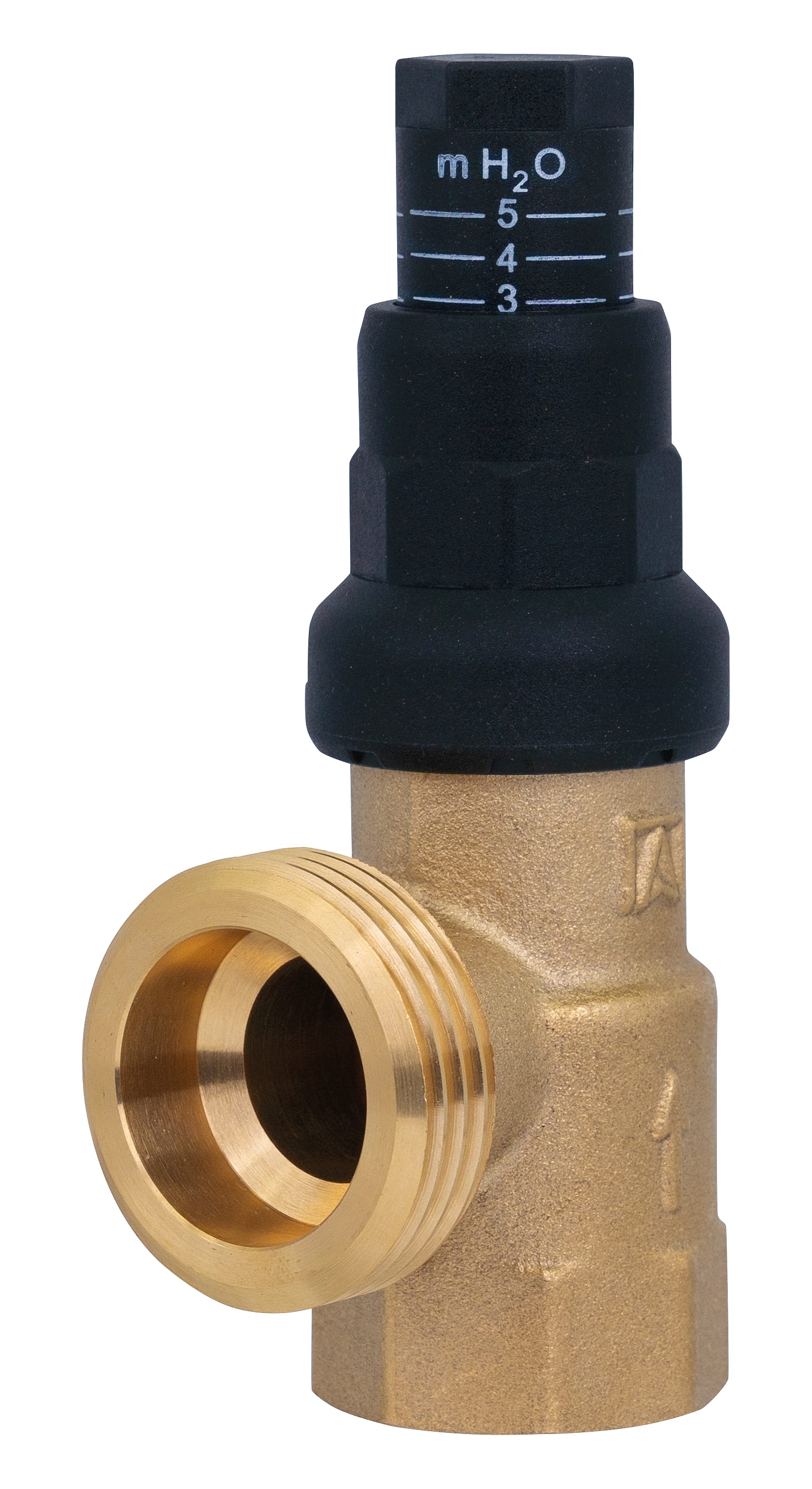

Differential pressure bypass valve

Variants Documents

  • for constant pump pressure in heating systems
  • Reduction of flow noise
  • with adjustment scale
  • Differential pressure fully adjustable
  • either space-saving angled version or straight version

For keeping the pump pressure in sealed heating systems as per EN 12828 constant and for reducing flow noise in the heating system.

Differential pressure bypass valve with directly readable adjustment scale. Housing made of brass. Available as straight version or angled version for space-saving installation. The differential pressure in the heating system at full load is set directly at the bypass valve. If the volume flow is reduced, the valve opens to keep the head of the circulation pump constant.

Part no.
Differential pressure bypass valve DÜangled version, G¾ x G¾42379
Differential pressure bypass valve DÜstraight version, G¾ x G¾42384
Differential pressure bypass valve DÜangled version, G¾ x G142308
  • in-stock items
  • manufactured goods

Operating temperature range
Medium:
max. 95 °C
Medium:
short-term 120 °C
Operating pressure
max. 6 bar
Differential pressure
0.1/0.5 bar fully adjustable
Housing
angled version
Material:
Brass
Connection angled version
Input:
G¾ female
Output:
screw connection, flat-sealing with union nut G¾
