KSV 125 HW 70kW | 77315

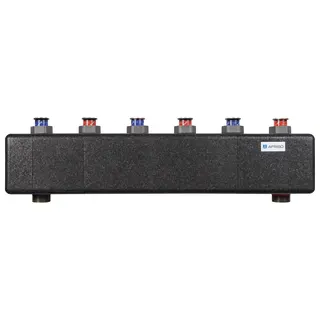

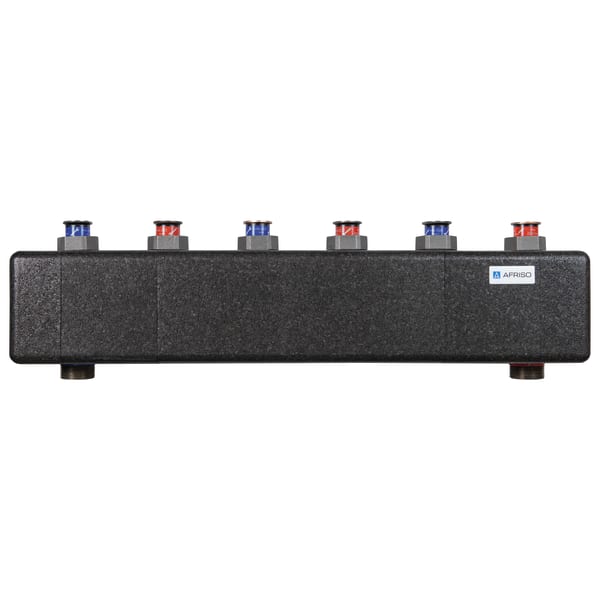

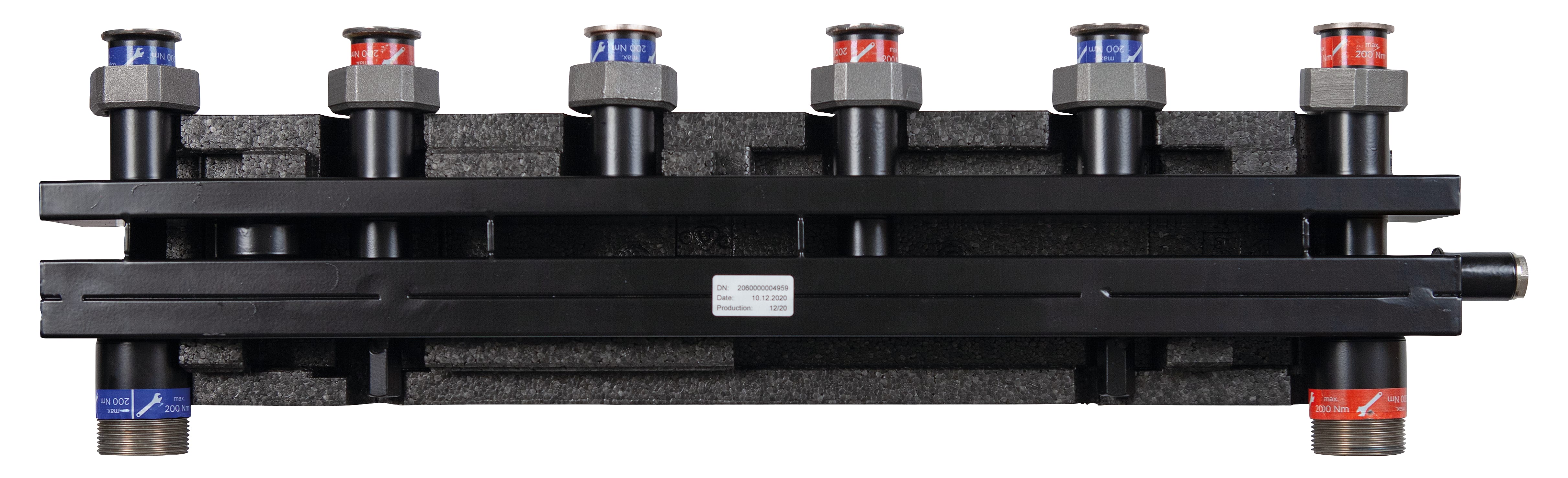

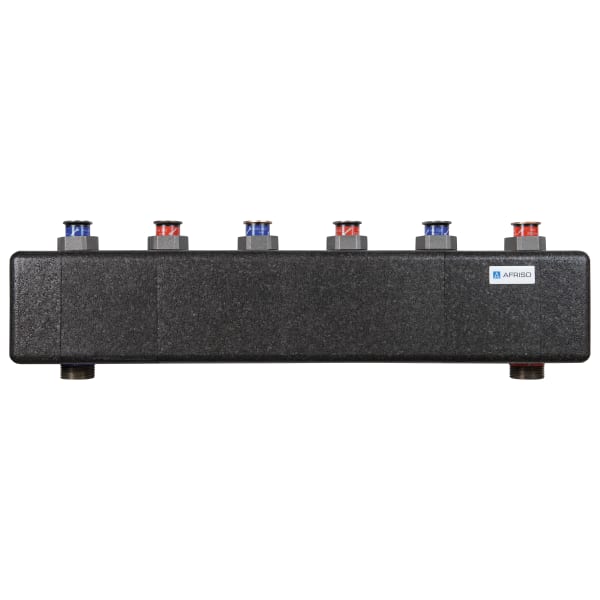

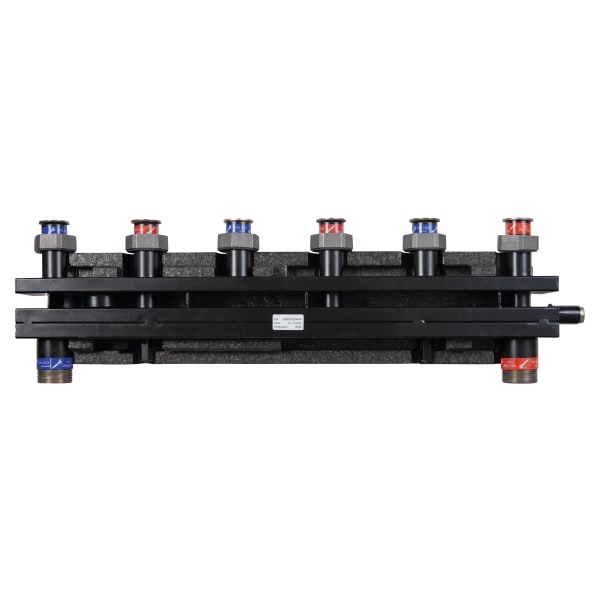

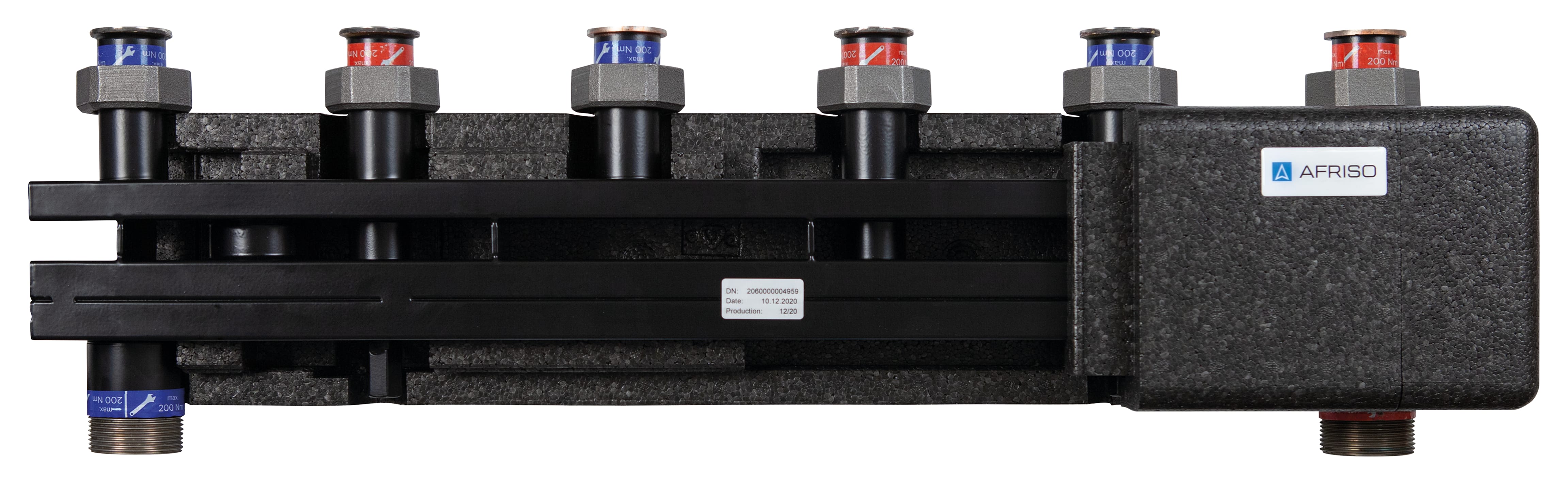

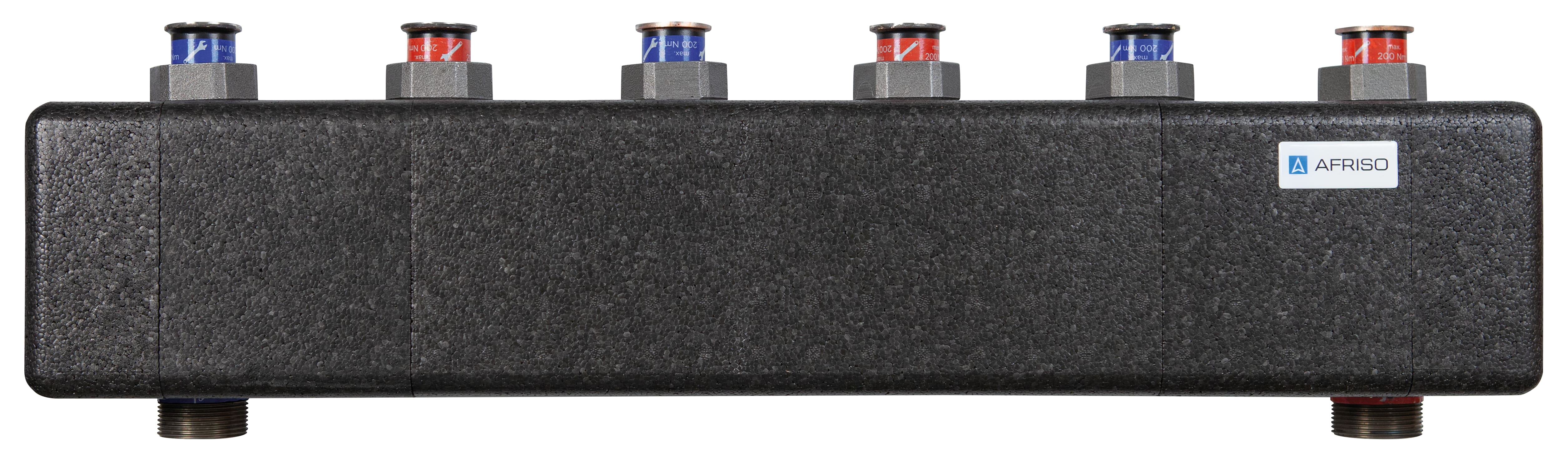

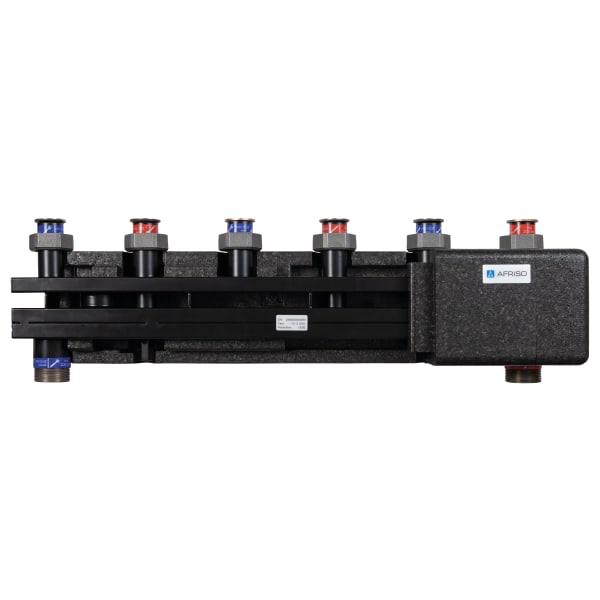

Kesselverteiler für Heizungspumpengruppen PrimoTherm®

in-stock items
Documents

  • compact and robust version in form-fit insulation
  • for two or three heating pump assemblies, with optional hydraulic separator
  • 2 wall mounting bracket for easy mounting included
  • AFRISO boiler manifolds are tightness-tested in the factory.

For distribution of the heating circuit water in sealed heating systems as per EN 12828 from the boiler to the heating pump assemblies PrimoTherm®.

Boiler manifold as combination supply and return manifold for two or three heating pump assemblies. With integrated hydraulic separator for separation of circuits. Connection to boiler via G1½ threaded sockets, bottom, two connections G½ for drain/temperature probe. Connection to heating pump assembly via flat-sealing union nut G1½. AFRISO boiler manifolds are tightness-tested in the factory; they are maintenance-free.

system connections
boiler side:
threaded socket G1½ male
Pump assembly:
union nut G1½, flat-sealing
Axis distance
  125 mm for pump assembly
Operating temperature range
Medium:
max. 110 °C
Flow
3 m³/h
System pressure
max. 6 bar
Heat insulation
Polypropylene EPP
Scope of delivery
  • Boiler manifold
  • 2 x Wandkonsole
  • Insulation
