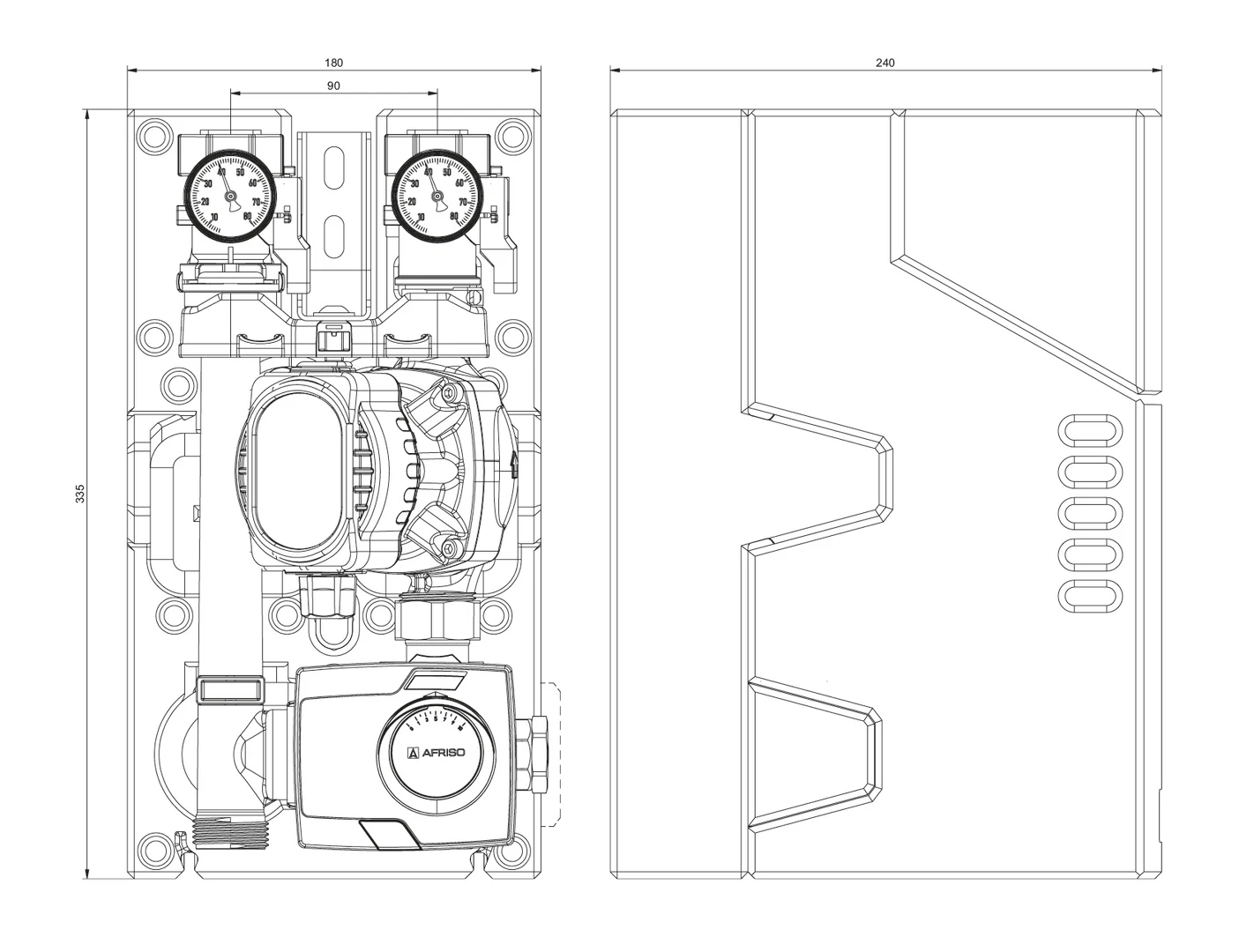

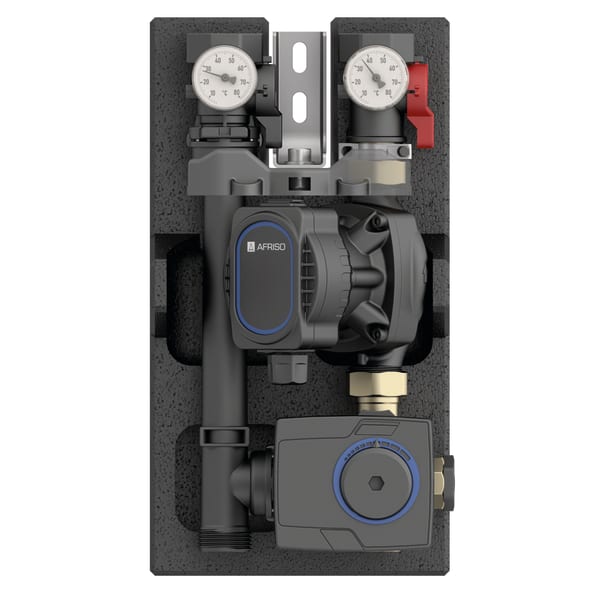

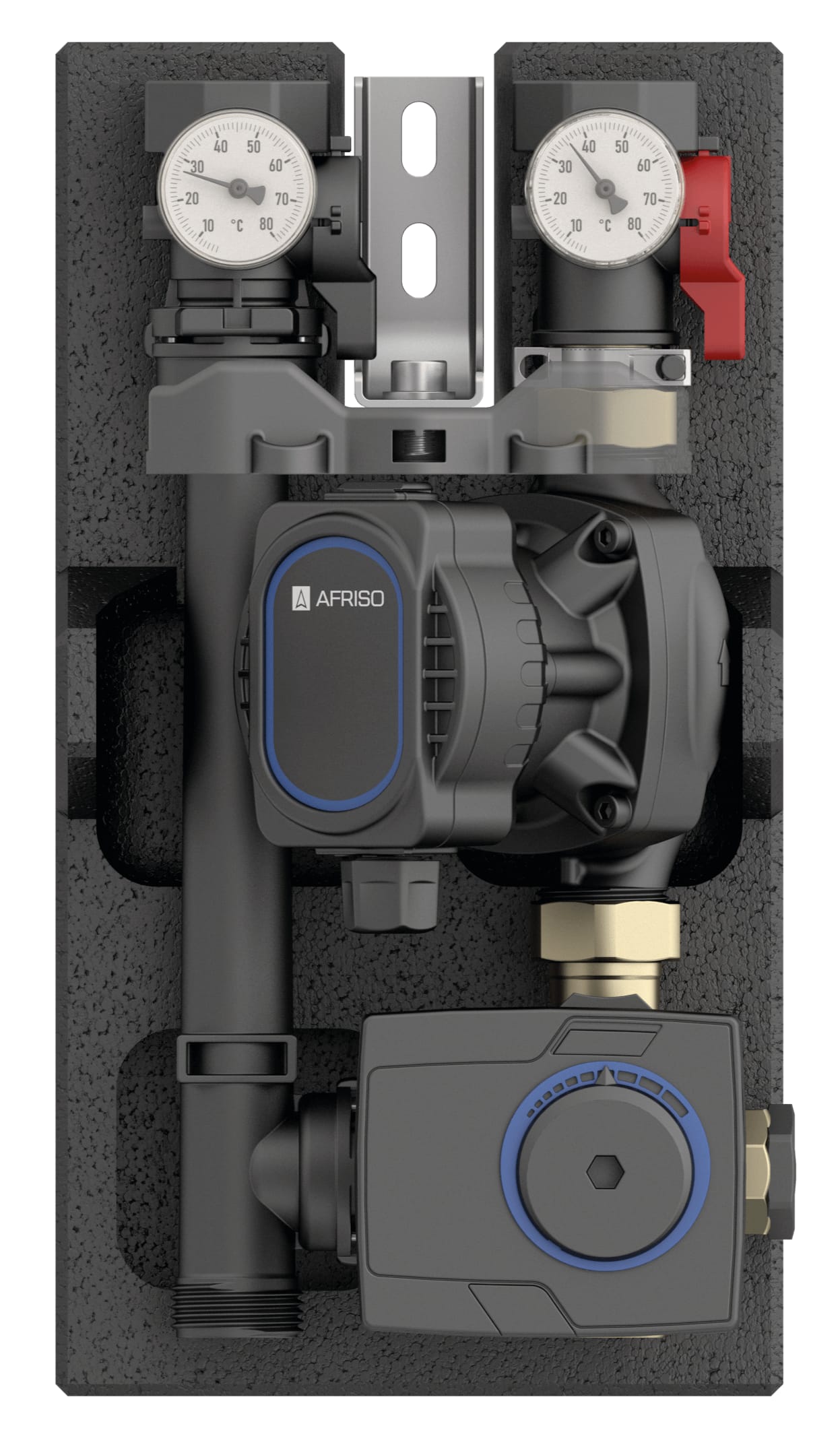

Images 3 PrimoTherm® C 130-2 DN20 KVS Vario Heating pump assembly Variants Downloads Benefits pre-assembled, tightness-tested and heat-insulated assemblyrobust mixer with adjustable flow coefficient Kvs from 3.2 to 5.2 m³/hAdaptation of flow coefficient Kvs also possible during operation (under system pressure)eligible for heating optimization program (BAFA) Application Heating pump assembly for use in mixed heating circuits. With the 3-way mixer and the actuator, the flow temperature can be adjusted to a desired temperature by adding water from the return. The new mixer with adjustable flow coefficient Kvs offers the HVAC professional maximum flexibility in adapting the system to individual control requirements. This way, a great variety of mixer/pump assemblies can be covered with a single version. Description Complete, pre-assembled and tightness-tested heating pump assembly made of high-grade polymer materials with all required functional components, form-fit heat insulation.The flow line consists of:Shut-off valve with thermometer holder (red handle)Thermometer flow (5 to 80 °C)3-way mixing valve ARV KVS Vario with adjustable flow coefficient Kvs and ProClick adapter systemMaintenance-free, silent actuator ARM 343 (6 Nm, 120 s, AC 230 V) with 0/90° angle of rotation, indication for direction of rotation, selector key "Manual/Automatic Mode" and ProClick adapter systemSensor clip for connection of a flow line sensor with Ø 6 mmSuitable for circulation pumps DN 20 mit G1 x 130 mm.The return line consists of:Shut-off valve with thermometer holder (black handle)Thermometer return (5 to 80 °C)Gravity brakePlastic piece for length compensation pump / mixer Variants Technical data Technical drawings Downloads Variants opening temperature is reachedPumpPart no.Heating pump assembly77339Heating pump assemblyAFRISO APH 160 15-7/13077340Heating pump assemblyWilo Para 15-130/6-43/SC-1277341Heating pump assemblyGrundfos UPM3 Auto 15-70/13077342 in-stock items manufactured goods Technical data Axis distance 90 mmsystem connectionsBoiler: G1 maleHeating circuit: G1 femaleOperating temperature rangeMedium: max. 60 °C at 6 bar,max. 70 °C bei 5 bar,max. 90 °C at 3 barNominal sizeDN 20adjustable: 3.2 (3.5) – 3.75 (4.5) – 4.6 (7) – 5.0 (8.5) – 5.2 (9) m3/h() = value adjusted at mixing valveLeak rateMixing valve ARV KVS Vario: < 0.1 % of flow coefficient Kvs (up to Δp 0.5 bar < 0.2 % of flow coefficient Kvs)Heat insulationPolypropylene EPPDimensionsW x H x D: 189 x 335 x 240 mmProportional pressure control0 - 1Constant pressure control0 - 1Fixed speed of rotation0 - 1 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. PrimoTherm® C 130-2 mit AFRISO-Pumpe Maße (mm) Downloads 900_400_1187-0.PDF Brief instructions PDF Download
