WMS-WP6

Wassermangelsicherung - mechanisch

Variants Documents

  • for protection of the boiler when the water level is too low
  • TÜV-tested as a water level switch
  • Direct mounting via welding socket or connection thread
  • with test key for function test

For sealed heating systems to protect the boiler as per EN 12828 in the case of low water levels.

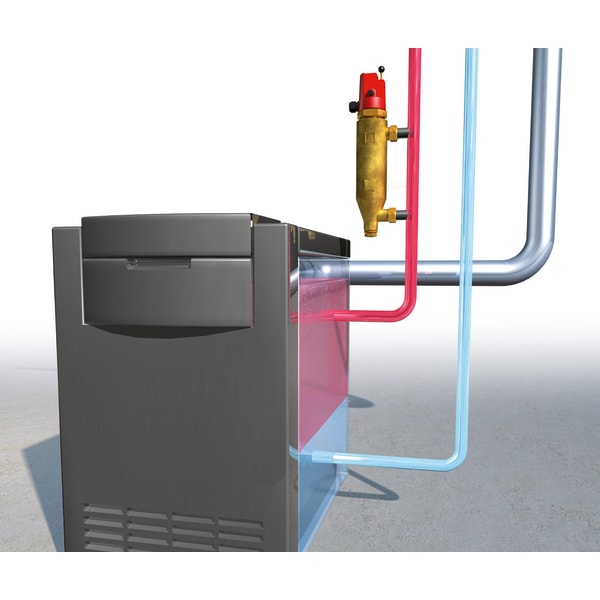

Mechanical boiler water low level alarm with float. Consisting of a cast brass body with welding sockets and a float mechanism, an electrical switch, test and unlock buttons. TÜV-tested as a water level limiter. If the water level in the boiler drops below a minimum level, a float activates a switch. The power supply to the boiler is interrupted. A locking mechanism keeps the burner from switching back on automatically. The test button allows the float to be lowered to simulate a low water alarm condition.
Version WMS-WP6-R2 with male connection thread R2 for direct installation in the boiler.

Part no.
Boiler water low level alarm WMS-WP6with welding socket DN 2042300
Boiler water low level alarm WMS-WP6without locking, with welding socket DN 2042305
Boiler water low level alarm WMS-WP6-R2with connection thread R2 male42319
  • in-stock items
  • manufactured goods

Operating temperature range
Medium:
max. 120 °C
Ambient:
max. 70 °C
Housing
Probe body:
cast brass
Height
WMS-WP6: 358 mm
Degree of protection:
IP 54 (EN 60529)
Float
Plastic
Connection
WMS-WP6: welding socket DN20
Operating pressure
max. 10 bar
Test pressure
  15 bar
Contact rating
AC 250 V, 6 (2) A
type approval mark
TÜV.WBH.yy-232
"yy" represents the year of the approval
