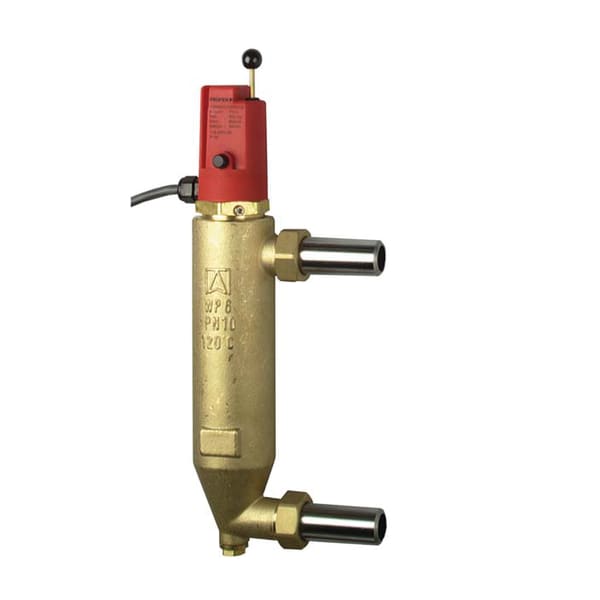

WMS-WP6 | 42305

Wassermangelsicherung - mechanisch

in-stock items
Documents

  • for protection of the boiler when the water level is too low
  • TÜV-tested as a water level switch
  • Direct mounting via welding socket or connection thread
  • with test key for function test

For sealed heating systems to protect the boiler as per EN 12828 in the case of low water levels.

Mechanical boiler water low level alarm with float. Consisting of a cast brass body with welding sockets and a float mechanism, an electrical switch, test and unlock buttons. TÜV-tested as a water level limiter. If the water level in the boiler drops below a minimum level, a float activates a switch. The power supply to the boiler is interrupted. A locking mechanism keeps the burner from switching back on automatically. The test button allows the float to be lowered to simulate a low water alarm condition.
Version WMS-WP6-R2 with male connection thread R2 for direct installation in the boiler.

Operating temperature range
Medium:
max. 120 °C
Ambient:
max. 70 °C
Housing
Probe body:
cast brass
Height
WMS-WP6: 358 mm
Degree of protection:
IP 54 (EN 60529)
Float
Plastic
Connection
WMS-WP6: welding socket DN20
Operating pressure
max. 10 bar
Test pressure
  15 bar
Contact rating
AC 250 V, 6 (2) A
type approval mark
TÜV.WBH.yy-232
"yy" represents the year of the approval

Accessories and spare parts for equipment for heating systems, boiler rooms and chimneys
Abb.
Bezeichnung

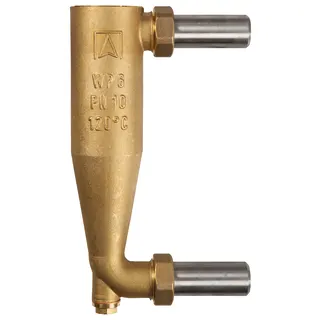

Komponenten WMS-WP6
Komponenten WMS-WP6 | 42311

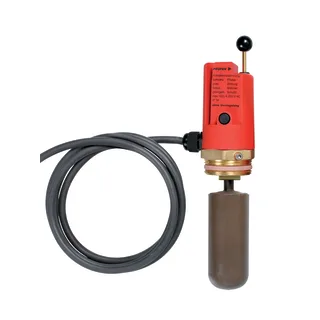

Komponenten WMS-WP6
Komponenten WMS-WP6 | 42368
