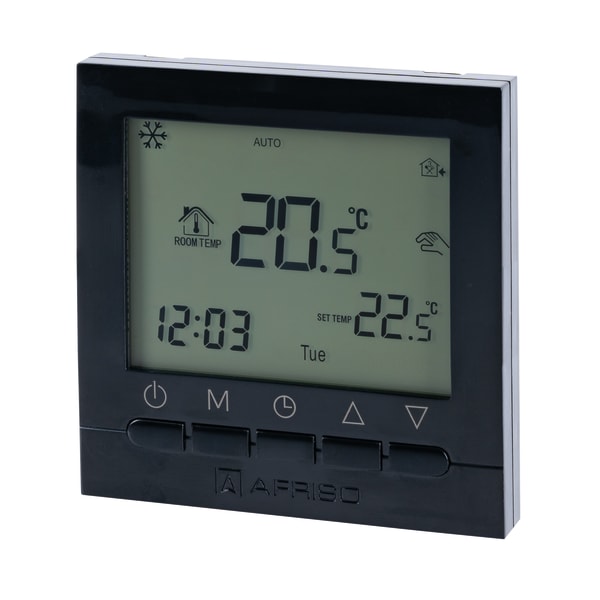

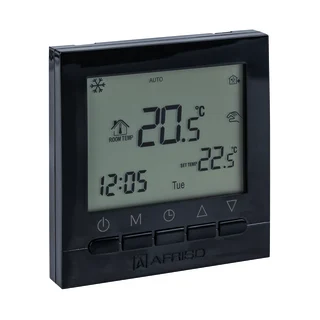

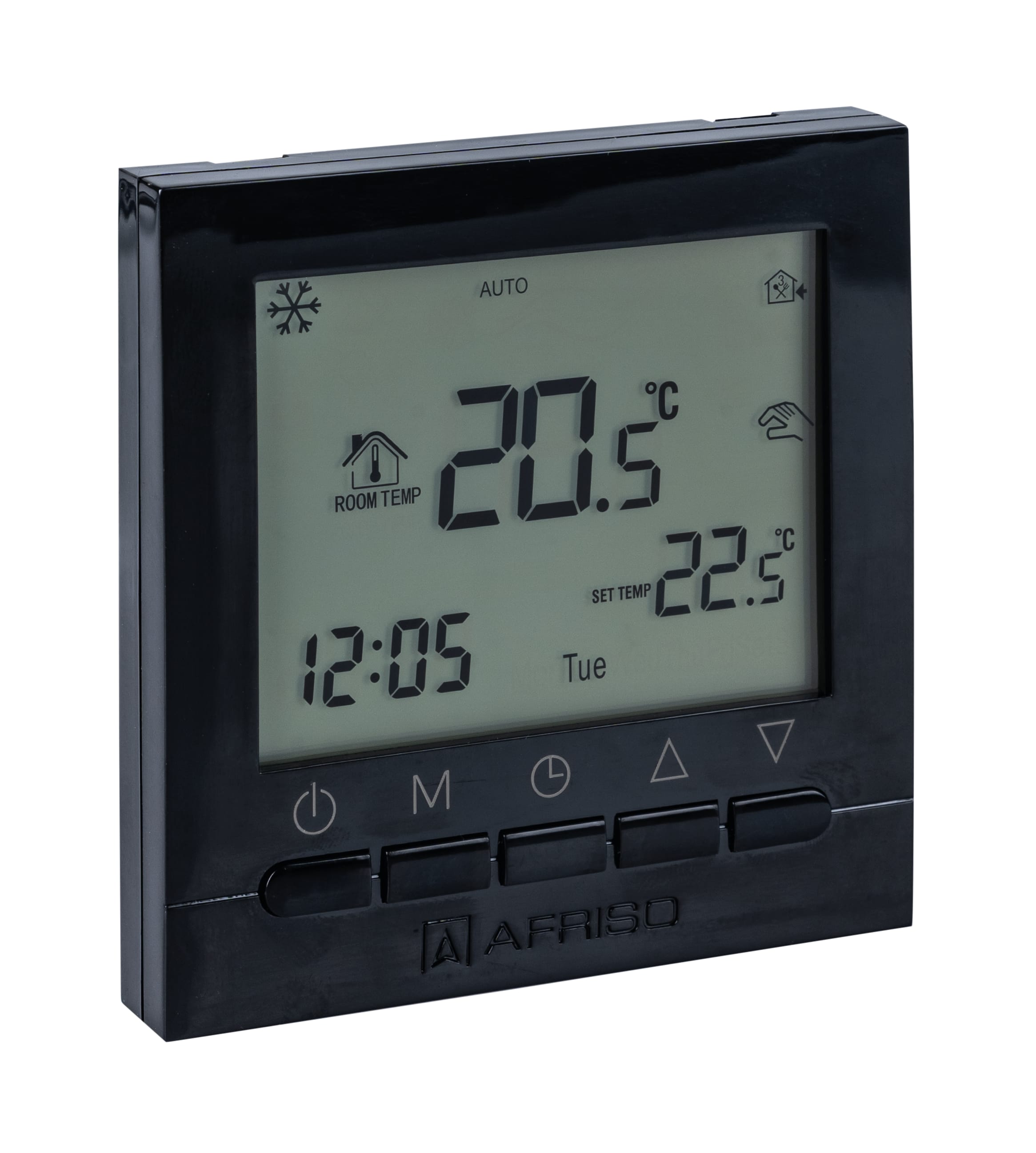

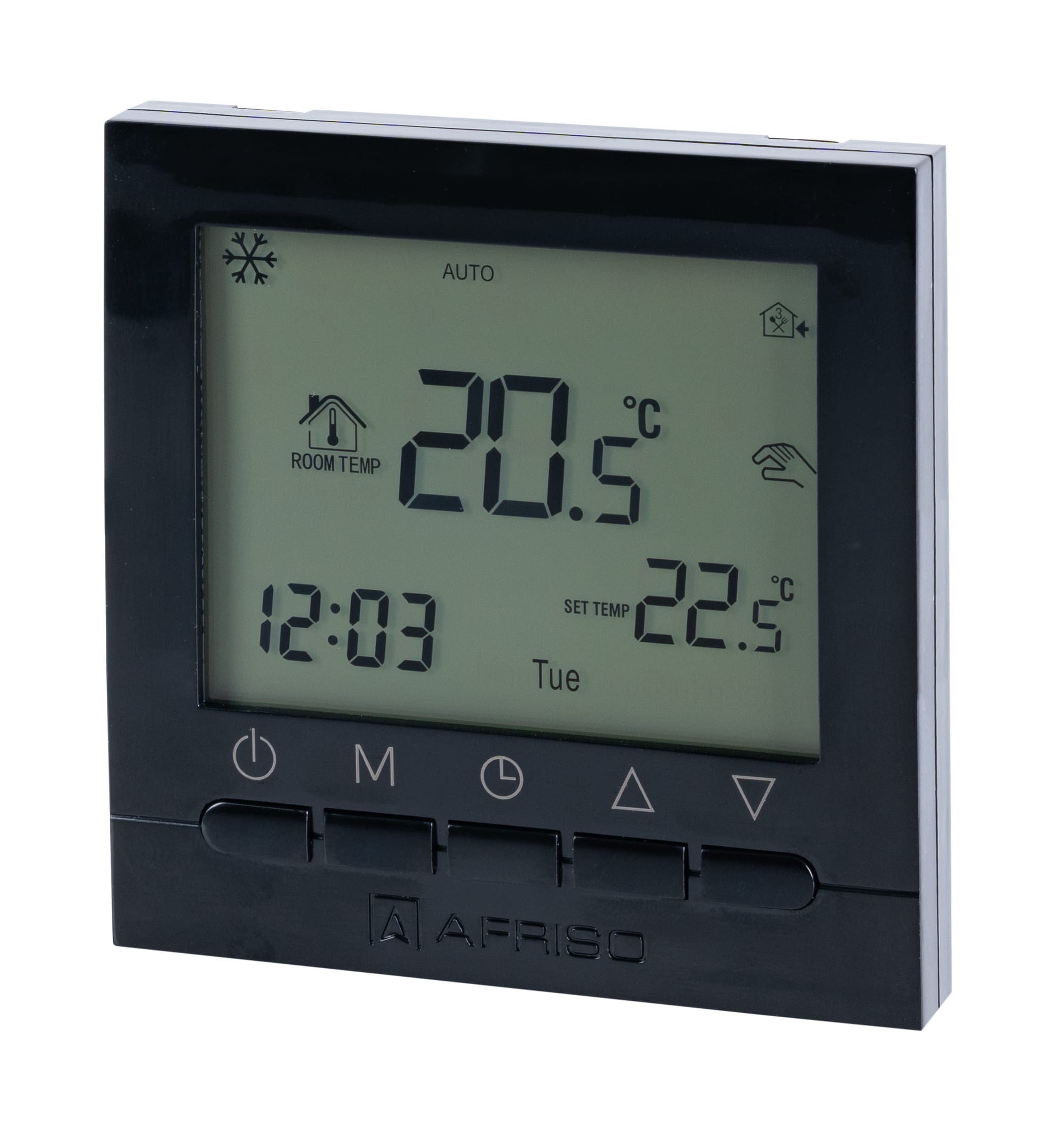

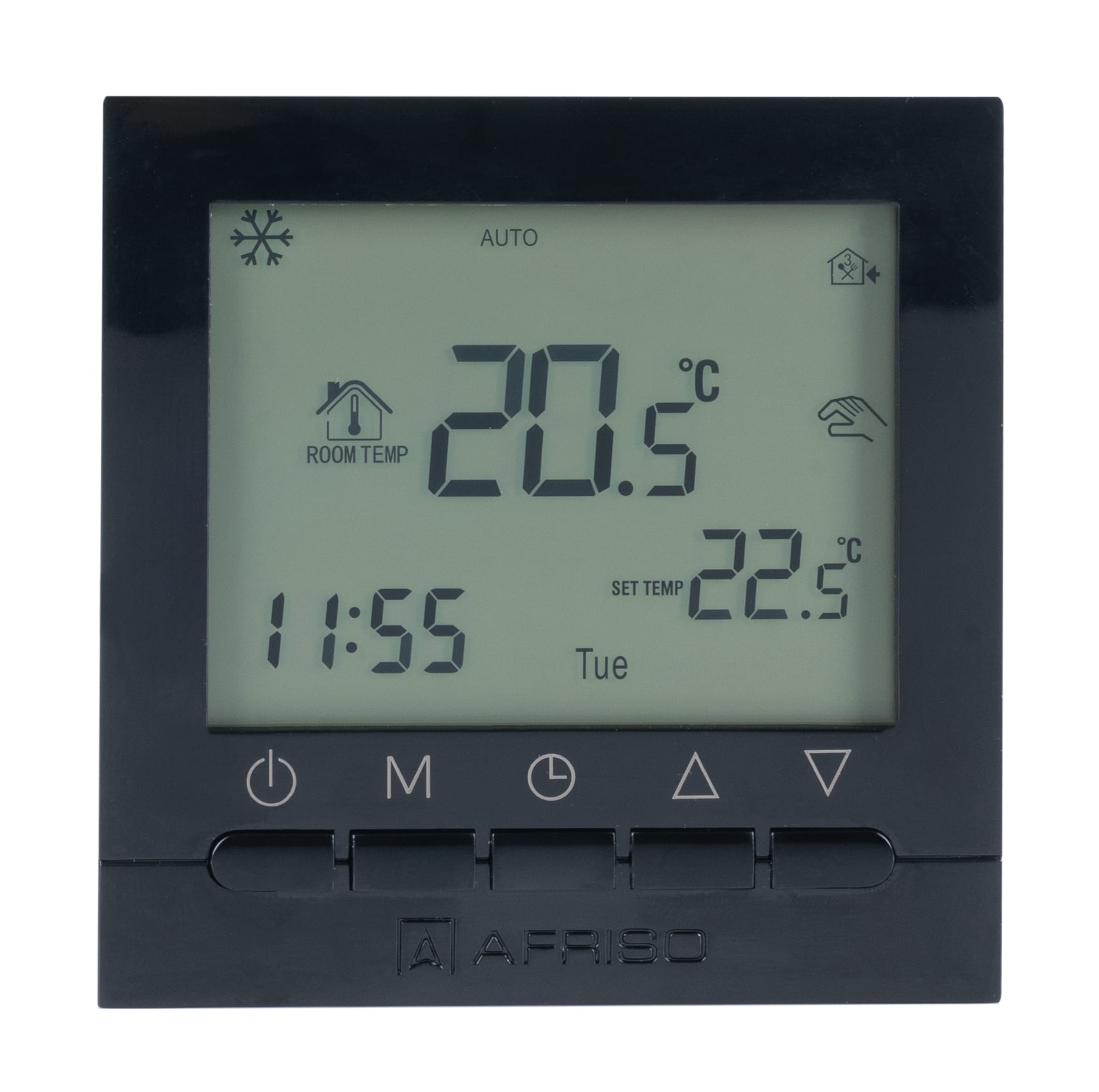

Room thermostat RT 10 D-230 C S | 86064

Room thermostats RT 10 D-230 C

in-stock items

  • easy mounting on standard in-wall switch boxes
  • 230 V version
  • übersichtliches Display mit Heizen, Kühlen und Anforderungsanzeige
  • Timer programs can be stored
  • suitable for heating and cooling

Programs
  • jeweils für Heizen und Kühlen
  • Adjustable for 5 + 2 or 6 + 1 or 7 days
Operating temperature range
Ambient:
5/60 °C
Storage:
5/60 °C
Temperature adjustment range
5/35 °C
Accuracy:
± 0.5 K
Supply voltage
AC 230 V
Contact rating
max. AC 250 V, 3 A
Housing
Plastic (PC)
Colour:
schwarz (RAL 9004)
W x H x D:
86 x 86 x 40 mm
Degree of protection:
IP 20 (EN 60529)
Weight
  165 g 
Scope of delivery
  • Raumthermostat RT 10 D-230 C S

Accessories and spare parts for equipment for surface heating and cooling
Abb.
Bezeichnung
NTC Fühler RT 10 D Cable length 3 m
NTC Fühler RT 10 D Cable length 3 m | 86069
