Level controllers RG 210 | 53206

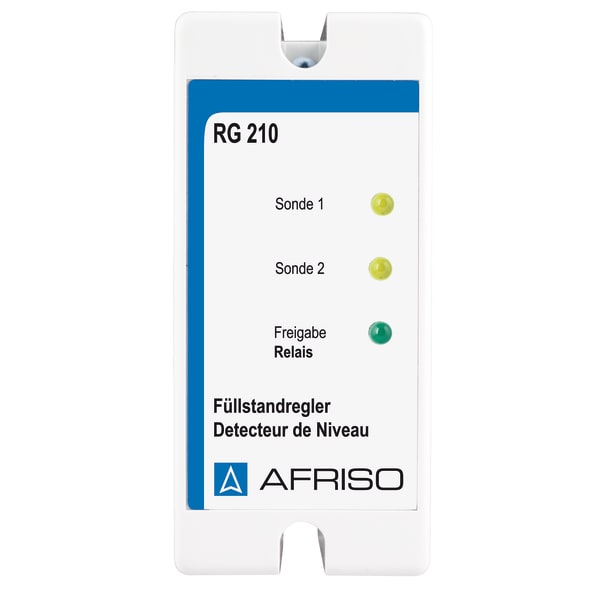

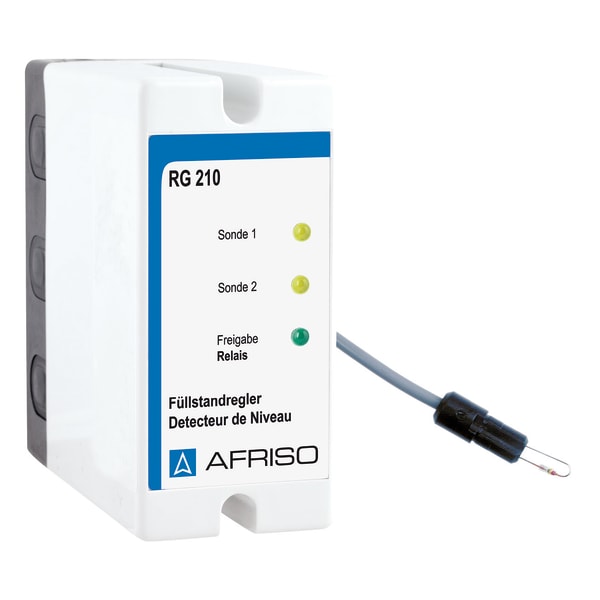

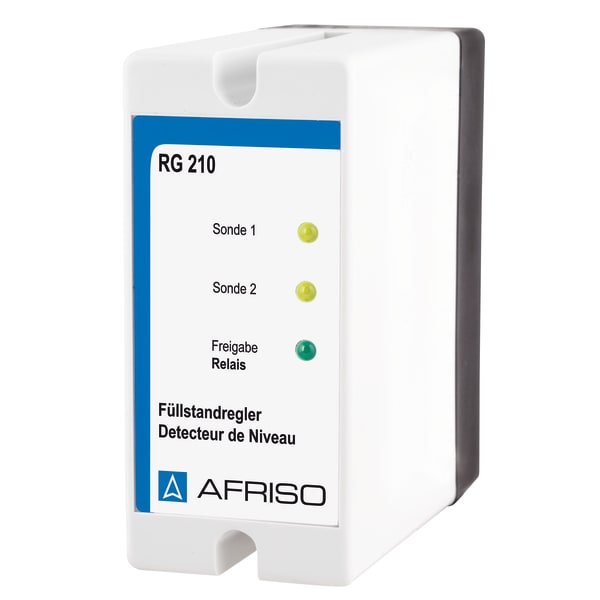

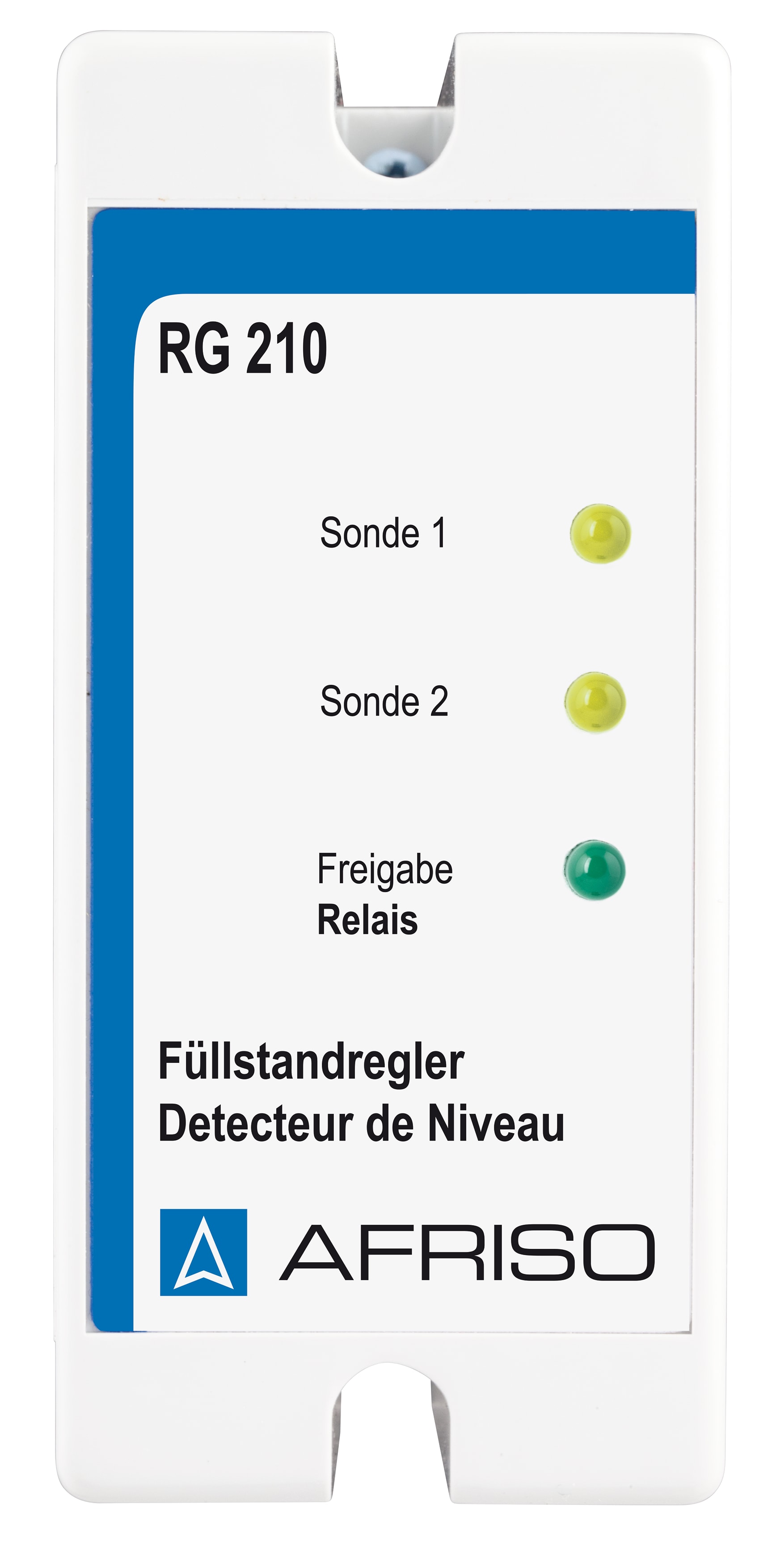

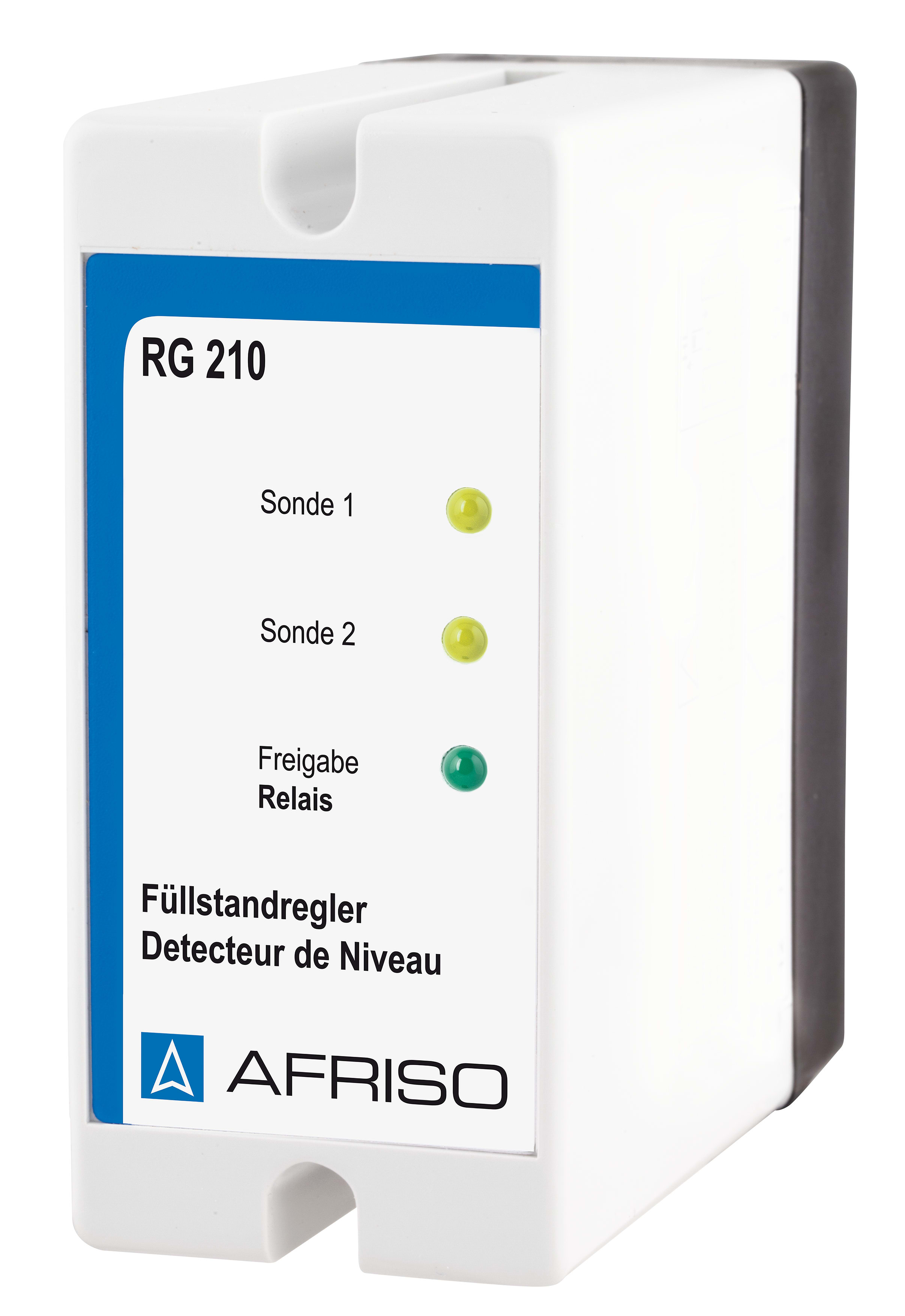

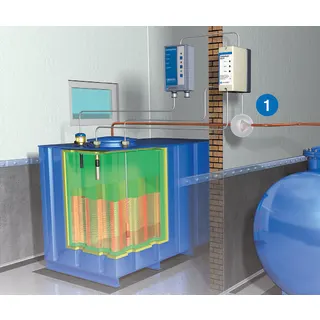

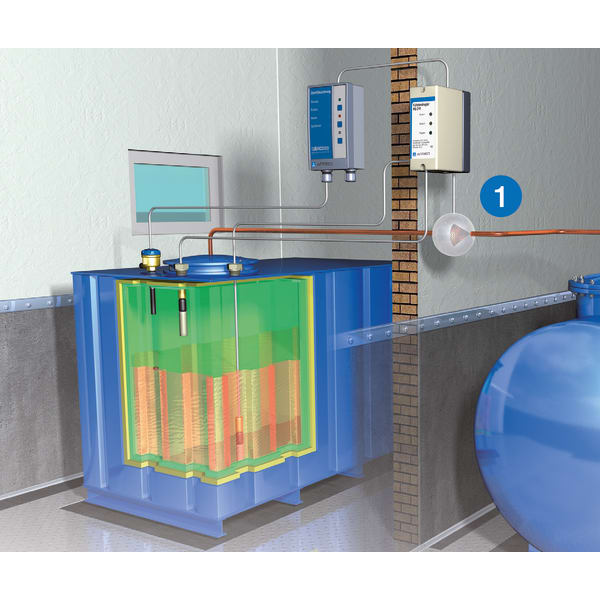

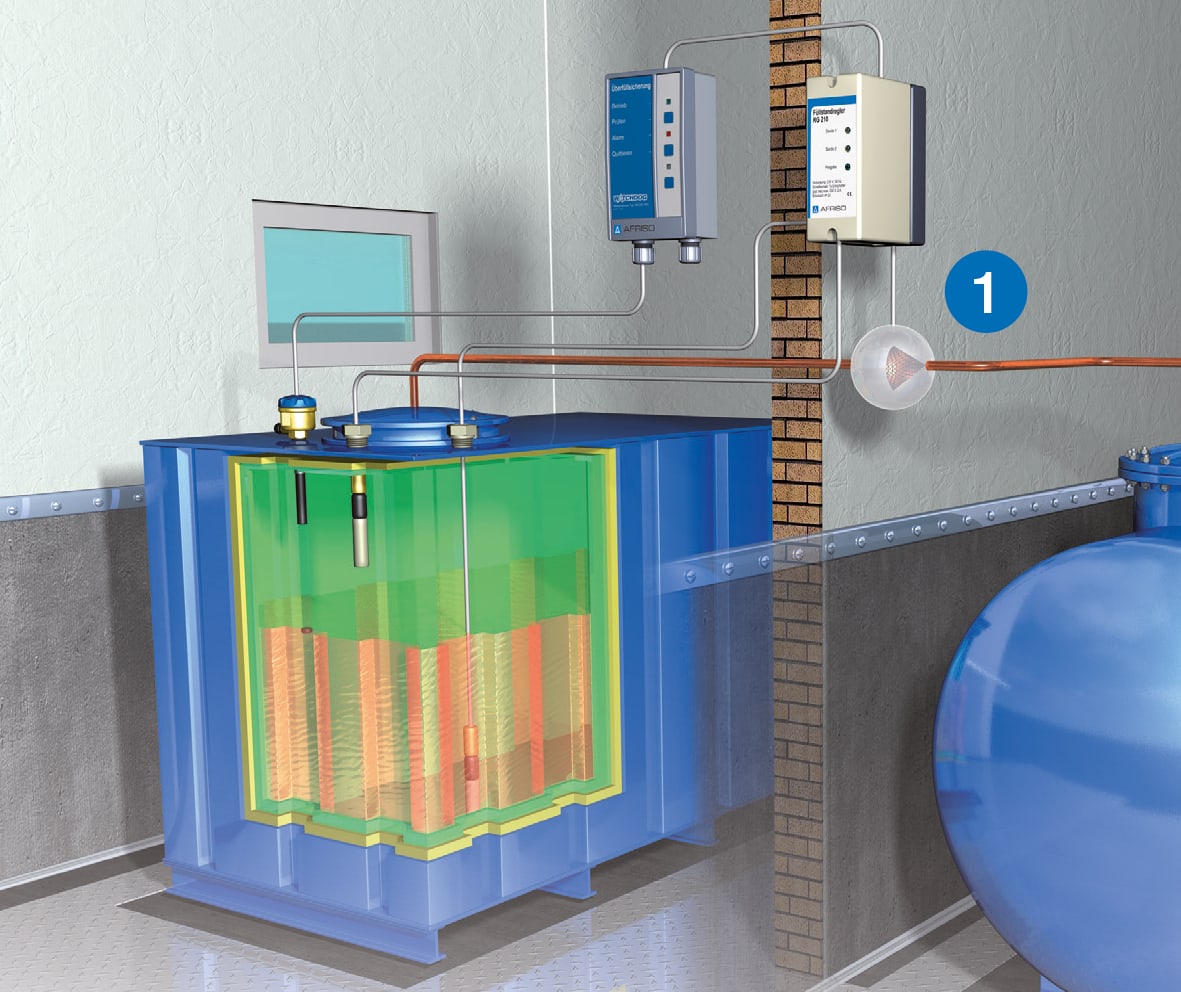

PTC thermistor level controllers RG 210

in-stock items
Documents

  • compact control unit
  • universal application due to selectable functions

For use in electrically conductive and non-conductive liquids which are not viscous or adhesive, such as fuel oil, diesel fuel and media which are not corrosive.

PTC thermistor type level controller with selectable functions:
Level switch (1 probe),
Level control for filling (2 probes),
Level control for emptying (2 probes)
Level switch with 1 probe:
The relay switches in case of contact or loss of contact with the liquid. When the switch point is set, it must be observed that the PTC thermistor requires approx. 8 seconds to heat up depending on the ambient temperature.
Level control for filling with 2 probes:
Set internal switch to "fill". The relay energises after the min. probe has heated up. Relay de-energises when the max. probe comes into contact with the liquid.
Level control for emptying with 2 probes:
Set internal switch to "empty". Relay energises when max. probe has contact with the liquid. Relay de-energises when the min. probe loses contact with the liquid and heats up.

Operating temperature range
Medium:
-25/+50 °C
Ambient:
-10/+55 °C
Storage:
-10/+55 °C
Probe
PTC thermistor probe
L x ⌀:
57 x 14 mm
Cable length:
3.2 m
max. length:
  50 m
Process connection:
G½, G1
Supply voltage
AC 230 V
Nominal power
  12 VA
Switching output
Relay contact:
1 x voltage-free changeover contact
Contact rating:
max. AC 250 V, 2 A
Housing
plug-in housing
W x H x D:
53 x 113 x 108 mm
Degree of protection:
IP 30 (EN 60529)
Scope of delivery
  • Control unit without probe

RG210.PDF

Füllstandregler RG 210

Declarations of Conformity
PDF

Accessories and spare parts Equipment for storage and distribution of liquid fuels
Abb.
Bezeichnung

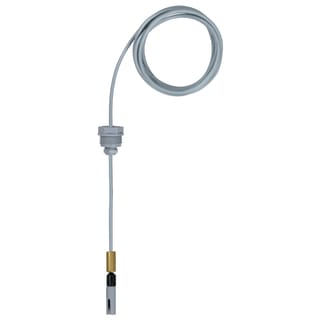

flexible PTC thermistor probe Type 937
