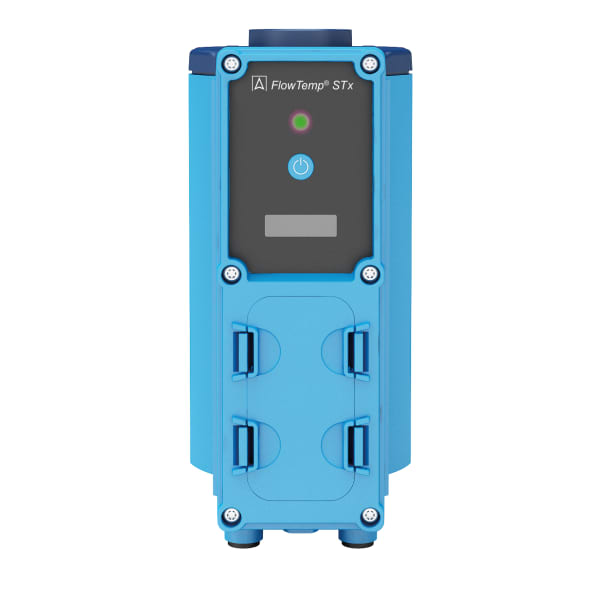

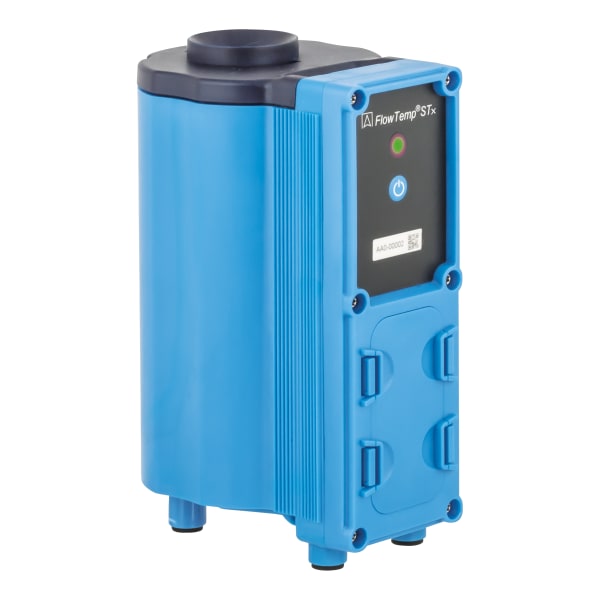

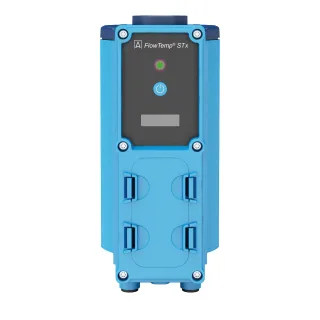

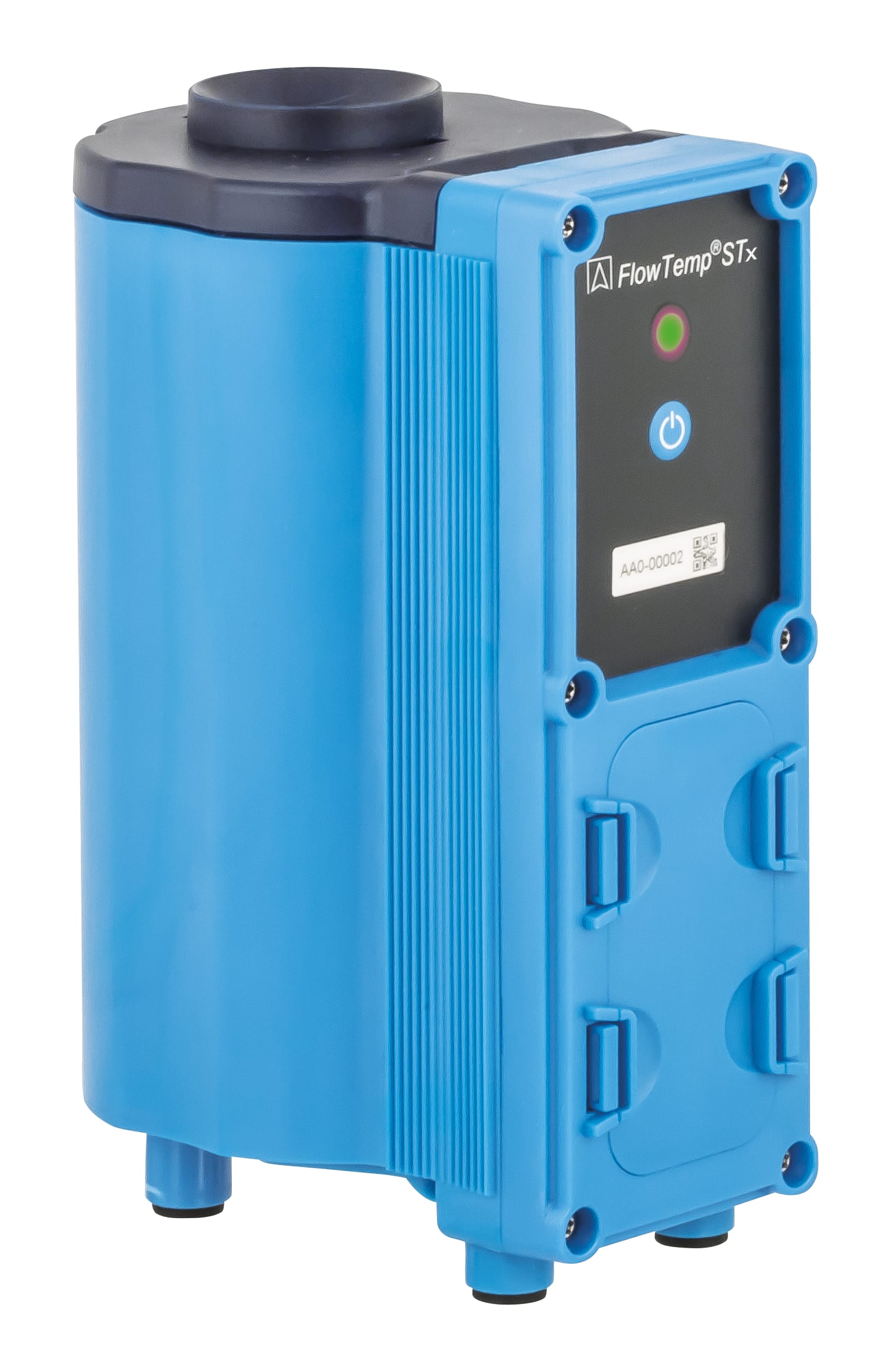

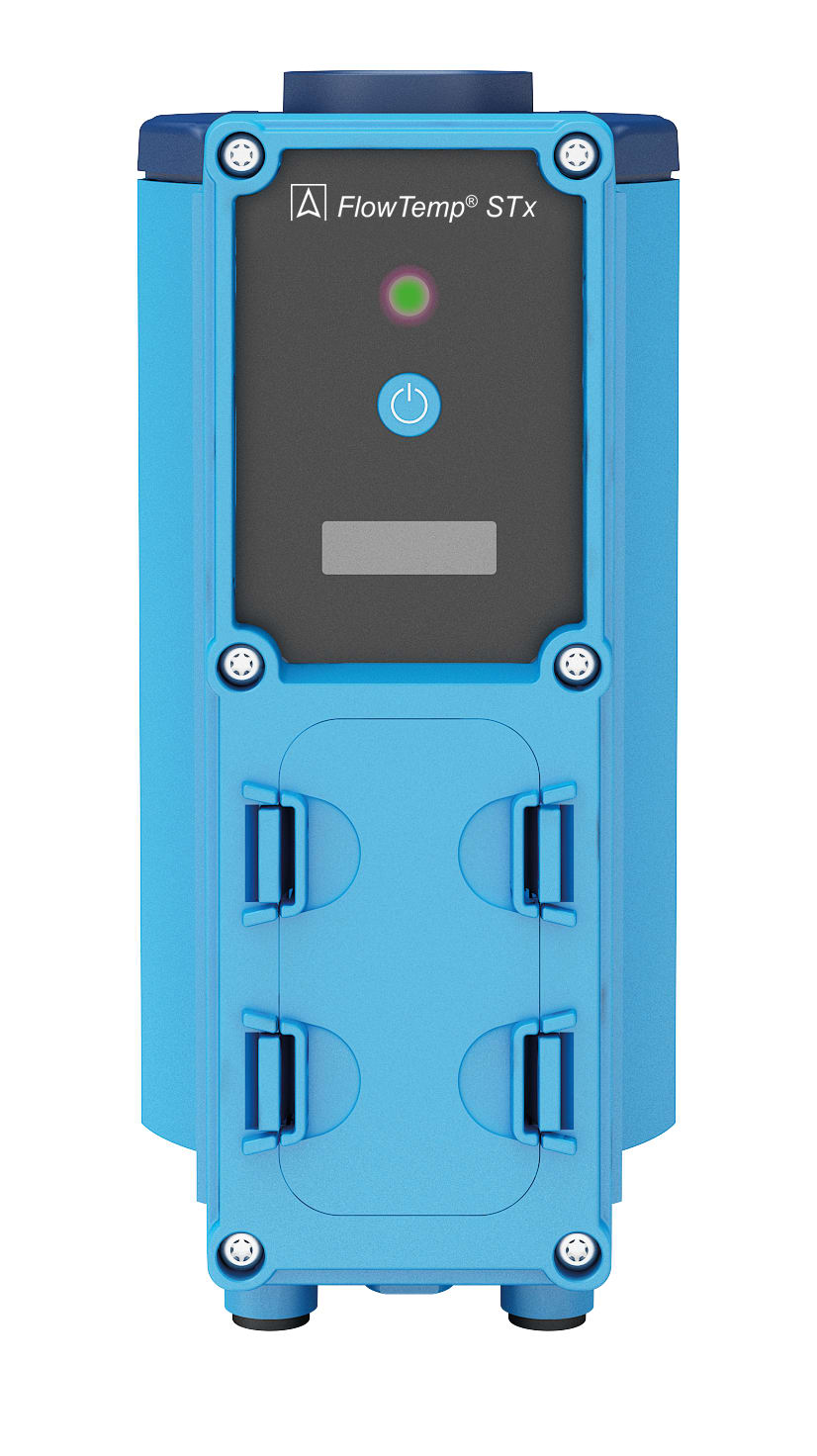

Flow rate / temperature measuring instrument FlowTemp® STx | 502002

Flow rate / temperature measuring instrument FlowTemp® STx

manufactured goods
Documents

  • Verification and documentation of thermal disinfection and the temperature profile in conjunction with the EuroSoft® live app
  • Documentation of water exchange as a part of the intended operation of drinking water installations in conjunction with the EuroSoft® live app
  • Inspection of thermostatic mixing valves
  • Acceptance tests of newly installed drinking water installations
  • Function tests of circulation lines

Verification and documentation of thermal disinfection and the temperature profile
Documentation of water exchange as a part of the intended operation of drinking water installations
Function checks of decentralised drinking water heaters
Checking the output capacity of heat exchangers
Function tests of circulation lines
Inspection of fittings (minimum volume flow)

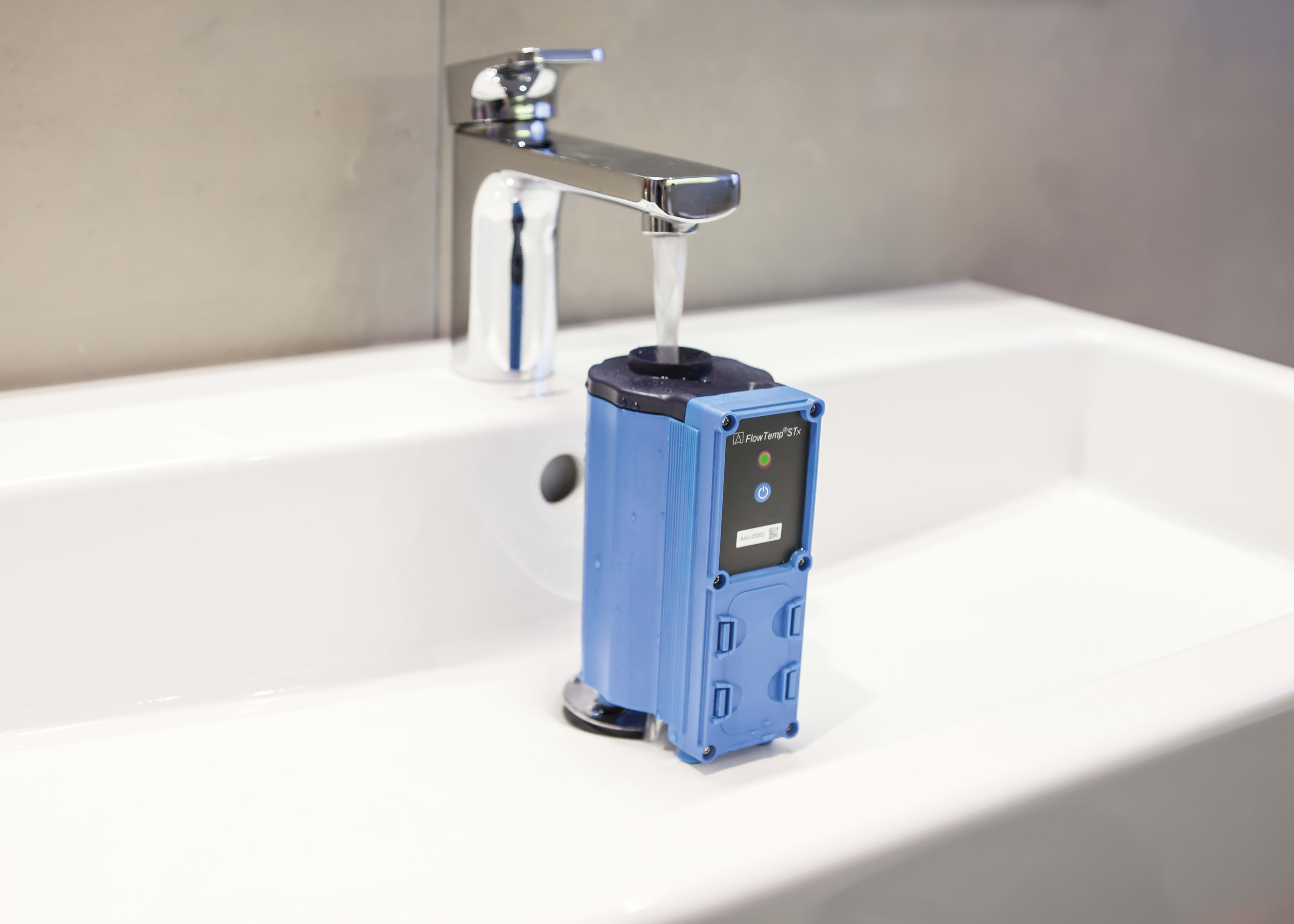

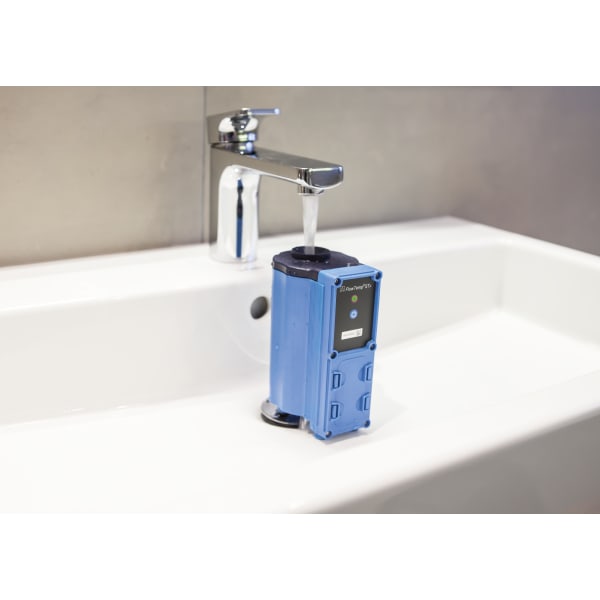

Determination of the water temperature at water taps
Inspection of thermostatic mixing valves
Acceptance tests of newly installed drinking water installations

Sensor module for continuous, simultaneous determination of flow rate (l/min) and temperature (°C) in water applications. The flow rate is measured with a high-precision capacitance flow sensor, the temperature with a thermocouple with a low response time. Both sensors are integrated in a robust housing made of high-quality plastic with degree of protection IP 67. Thanks to the compact design, measurements at low water fittings are very convenient. The device is tested as per TÜV report S1217-00/15. The measured data is transmitted to the BlueLine measuring instruments or to a mobile device via the integrated Bluetooth® interface.

Dimensions
W x H x D:
71 x 158 x 97 mm
Weight
  370 g
Interface
Bluetooth®
Measuring range
Flow rate:
1.5/17.5 l/min
temperature:
5/80 °C
Accuracy
Flow rate:
± 0.3 l/min ± (< 6 l/min)
Flow rate:
± 5 % v. Mw. (> 6 l/min)
temperature:
± 1 K ± ± (< 35 °C)
temperature:
± 3 % v. Mw. ± (> 35 °C)
Resolution
Flow rate:
0.1 l/min
temperature:
0.1 °C
Sensor
capacitance sensor
Pt1000
response time t90
Flow rate:
  10 s
temperature:
  5 s
Supply voltage
2 x 1.5 V AAA batteries

ISO calibration
Abb.
Bezeichnung
ISO calibration
ISO calibration | 524210-13
ISO calibration
ISO calibration | 524210-15
