Domestic technology Pressure measuring instruments for domestic technology HY 80

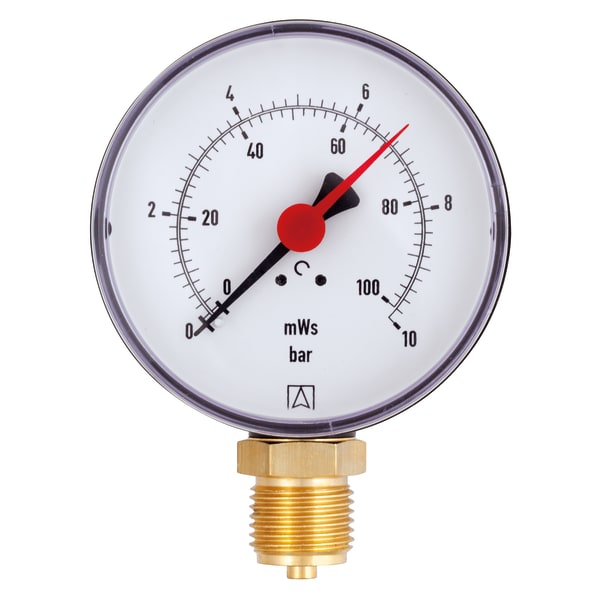

PRO_TEC_VOR_HY80_RAD_63575.TIF

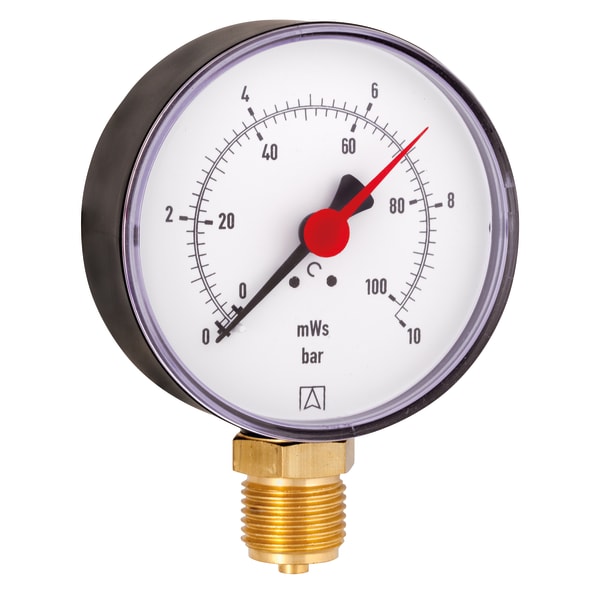

PRO_TEC_SAL_HY80_RAD_63575.TIF

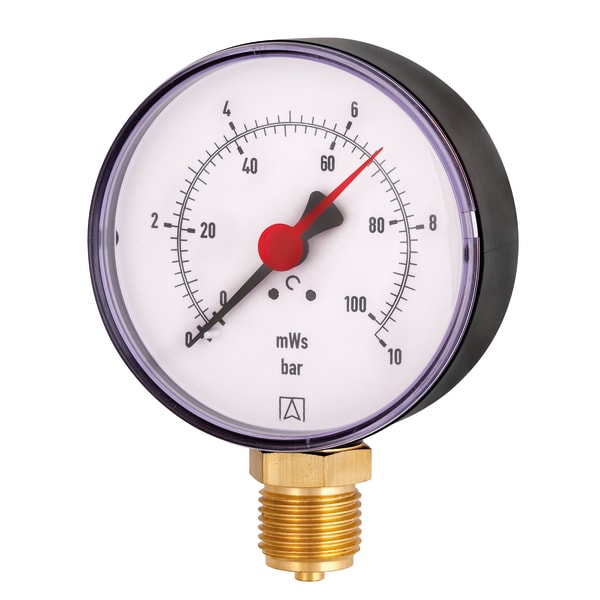

PRO_TEC_SAR_HY80_RAD_63575.TIF

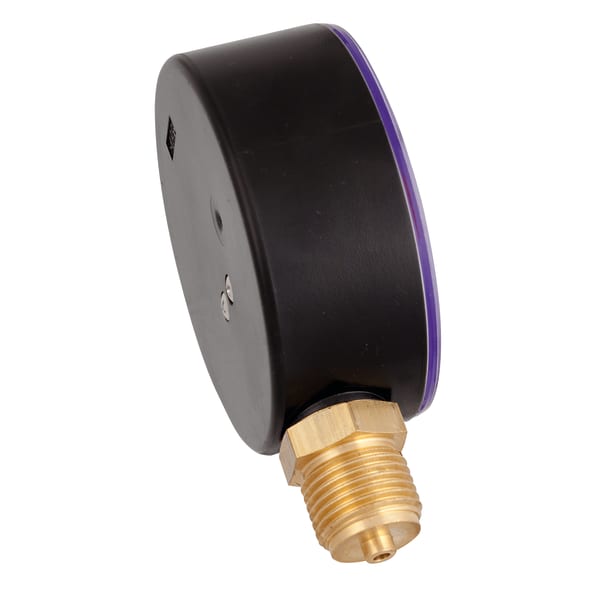

PRO_TEC_DRU_HY80_RAD_63575.TIF

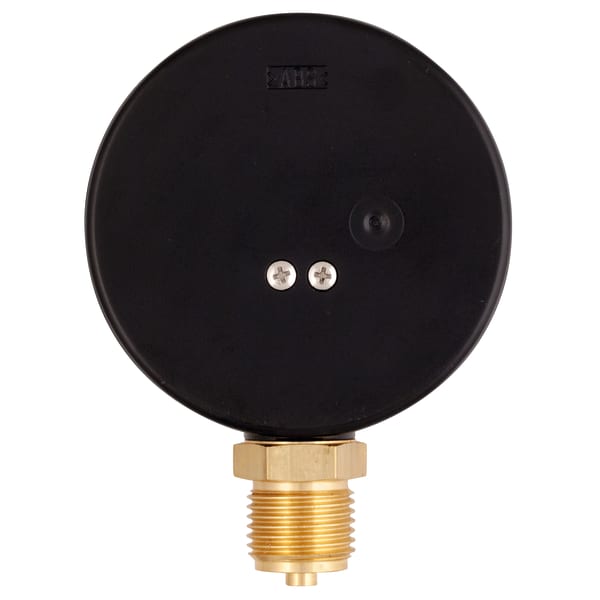

PRO_TEC_RUE_HY80_RAD_63575.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
PRO_TEC_VOR_HY80_RAD_63575.TIF
PRO_TEC_SAL_HY80_RAD_63575.TIF

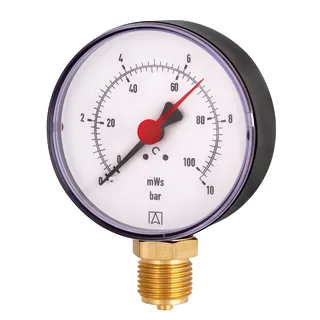

PRO_TEC_SAR_HY80_RAD_63575.TIF

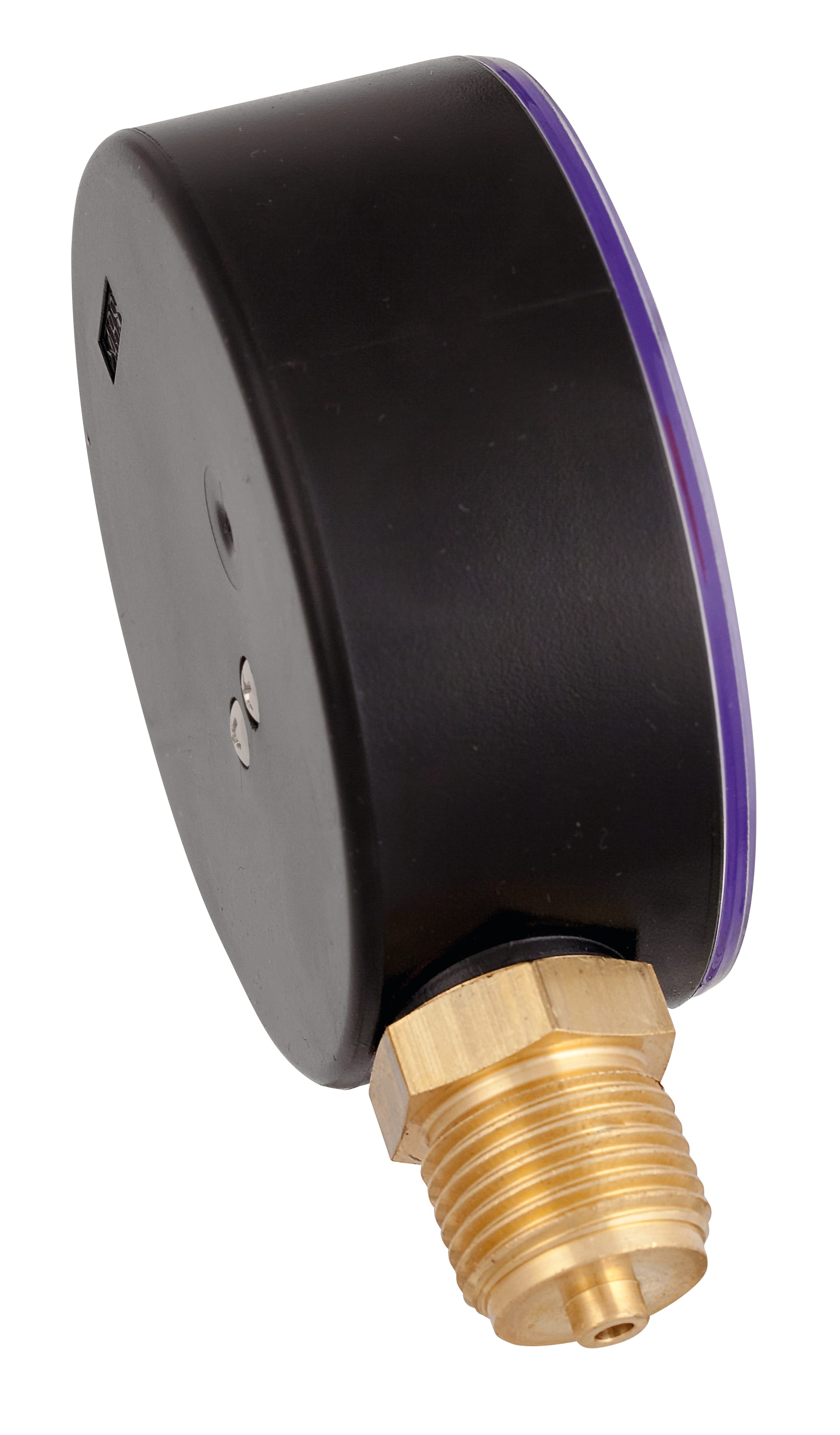

PRO_TEC_DRU_HY80_RAD_63575.TIF

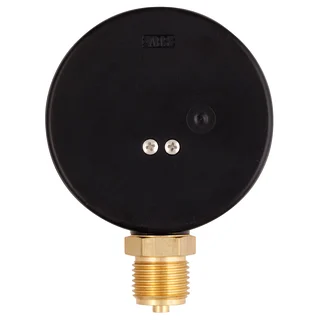

PRO_TEC_RUE_HY80_RAD_63575.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
Images 6

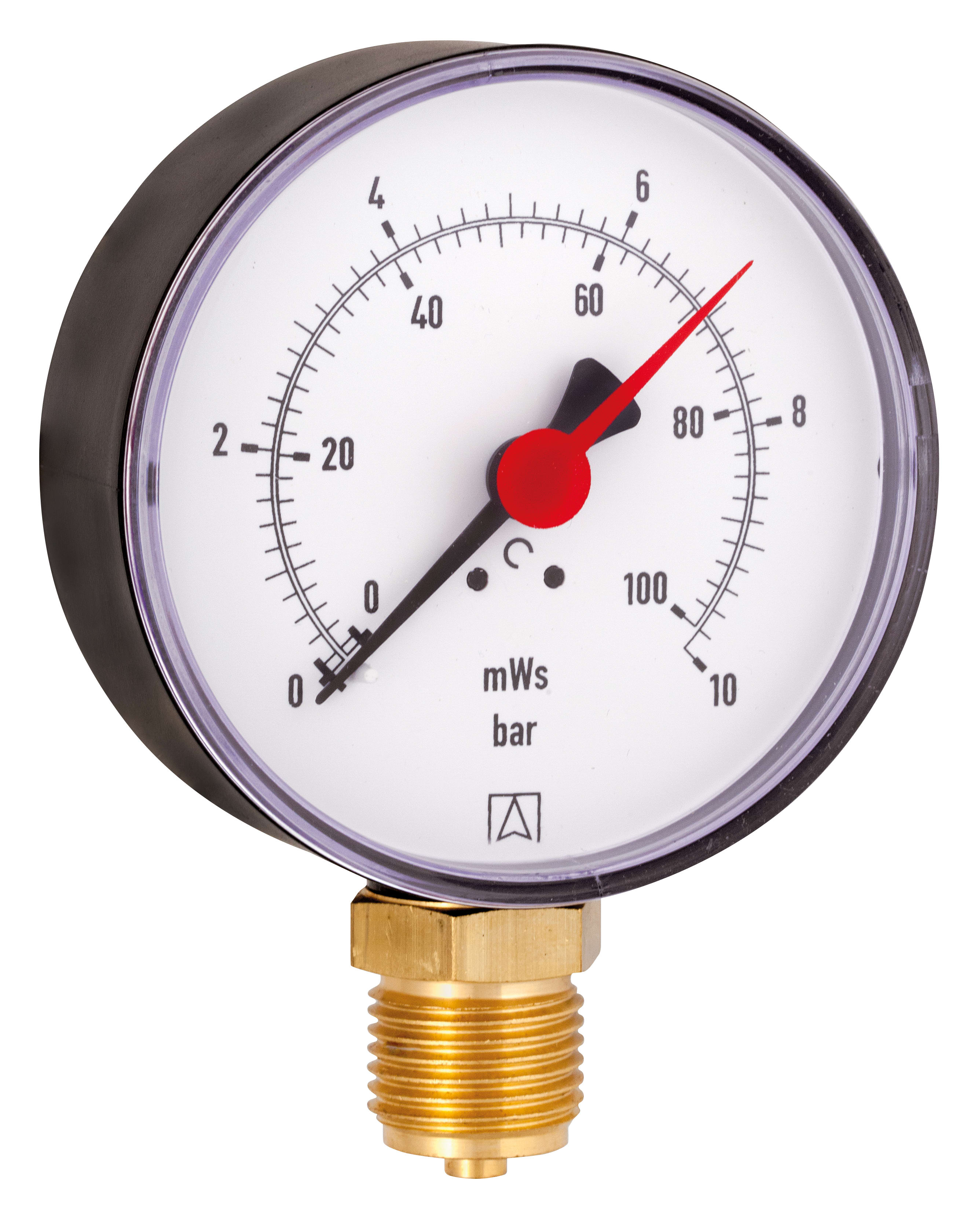

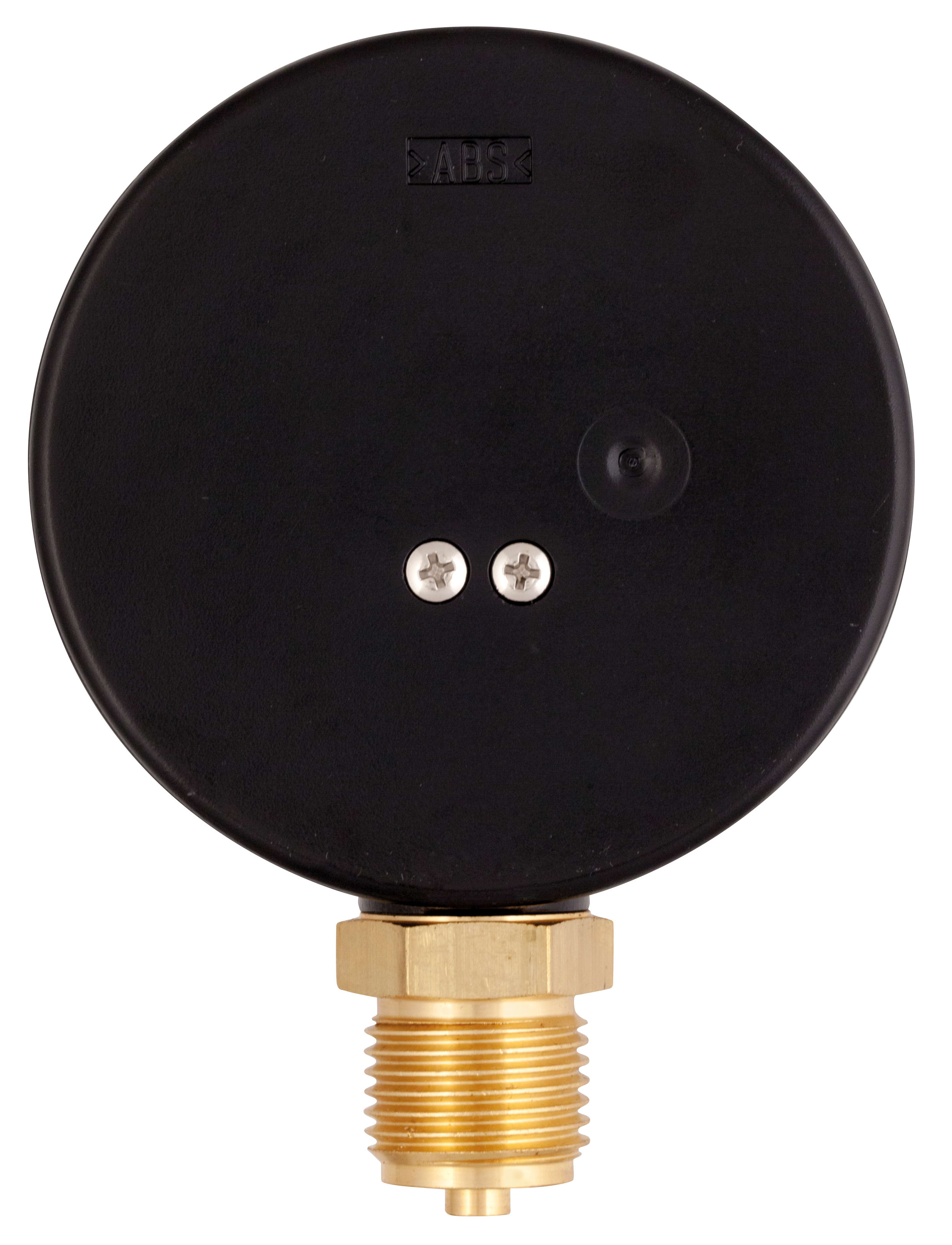

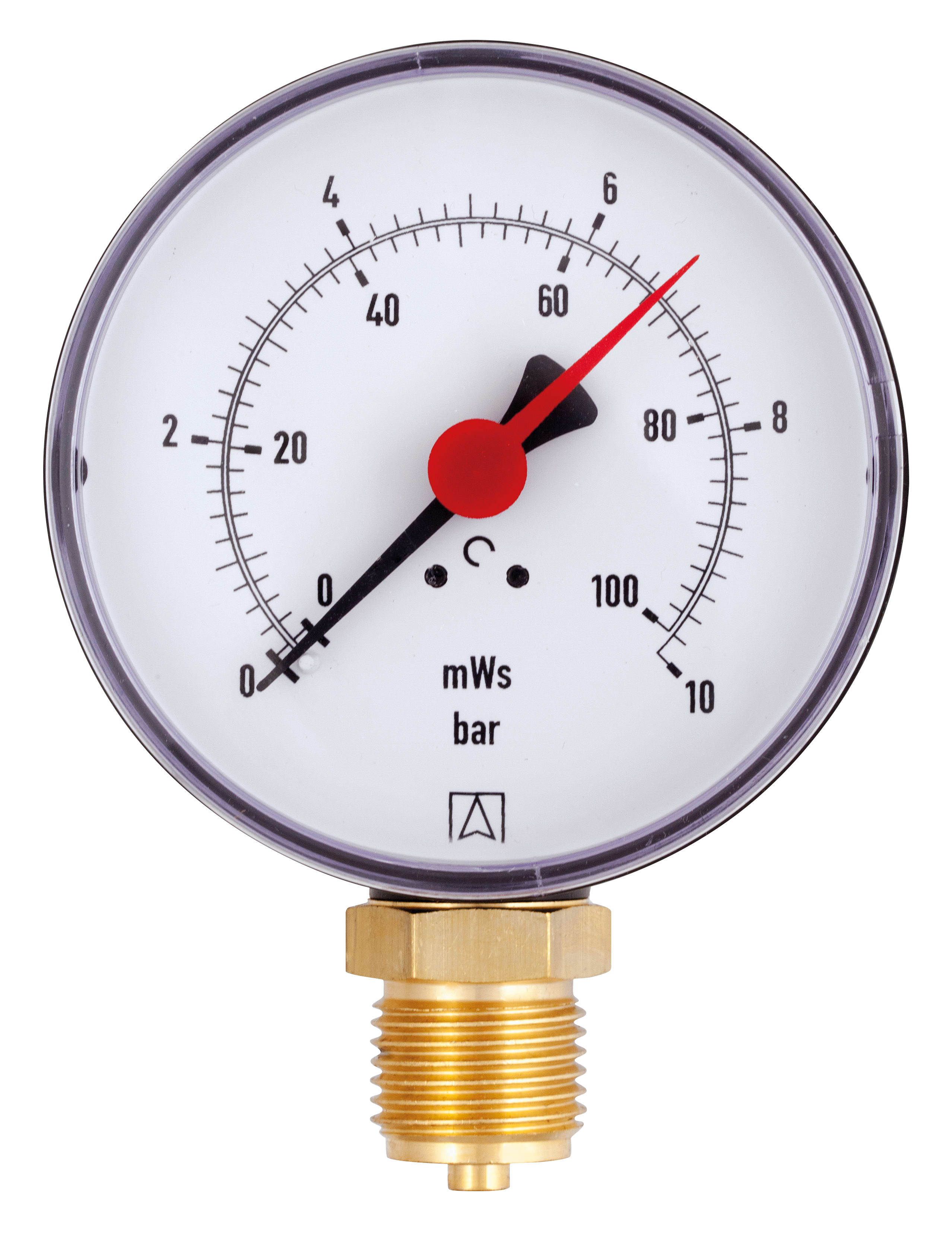

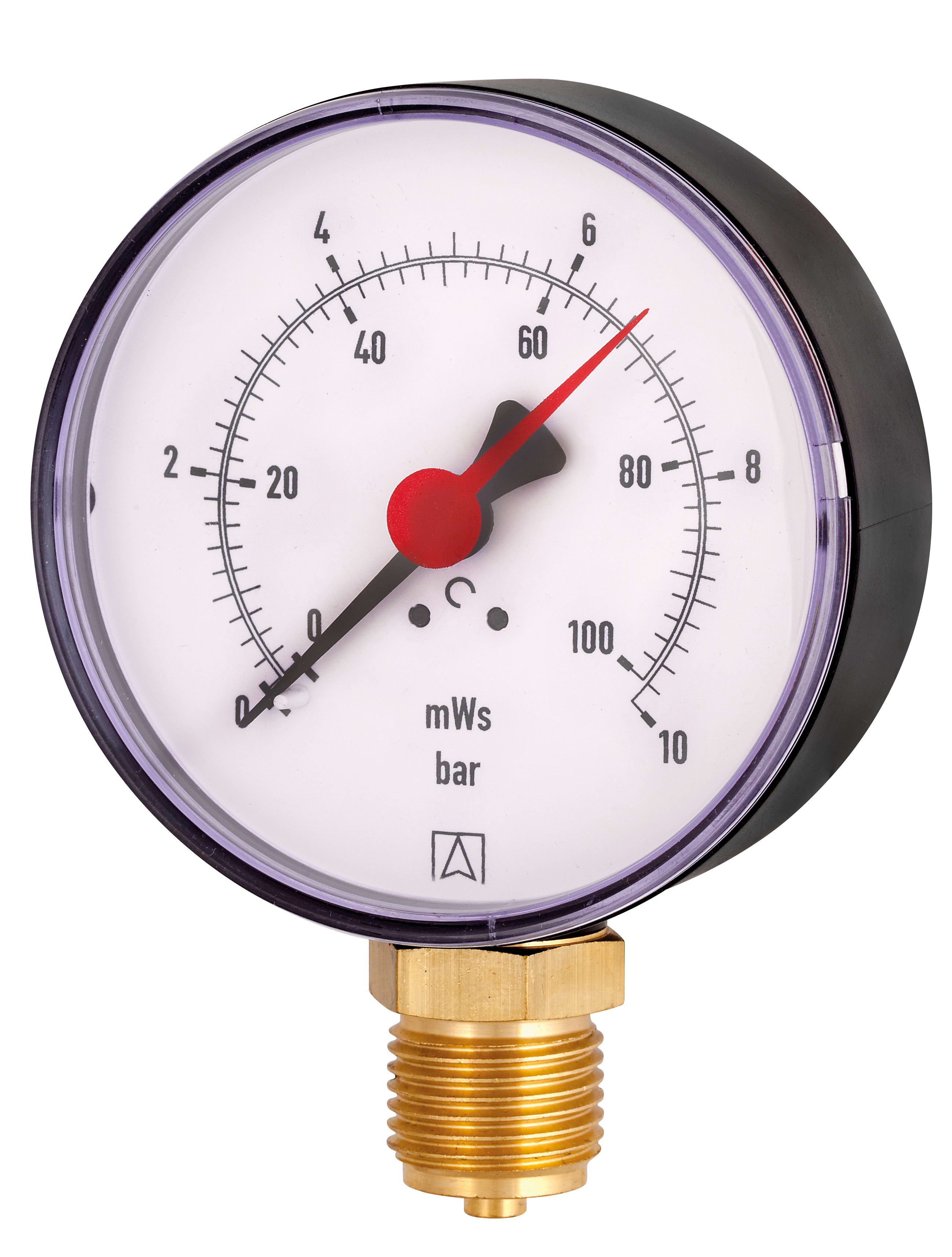

HY 80

Hydrometer für Heizung/Sanitär

Variants Documents

housing ⌀ConnectionConnectionThreadalignmentRangeTypePart no.
HY 8080 mmG½Bbottom0/1 barHY 8063570
HY 8080 mmG½Bbottom0/1.6 barHY 8063571
HY 8080 mmG½Bbottom0/6 barHY 8063574
HY 8080 mmG½Bbottom0/10 barHY 8063575
  • in-stock items
  • manufactured goods

Nominal size
80 - 80
accuracy class (EN 837-1/6)
2,5
ranges
0/1 bar
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
Brass, bottom
NG 80: G½B
Measuring element
Bourdon tube, "C" type tube
Copper alloy
movement
Brass
Dial
Kunststoff, weiß
dual scale bar outer - mWC inner
Scaling black
Pointer
Kunststoff, schwarz
Housing
Kunststoff (ABS), schwarz, highly impact-resistant and corrosion-resistant
window
Kunststoff, eingeclipst
with adjustable red reference pointer

Click the corresponding image for detail views, additional information and dimension tables.

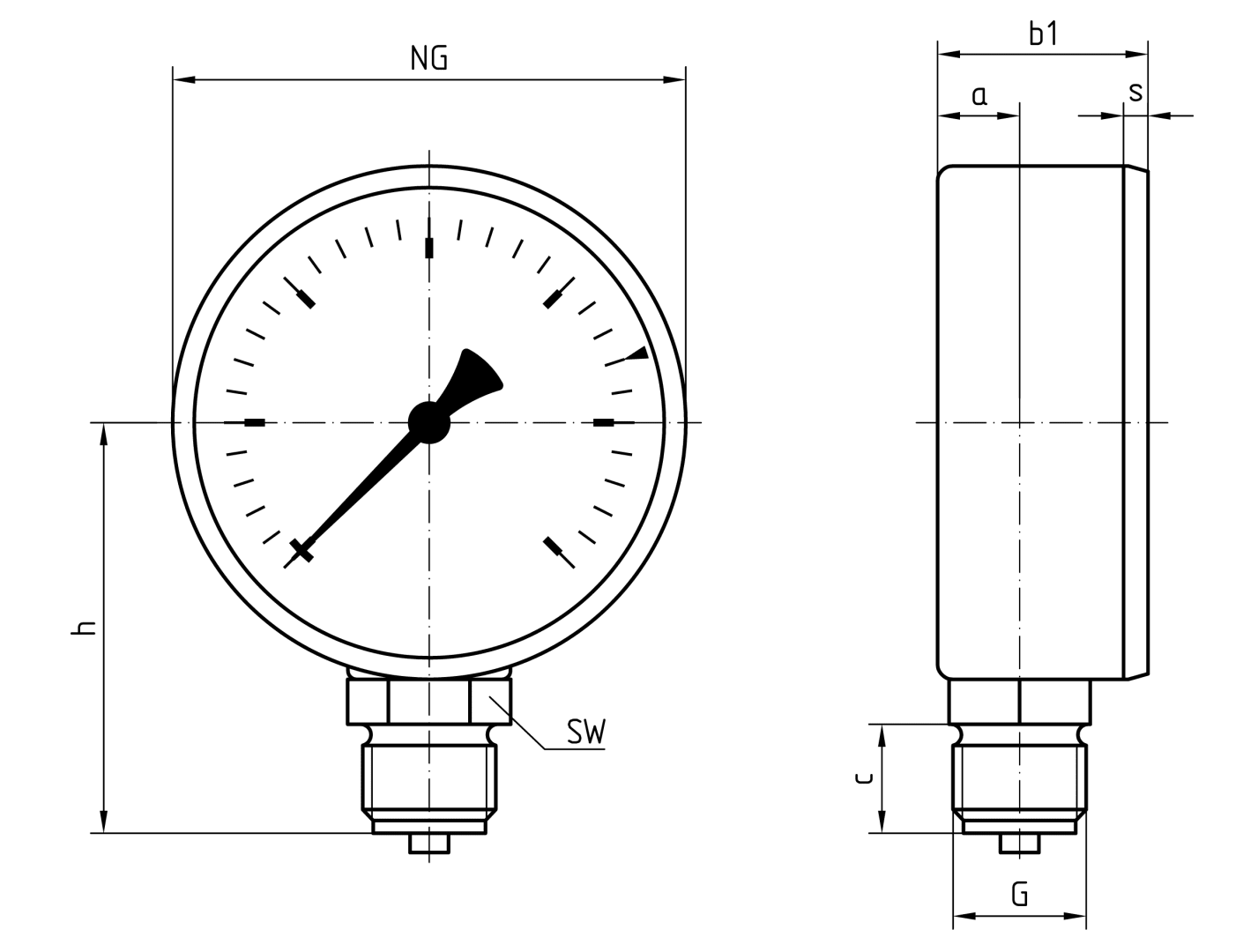

RF 80/HY 80/HZ 80 – bottom connection
