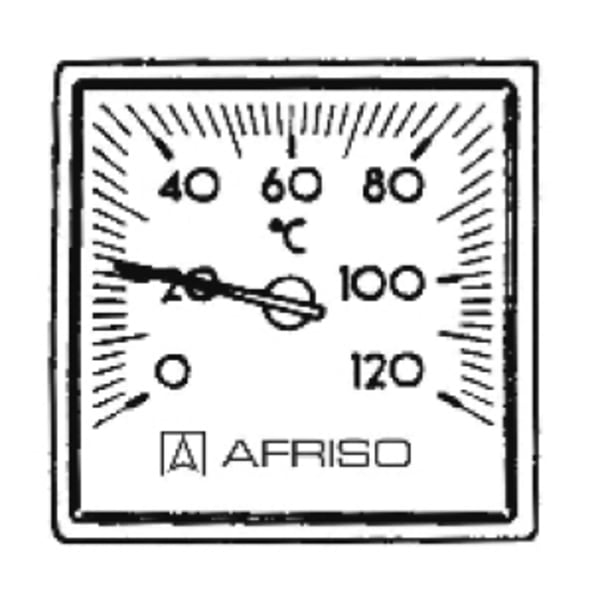

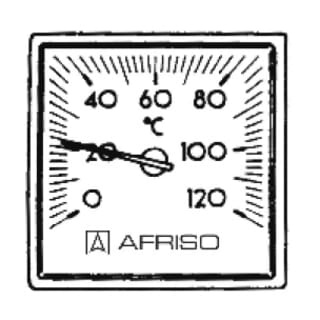

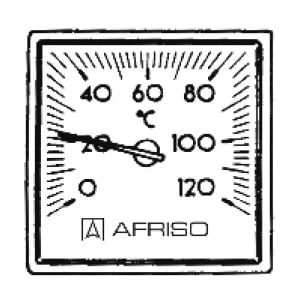

PRO_TEC_SCD_THK_ECKIG.TIF

Images 3

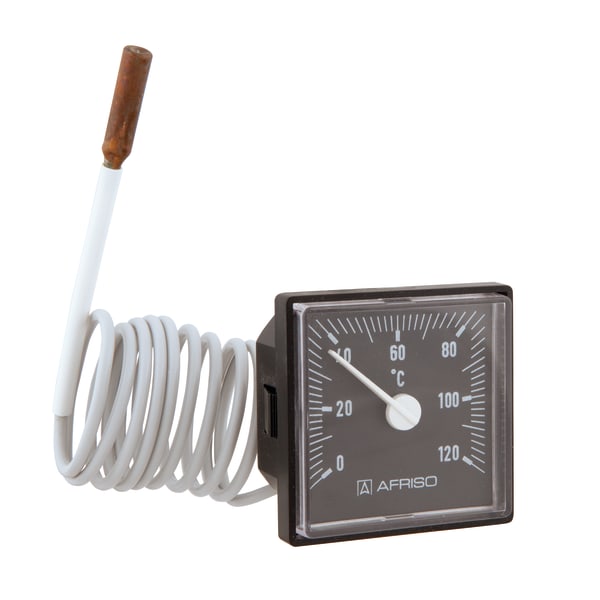

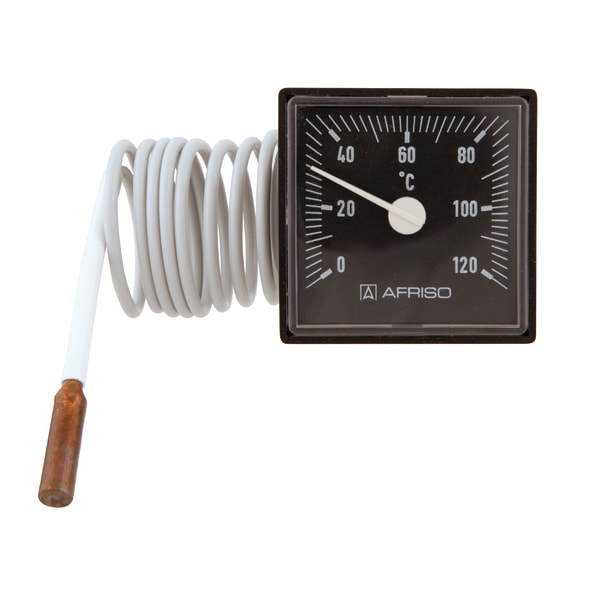

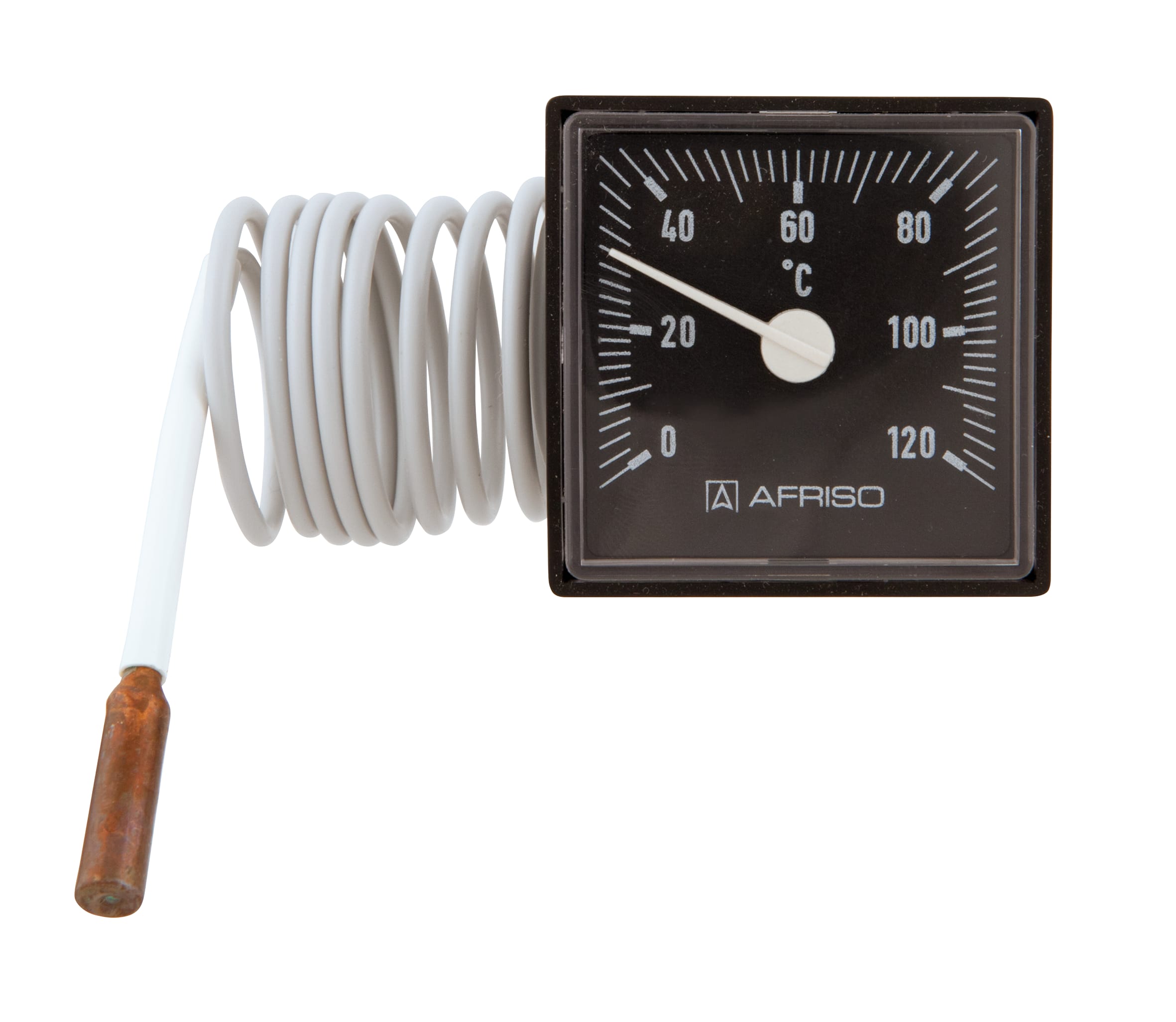

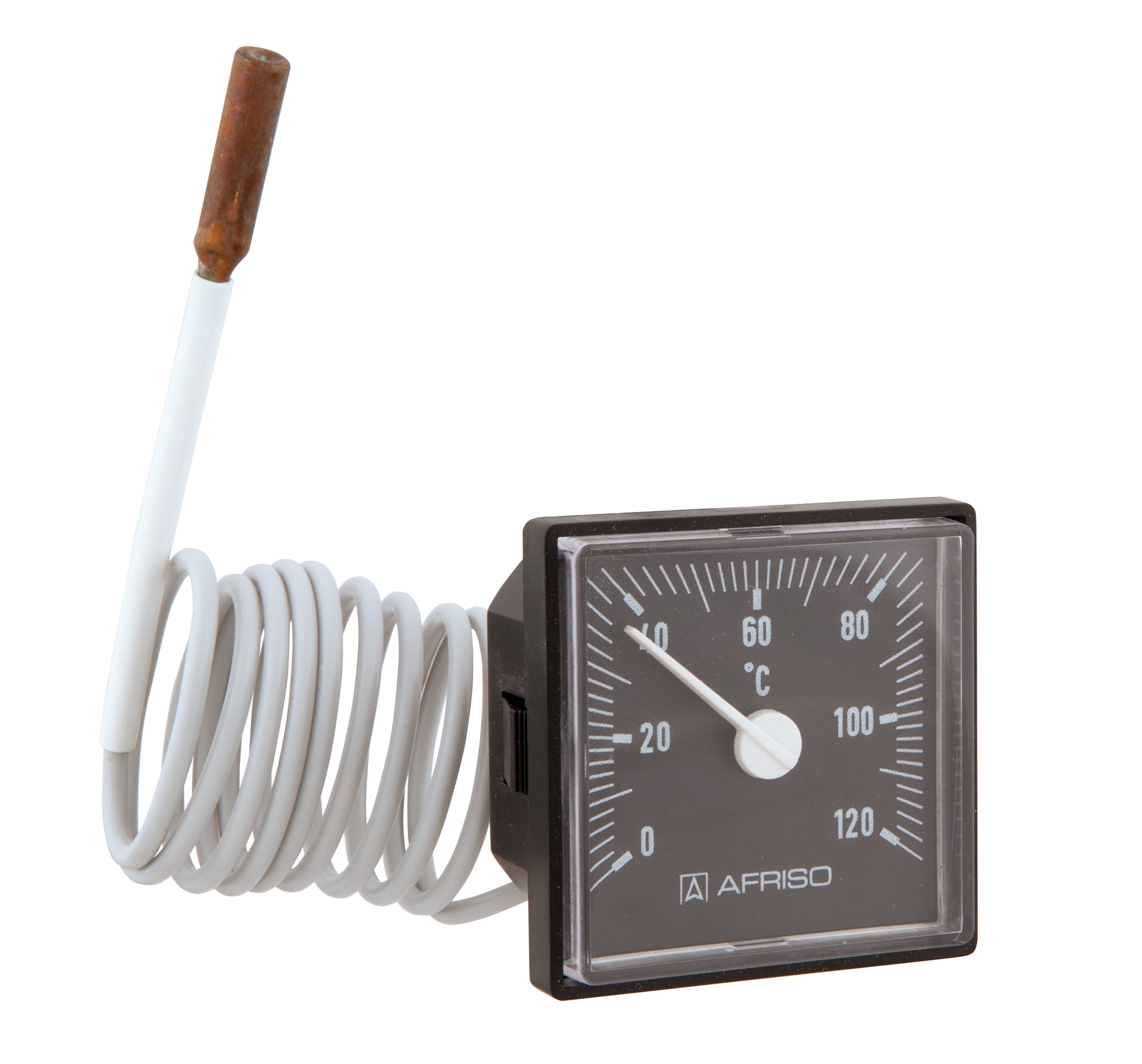

THK 45

Thermometers with capillary tube

Variants

ideal for boilers and water heaters
corrosion-resistant, highly impact-resistant plastic housing
many customised versions available

Heating and plumbing, e.g. boilers, water heaters, hot water storage tanks

	Nominal size	Nominal size	Housing	push on bezel	Pointer	Dial	Scale	Range	capillary length	Type	Part no.
		45 x 45 mm	black		white	black	white	0/120 °C	500 mm	THK 45	67522105
		45 x 45 mm	black		white	black	white	0/120 °C	1000 mm	THK 45	67522115
		45 x 45 mm	black		white	black	white	0/120 °C	1500 mm	THK 45	67522125
		45 x 45 mm	black		white	black	white	0/120 °C	2000 mm	THK 45	67522135

in-stock items
manufactured goods

Nominal size

: 45 x 45

Range

: 0/120 °C

Measuring principle: Liquid filling

Operating temperature range

Medium:: Full scale value

Ambient:: max. 70 °C

Operating pressure: without pressure

Degree of protection: IP 32 (EN 60529)

Standard design

Connection

Probe:: ∅ 6 x 30 mm, Copper

Capillary tube:: Copper with PVC coating (R3, grey)

Dial

: Plastic, black

: Scaling white

Pointer

: Plastic, white

Housing

: Plastic (ABS), black

window

: Kunststoff, eingeclipst

capillary length: 500 mm

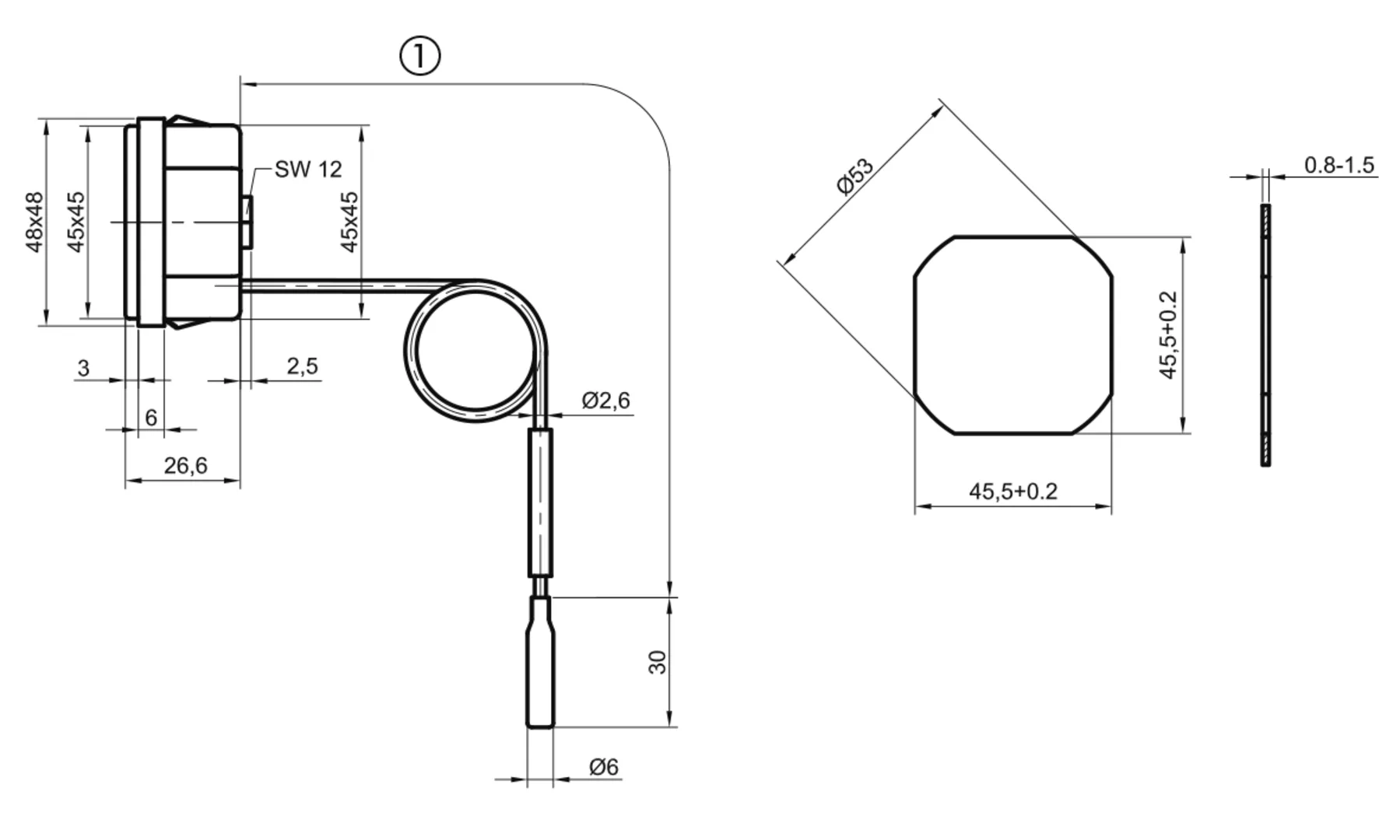

Click the corresponding image for detail views, additional information and dimension tables.
