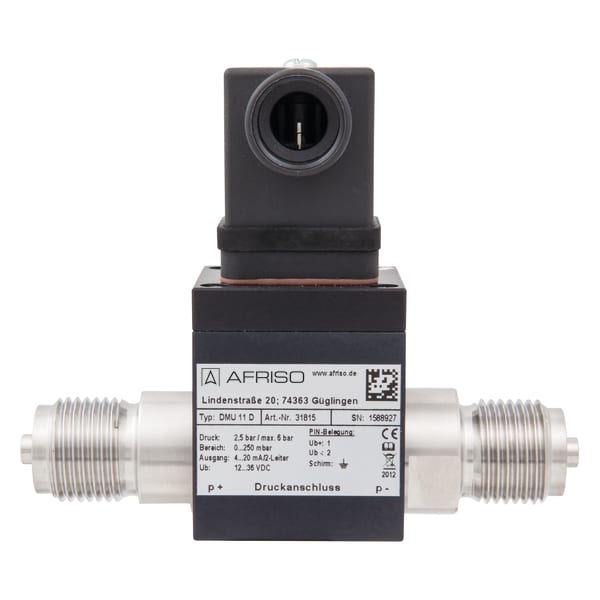

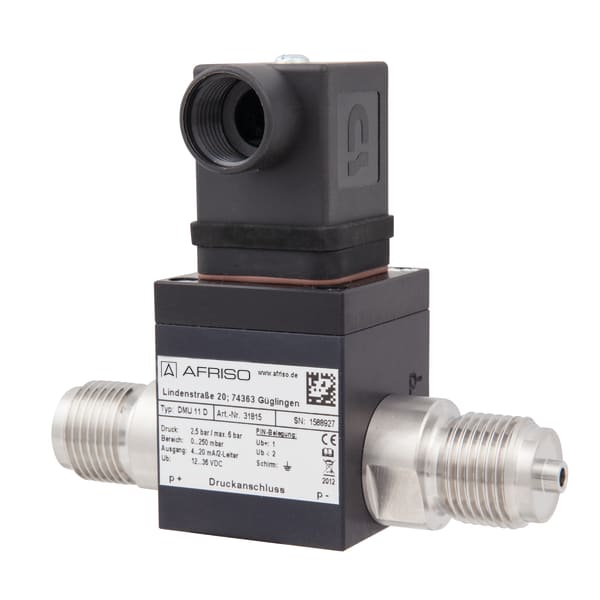

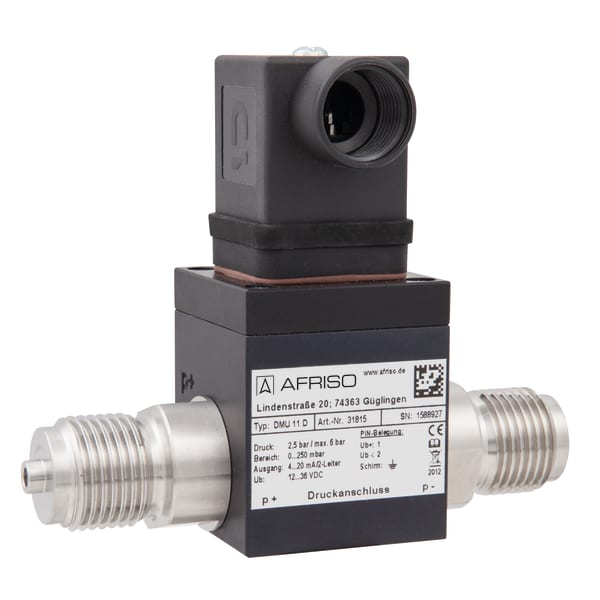

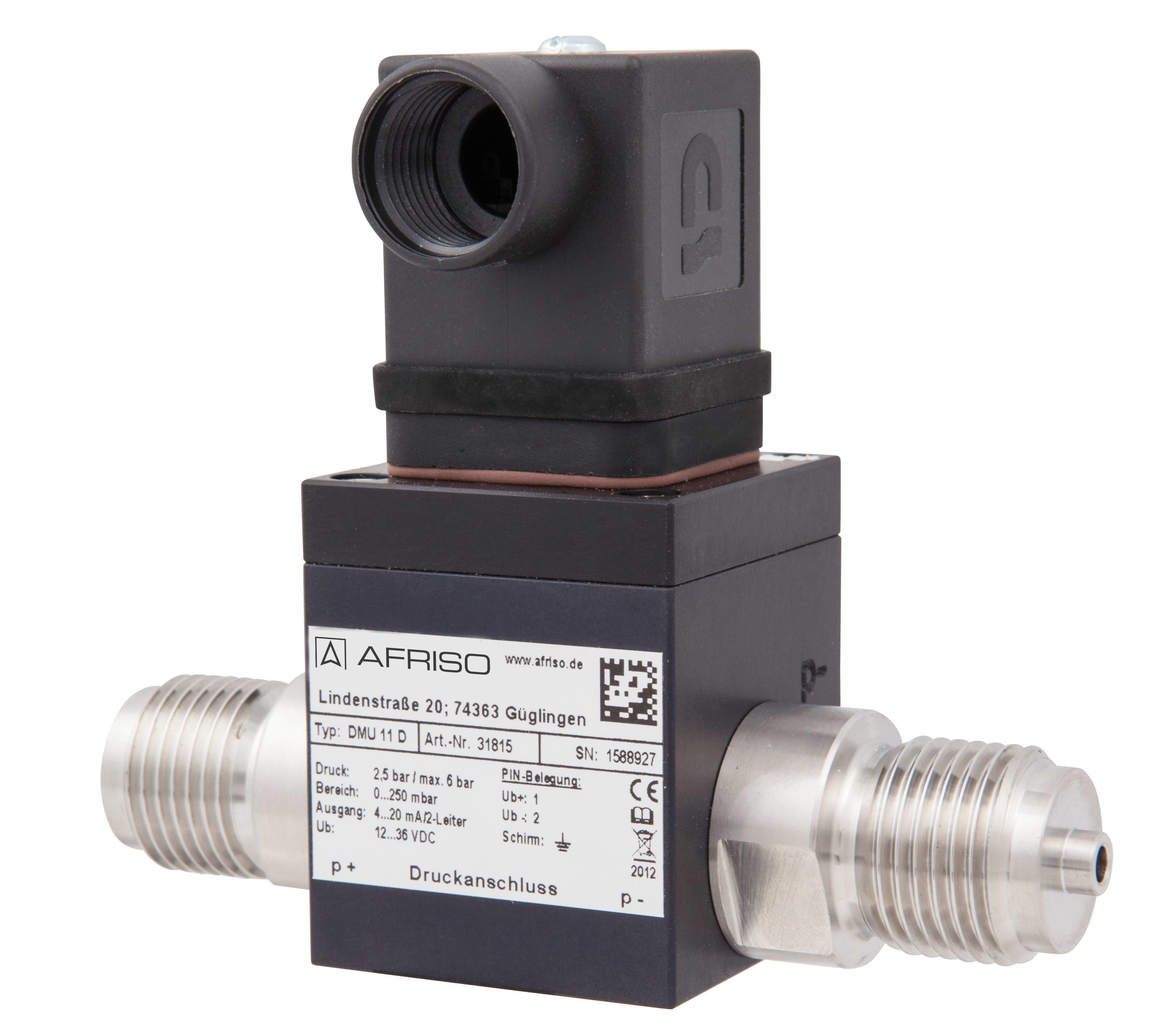

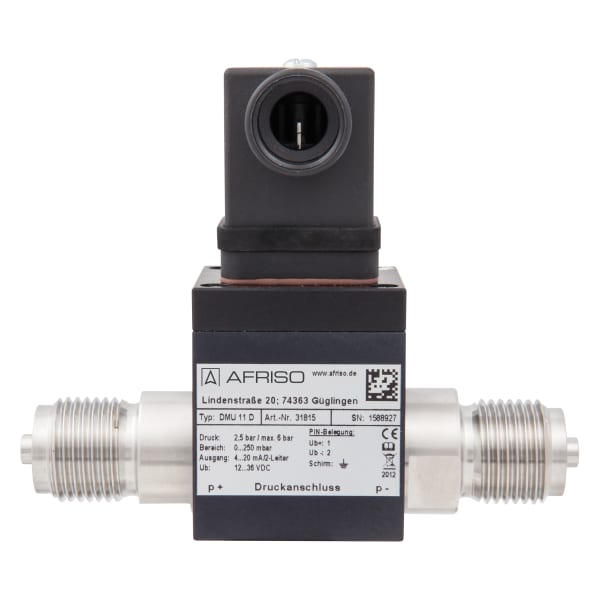

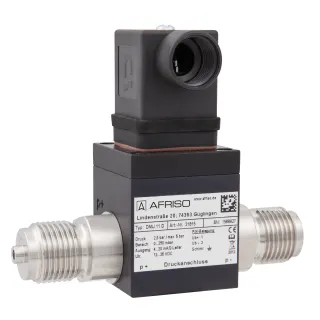

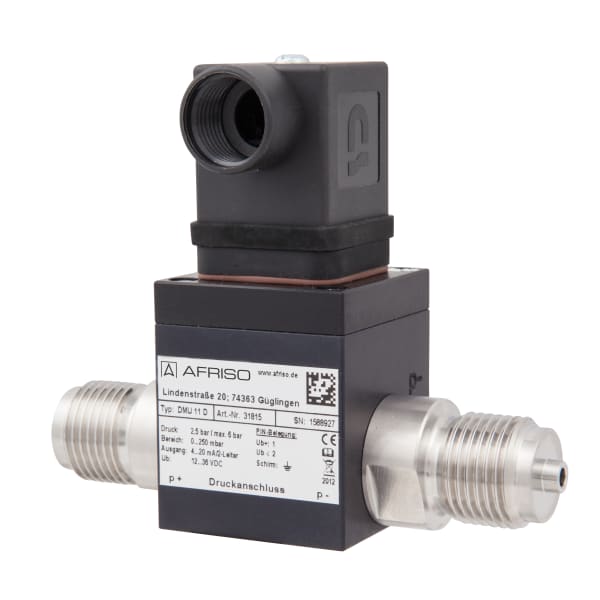

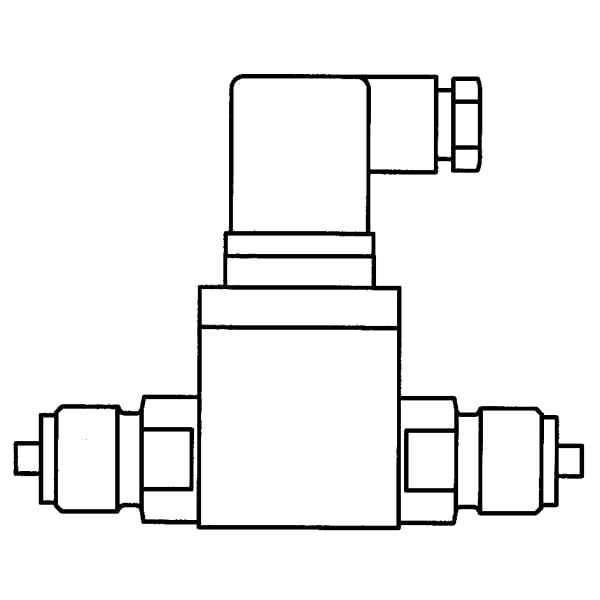

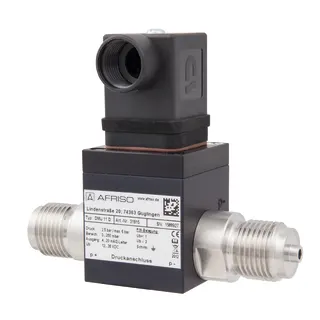

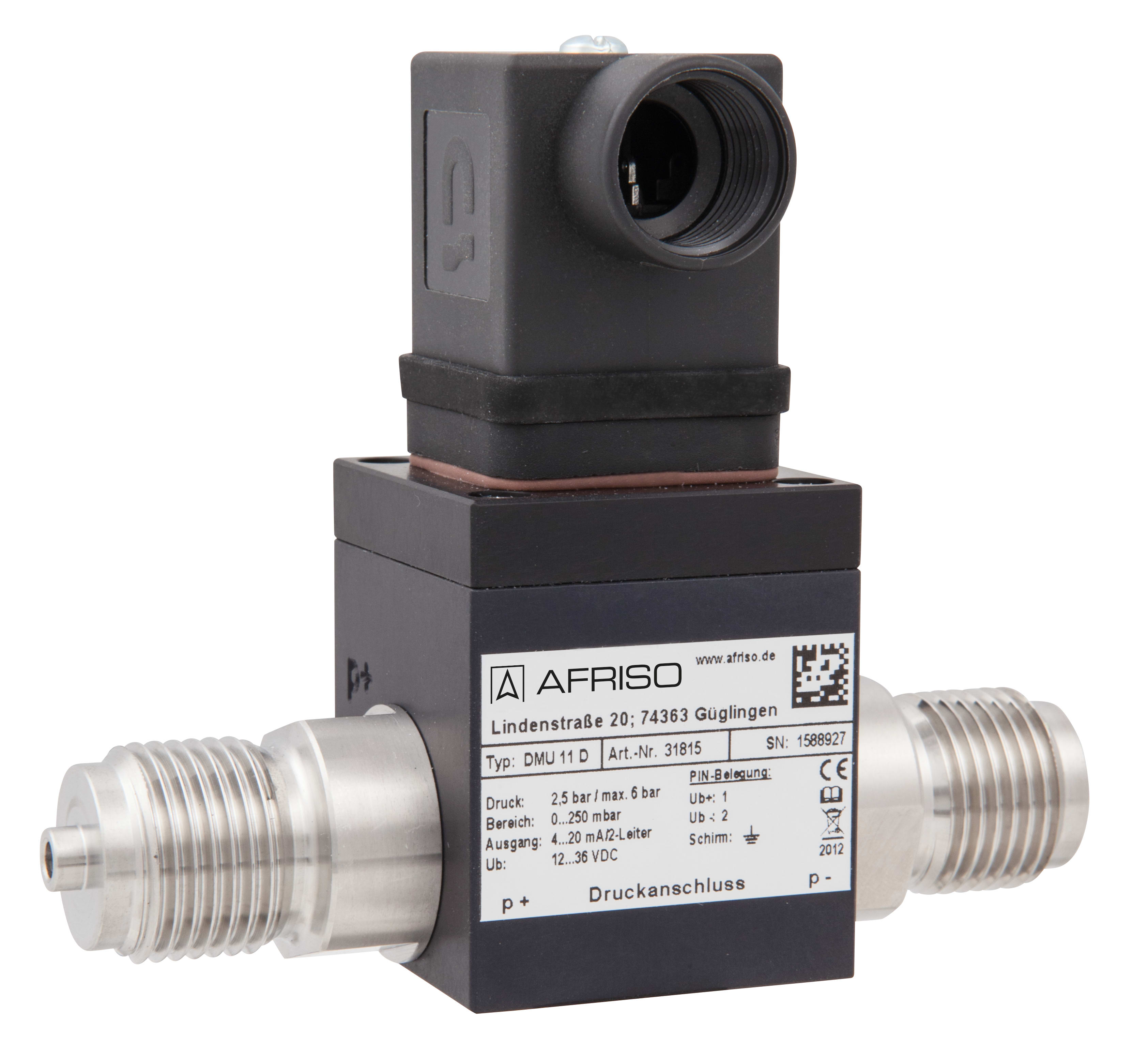

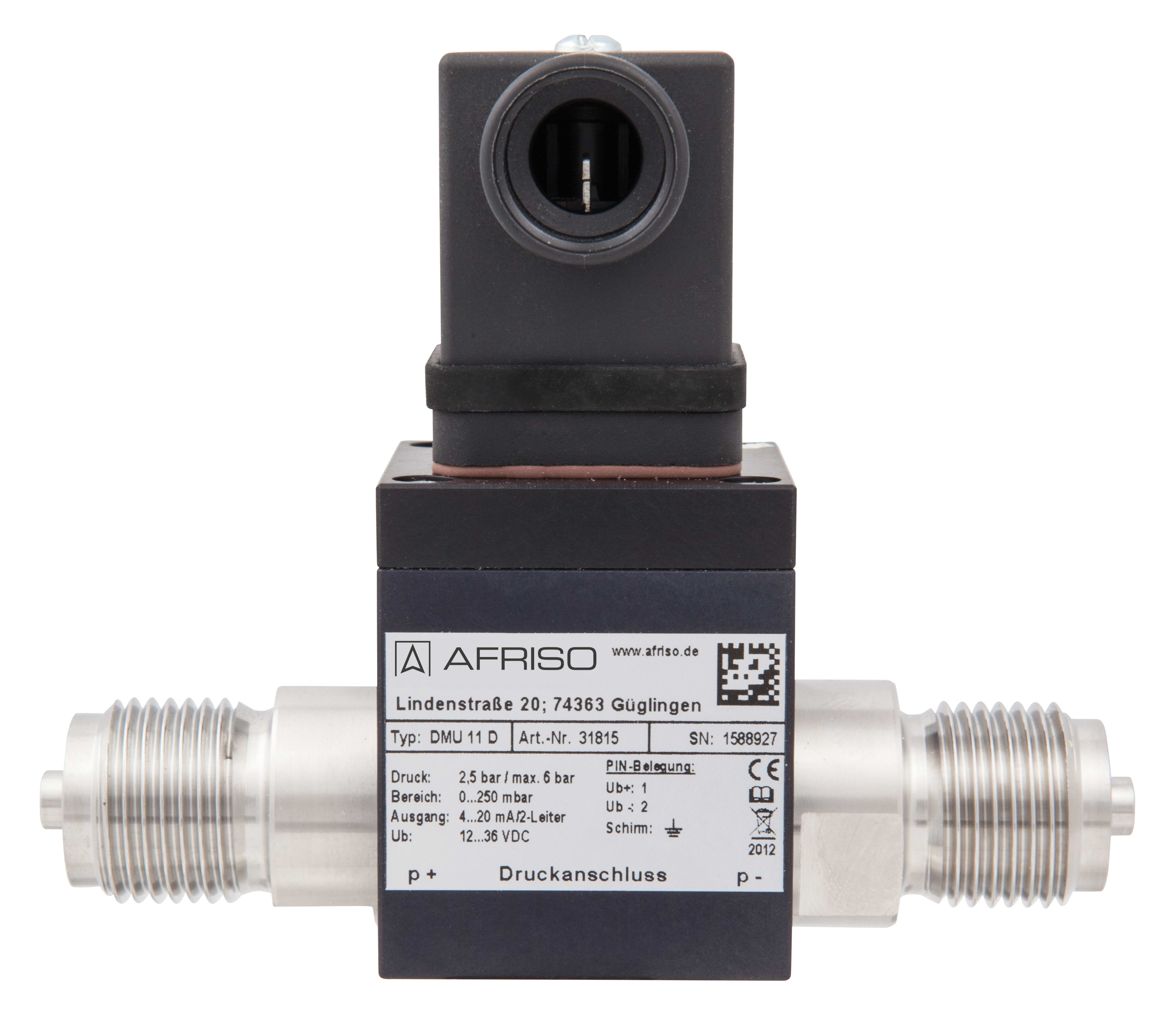

DeltaFox DMU 11 D

Druckmessumformer Differenzdruckausführung

Variants Documents

Connection2 x G½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • compact design
  • high overload safety
  • mechanically robust and reliable, suitable for applications involving dynamic pressure changes as well as shock and vibration

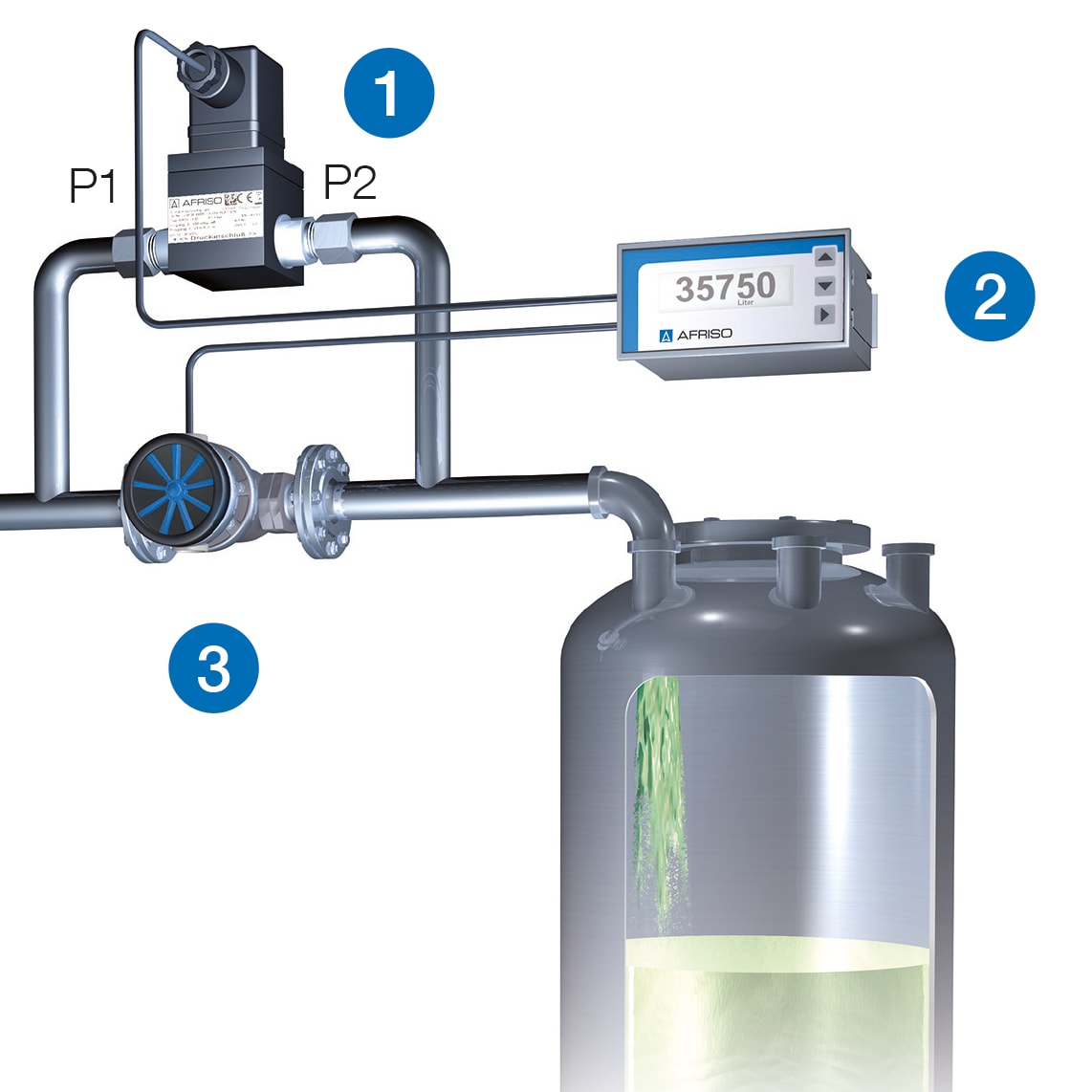

For electronic differential pressure measurement in industrial applications. For corrosive gaseous and liquid media which are not highly viscous and do not crystallise.

RangeMeasuring rangeTypeVersionPart no.
0/40 mbarDeltaFox DMU 11 D31830
0/60 mbarDeltaFox DMU 11 D31831
0/100 mbarDeltaFox DMU 11 D31813
0/160 mbarDeltaFox DMU 11 D31814
0/250 mbarDeltaFox DMU 11 D31815
0/400 mbarDeltaFox DMU 11 D31832
0/600 mbarDeltaFox DMU 11 D31833
0/1 barDeltaFox DMU 11 D31816
0/1.6 barDeltaFox DMU 11 D31834
0/2.5 barDeltaFox DMU 11 D31817
0/4 barDeltaFox DMU 11 D31835
0/6 barDeltaFox DMU 11 D31818
0/10 barDeltaFox DMU 11 D31836
0/16 barDeltaFox DMU 11 D31837
  • in-stock items
  • manufactured goods

Measuring range
see ordering table
Operating temperature range
Medium:
-25/+125 °C
Ambient:
-25/+85 °C
Storage:
-40/+100 °C
dynamic characteristics
Response time:
< 5 ms
Process connection

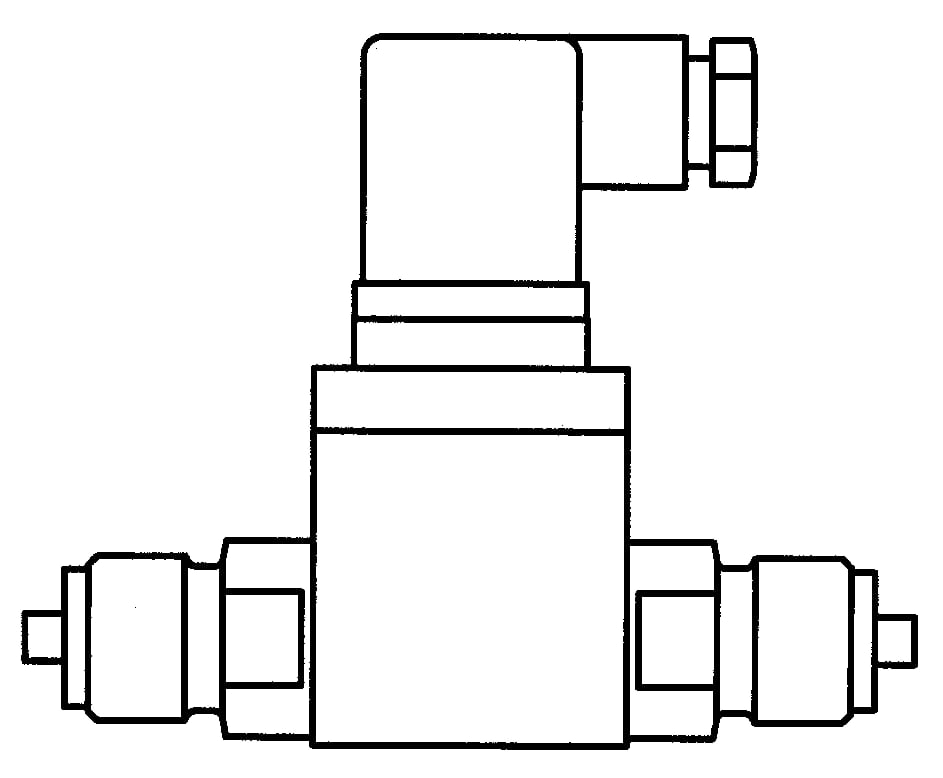

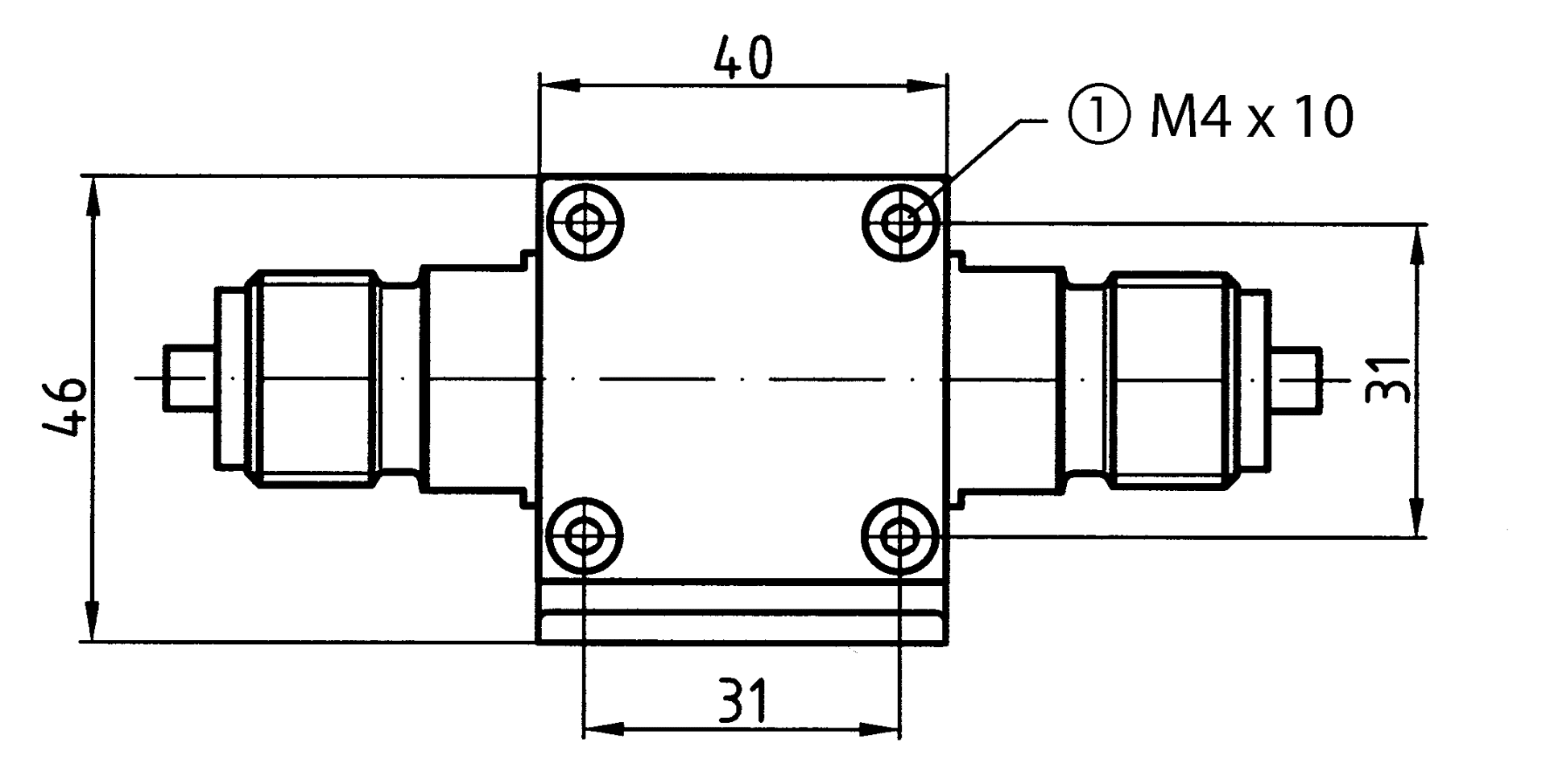

2 x G½B EN 837-1/7.3
material
Housing:
aluminium, eloxed, black
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
Supply voltage
DC 12 − 36 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
Scope of delivery
  • pressure measuring instrument
  • Befestigungswinkel
