DeltaFox DMU 11 D | 31836

Druckmessumformer Differenzdruckausführung

manufactured goods

Documents

Measuring range	0/10 bar
Connection	2 x G½B
Connection	EN 837-1/7.3
Electrical connection	Connector and junction box as per ISO 4400 (DIN 43650-A)
Part no.	31836

compact design
high overload safety
mechanically robust and reliable, suitable for applications involving dynamic pressure changes as well as shock and vibration

For electronic differential pressure measurement in industrial applications. For corrosive gaseous and liquid media which are not highly viscous and do not crystallise.

Measuring range

: see ordering table

Operating temperature range

Medium:: -25/+125 °C

Ambient:: -25/+85 °C

Storage:: -40/+100 °C

dynamic characteristics

Response time:: < 5 ms

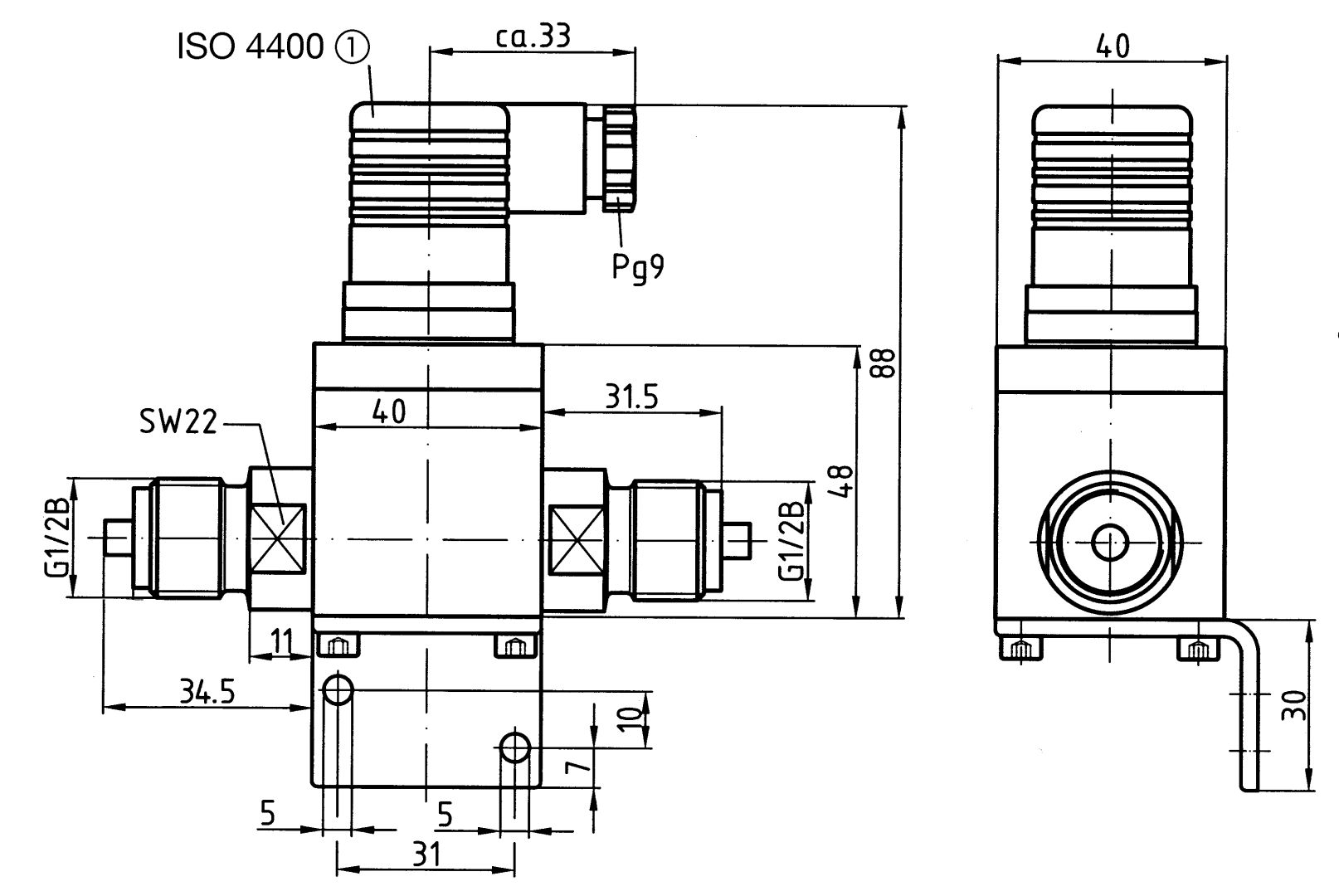

Process connection: 2 x G½B EN 837-1/7.3

material

Housing:: aluminium, eloxed, black

pressure connection:: Stainless steel 316 L

diaphragm:: Stainless steel 316 L

Seal:: FKM (Viton)

Supply voltage

: DC 12 − 36 V

Output signal

: 2-wire, 4–20 mA

Load

: R_max = [(UB – UB_min)/0.02 A] Ω

Current input

: < 25 mA

electrical protection: short circuit proof and protected against reverse polarity

Electrical connection

: Connector and junction box as per ISO 4400 (DIN 43650-A)

Degree of protection: IP 65 (EN 60529)

CE conformity: EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU

Scope of delivery

pressure measuring instrument
Befestigungswinkel

900_100_0866.PDF

Differenzdruckmessumformer DMU 10 D, DMU 11 D
