Industrial technology Electronic pressure measuring instruments DMU 01 K
PRO_TEC_SAR_DMU01_K_31608.TIF
PRO_TEC_SCD_DMU01_K.TIF
PRO_TEC_SAR_DMU01_K_31608.TIF
PRO_TEC_SCD_DMU01_K.TIF
Images 2

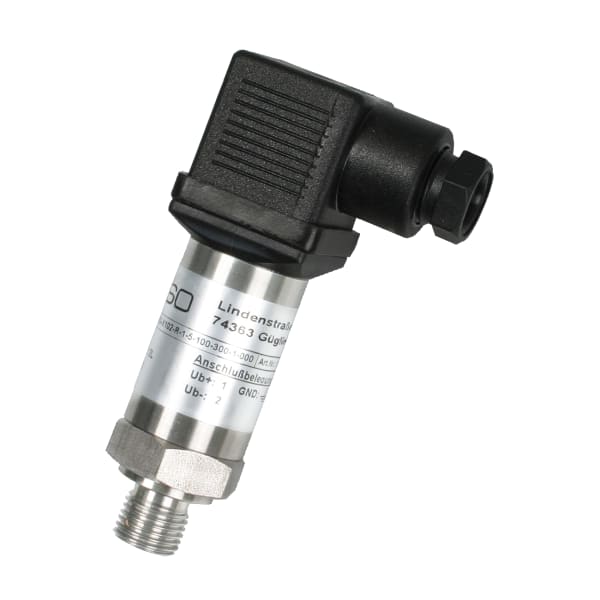

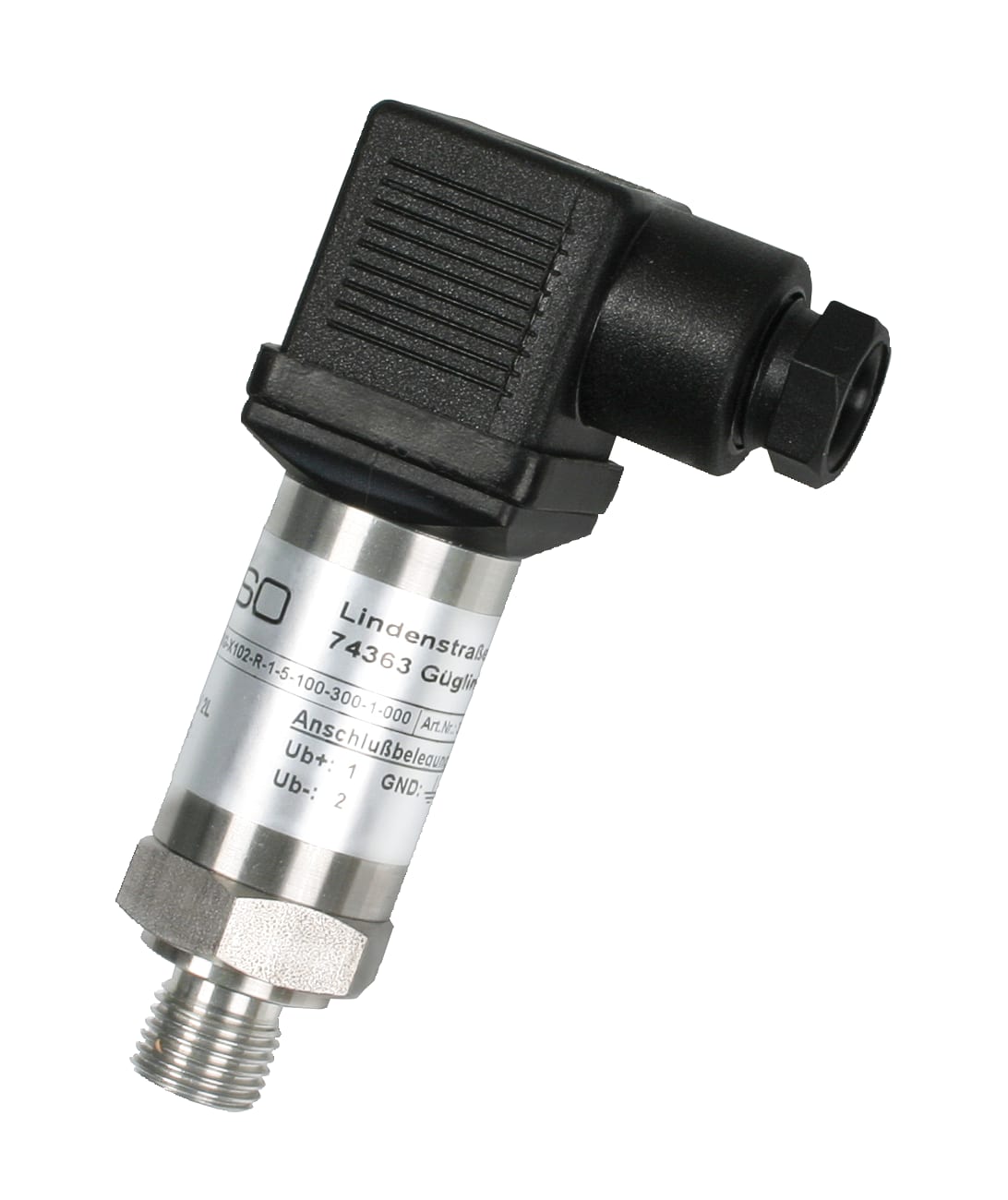

DMU 01 K

Pressure transducers

Variants Documents

ConnectionG½B
ConnectionDIN 3852 type E
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • proven ceramic technology
  • no mechanical ageing of the measuring cell
  • no transmission liquid
  • Versions for relative pressure and absolute pressure
  • small temperature error

Electronic pressure measurement in industrial or HVAC applications such as hydraulic, pneumatic, automation, heating or air conditioning.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 01K is equipped with a piezo-resistive thick-film ceramic measuring cell.

RangeMeasuring rangeTypeVersionPart no.
-1/+1.5 barCompact version31608
-1/+3 barCompact version31609
-1/+5 barCompact version31610
0/1 barCompact version31511
0/2.5 barCompact version31512
0/4 barCompact version31513
0/6 barCompact version31514
0/10 barCompact version31515
0/16 barCompact version31516
0/25 barCompact version31517
0/40 barCompact version31518
0/60 barCompact version31611
0/100 barCompact version31612
0/160 barCompact version31613
0/250 barCompact version31614
  • in-stock items
  • manufactured goods

Measuring range
see ordering table

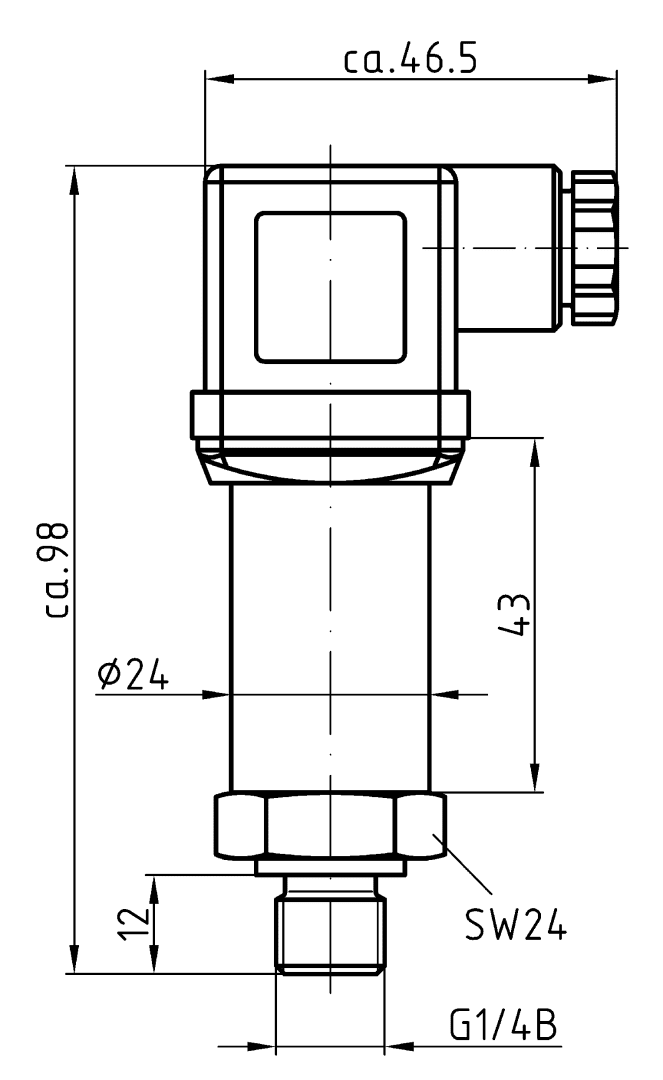

Process connection
G½B DIN 3852 type E
material
Housing:
Stainless steel 304
pressure connection:
Stainless steel 304
diaphragm:
ceramic (Al2O3 96 %)
Seal:
FKM (Viton)
Supply voltage
DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
