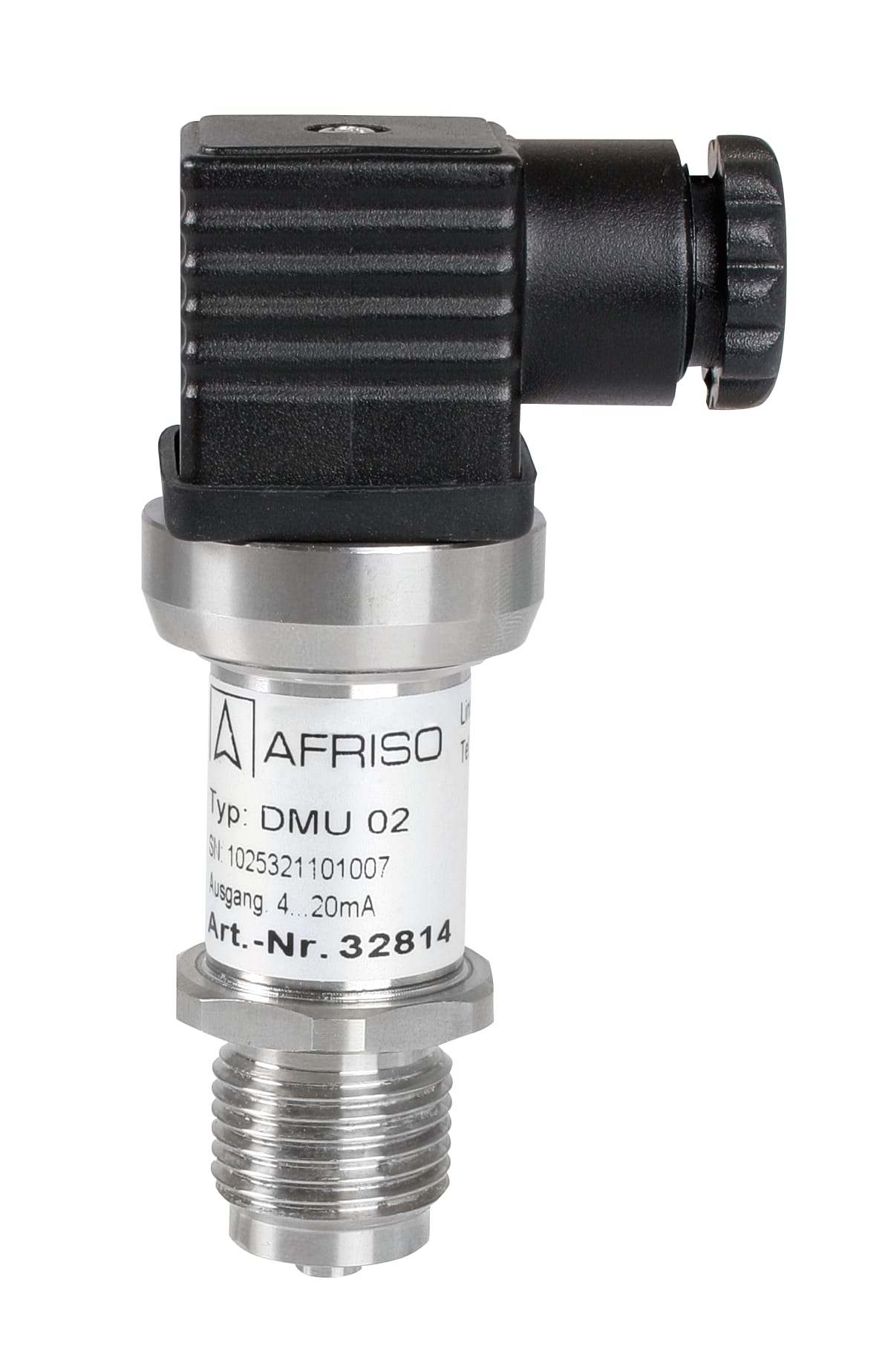

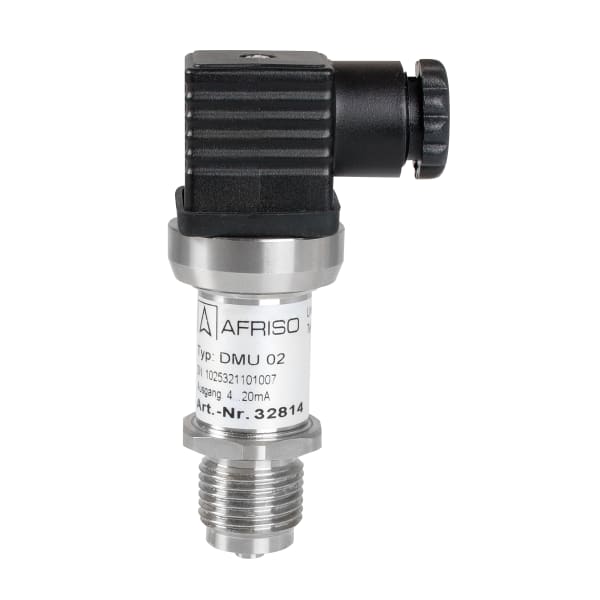

PRO_TEC_SAR_DMU02_32814_2.TIF

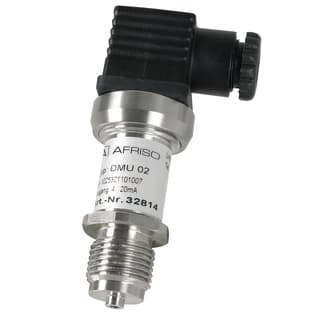

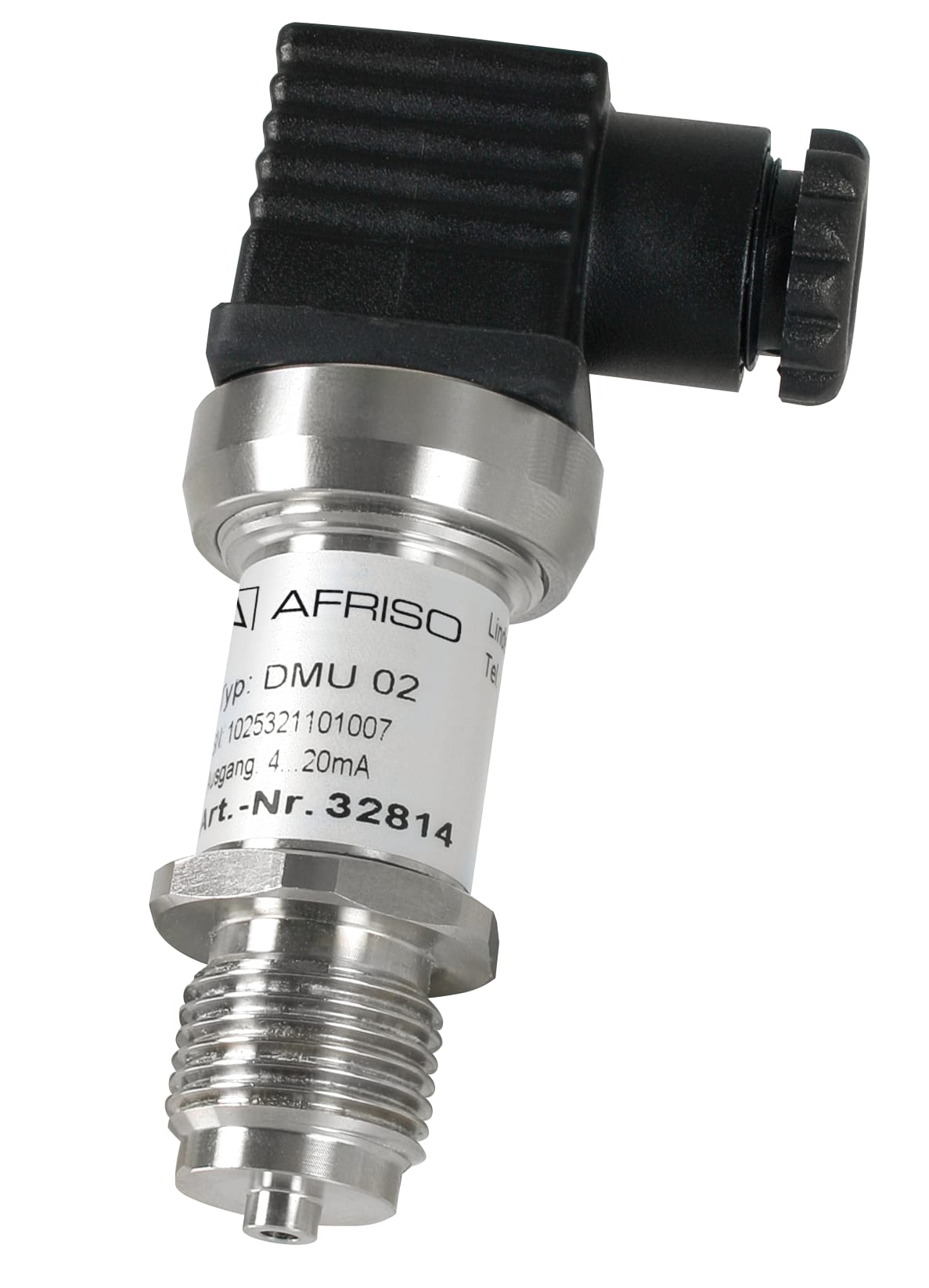

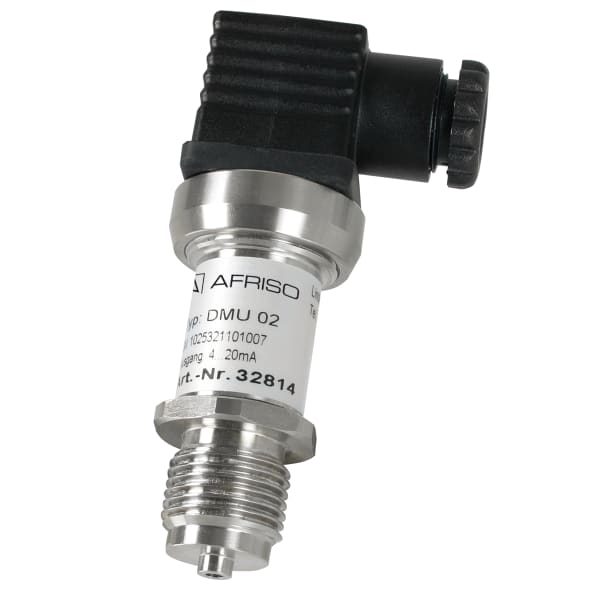

PRO_TEC_SAR_DMU02_32814_1.TIF

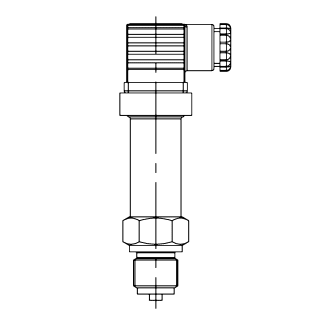

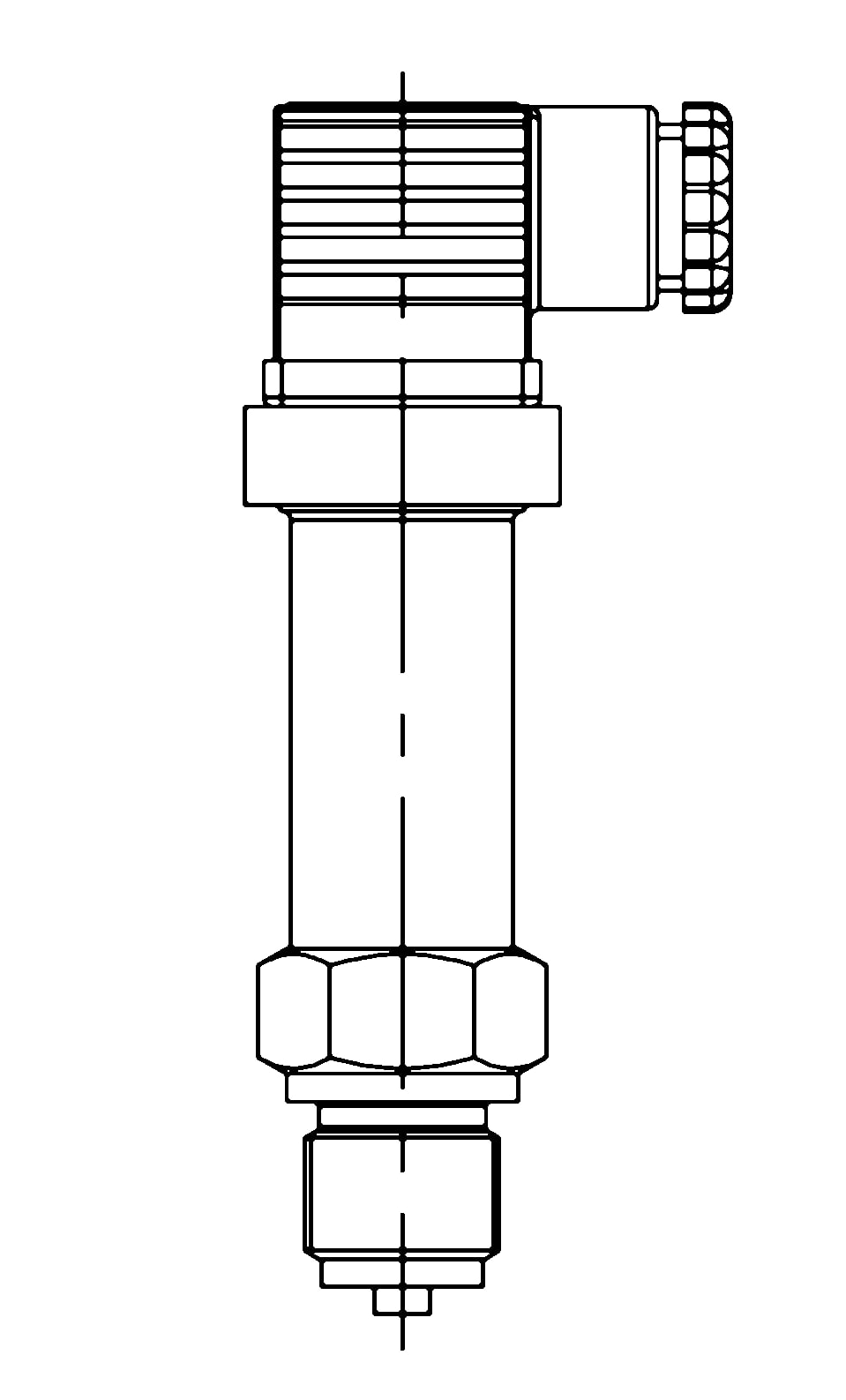

PRO_TEC_SCD_DMU02.TIF
PRO_TEC_SAR_DMU02_32814_2.TIF
PRO_TEC_SAR_DMU02_32814_1.TIF
PRO_TEC_SCD_DMU02.TIF
Images 3

DMU 02

Druckmessumformer Industrieausführung

Variants Documents

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • extremely resistant to shock, pulsation and vibration
  • high overload safety
  • best dynamic pressure resistance at high load changes
  • wetted area without seals due to welding
  • no transmission liquid

For electronic pressure measurement in industrial applications, e.g. hydraulic, pneumatic, gas industry, refrigeration, automation, medical, as well as general mechanical and plant engineering applications.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 02 is equipped with a piezo-resistive polysilicon thin-film measuring cell.

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 0232801
-1/+1.5 barDMU 0232802
-1/+3 barDMU 0232803
-1/+5 barDMU 0232804
-1/+9 barDMU 0232805
-1/+24 barDMU 0232806
0/600 mbarDMU 0232807
0/1 barDMU 0232808
0/1.6 barDMU 0232809
0/2.5 barDMU 0232810
0/4 barDMU 0232811
0/6 barDMU 0232812
0/10 barDMU 0232813
0/16 barDMU 0232814
0/25 barDMU 0232815
0/40 barDMU 0232816
0/60 barDMU 0232817
0/100 barDMU 0232818
0/160 barDMU 0232819
0/250 barDMU 0232820
0/400 barDMU 0232821
0/600 barDMU 0232822
0/1 000 barDMU 0232823
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.5 % FSO
Measuring range
see ordering table
Overpressure safety
≤ 250 bar: at least 2 x FS
Burst pressure
≤ 250 bar: at least 3 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+105 °C
Storage:
-40/+125 °C
Temperature error band
≤ ± 0.15 % FSO/10 K ≤ ± In compensated range -25/+85 °C
dynamic characteristics
Response time:
< 1 ms

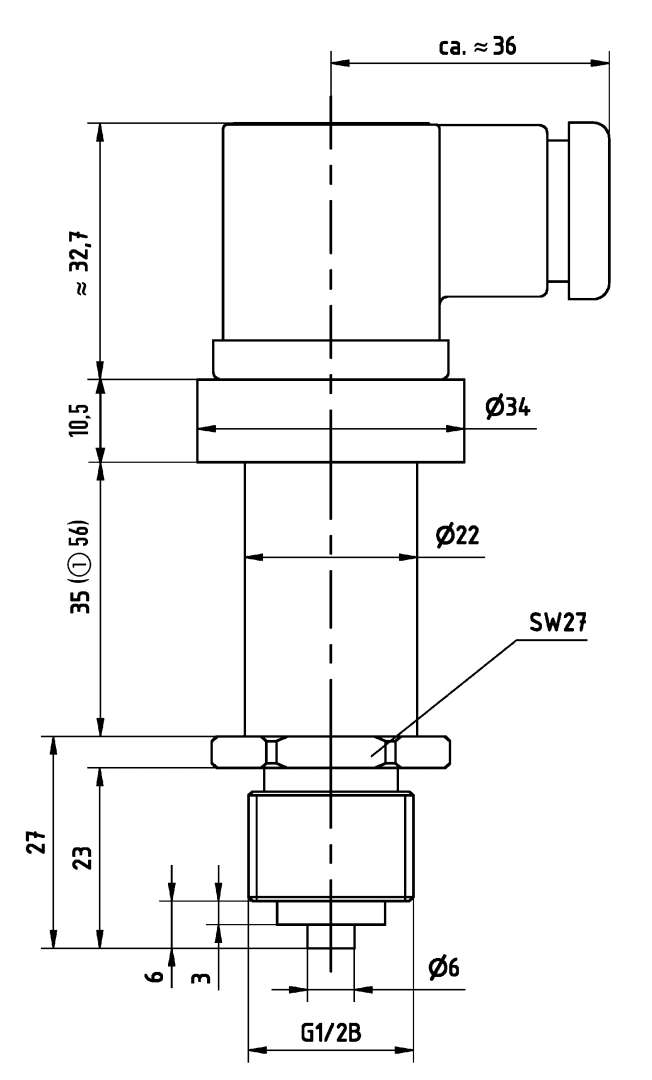

Process connection
G½B EN 837-1/7.3
material
Housing:
Stainless steel 304
pressure connection:
Stainless steel 304
electr. measuring cell:
Stainless steel 630/304
Supply voltage
DC 10 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
