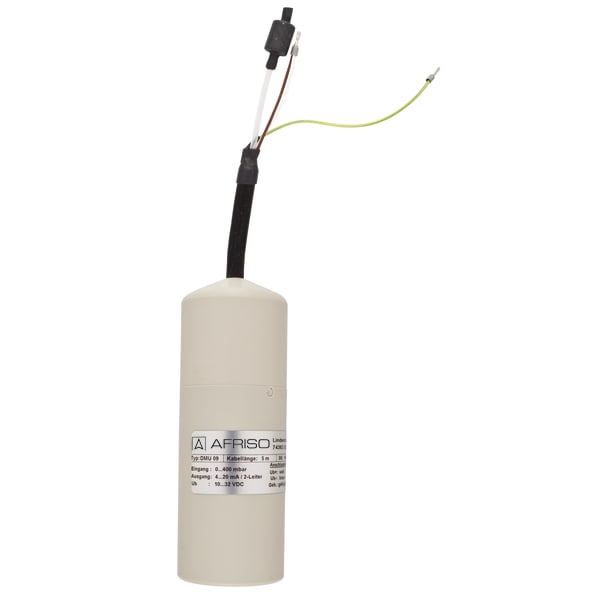

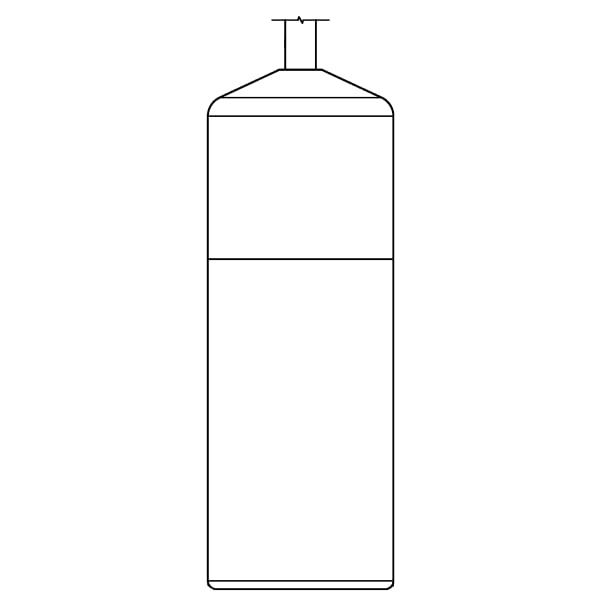

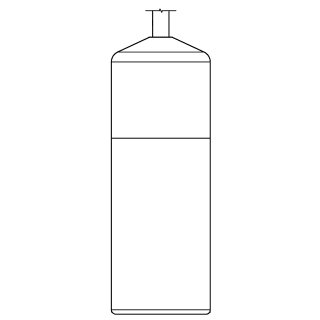

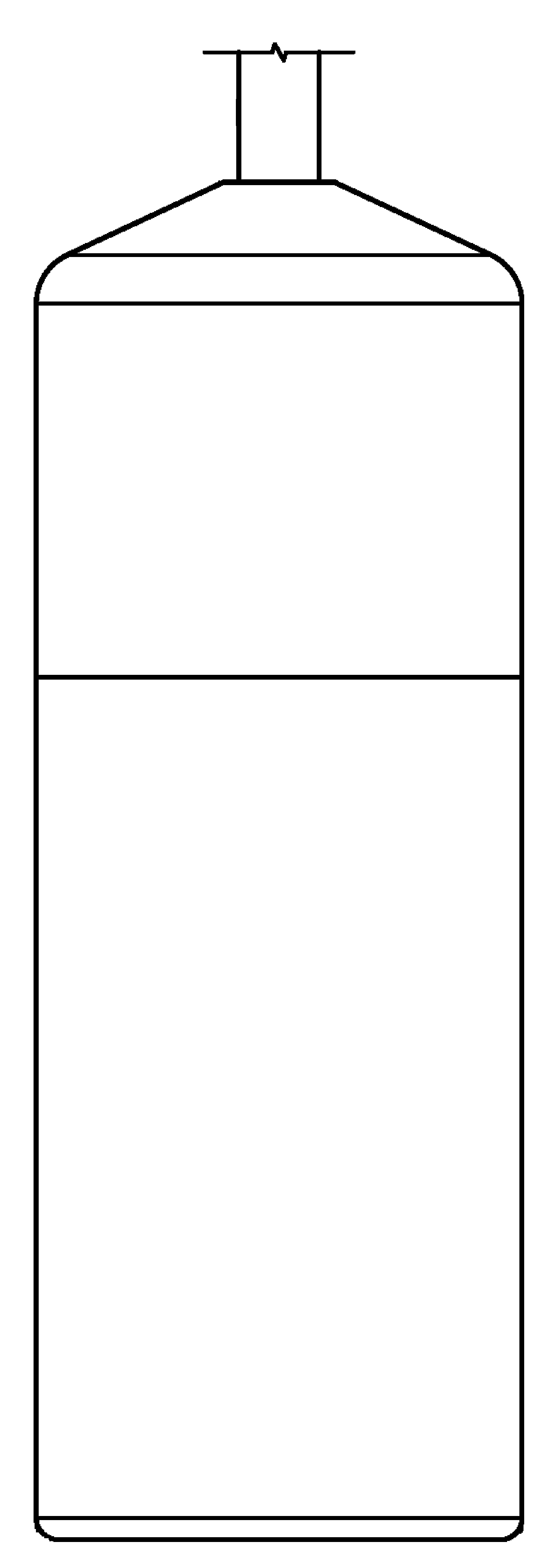

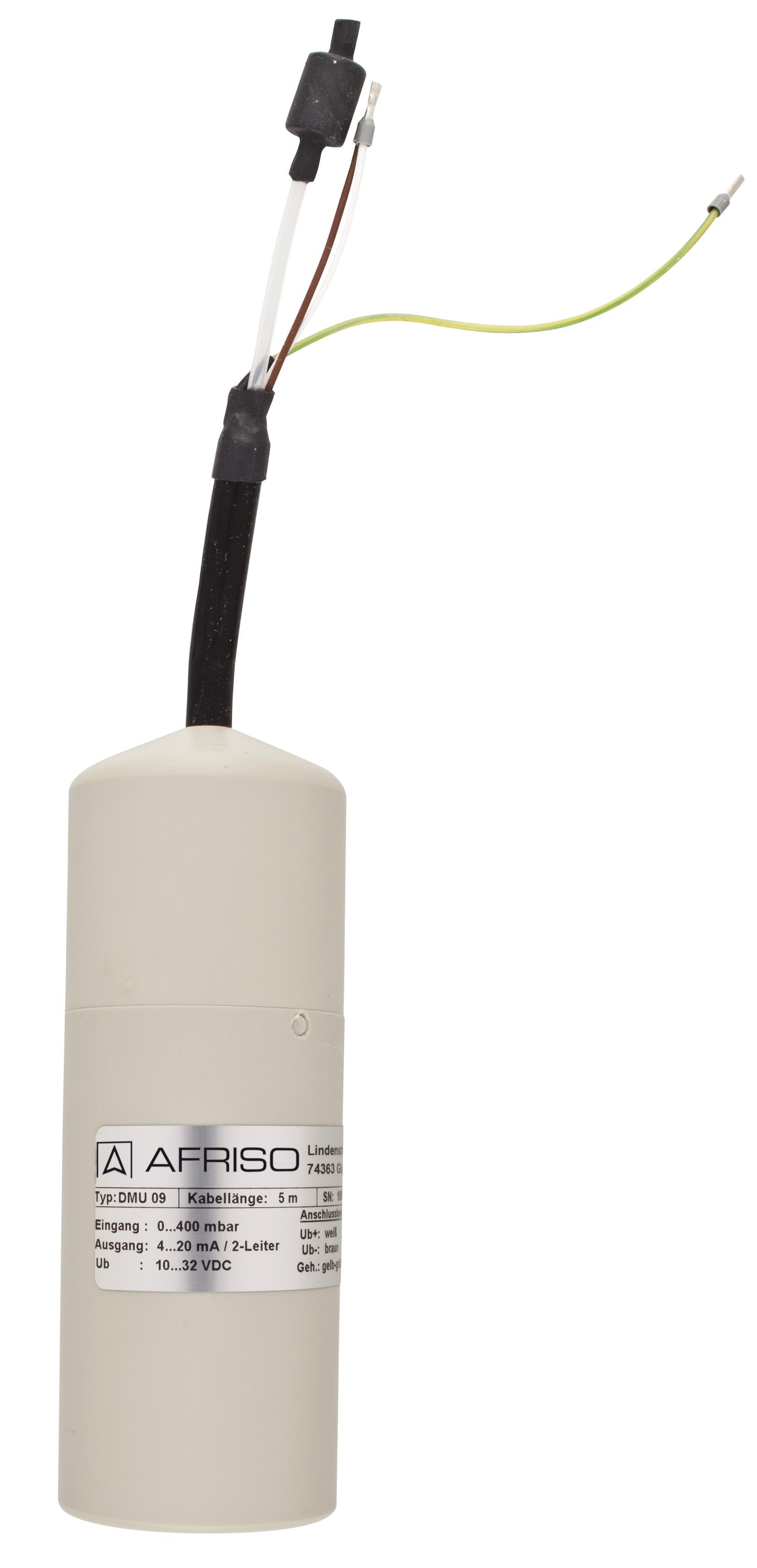

HydroFox® DMU 09

Druckmessumformer Pegelsonde - Chemieausführung

Variants Documents

  • chemical-resistant plastic version
  • robust ceramic diaphragm without transmission liquid
  • highly resistant FEP cable
  • special calibration for all standard pressure units possible

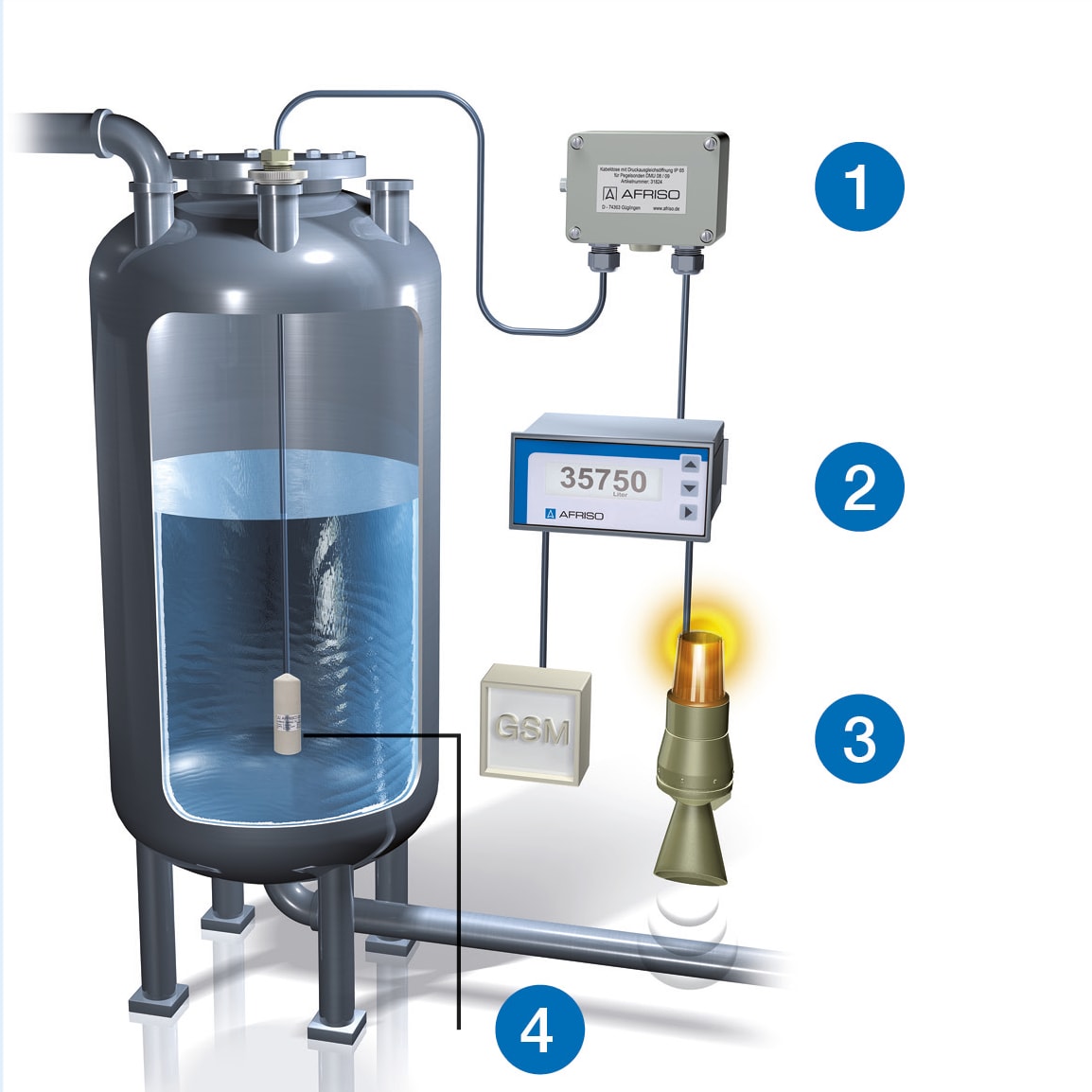

For electronic, continuous level measurement in extremely corrosive liquids, e.g. chemicals or waste water from landfill sites.

Pressure transducers HydroFox® convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 09 uses a capacitance ceramic measuring cell.

RangeMeasuring rangeTypeVersionPart no.
0/40 mbarHydroFox® DMU 0931767
0/60 mbarHydroFox® DMU 0931768
0/100 mbarHydroFox® DMU 0931571
0/160 mbarHydroFox® DMU 0931572
0/200 mbarHydroFox® DMU 0931573
0/250 mbarHydroFox® DMU 0931574
0/300 mbarHydroFox® DMU 0931812
0/400 mbarHydroFox® DMU 0931575
0/600 mbarHydroFox® DMU 0931576
0/1 barHydroFox® DMU 0931577
0/1.6 barHydroFox® DMU 0931578
0/2 barHydroFox® DMU 0931579
0/2.5 barHydroFox® DMU 0931580
0/4 barHydroFox® DMU 0931581
0/6 barHydroFox® DMU 0931582
0/10 barHydroFox® DMU 0931583
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.35 % FSO
Measuring range
see ordering table
Overpressure safety
≤ 400 mbar: at least 15 x FS
Operating temperature range
Medium:
-25/+70 °C
Ambient:
-25/+70 °C
Storage:
-25/+70 °C
dynamic characteristics
Response time:
< 200 ms
Probe
L x ⌀:
126 x 45 mm
material
Housing:
PP
diaphragm:
ultra-pure ceramic (Al203 99.9 %)
seals:
FKM (Viton)
cable:
FEP
Supply voltage
DC 9 − 32 V
Output signal
4–20 mA, 2-wire
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 21 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
FEP cable with integrated breather tube for reference to the ambient atmospheric pressure
Cable length:
5 m
Degree of protection:
IP 68 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
