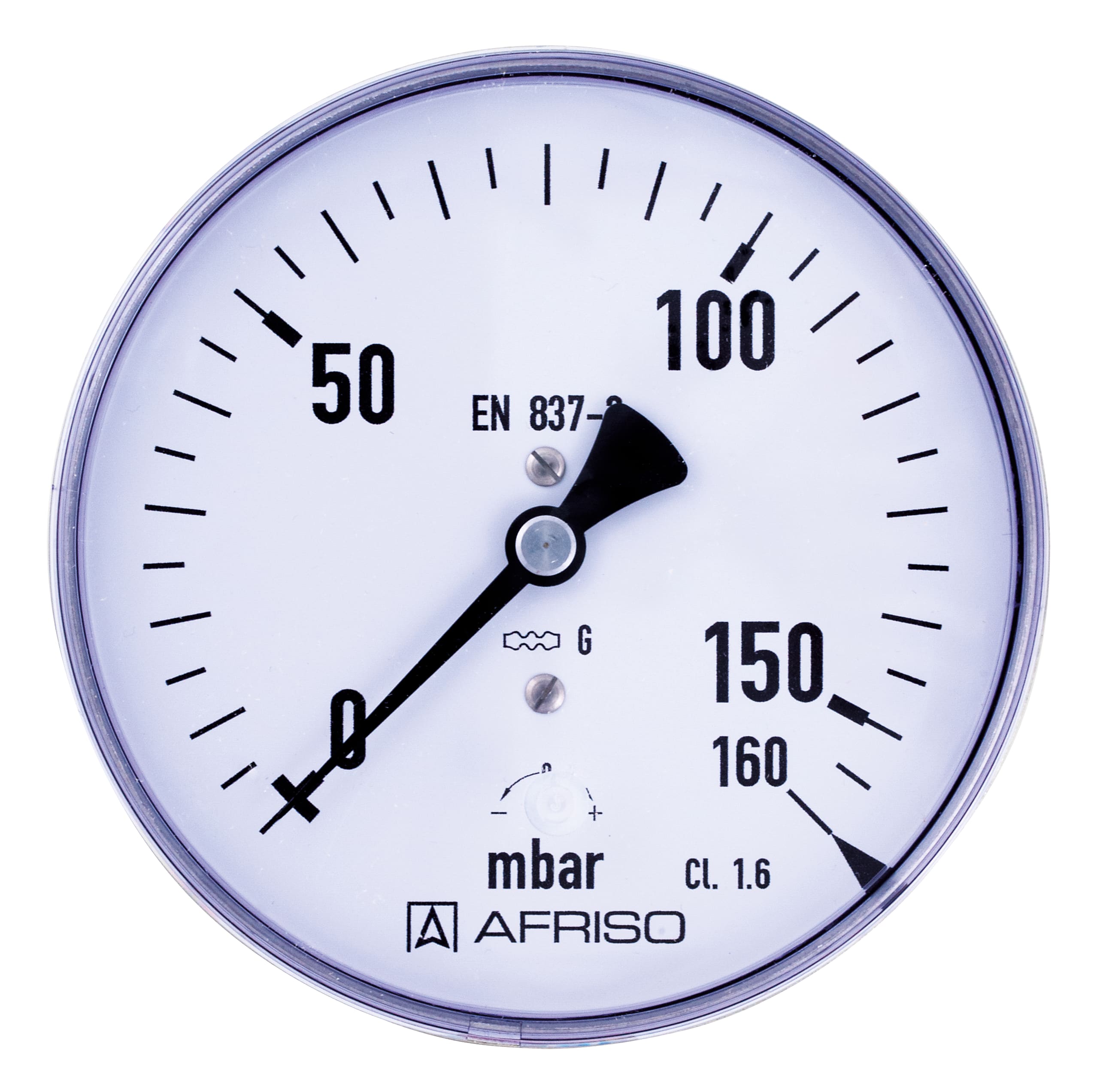

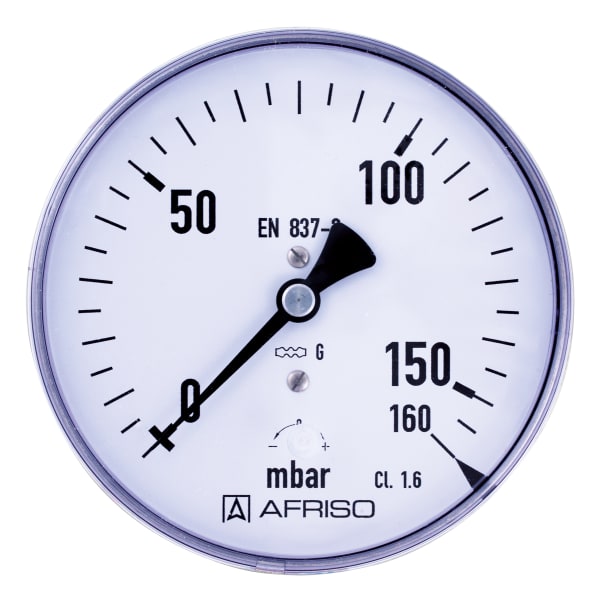

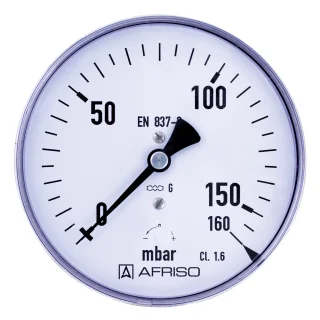

KP100 D311

Kapselfeder-Standardmanometer Typ D3

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • ideal for low pressure ranges
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbardirectKP100 D31135104311
-40/0 mbardirectKP100 D31135105311
-60/0 mbardirectKP100 D31135106311
-100/0 mbardirectKP100 D31135107311
-160/0 mbardirectKP100 D31135108311
-250/0 mbardirectKP100 D31135109311
-400/0 mbardirectKP100 D31135110311
-600/0 mbardirectKP100 D31135111311
-1 000/0 mbardirectKP100 D31135112311
0/25 mbardirectKP100 D31135116311
0/40 mbardirectKP100 D31135117311
0/60 mbardirectKP100 D31135118311
0/100 mbardirectKP100 D31135119311
0/160 mbardirectKP100 D31135120311
0/250 mbardirectKP100 D31135121311
0/400 mbardirectKP100 D31135122311
0/600 mbardirectKP100 D31135123311
0/1 000 mbardirectKP100 D31135124311
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
100 - 100
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 100: IP 44 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
window
Kunststoff, eingeclipst

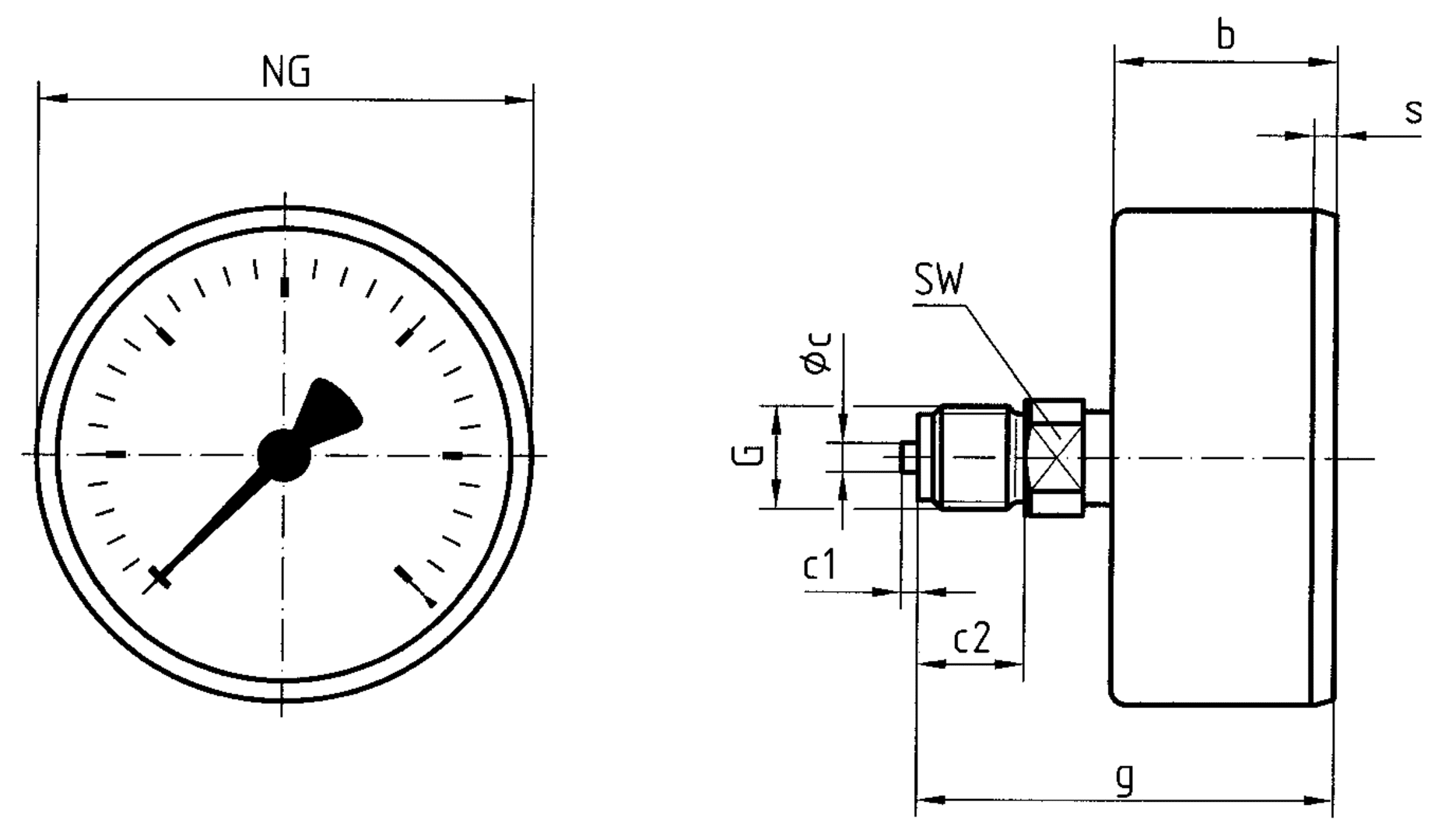

Click the corresponding image for detail views, additional information and dimension tables.
