Industrial technology Mechanical pressure measuring instruments KP63 D451
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
Images 1

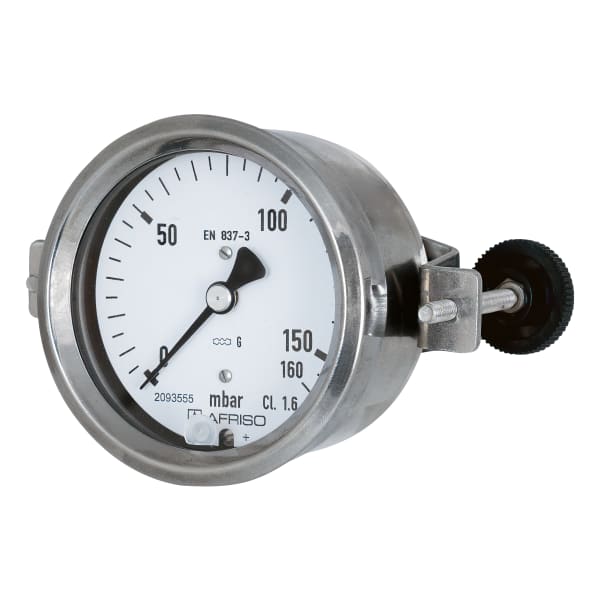

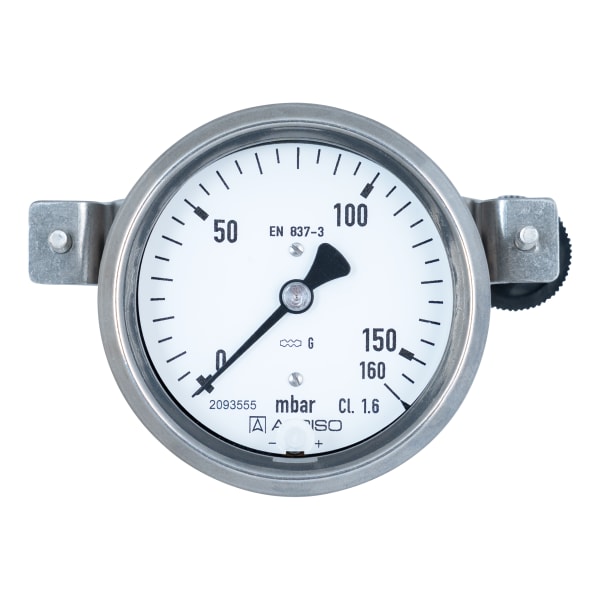

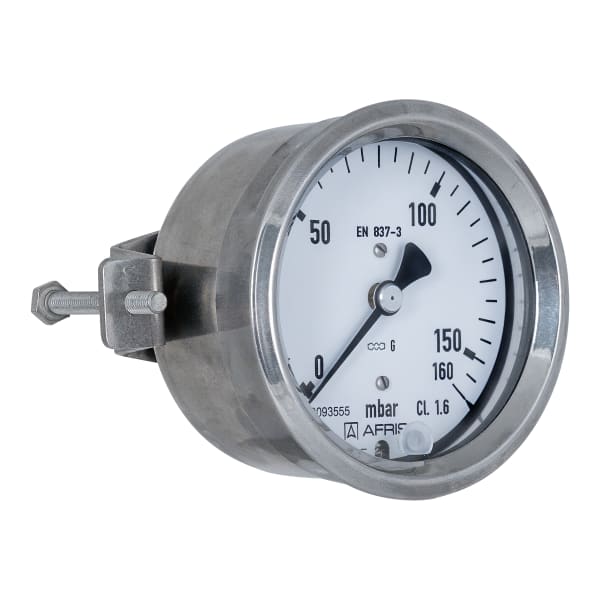

KP63 D451

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135004451
-40/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135005451
-60/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135006451
-100/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135007451
-160/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135008451
-250/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135009451
-400/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135010451
-600/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135011451
-1 000/0 mbarPanel mounting bezel, with clamp fixingKP63 D45135012451
0/25 mbarPanel mounting bezel, with clamp fixingKP63 D45135016451
0/40 mbarPanel mounting bezel, with clamp fixingKP63 D45135017451
0/60 mbarPanel mounting bezel, with clamp fixingKP63 D45135018451
0/100 mbarPanel mounting bezel, with clamp fixingKP63 D45135019451
0/160 mbarPanel mounting bezel, with clamp fixingKP63 D45135020451
0/250 mbarPanel mounting bezel, with clamp fixingKP63 D45135021451
0/400 mbarPanel mounting bezel, with clamp fixingKP63 D45135022451
0/600 mbarPanel mounting bezel, with clamp fixingKP63 D45135023451
0/1 000 mbarPanel mounting bezel, with clamp fixingKP63 D45135024451
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
63 - 63
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 63: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D451: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

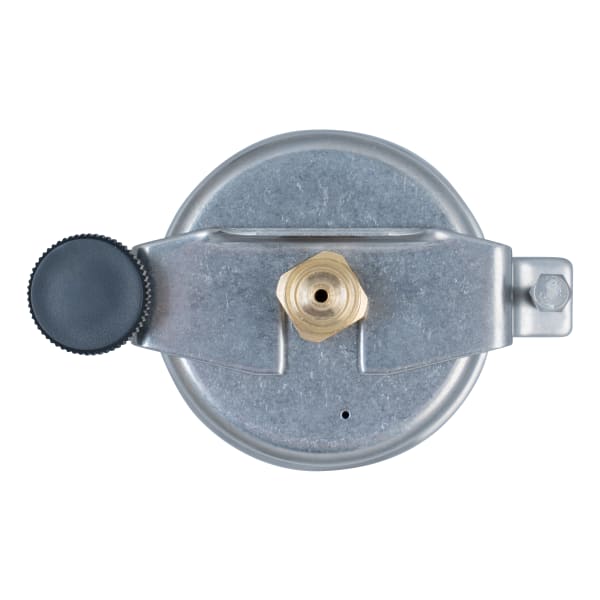

Centre back connection, panel mounting bezel with clamp fixing

PRO_TEC_BEP_KAPSELFEDER_STANDARD_D4_ANSCHLUSS_AXIAL_BUEGELBEFESTIGUNG.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
Anschlussstutzen vernickelt | 38084
Drosselschraube Messing | 38097
red mark on dial | 38184
1 Markenzeiger rot verstellbar mit Schraubendreher | 38115
1 Markenzeiger rot verstellbar mit Drehknopf | 38188
laminated safety glass window | 38072
Klischeekosten je Skala und Farbe | 38153
Druckkosten je Farbe | 38165
