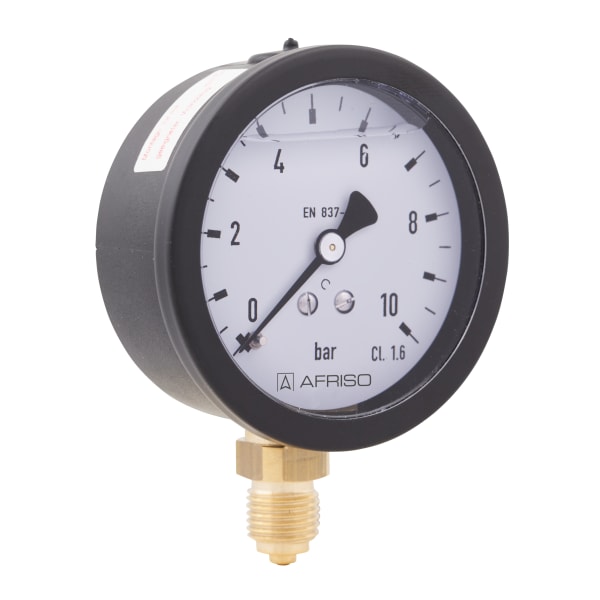

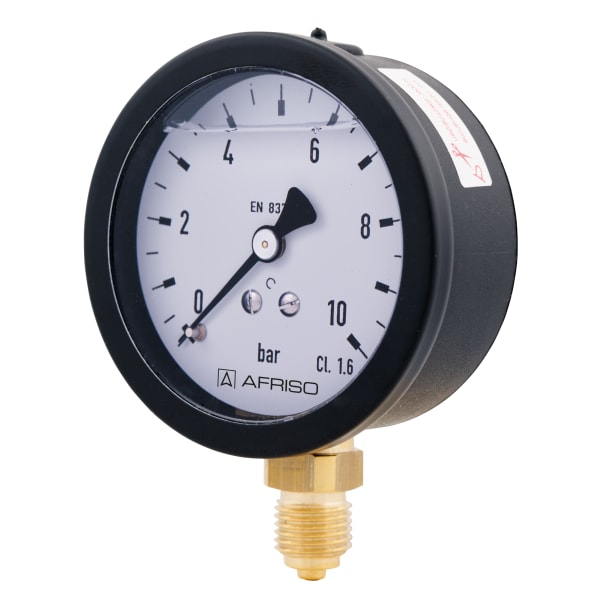

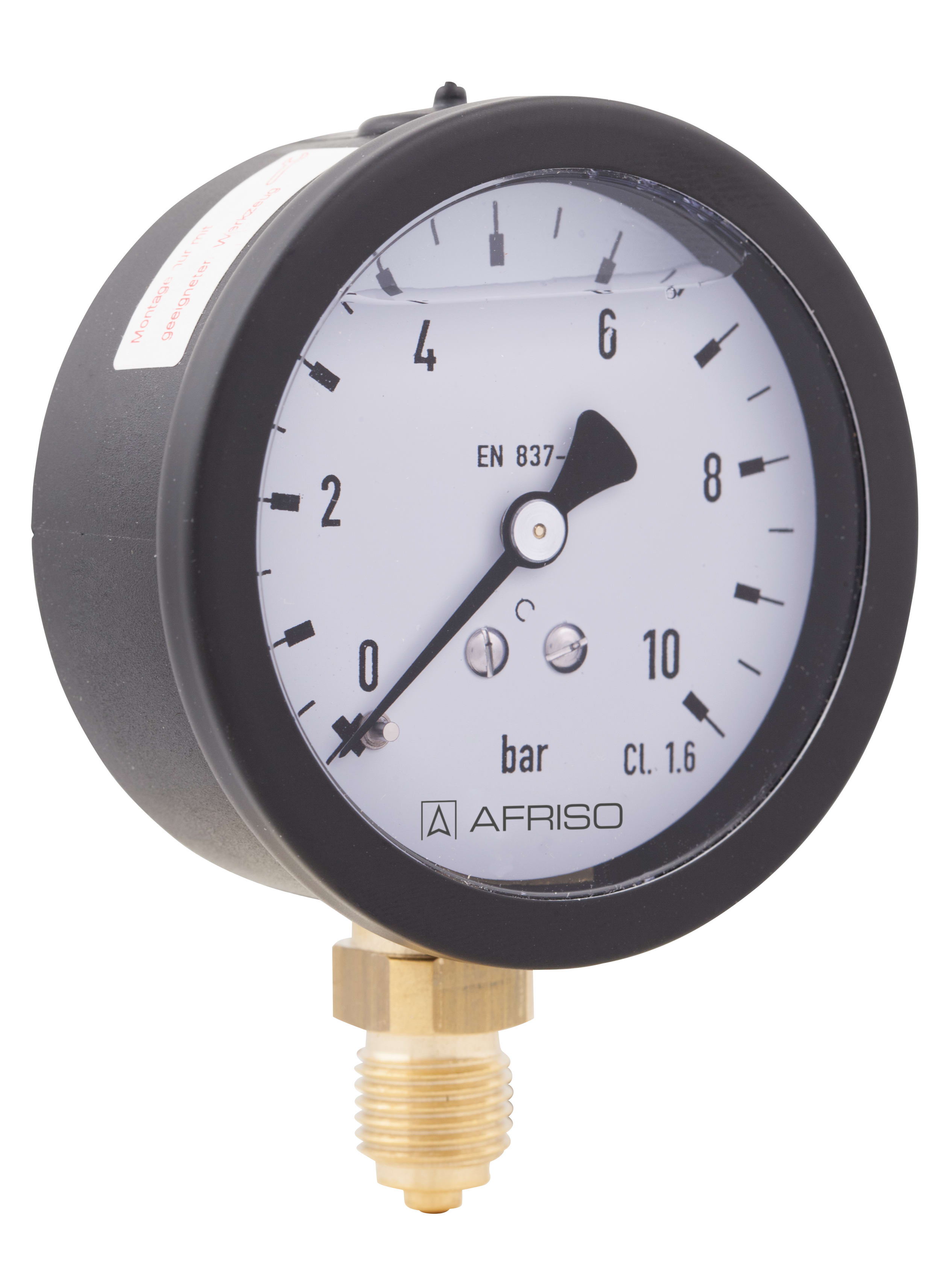

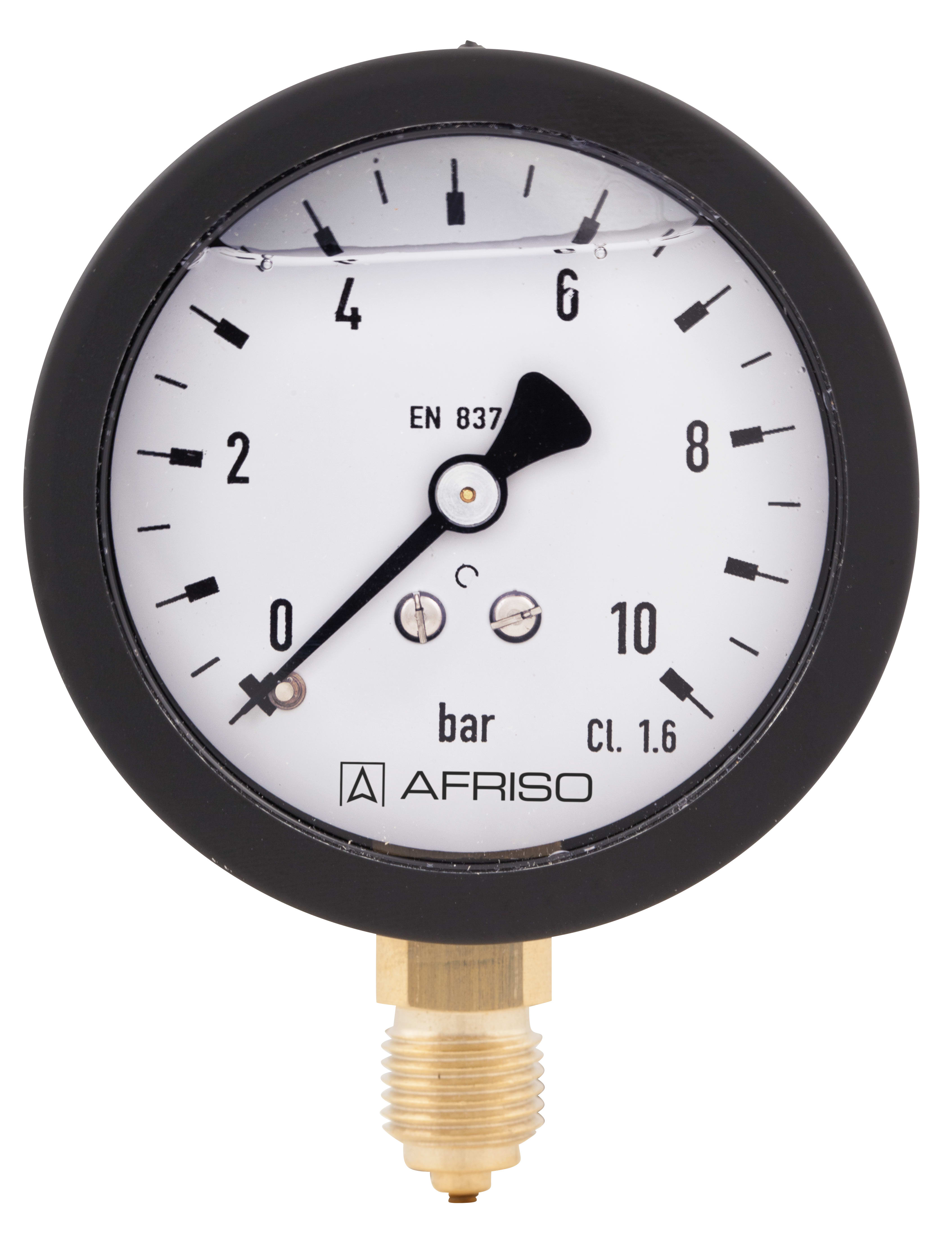

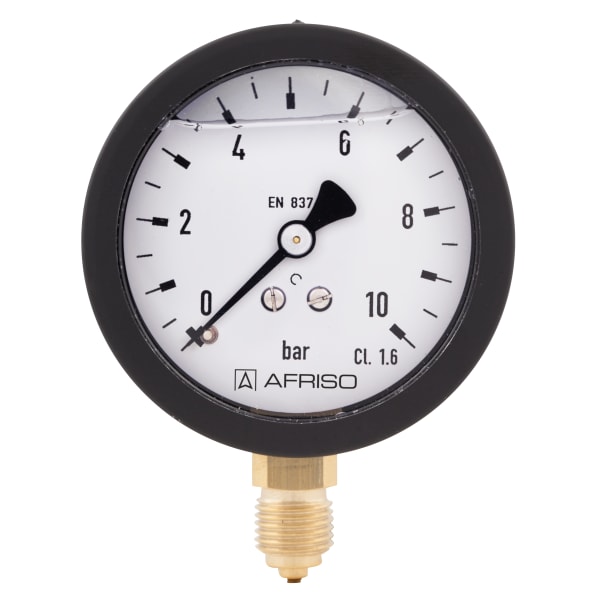

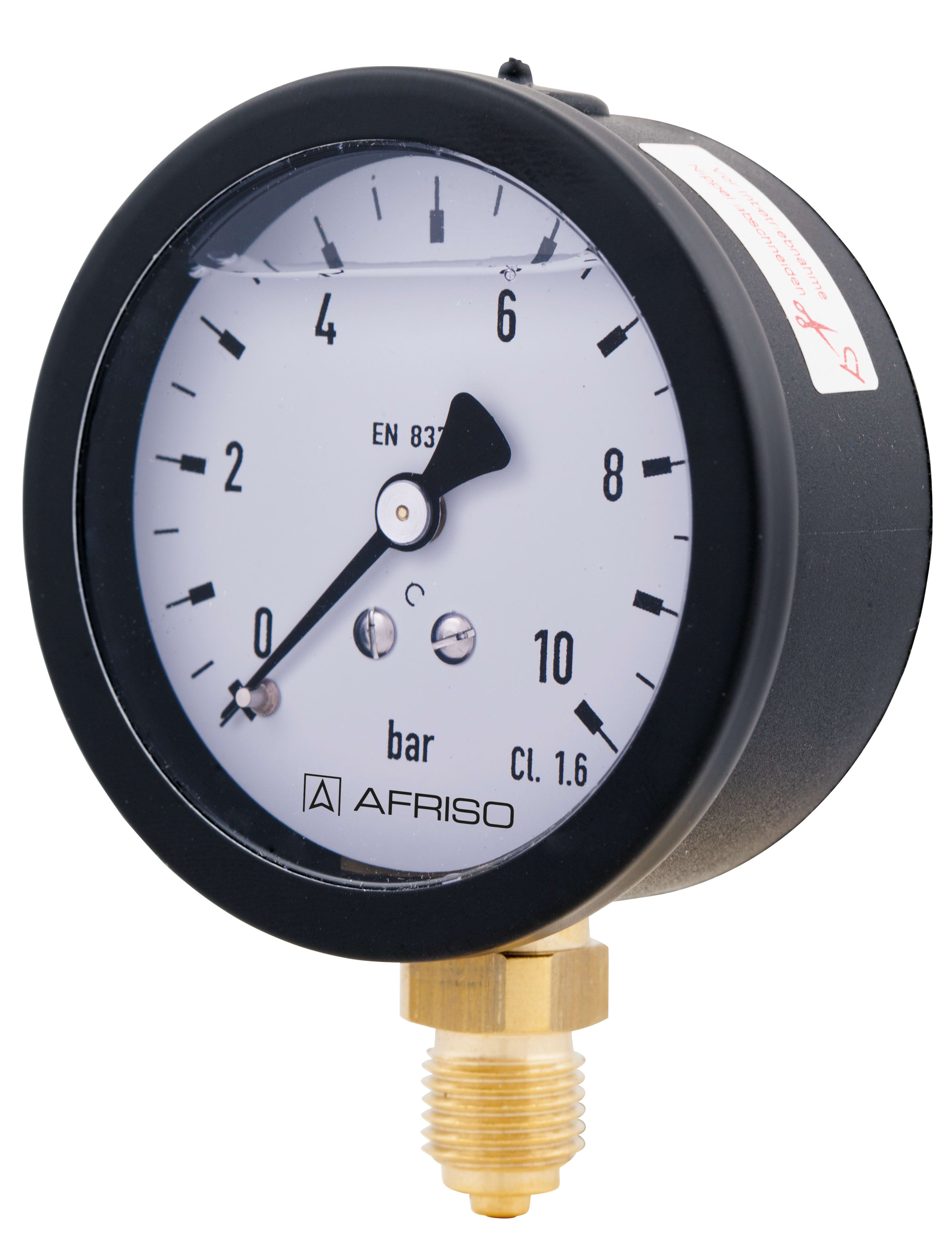

RF50Gly D601

Rohrfeder-Glyzerinmanometer Typ D6

Variants Documents

housing ⌀ (nominal size)50 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 bardirectRF50Gly D60185051601
-1/0.6 bardirectRF50Gly D60185052601
-1/+1.5 bardirectRF50Gly D60185053601
-1/+3 bardirectRF50Gly D60185054601
-1/+5 bardirectRF50Gly D60185055601
-1/+9 bardirectRF50Gly D60185056601
-1/+15 bardirectRF50Gly D60185057601
0/0.6 bardirectRF50Gly D60185059601
0/1 bardirectRF50Gly D60185060601
0/1.6 bardirectRF50Gly D60185061601
0/2.5 bardirectRF50Gly D60185062601
0/4 bardirectRF50Gly D60185063601
0/6 bardirectRF50Gly D60185064601
0/10 bardirectRF50Gly D60185065601
0/16 bardirectRF50Gly D60185066601
0/25 bardirectRF50Gly D60185067601
0/40 bardirectRF50Gly D60185068601
0/60 bardirectRF50Gly D60185069601
0/100 bardirectRF50Gly D60185070601
0/160 bardirectRF50Gly D60185071601
0/250 bardirectRF50Gly D60185072601
0/400 bardirectRF50Gly D60185073601
  • in-stock items
  • manufactured goods

Type
D6
Nominal size
50 - 50
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube, Copper alloy
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
NG 50: Aluminium, weiß
Scaling:
black
Pointer
NG 50: Aluminium, schwarz
Housing
NG 50: Polyamid, schwarz
with blow-out
crimped bezel
NG 50: Aluminium, schwarz
window
NG 50: Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

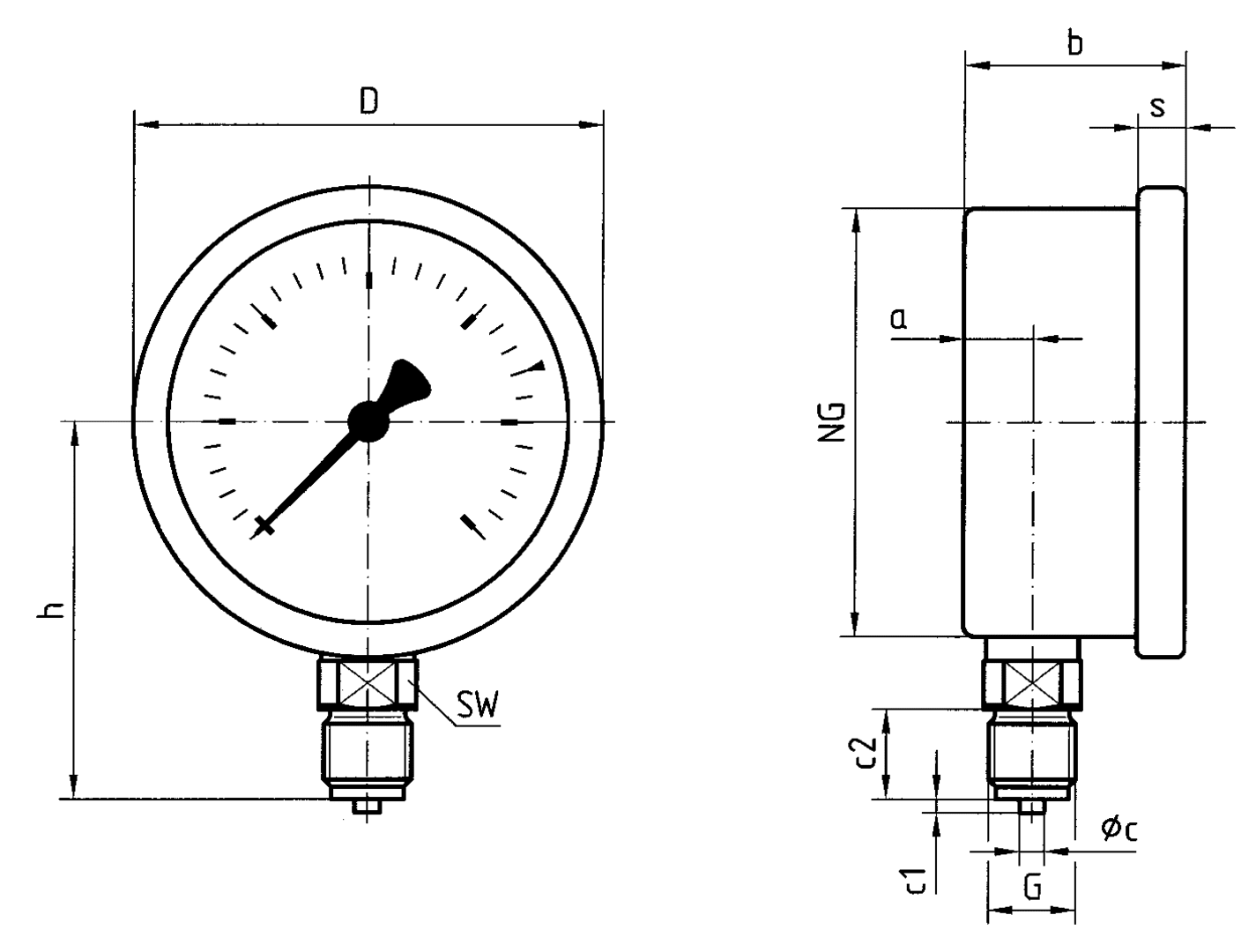

NG 50/63 – bottom connection
