RF50Gly D641

Rohrfeder-Glyzerinmanometer Typ D6

Variants Documents

housing ⌀ (nominal size)50 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-1

  • can be used in case of heavy vibrations and high, dynamic pressure loads
  • longer service life due to less wear and corrosion protection of the measuring system
  • No steaming up of the inside of the window in case of outdoor applications

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads.

RangeMounting typeTypePart number
-1/0 barclamp fixingRF50Gly D64185051641
0/1 barclamp fixingRF50Gly D64185060641
0/4 barclamp fixingRF50Gly D64185063641
0/6 barclamp fixingRF50Gly D64185064641
0/10 barclamp fixingRF50Gly D64185065641
0/16 barclamp fixingRF50Gly D64185066641
0/40 barclamp fixingRF50Gly D64185068641
0/100 barclamp fixingRF50Gly D64185070641
0/160 barclamp fixingRF50Gly D64185071641
0/250 barclamp fixingRF50Gly D64185072641
  • in-stock items
  • manufactured goods

Type
D6
Nominal size
50 - 50
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529) with housing vent (≤ 25 bar)

Standard design

Connection
Brass, centre back
Measuring element
Bourdon tube, Copper alloy
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
NG 50: Aluminium, weiß
Scaling:
black
Pointer
NG 50: Aluminium, schwarz
Housing
NG 50: Polyamid, schwarz
with blow-out
crimped bezel
NG 50: Aluminium, schwarz
window
NG 50: Kunststoff
filling liquid
glycerine (99.5 %)

Click the corresponding image for detail views, additional information and dimension tables.

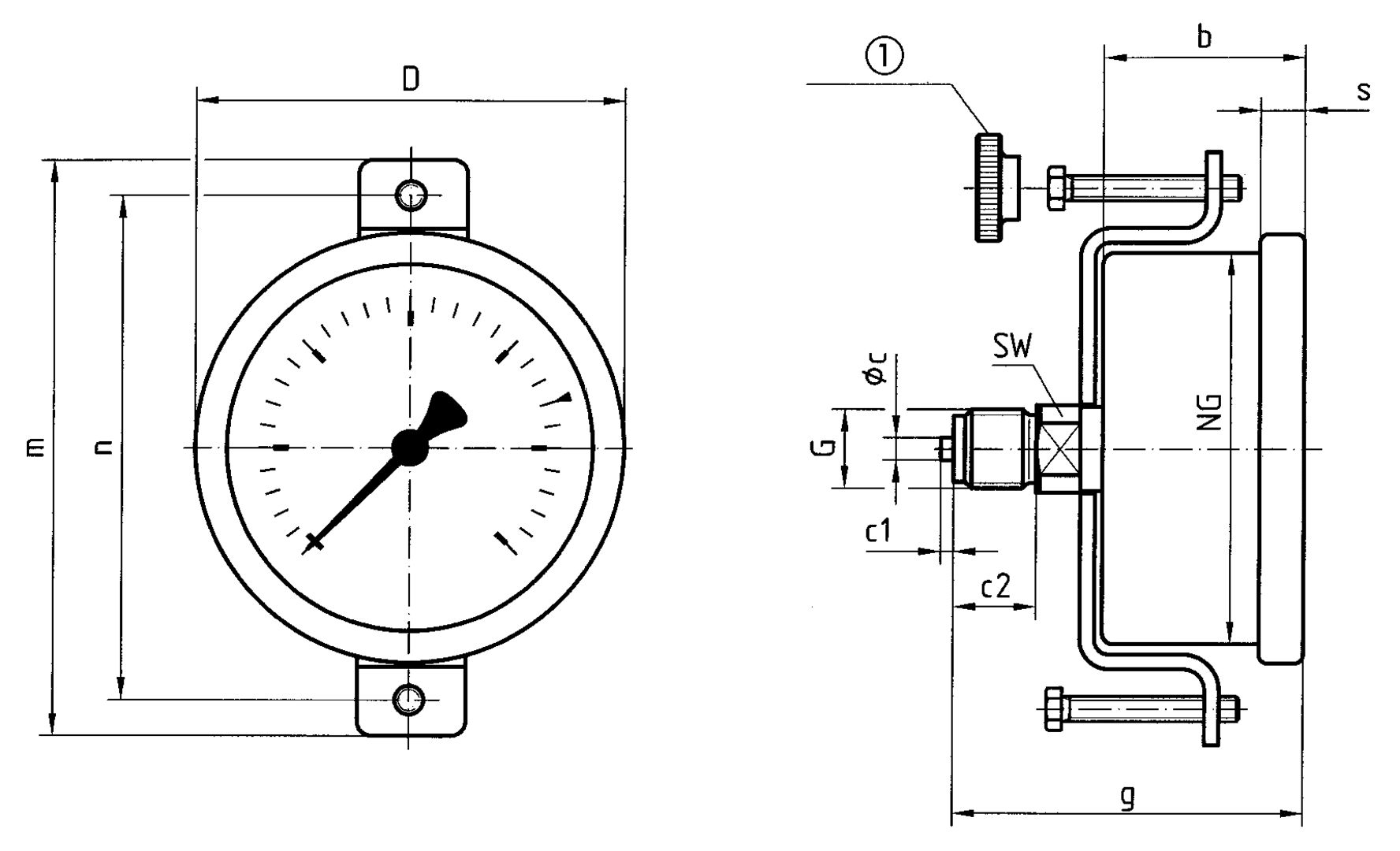

Centre back connection, with clamp fixing
