RF80 D101

Rohrfeder-Standardmanometer Typ D1

Variants Documents

housing ⌀ (nominal size)80 mm
ConnectionG½B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • for pneumatic and heating system applications
  • Design as per EN 837-1
  • Accuracy class 1.6
  • corrosion-resistant, highly impact-resistant plastic housing
  • many customised versions available

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!

RangeMounting typeTypePart number
-1/0 bardirectRF80 D10185151101
-1/0.6 bardirectRF80 D10185152101
-1/+1.5 bardirectRF80 D10185153101
-1/+3 bardirectRF80 D10185154101
-1/+5 bardirectRF80 D10185155101
-1/+9 bardirectRF80 D10185156101
-1/+15 bardirectRF80 D10185157101
0/0.6 bardirectRF80 D10185159101
0/1 bardirectRF80 D10185160101
0/1.6 bardirectRF80 D10185161101
0/2.5 bardirectRF80 D10185162101
0/4 bardirectRF80 D10185163101
0/6 bardirectRF80 D10185164101
0/10 bardirectRF80 D10185165101
0/16 bardirectRF80 D10185166101
0/25 bardirectRF80 D10185167101
0/40 bardirectRF80 D10185168101
0/60 bardirectRF80 D10185169101
0/100 bardirectRF80 D10185170101
0/160 bardirectRF80 D10185171101
0/250 bardirectRF80 D10185172101
0/400 bardirectRF80 D10185173101
  • in-stock items
  • manufactured goods

Type
D1
Nominal size
80 - 80
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
Brass, bottom
Measuring element
Bourdon tube, Copper alloy
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
movement
Brass
Dial
Kunststoff, weiß
Scaling black
Pointer
Kunststoff, schwarz
Housing
ABS, schwarz, highly impact-resistant and corrosion-resistant
window
Kunststoff, eingeclipst
NG 80: with adjustable red reference pointer

Click the corresponding image for detail views, additional information and dimension tables.

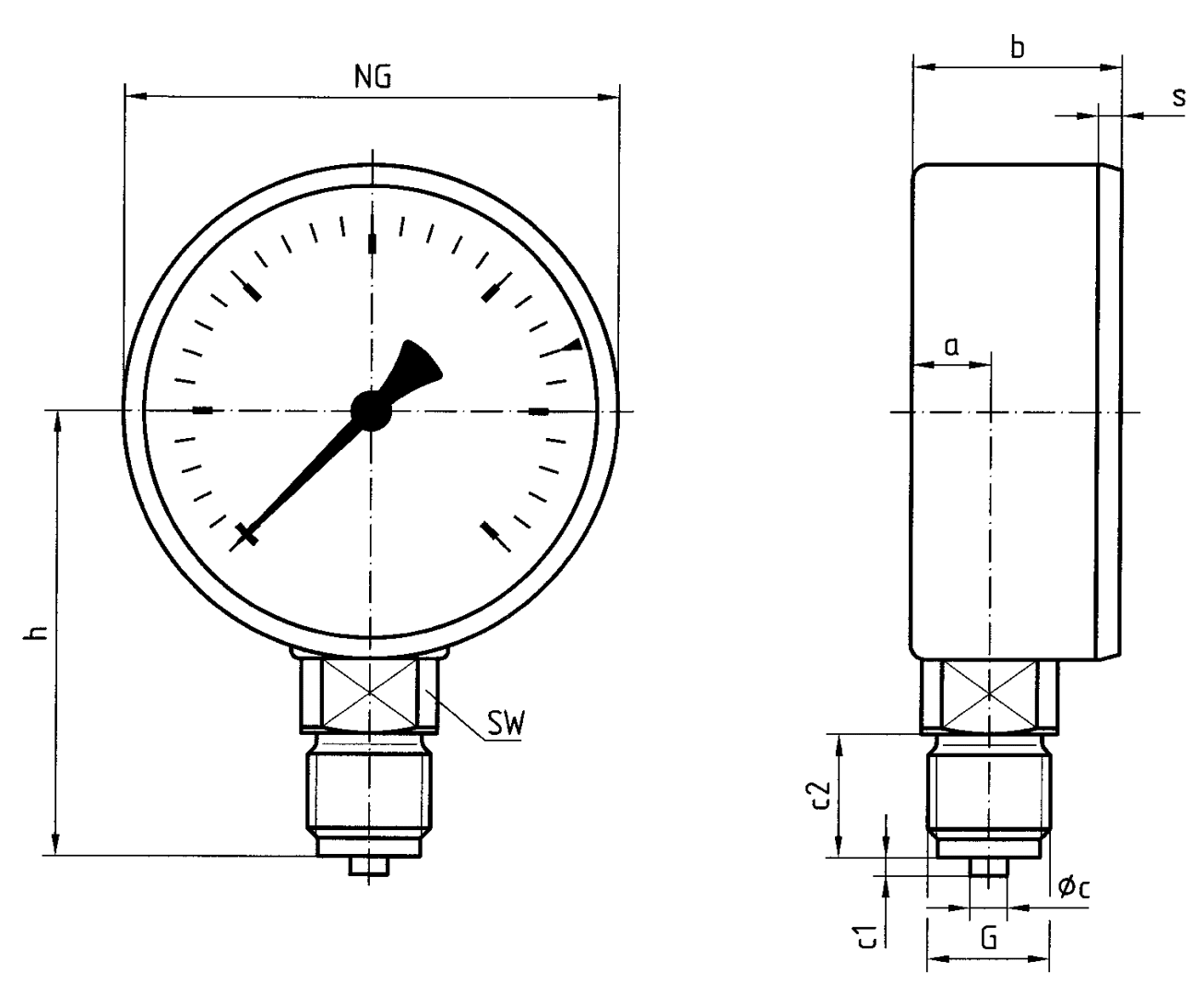

NG 80 – bottom connection
